Rating:
(0)
  • Type of shredder : Rear shredder
  • Cutting type : Hammer
  • Working width PTO : 125 - 165 cm
  • Tractor power : 30 - 60 HP
En stock
icon Shredder type
Shredder type
Shredder with side arm
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
125 - 165 cm
icon Tractor power
Tractor power
30 - 60 HP
icon Cardan shaft
Cardan shaft
Included
icon Type of coupling
Type of coupling
Pantograph displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Medium
icon Number of hammers
Number of hammers
20 - 28
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
250 - 310 kg
€2,538.89 excl. VAT
- 4%
€2,437.33 excl. VAT
€2,949.17 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


PTO Side Arm Shredder Giemme BCL 140 - 220 cm
€2,949.17
Select
Qty

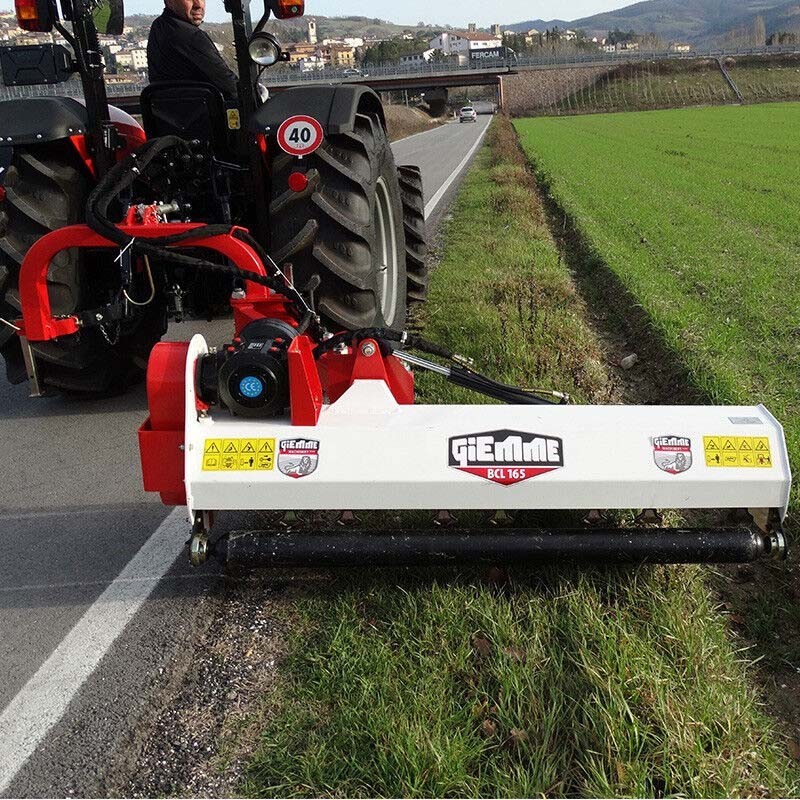

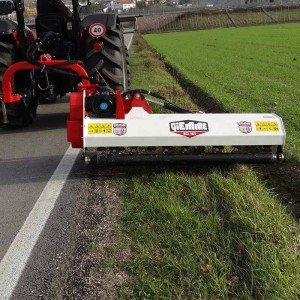

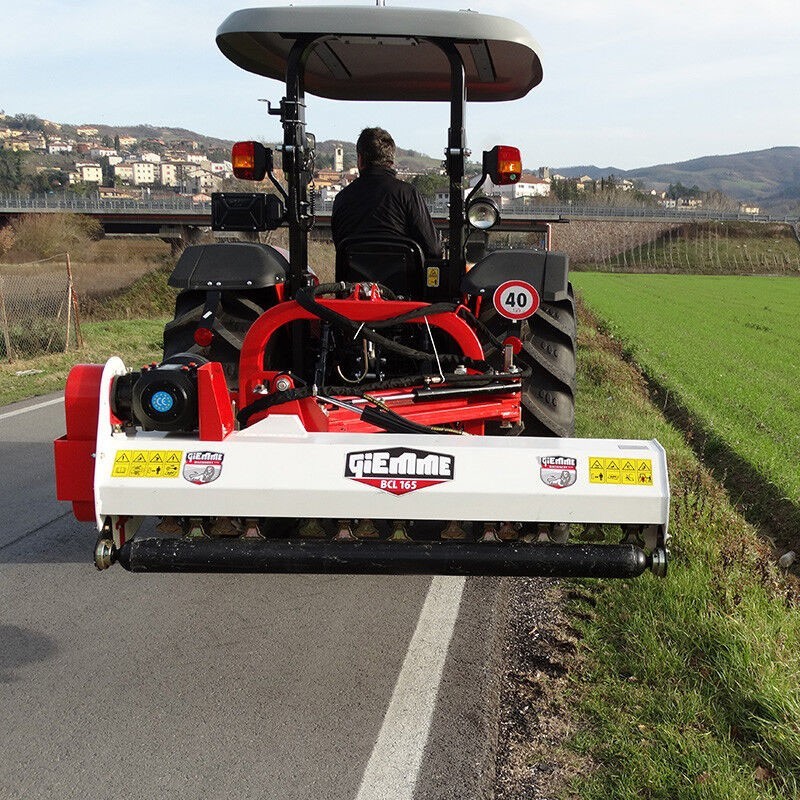

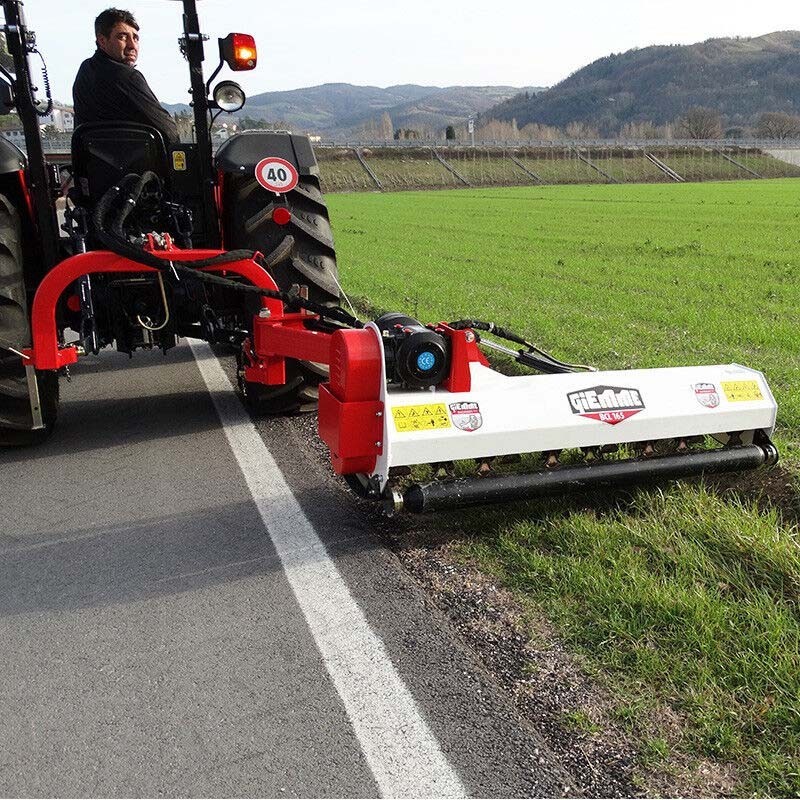

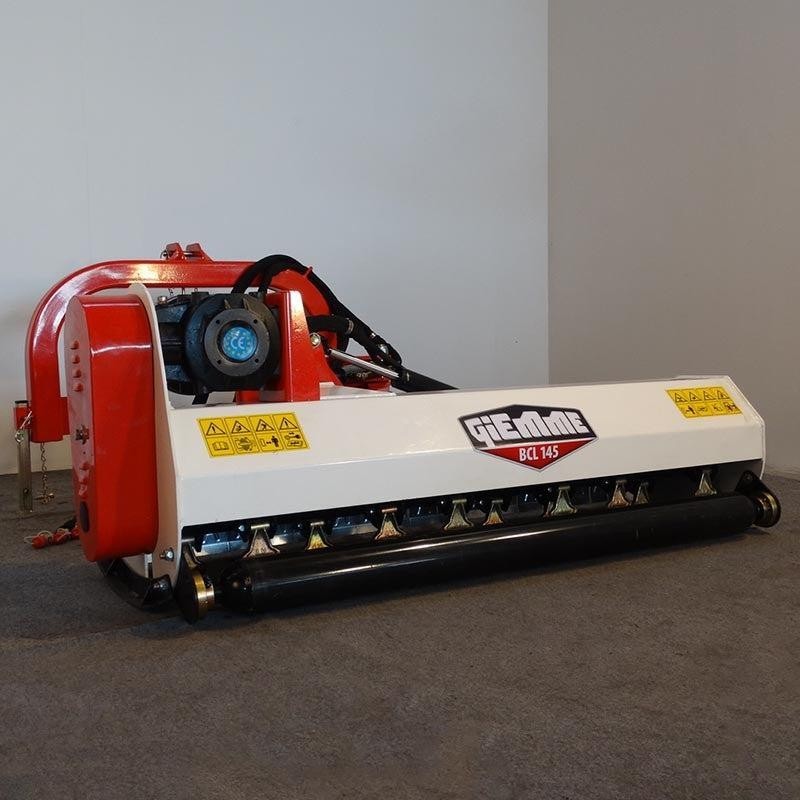

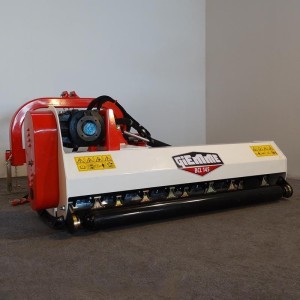

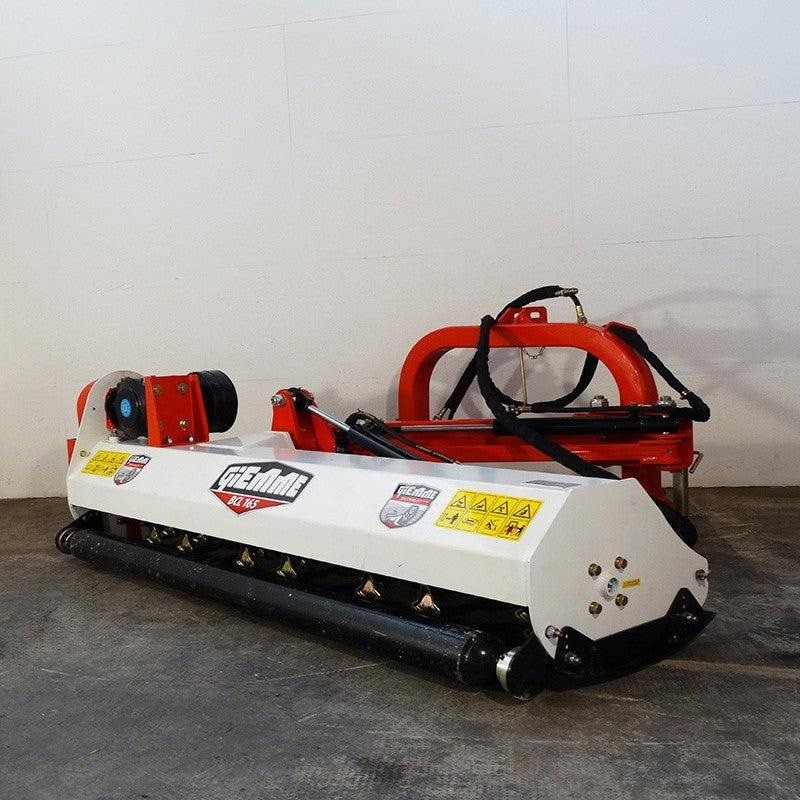

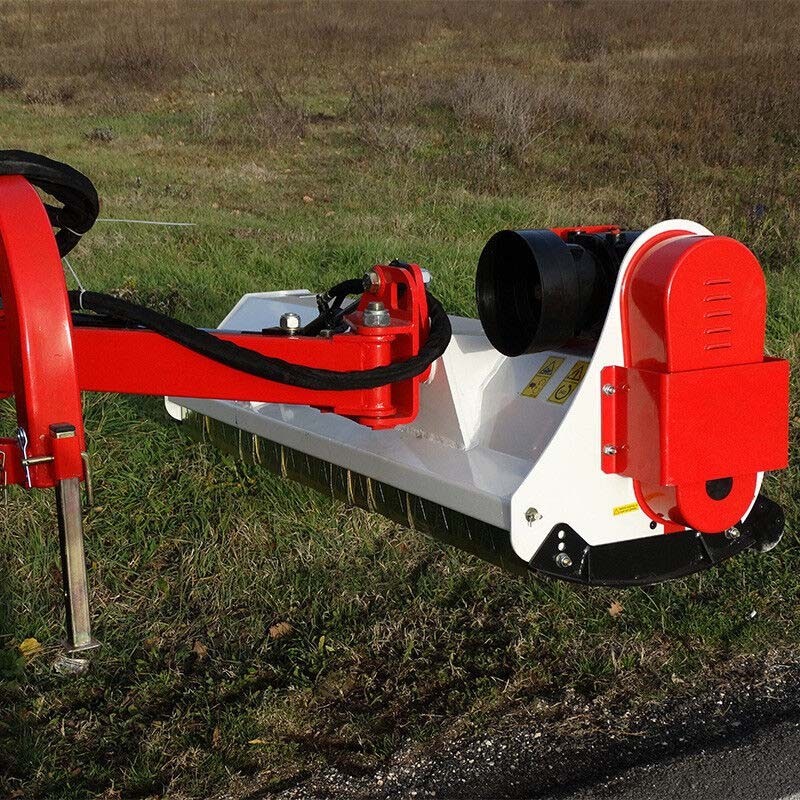

Giemme BCL Side arm shredder for tractors

The Giemme BCL mulcher is a versatile and robust agricultural tool, designed for maintenance work in fields and green areas. Equipped with a "COMER" cast iron gearbox with freewheel at 540 rpm, this shredder guarantees reliable and long-lasting performance.

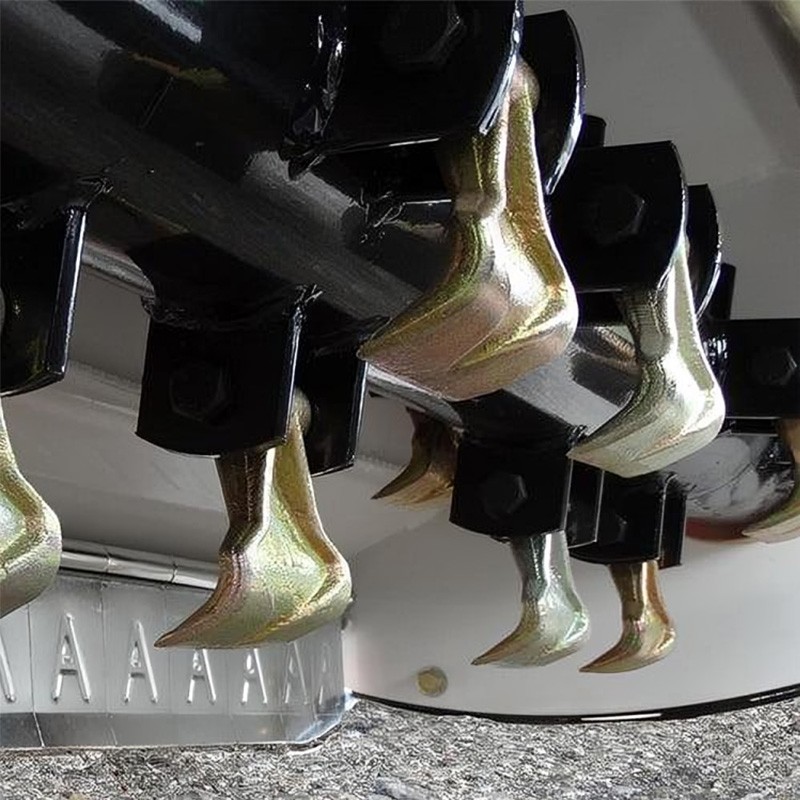

Its electronically balanced rotor allows the use of 0.450 kg hammers or Y-shaped blades, providing greater efficiency in shredding plant materials.

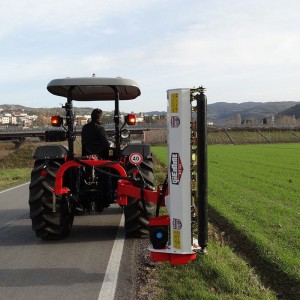

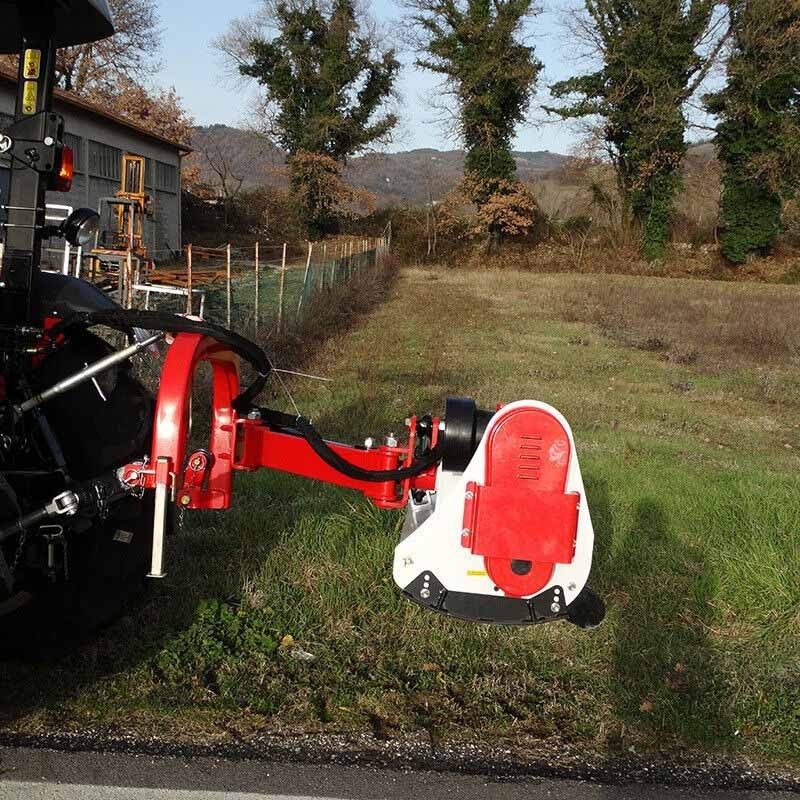

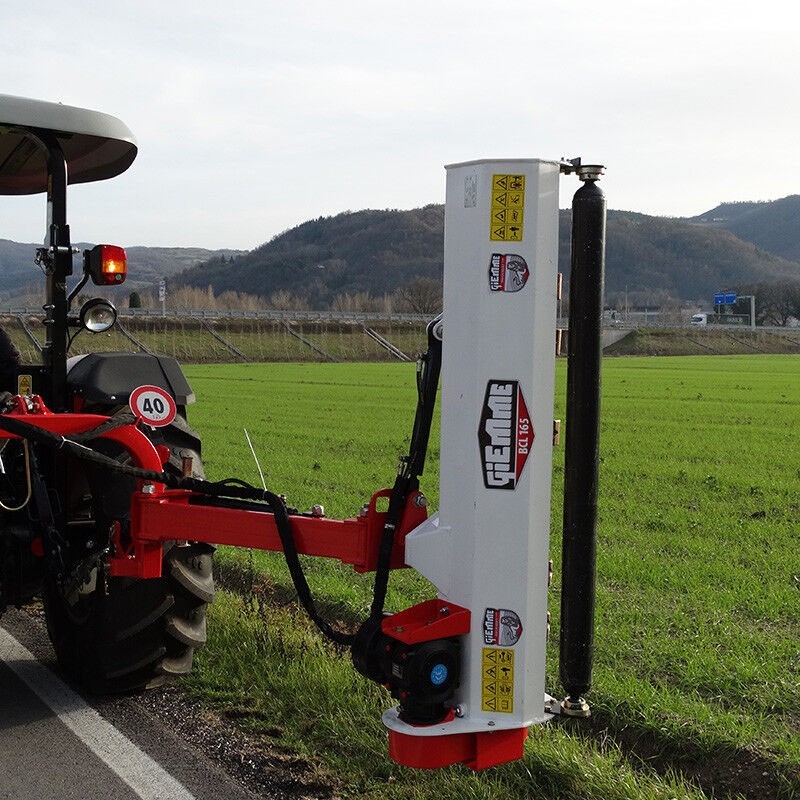

This machine has a hydraulic inclination of the shredding head, ranging from +90° to -55°, facilitating access and work on uneven or difficult to access terrain.

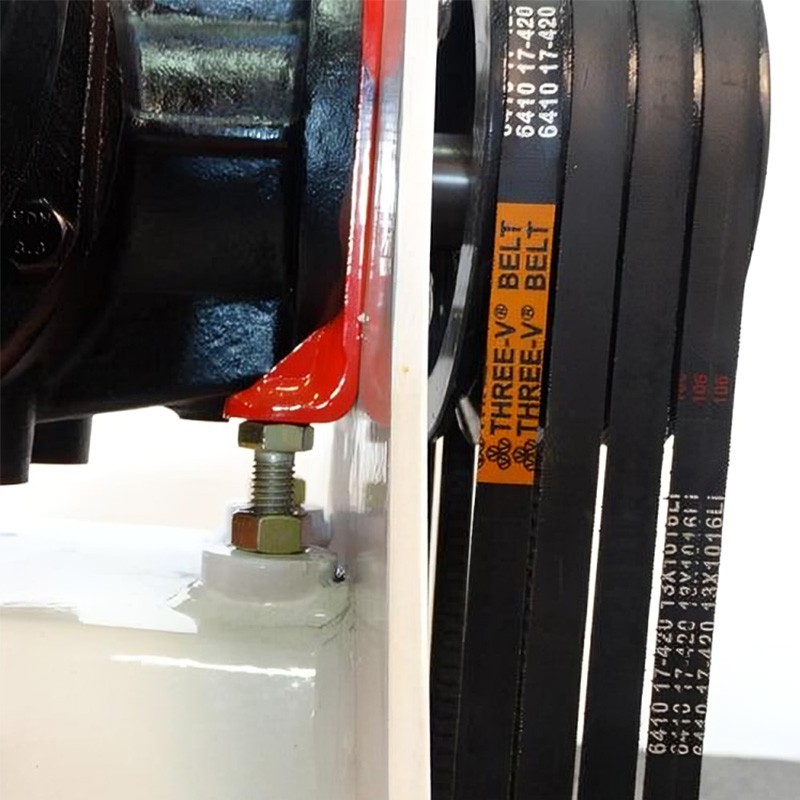

In addition, the mechanical anti-collision safety system and the adjustable tensioner ensure safe and adaptable operation in various working conditions.

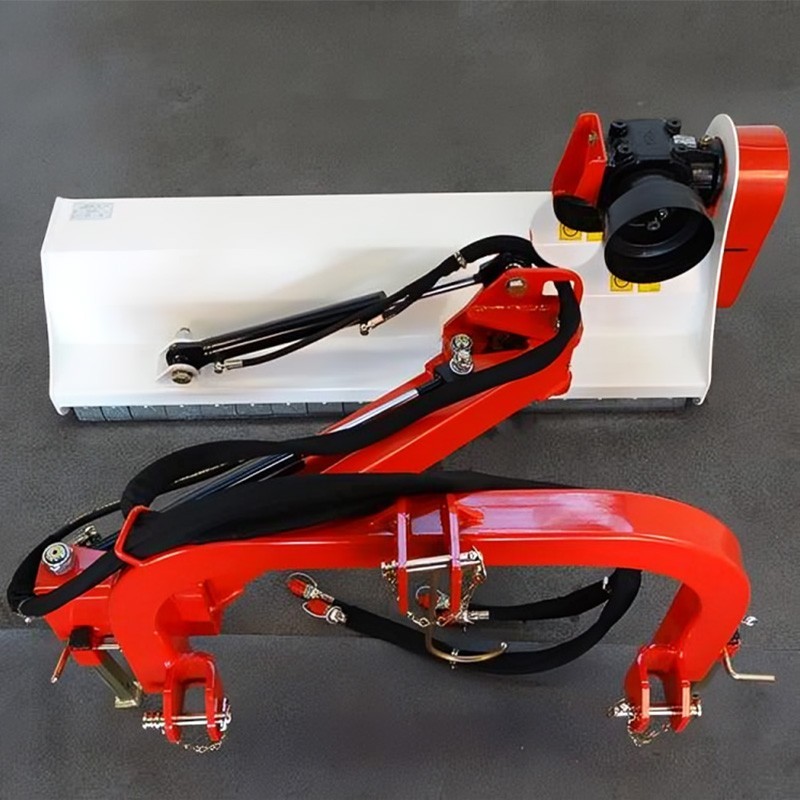

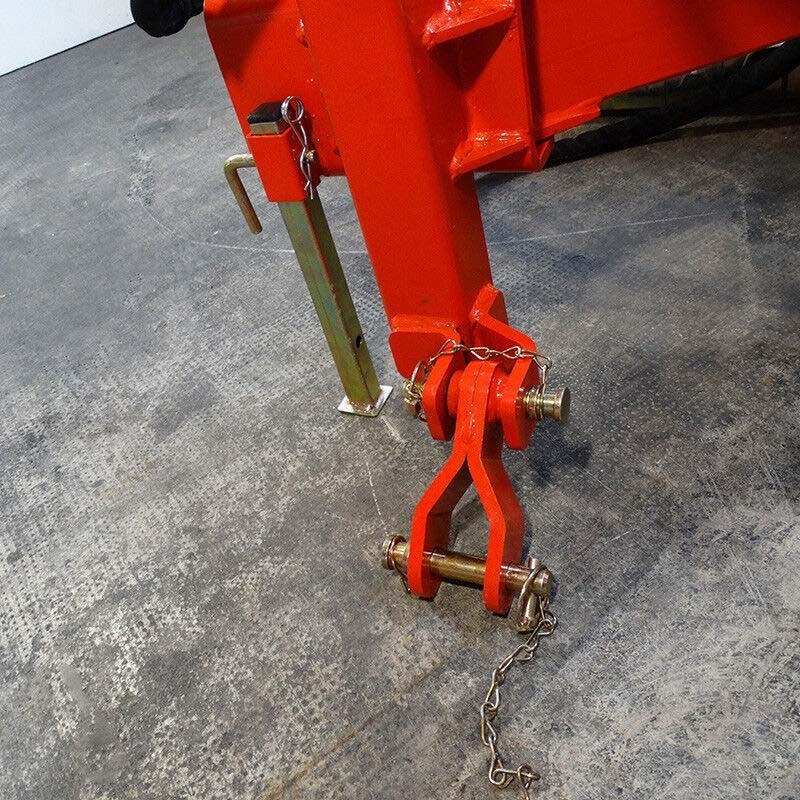

Height-adjustable side slides and protective front bulkheads add an extra layer of safety and precision, while its universal Cat I 3-point hitch and 1400 mm T4 universal joint ensure easy connection and compatibility with a wide range of tractors.

Features

Model BCL 125 BCL 145 BCL 165
Working width 125 cm 145 cm 165 cm
Total width 138 cm 158 cm 178 cm
Tractor power 30/55 HP 35/60 HP 50/60 HP
Weight 250 kg 280 kg 310 kg
Hammers 20 24 28
Belts 3 4 4
Minimum tractor weight 700 kg 800 kg 900 kg

Hydraulic head movement

angulación

Travel dimensions

dimensiones
Model BCL 125 BCL 145 BCL 165
A 81 cm 81 cm 81 cm
B 62 cm 82 cm 102 cm
C 142 cm 162 cm 182 cm
D 134 cm 134 cm 134 cm
Y 176 cm 196 cm 216 cm
F 130 cm 130 cm 130 cm

IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
This tractor shredder includes a hammer cutting system. You also have the option of ordering a blade system by calling our customer service department.
261056

Data sheet

Shredder type
Shredder with side arm
Type of cut
Hammers
Working width PTO
125 - 165 cm
Tractor power
30 - 60 HP
Cardan shaft
Included
Type of coupling
Pantograph displacement
Displacement
Hydraulic
Robustness
Medium
Number of hammers
20 - 28
Working width (cm)
120 - 129 cm
140 - 149 cm
160 - 169 cm
Country of manufacture
Italy
Weight
250 - 310 kg

Specific References

mpn
M1.V5.BCL1
New

✔️ Advantages of making purchases in the Spanish territory

  • National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
  • Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.

❌ Disadvantages of buying outside Spanish territory

  • Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
  • Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
  • Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.
