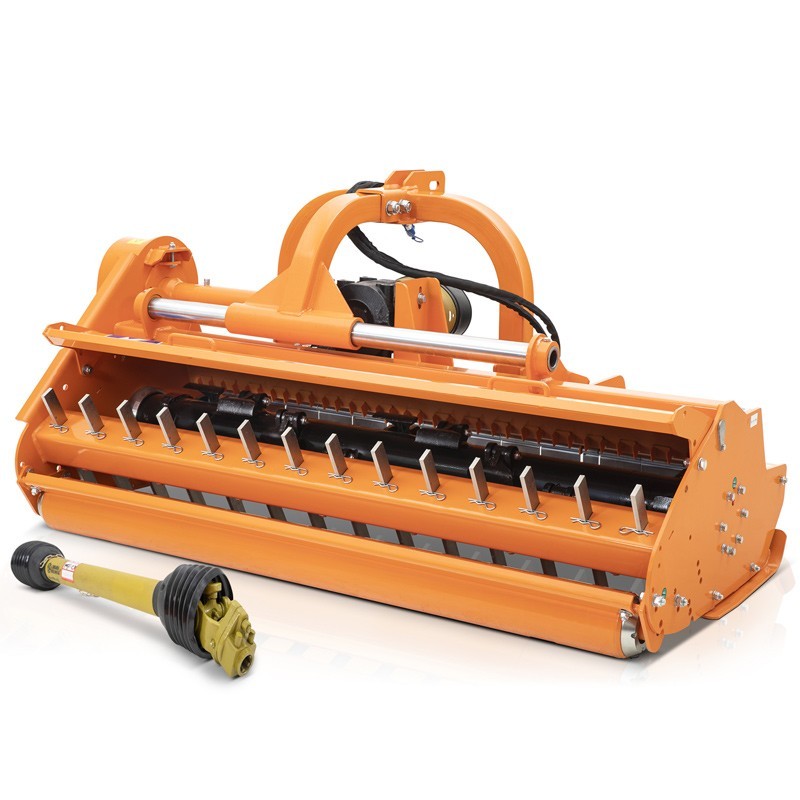

Hammer crusher for tractor Deleks TORO-240
The Hammer crusher Deleks TORO-240 It is specially designed for tractors with a power of 70-120HP. This shredder model is used for cutting grass, pruning olive trees, and for vineyards.
The model Deleks TORO-240It features a robust chassis for use in fields and orchards. This model is adapted for mowing the lawn and also for pruning olive trees and vineyard shoots.
This Crusher of Deleks also includes a universal 3-point hitch of CAT 2. This is compatible with all tractors. As for its features, we can highlight its good Lombarda Ingranaggi transmission box.Manufactured in ITalia. This comes with a freewheel.
The TORO-240 Shredder comes with CE gimbal included, it also includes 170mm rotor bearings that are electronically balanced. The implement can be used on tractors with power in gardens and orchards. This is thanks to its weight of 730kg.
This model ofCrusher of hammers Deleks It guarantees the operator good comfort and ease of work. This is thanks to its notable features.
Among these features, we can highlight the working width of 2400mm and the total width of 2550mm. We can also highlight the adjustable cutting height from 10 to 75mm and the total height of 990mm.
Characteristics
| Working width |
2400 mm |
| Total width |
2550 mm |
| Minimum/maximum cutting height |
10 - 75 mm |
| Weight |
770 kg |
| Total height |
990 mm |
| Tractor power |
70 - 120 hp |
| Three-point hitch |
Cat. 2 (ø 25.0-28.0 mm) |
| Position of the transmission box |
1000 mm from the left side / 1400 mm from the right side. |
| Height of the hood |
550 mm |
| Distance between the lower points |
735 - 890 mm |
| Number of hammers |
22 (or 66 knives) |
| Maximum cutting diameter |
50-60 mm |
| Total length |
1100 mm |
| Space between the ground and the transmission box |
580 mm |
| Thickness of the sheet |
5.0 mm |
| Thickness of the sheet on the sides |
10 mm |
| Thickness of the skates |
12 mm |
| Type of transmission |
Correas V |
| Transmission: Gearbox |
Lombarda Gears (3-year Warranty) |
| Transmission: PTO |
540 rpm (revolutions per minute) |
| Transmission: direction of rotation |
Schedule |
| Transmission: freewheel |
√ |
| Transmission: rotor speed |
2403 rpm |
| Transmission: gearbox oil |
Yes / SAE 120 - ISO 72925 |
| Transmission: diameter of the upper pulley |
230 mm |
| Transmission: diameter of the lower pulley |
155 mm |
| Transmission: number of cores |
5 |
| Transmission: dimensions of the Koreas |
17x1300 |
| Rotor: diameter |
170 mm |
| Rotor: type of bearings and dimension |
1309 |
| Rotor: balancing |
Electronic |
| Rotor: blade thickness |
10 mm |
| Hammers: weight |
1100 g |
| Hammers: ø hole |
16 mm |
| Hammers: base width |
140 mm |
| Hammers: head width |
40 mm |
| Hammers: diagonal |
97 mm |
| Roll: diameter |
152 mm |
| Roll: sheet thickness |
6 mm |
| Roll: type of bearings and dimension |
6308 |
| Cardan |
CE 8x1300 mm + Pin |
| Length of the hood |
1000 mm |
| Horizontal displacement |
500 mm hydr. |
| Packaging dimension |
2650*1150*950 mm |
| IMPORTANT NOTICE |
|
| Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
