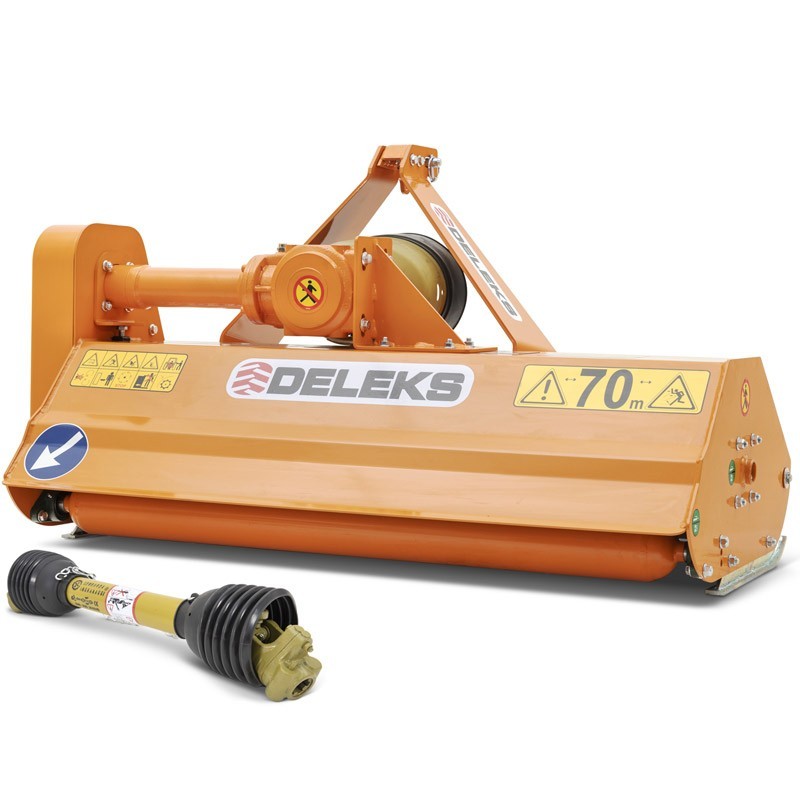

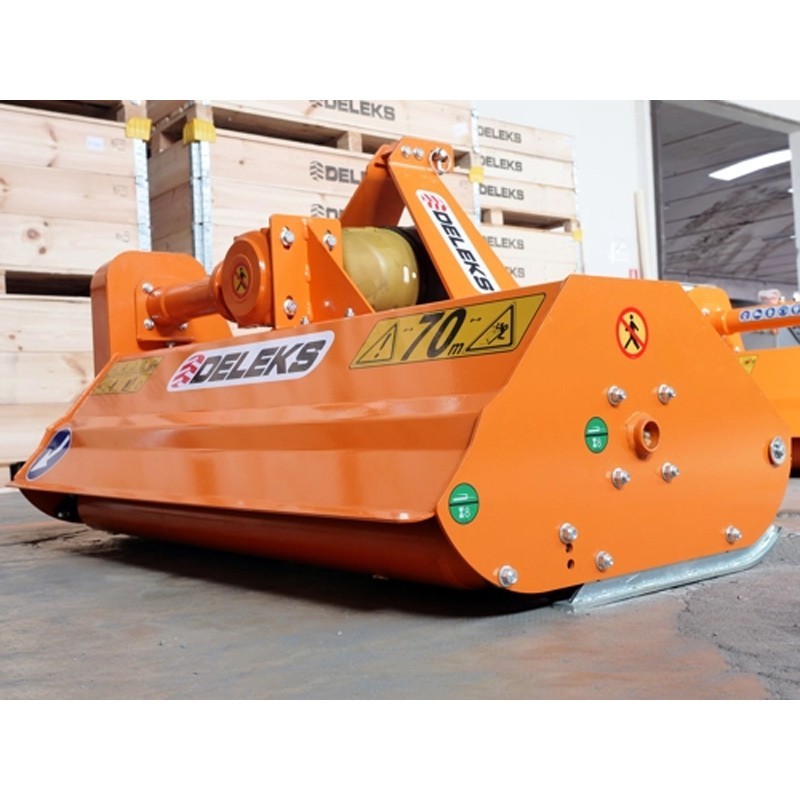

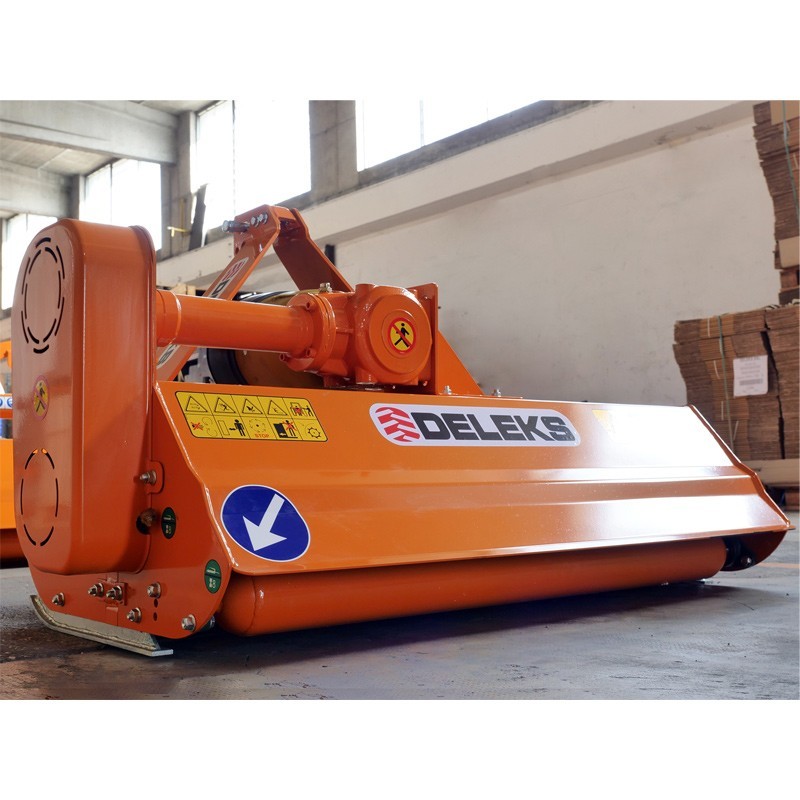

The Hammer crusher Deleks LYNX-140 It is specially designed for tractors with low power of 20 to 40 HP. This shredder model is used for gardens and agricultural fields.

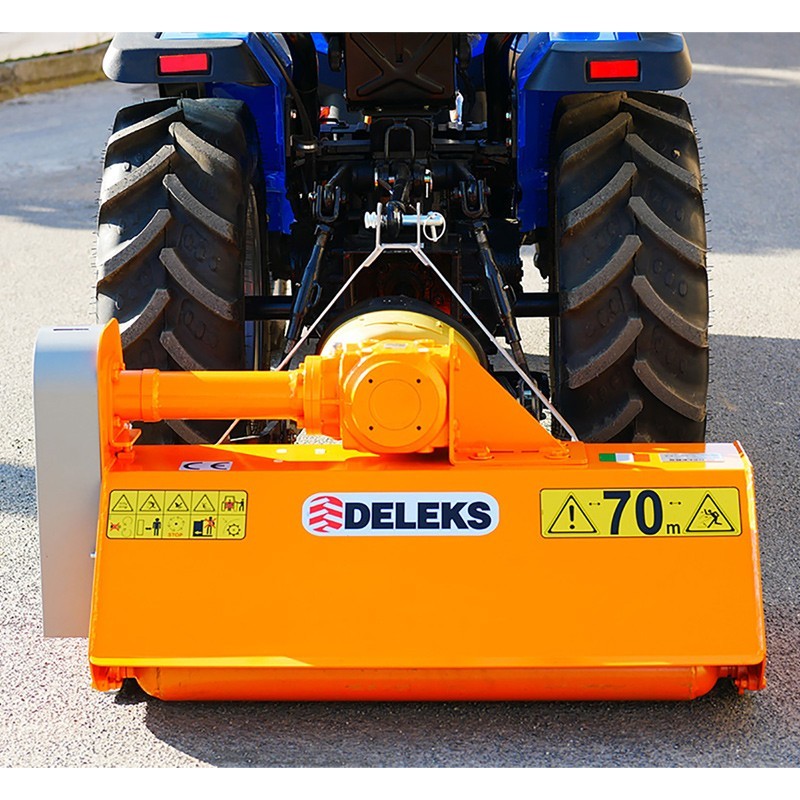

The model Deleks LYNX-140 It features forged hammers for grass and small brambles. It has an adjustable cutting height thanks to the rear roller and adjustable skids. It also includes a CAT 1 universal 3-point hitch.

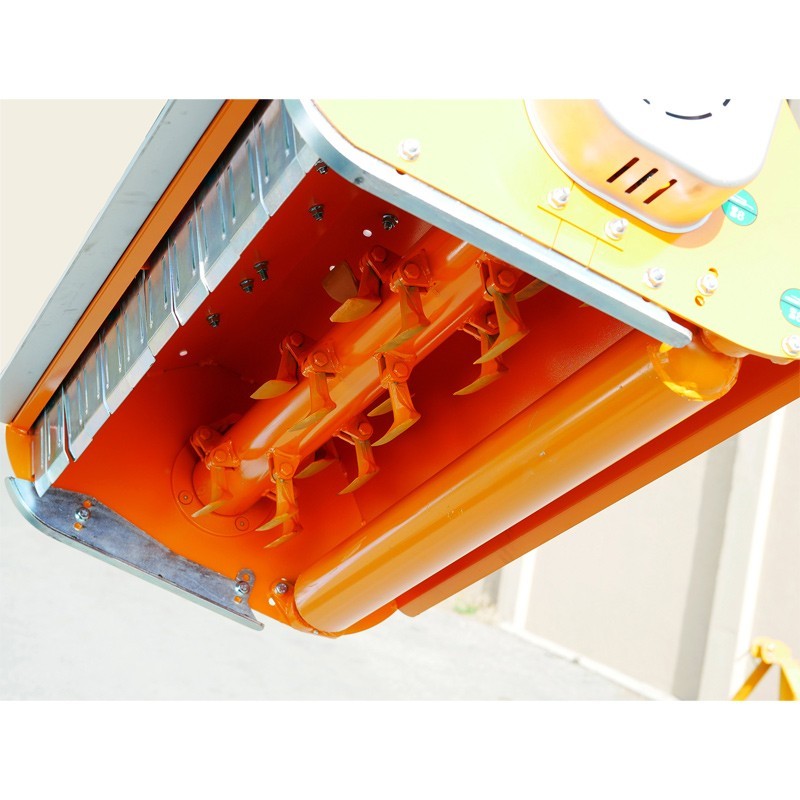

As for its features, we can highlight its good structure completely in Swedish steel SSAB. It also offers us a Rotor manufactured with ARVEDI tube (Cremona) electronically balanced. This is made of S355 steel with a thickness of 8mm and hammers mounted on 6 rows.

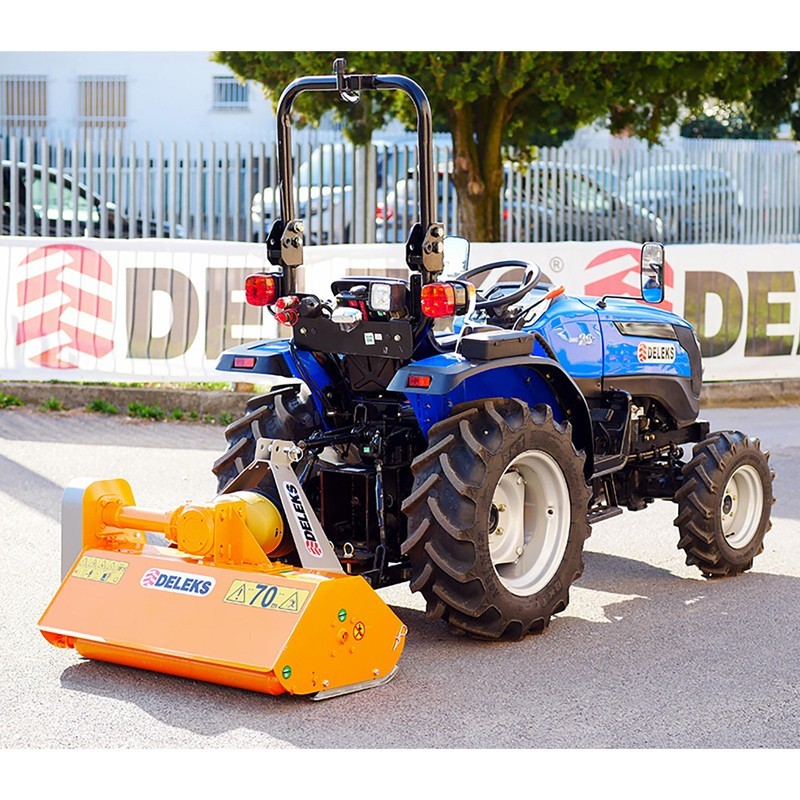

The Hammer crusher Deleks LYNX-140 comes with CE gimbal included, it also includes hammer supports in HARDOX. The implement can be used on low-power tractors in gardens and orchards thanks to its light weight of 180kg.
This model of hammer crusher Deleks It guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these features, we can highlight the working width of 1400mm and the total width of 1520mm. We can also highlight the adjustable cutting height from 10 to 45 mm and the total height of 750mm. It has a transmission box. Lombarda GearsWith a freewheel.
| Working width | 1400 mm |
| Total width | 1520 mm |
| Minimum/maximum cutting height | 10 - 45 mm |
| Weight | 180 kg |
| Total height | 750 mm |
| Tractor power | 20 - 40 hp |
| Three-point hitch | Cat. 1 (ø 19.0-22.0mm) |
| Position of the transmission box | 748 mm from the left side / 773 mm from the right side. |
| Height of the hood | 358 mm |
| Distance between the lower points | 470 - 710 mm |
| Number of hammers | 24 |
| Maximum cutting diameter | 20 - 30 mm |
| Total length | 730 mm |
| Space between the ground and the transmission box | 472 mm |
| Thickness of the sheet | 3 mm |
| Thickness of the sheet on the sides | 5 mm |
| Thickness of the skates | 6 mm |

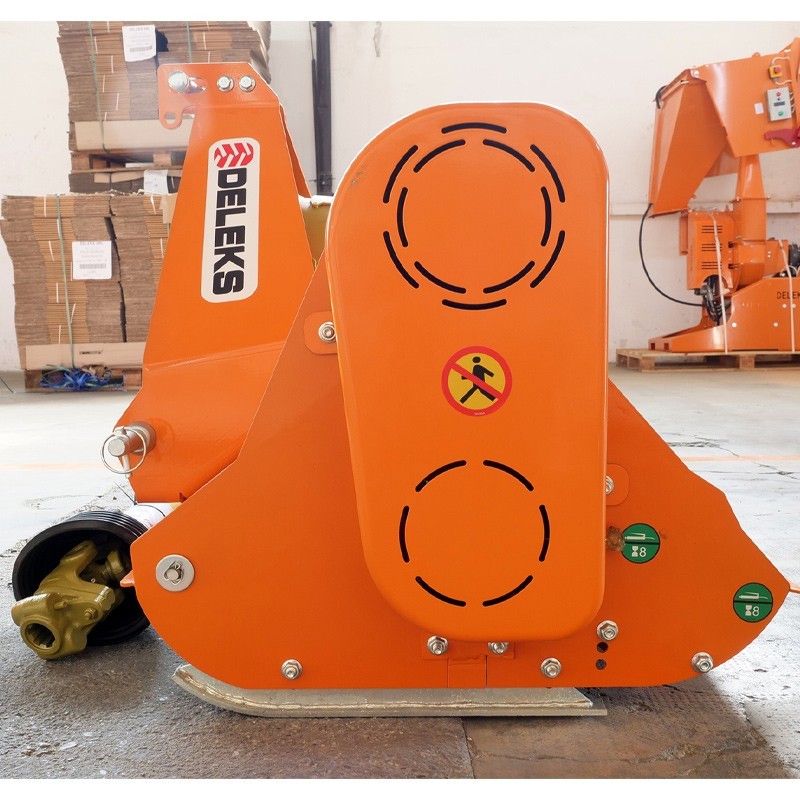

| Type of transmission | Correas V |

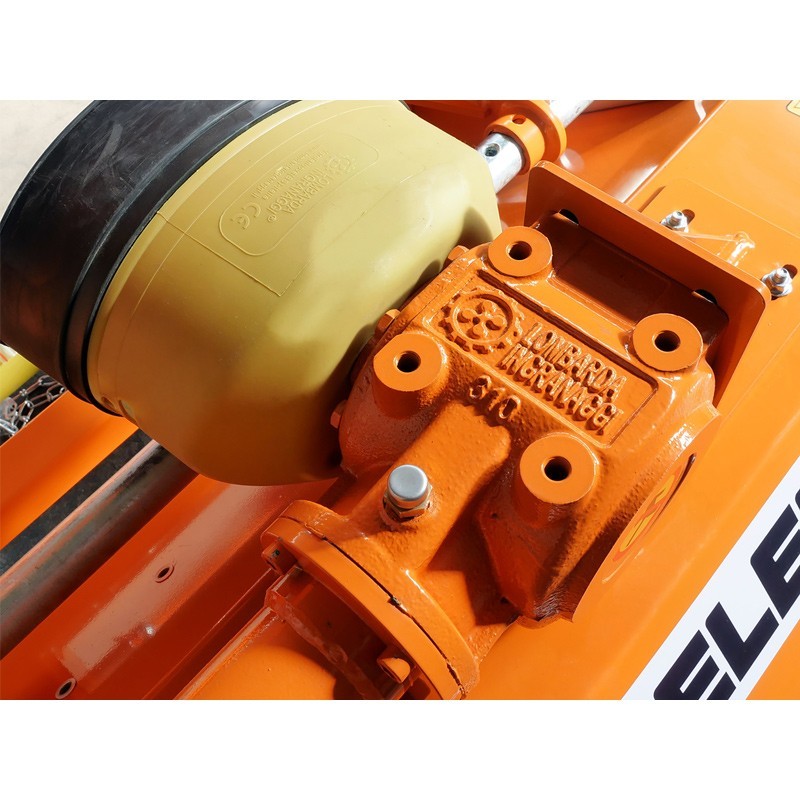

| Transmission: Gearbox | Lombarda Ingranaggi Srl (Italy) |
| Transmission: PTO | 540 rpm (revolutions per minute) |
| Transmission: direction of rotation | Schedule |
| Transmission: freewheel | √ |
| Transmission: rotor speed | 3150 rpm |
| Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
| Transmission: diameter of the upper pulley | 206 mm |
| Transmission: diameter of the lower pulley | 106 mm |
| Transmission: number of cores | 3 |
| Transmission: dimensions of the Koreas | AX39 |
| Rotor: diameter | 102 mm |

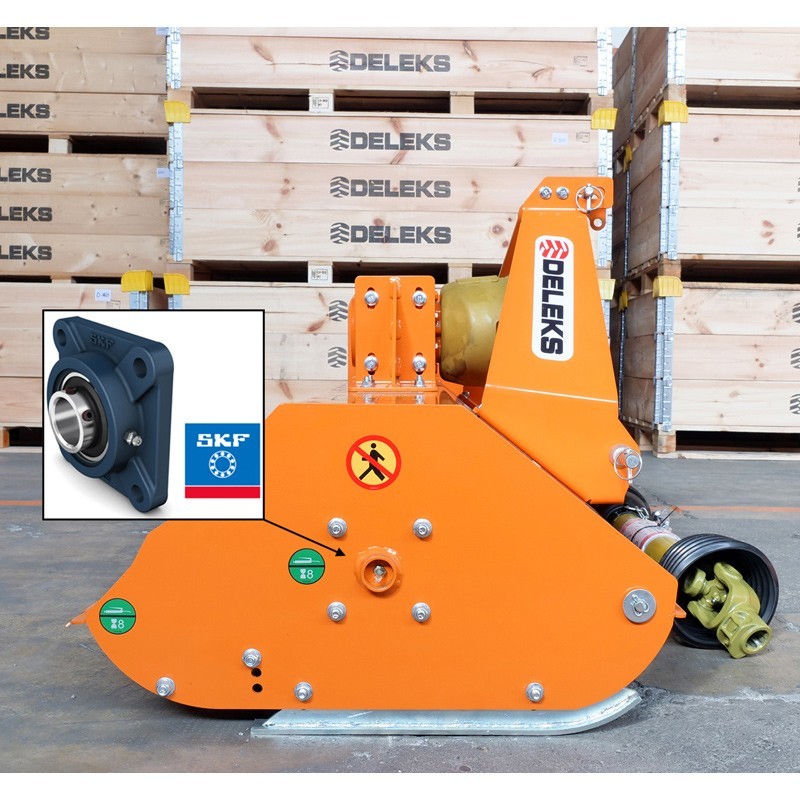

| Rotor: type of bearings and dimension | SKF UCF-207 |
| Rotor: balancing | Electronic |
| Rotor: blade thickness | 8 mm |
| Hammers: weight | 330 g |
| Hammers: ø hole | 11 mm |
| Hammers: base width | 80 mm |
| Hammers: head width | 14 mm |
| Hammers: diagonal | 75 mm |
| Roll: diameter | 102 mm |
| Roll: sheet thickness | 5 mm |
| Roll: type of bearings and dimension | FL205 |

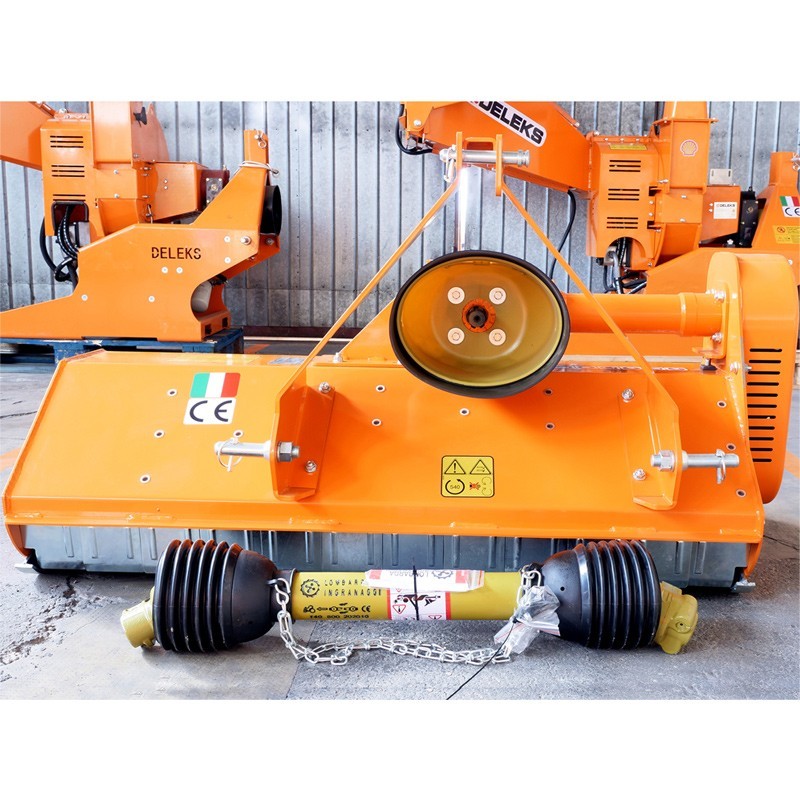

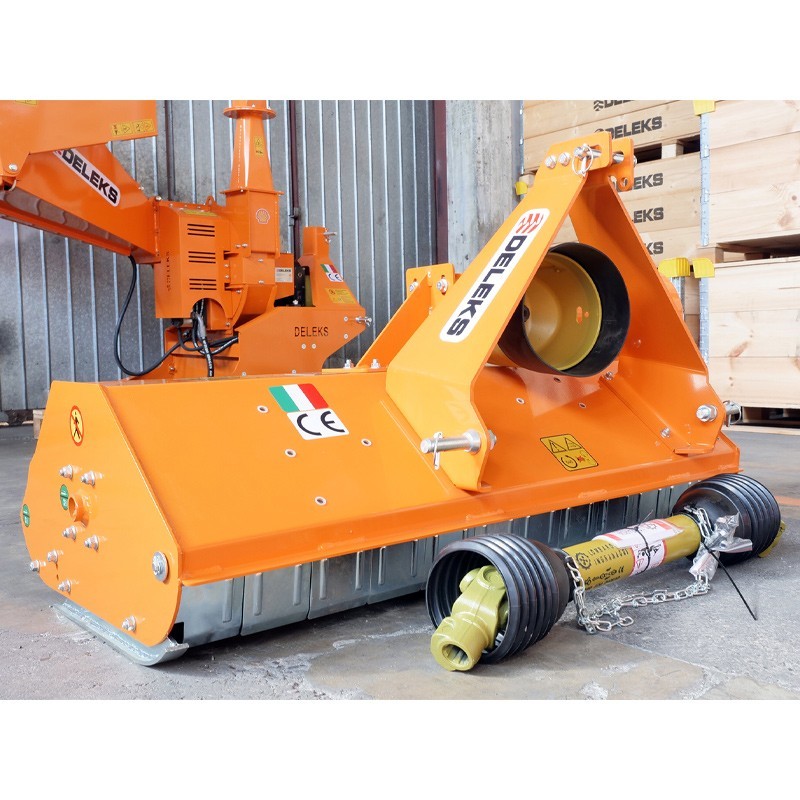

| Cardan | CE 4x800 mm |
| Length of the hood | 665 mm |
| Horizontal displacement | - |
| Packaging dimension | 1550*850*700 mm |
| IMPORTANT NOTICE |
| Mandatory on the part of the client, check oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
