Hammer crusher for tractor Deleks LEOPARD-160 40-70HP
- Tractor power: 40 - 70 HP
- Cutting height: 10 - 45 mm
- Total width: 1740.5 mm
- Number of hammers: 24
€2,447.27 VAT incl.
Cardan shaft included

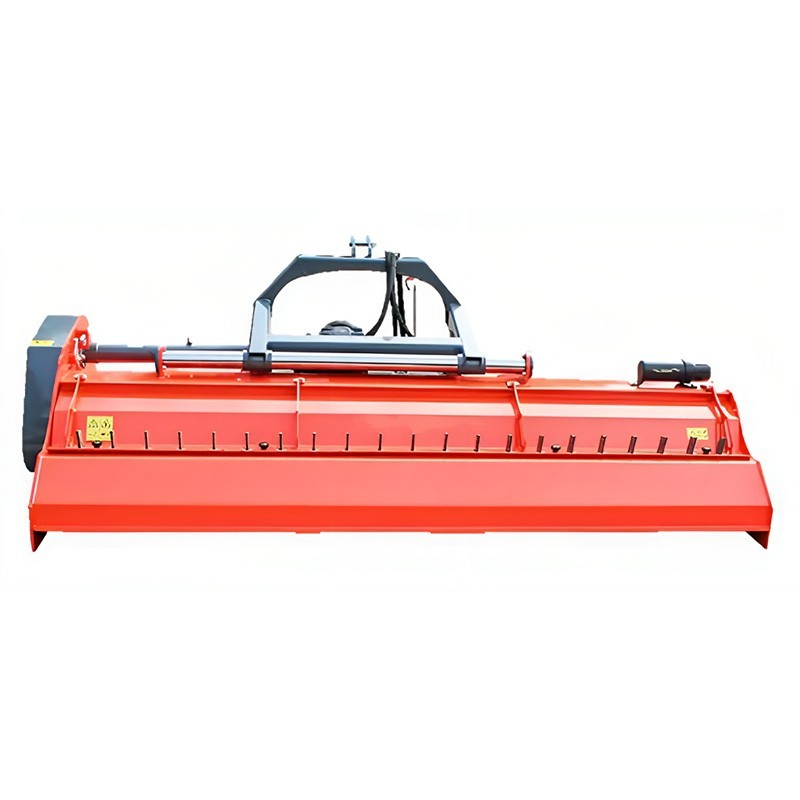

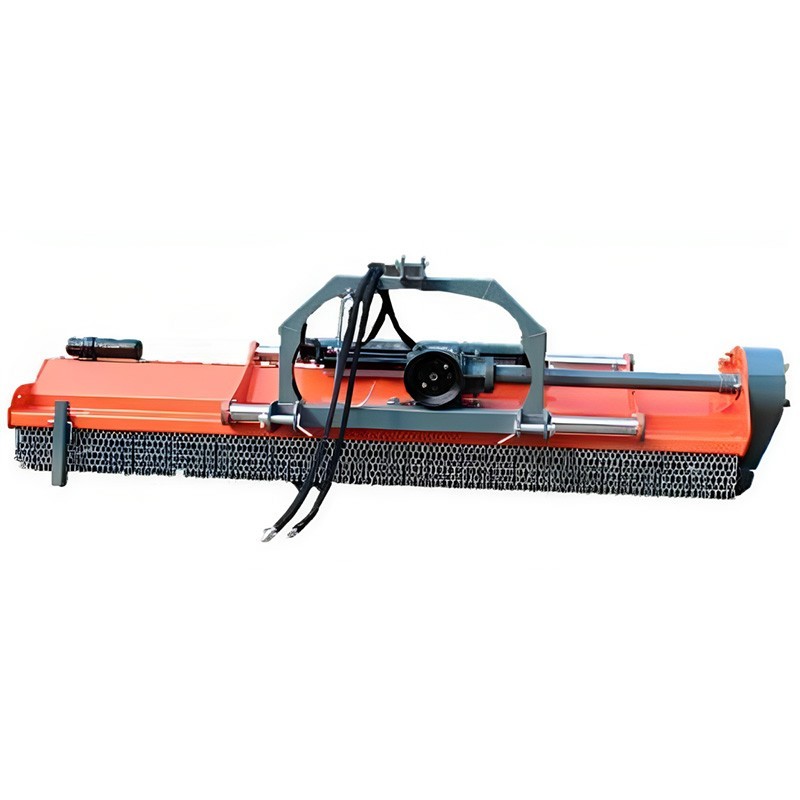

The hammer crusher VG Agro SPR is hydraulically driven, making it easy to crush on any type of terrain. It has a rear gate as well as retainers to prevent debris from being thrown out when the machine is in use.
The maximum shredding diameter of this tractor shredder is 7 centimeters and the rotor diameter is 168 mm.
As for the number of hammers that this shredder is equipped with, we can say that the most advanced model includes 22 hammers. Depending on the model we choose, this number can vary from 16 hammers.
The working width of this hammer mill ranges from 2 meters to 2.8 meters depending on the model chosen. Finally, it comes with a cardan shaft included as standard and its weight can reach up to 900 kg in the top model.
MODEL | SPR200 | SPR220 | SPR240 | SPR260 | SPR280 |
Min. power (HP) | 70 | 80 | 90 | 95 | 100 |
Rotor diameter (mm) | 168 | 168 | 168 | 168 | 168 |
No. of hammers | 16 | 18 | 18 | 20 | 22 |
Weight (Kg) | 680 | 720 | 790 | 830 | 900 |
Belts | 4 | 4 | 4 | 5 | 5 |
Dimensions (cm) | 123 x 221 x 110 | 123 x 241 x 110 | 123 x 261 x 110 | 123 x 281 x 110 | 123 x 301 x 110 |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
CARDAN SHAFT INCLUDED
INCLUDES PTO SHAFT
