PTO Hammer Crusher DELEKS GEPARD 50 - 120 HP
- Working width 1500 - 2060 mm
- 540 RPM
- Power 50 - 120 HP
- Hammers 16 - 24
CARDAN SHAFT INCLUDED
Deleks products take about 15 to 25 days. |

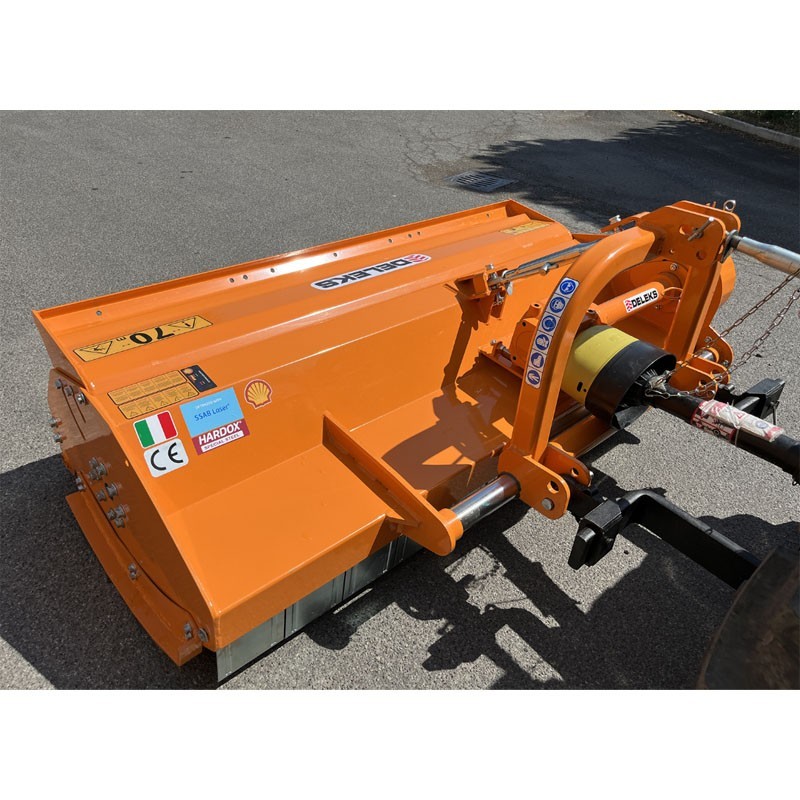

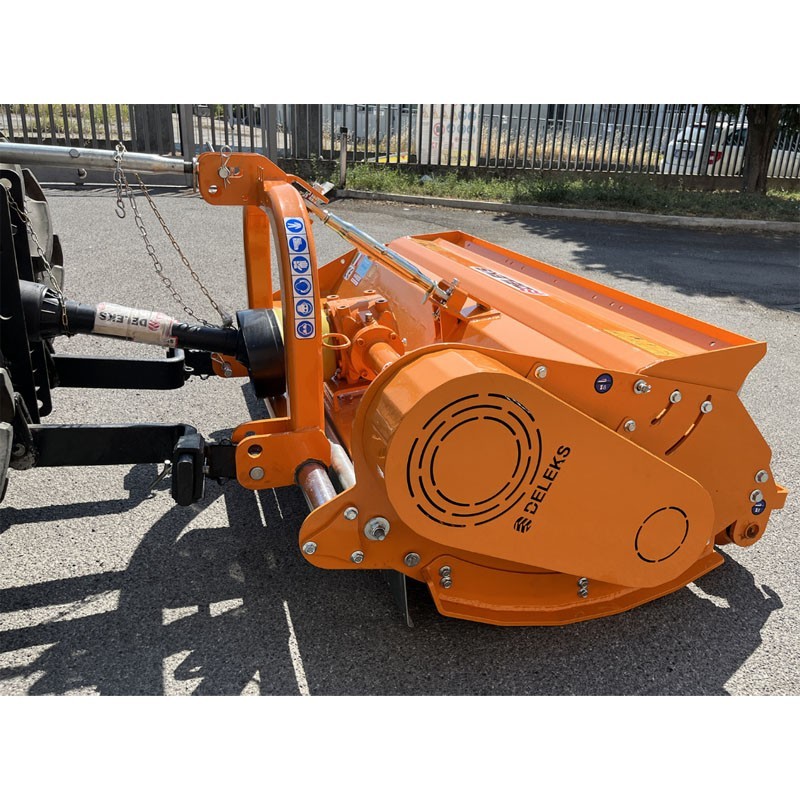

DELEKS GEPARD 50 - 120 HP PTO Hammermill Crusher

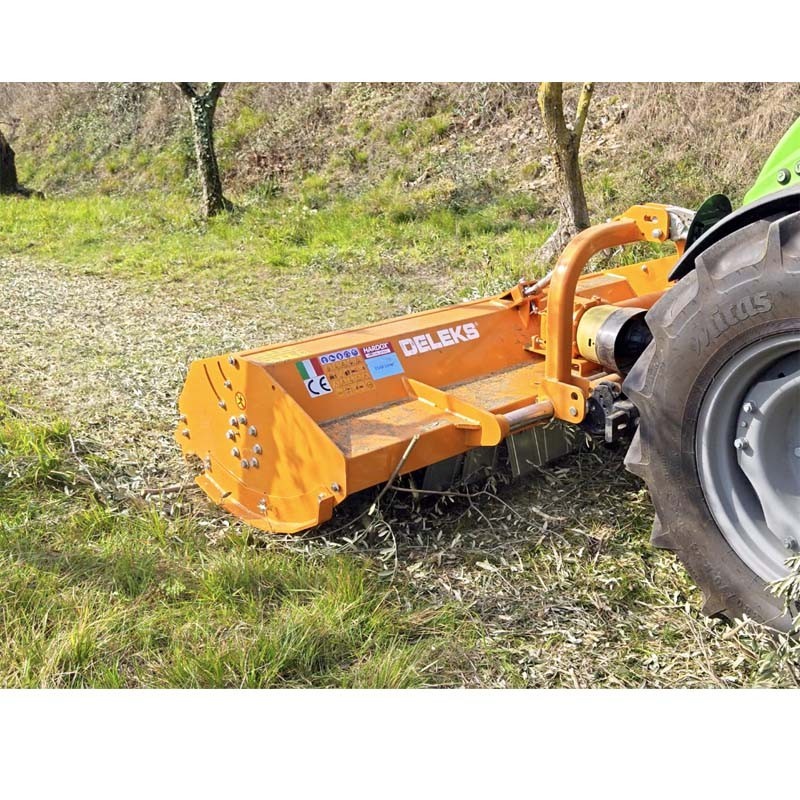

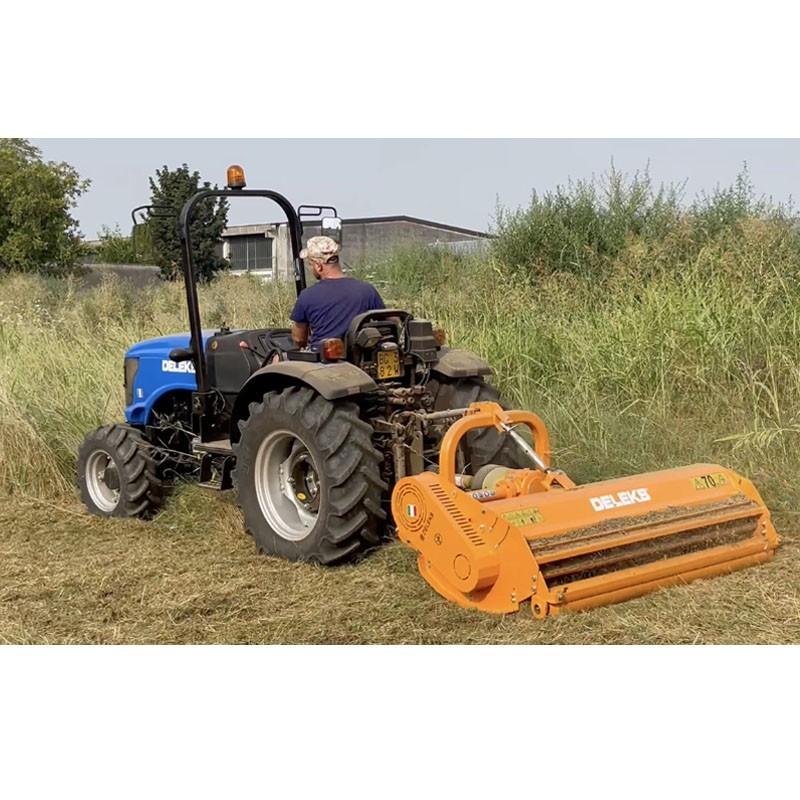

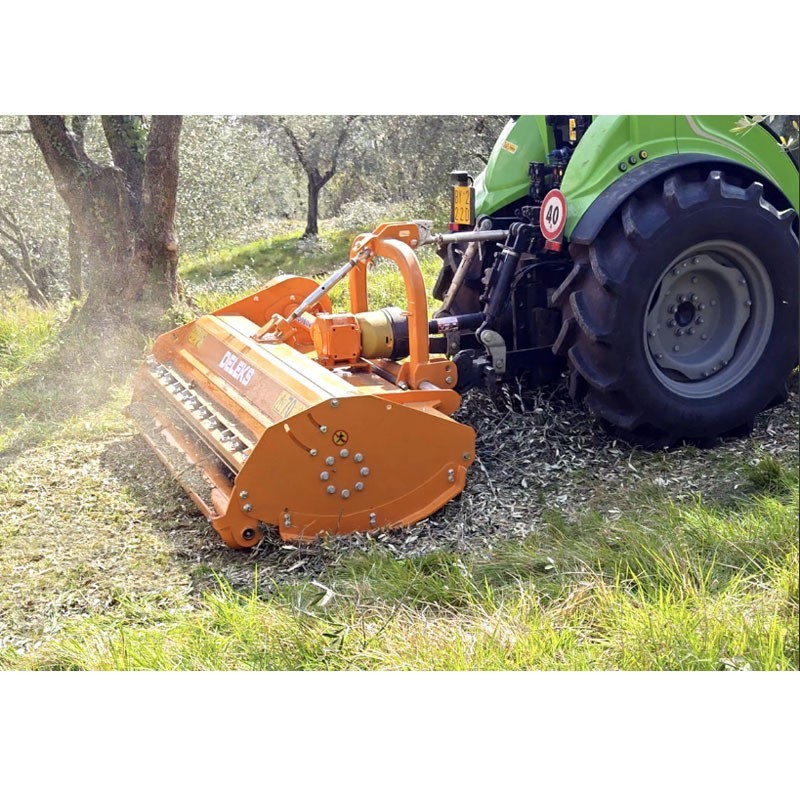

DELEKS GEPARD 50 - 120 HP PTO Hammermill CrusherDesigned for professional use, this brushcutter model is suitable for cutting grass and also for pruning olive trees and vine shoots.

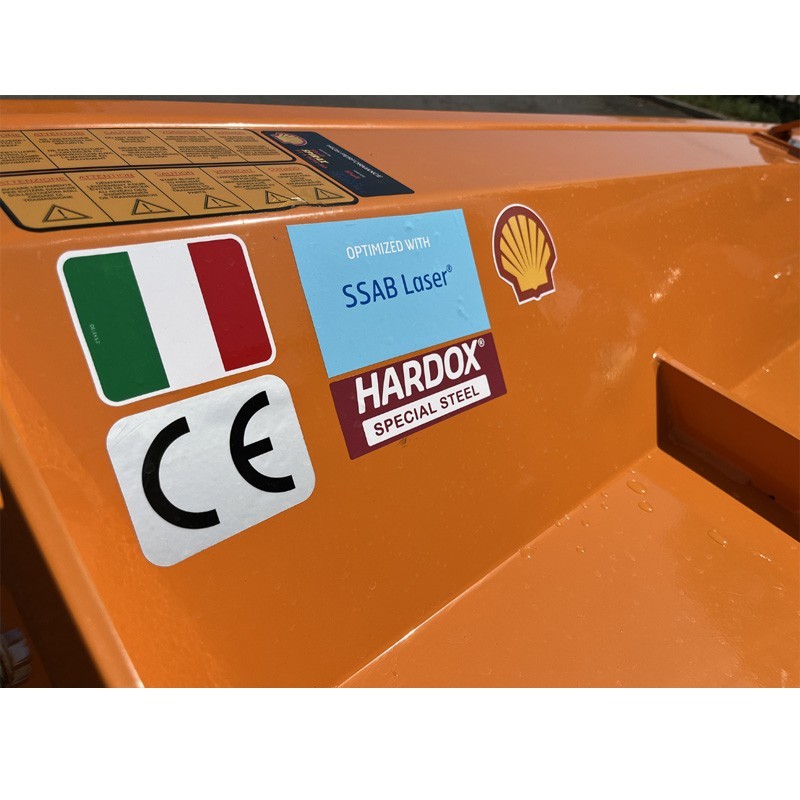

It has a robust chassis and a 160 mm diameter rotor, is compatible with all tractors with 3-point linkage of category 1-2, its structure is completely manufactured with swedish steel SSAB, which has a thickness of 4 + 4 mm and sides of 8 mm.
It has a 25 cm height of the front mouth which prevents crushing the grass when it is high, it has a Lombarda Ingranaggi transmission box with free wheel and a 3-year warranty, also it has a 400 mm side shift.

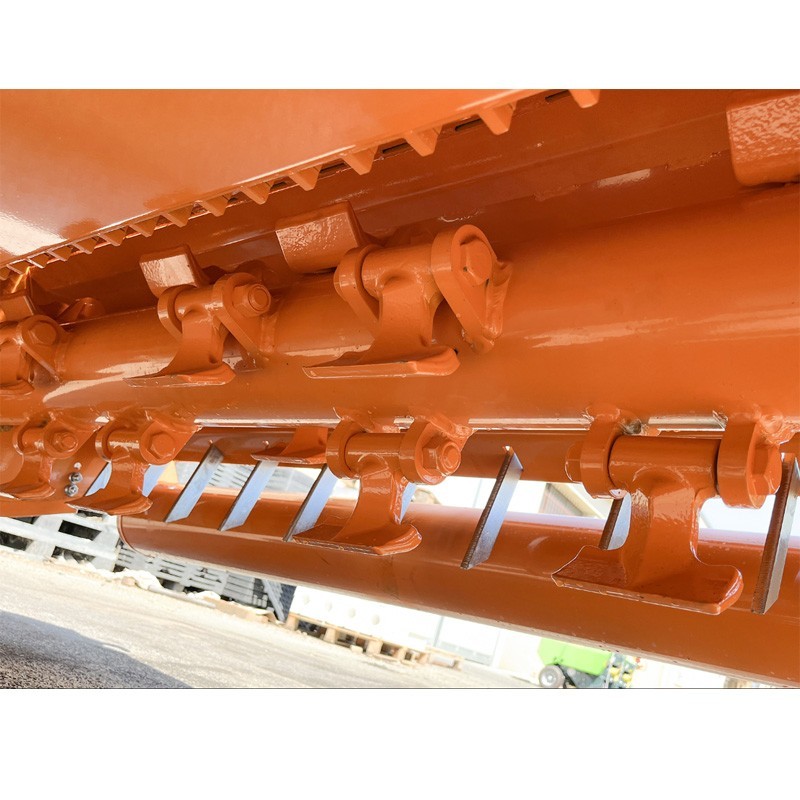

Its hammers are made of forged steel, with a 110 mm base, a weight of 1.5 kg and a 20 mm diameter liner, these are designed to spray vegetation up to 5-6 cm in diameter.
Its rotor is made of ARVEDI tube with a diameter of 160 mm, which is electronically balanced, is equipped with SKF rotor bearings, its rear roller is 160 mm in diameter with internal bearings and are protected against dust and debris.
Your rotor supports reinforced and fixed to the chassis with 8 bolts, this makes it a much more comfortable machine, it has a mulching effect that makes the plant material stay longer in the chamber and is pulverized.
Features
Model | GEPARD 150 | GEPARD 170 | GEPARD 190 | GEPARD 210 |
Working width | 1500 mm | 1650 mm | 1860 mm | 2060 mm |
Overall width | 1740.0 mm | 1950.0 mm | 2150.0 mm | 2350.0 mm |
Tractor power | 50 - 120 HP | 60 - 120 HP | 70 - 100 HP | 70 - 120 HP |
Weight | 560.0 kg | 600.0 kg | 655.0 kg | 680.0 kg |
Number of hammers | 16 | 18 | 20 | 24 |
Transmission type | V-belts | V-belts | V-belts | V-belts |
Cutting height min/max | 15 - 75 mm | |||
Total height | 930.0 mm | |||
3-point hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm | |||
Hood height | 500.0 mm | |||
Distance between the lower points | 660.0 - 800.0 mm | |||
Max. cutting diameter | 50.0-70.0 mm | |||
Total length | 1260.0 mm | |||
Ground to gearbox spacing | 515.0 mm | |||
Plate thickness | 4.0 mm + 4.0 mm | |||
Thickness of sheet metal on the sides | 8.0 mm | |||
Skid thickness | 10.0 mm | |||
Transmission: Gearbox | Lombarda Ingranaggi Srl (Warranty 3 years) | |||
Transmission: PTO | 540 r/min | |||
Transmission: direction of rotation | Schedule | |||
Transmission: freewheel | √ | |||
Transmission: rotor speed | 2000.0 rpm | |||
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 | |||
Transmission: number of Koreas | 3 | 5 | 5 | 5 |
Transmission: diameter of upper pulley | 230.0 mm | |||
Transmission: lower pulley diameter | 190.0 mm | |||
Transmission: dimensions of the Koreas | Transmission: number of Koreas | |||
Rotor: diameter | 160.00 mm | |||
Rotor: bearing type and dimension | SKF® 2212 | |||
Rotor: balancing | Electronic | |||
Rotor: blade thickness | 10.0 mm - S355 | |||
Hammers: weight | 1486.0 g | |||
Hammers: hole dia | 20.5 mm | |||
Hammers: base width | 110.0 mm | |||
Hammers: head width | 74.0 mm | |||
Hammers: diagonal | 97.0 mm | |||
Roll: diameter | 160.0 mm | |||
Roll: sheet thickness | 8.0 mm | |||
Roll: bearing type and dimension | 6210 | |||
Cardan | CE 6x1000 mm | |||
Hood length | 870.0 mm | |||
Horizontal displacement | 400.0 mm | |||
Packing dimensions | 180 x 130 x 100 cm | 200 x 130 x 100 cm | 220 x 130 x 100 cm | 240 x 130 x 100 cm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
- Shredder type
- Rear shredder
- Type of cut
- Hammers
- Working width PTO
- 150 - 206 cm
- Tractor power
- 50 - 120 HP
- Cardan shaft
- Including
- Type of coupling
- Lateral displacement
- Displacement
- Manual
- Robustness
- Medium-Heavy
- Number of hammers
- 16 - 24
- ✔️
- Rear rakes
- Working width (cm)
- 150 - 159 cm
160 - 169 cm
180 - 189 cm
200 - 209 cm - Country of manufacture
- Italy
- Weight
- 560 - 680 kg
Specific References
- ean13
- 8053470238413
- mpn
- GEPARD150PTO
