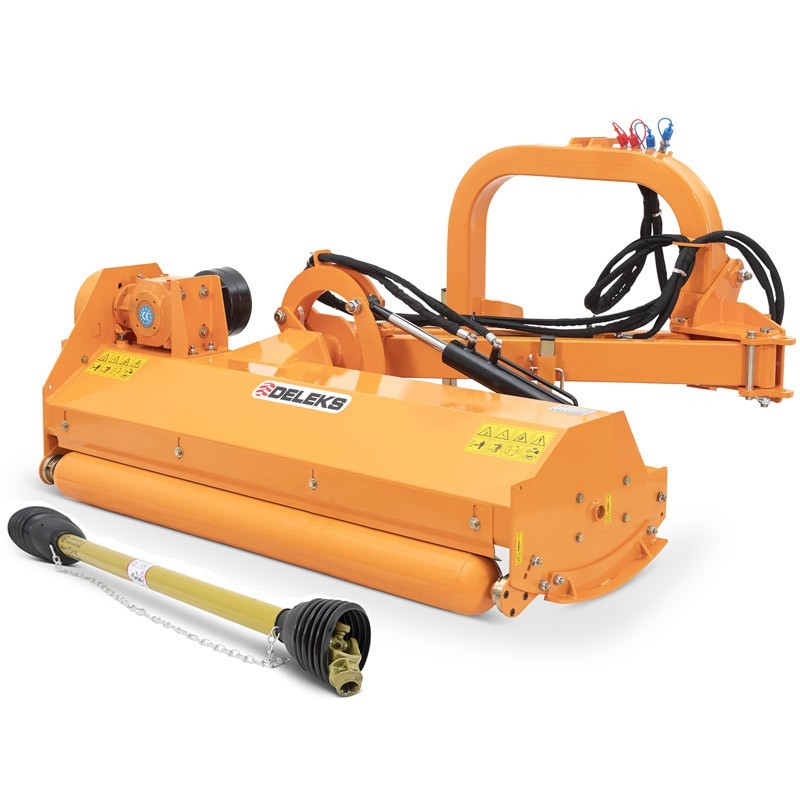

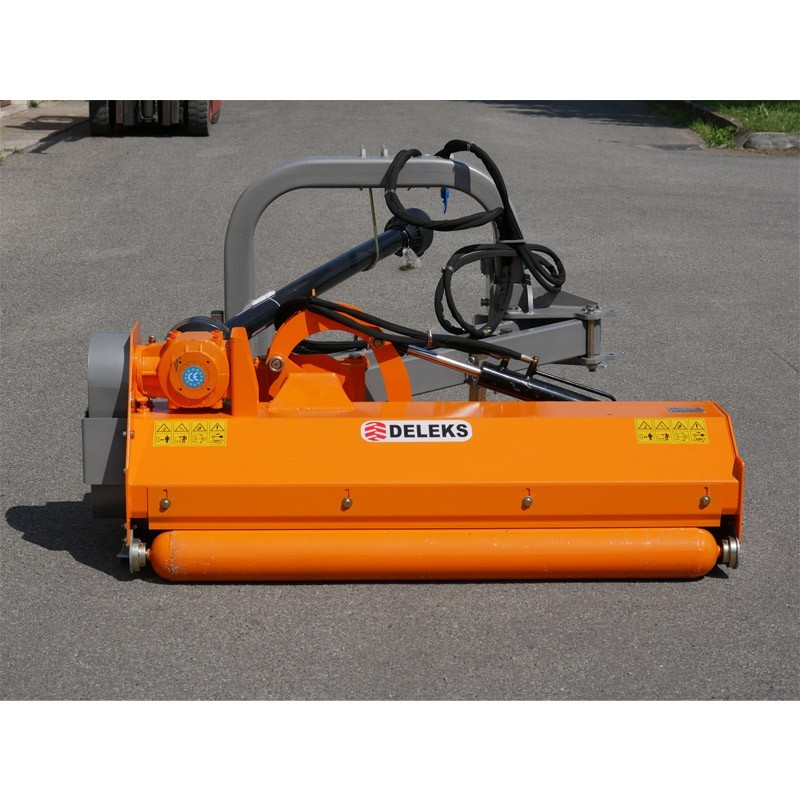

The Arm crusher Deleks LEO-180 It is specially designed for tractors with low power of 50-70HP. This model of shredder is used for lawns, gardens, and vineyards.

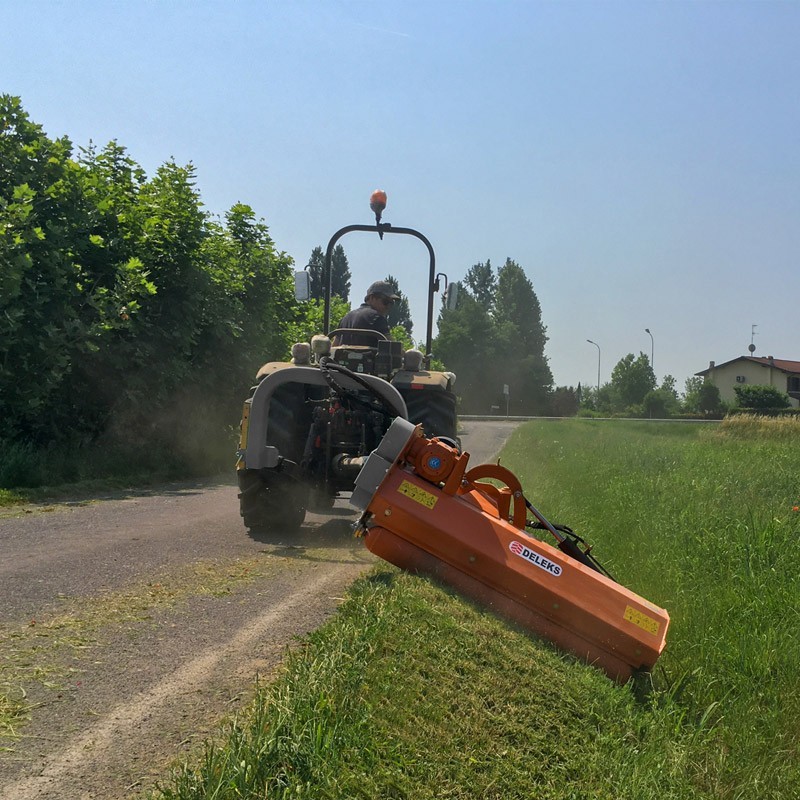

The model Deleks LEO-180It is designed for cutting grass and brambles with a diameter of 4 to 5 cm. It is ideal for roadside edges. It can also be used for cutting shrubs as it tilts around 90 degrees upwards and 60 degrees downwards.
This Crusher of Deleks also has a CAT 1-2 universal 3-point hitch. This is compatible with tractors from 40 to 70 HP. Regarding its features, we can highlight its good GB Bologna transmission box made in Italy with a freewheel.
The LEO-180 Shredder It comes with 180 cm CE gimbal included, it also includes an electronically balanced rotor. The implement can be used on low-power tractors in gardens and orchards. It has a weight of 495 kg.
This model of Arm crusher Deleks It ensures the operator good comfort and ease of work. This is thanks to its notable good features.
Among these features, we can highlight the working width of 1792mm and the total width of 1920 mm. We can also highlight the adjustable cutting height from 10 to 45mm and the total height of 850mm.
| Working width | 1792 mm |
| Total width | 1920 mm |
| Cutting height min/max | 10 - 45 mm |
| Weight | 495 kg |
| Total height | 850 mm |
| Tractor power | 50 - 70 hp |
| Hitch 3 points | Cat. 1-2 (ø 19-22mm / 25-28mm) |
| Position of the transmission box | Internal |
| Hood height | 390 mm |
| Distance between the lower points | 730 - 960 mm |

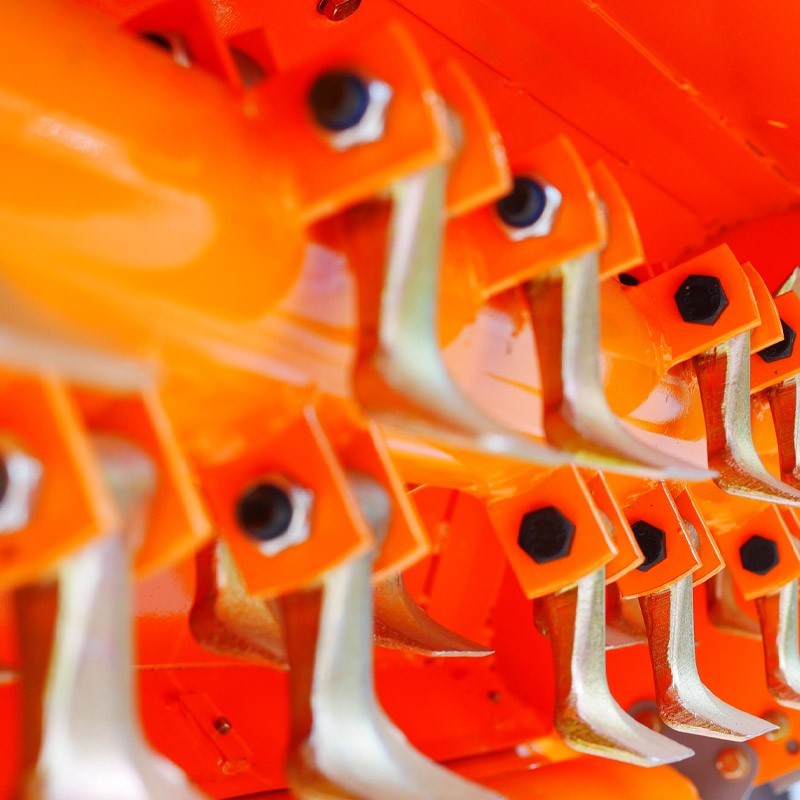

| Number of hammers | 28 |
| Maximum cutting diameter | 40 - 50 mm |
| Total length | 1550 mm (closed) |
| Space between the ground and the transmission box | 490 mm |
| Sheet thickness | 4 mm |
| Thickness of the sheet on the sides | 6 mm |
| Thickness of the skates | 6 mm |
| Type of transmission | Correas V |
| Transmission: Gearbox | GB Bologna (Italia) |
| Transmission: PTO | 540 revolutions per minute |
| Transmission: direction of rotation | Schedule |
| Transmission: freewheel | This is the square root symbol in Spanish. |
| Transmission: rotor speed | 2300 rpm |
| Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
| Transmission: diameter of the upper pulley | 170 mm |
| Transmission: diameter of the lower pulley | 120 mm |
| Transmission: number of cores | 4 |
| Transmission: dimensions of the Koreas | 17x1026 |
| Rotor: diameter | 108 mm |
| Rotor: type of bearings and dimensions | SKF 6207 |
| Rotor: balancing | Electronic |
| Rotor: blade thickness | 8 mm |
| Hammers: weight | 820 g |
| Hammers: ø hole | 15 mm |
| Hammers: base width | 82 mm |
| Hammers: head width | 45 mm |
| Hammers: diagonal | 95 mm |
| Roll: diameter | 140 mm |
| Roll: sheet thickness | 5 mm |
| Roller: type of bearings and dimensions | UC205 is a type of bearing unit that is commonly used in machinery and equipment. It is a unit that consists of a bearing (usually a ball bearing) and a housing, designed to support rotating shafts and reduce friction. |
| Displacement and dimensions | View photos |
| ø Hydraulic Cylinder A | 70 - 30 mm |
| ø Hydraulic Cylinder B | 65 - 25 mm |
| Oil pressure min./max. | 120 - 150 bar |
| Optimal oil flow | 18 - 22 l/min |

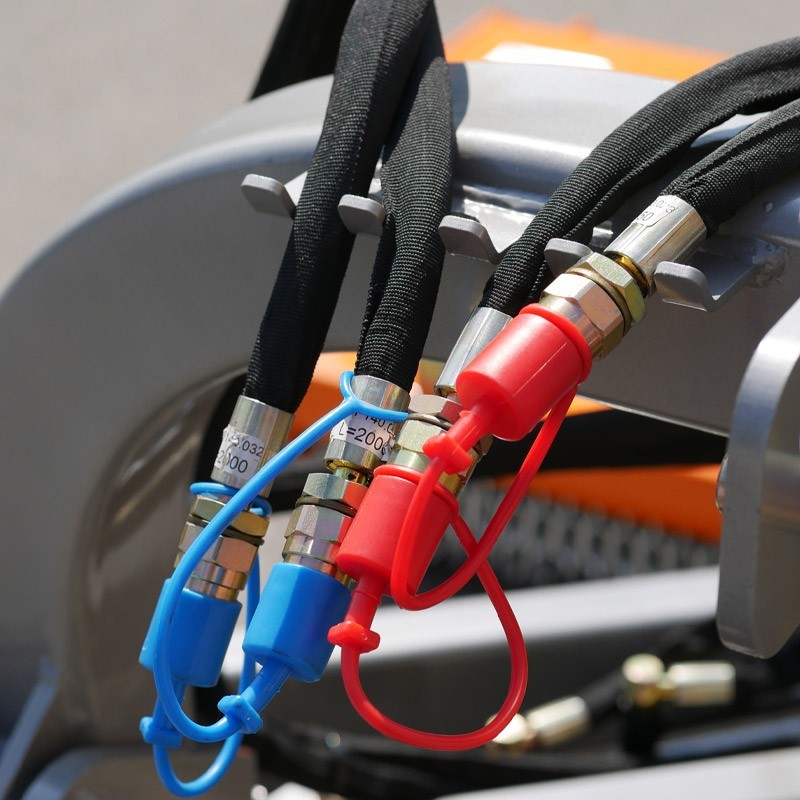

| Hydraulic tubes | WP 400 Bar, 1/2" Agri Standard |
| Cardan refers to a type of universal joint used in mechanical engineering to transmit power between two shafts that are not in line with each other. It allows for the transmission of rotational motion at an angle. | CE 5x1800 mm |
| Length of the hood | 630 mm |
| Packaging dimensions | 1980*800*760 mm |
| IMPORTANT NOTICE |
| Mandatory on the part of the client, "revisar" translates to "review" in English. Oil and grease levels should be checked before starting up. If the merchandise cannot be inspected at the time of delivery, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
