Multifunction brush cutter with hydraulic side arm Garto DBLH800-G
- Transmission type : Hydraulic
- PTO working width : 800 mm
- Minimum tractor power : 20 hp
€6,671.09 VAT incl.
CARDAN SHAFT INCLUDED

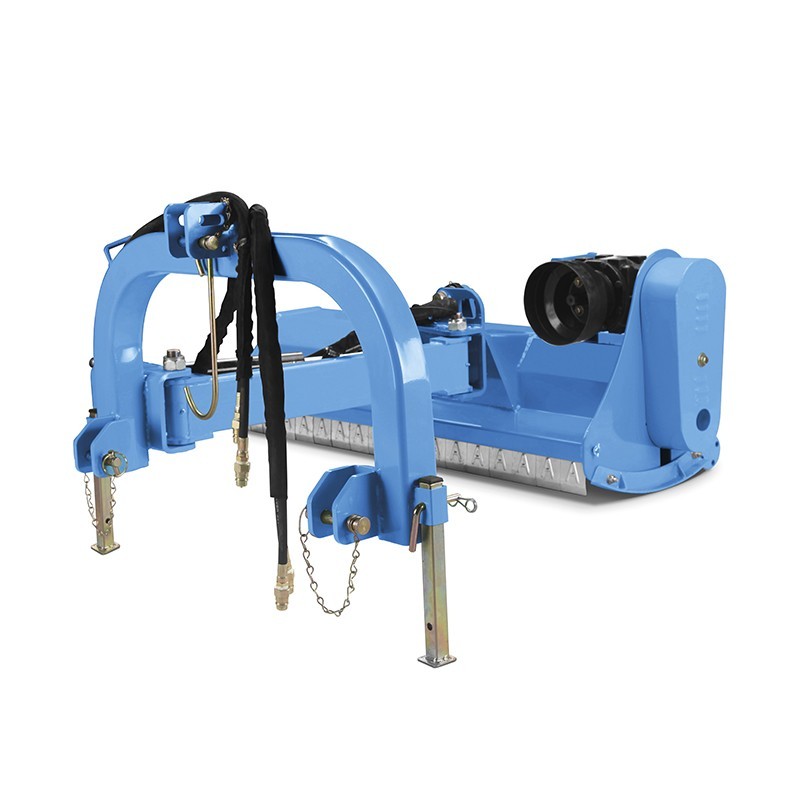

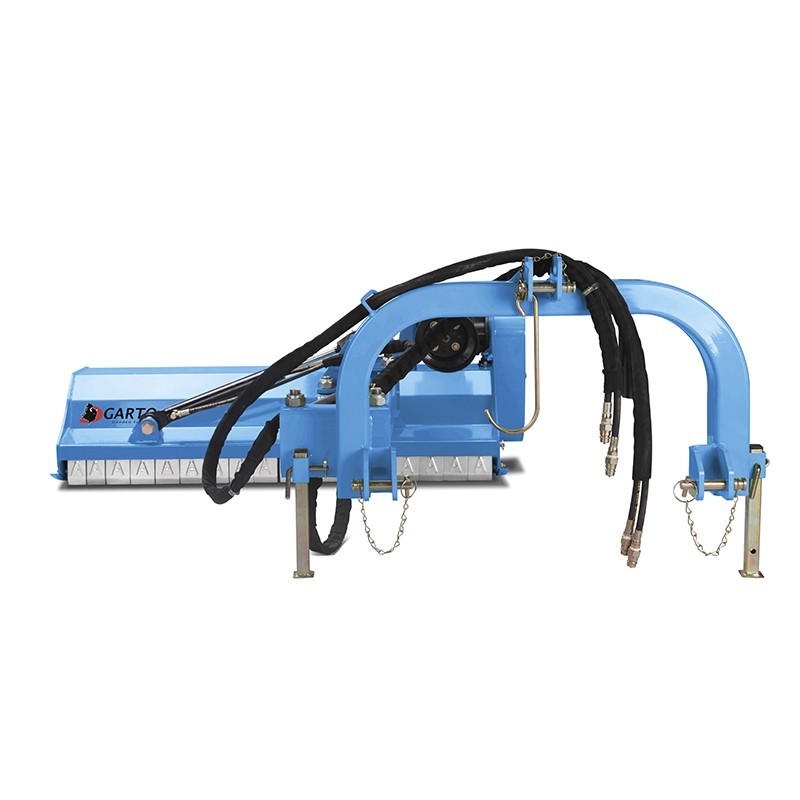

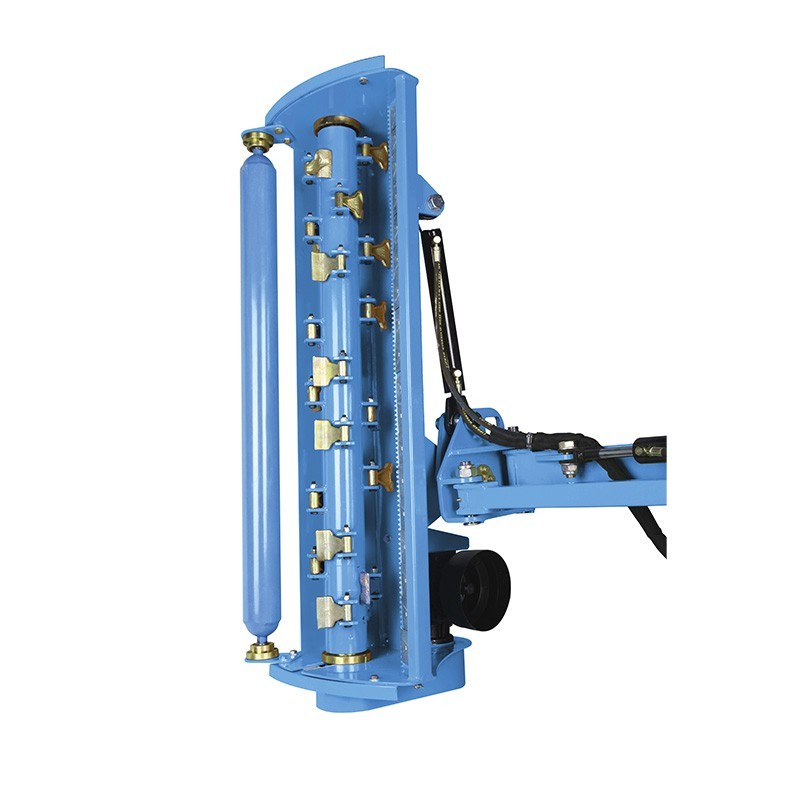

The Multi-function Tractor Arm Shredder Garto LGA is an efficient and versatile implement designed for various agricultural tasks. Its multi-function hydraulic arm offers ample possibilities and versatility in field work.
It features an adjustable rear roller that provides stability and precise control during mulching work. In addition, the adjustable side skids ensure an even, high-precision cut.
Equipped with 3 belts, it ensures smooth and efficient movement of the pulleys, maximizing their performance. The interchangeable hammers allow to adapt to different types of materials and working conditions.
With a 3-point hitch, this mulcher is easily connected to the tractor, facilitating quick and efficient setup. In addition, the mulcher comes with a cardan shaft system included, which facilitates the transfer of power from the tractor, and thanks to its adjustable tailgate, it simplifies the task of cleaning up the mulched debris.
Model | LGA125 | LGA145 | LGA165 |
Working width | 1200 mm | 1400 mm | 1600 mm |
Width | 1370 mm | 1570 mm | 1770 mm |
Folding angle | +90º / -53º / +90º / -53º | +90º / -53º / +90º / -53º | +90º / -53º / +90º / -53º |
Weight | 250 kg | 280 kg | 315 kg |
No. of hammers | 20 | 24 | 28 |
No. of belts | 3 | 3 | 3 |
PTO speed | 540 RPM | 540 RPM | 540 RPM |
Power requirement | 30 - 55 hp | 35 - 60 hp | 50 - 60 hp |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
