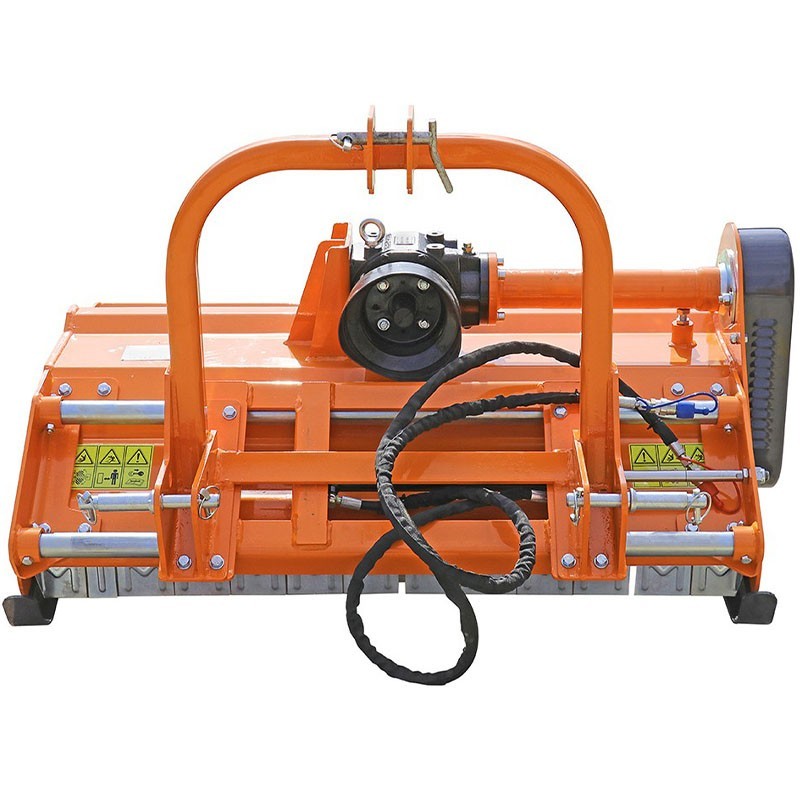

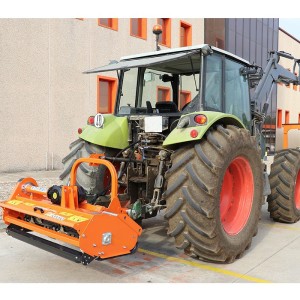

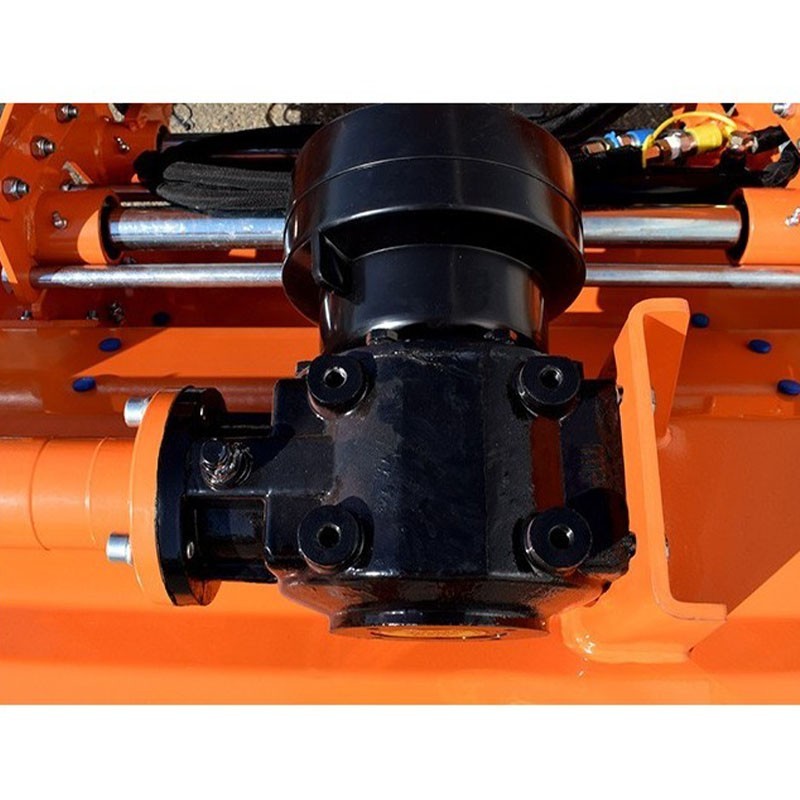

The Hammermill for tractor Zeppelin Sahara can be coupled to tractors and can be used in a movable way, being able to function as a large scale mower.
It has 3 different models, which vary in working width, hammer weight and power required, and can be adapted to almost any tractor. It also has a cardan shaft included.
Model | ESTRDESP125MZA | ESTRDESP155MZA | ESTRDESP175MZA |
Working width (mm) | 1220 | 1520 | 1720 |
Weight (kg) | 312 | 367 | 397 |

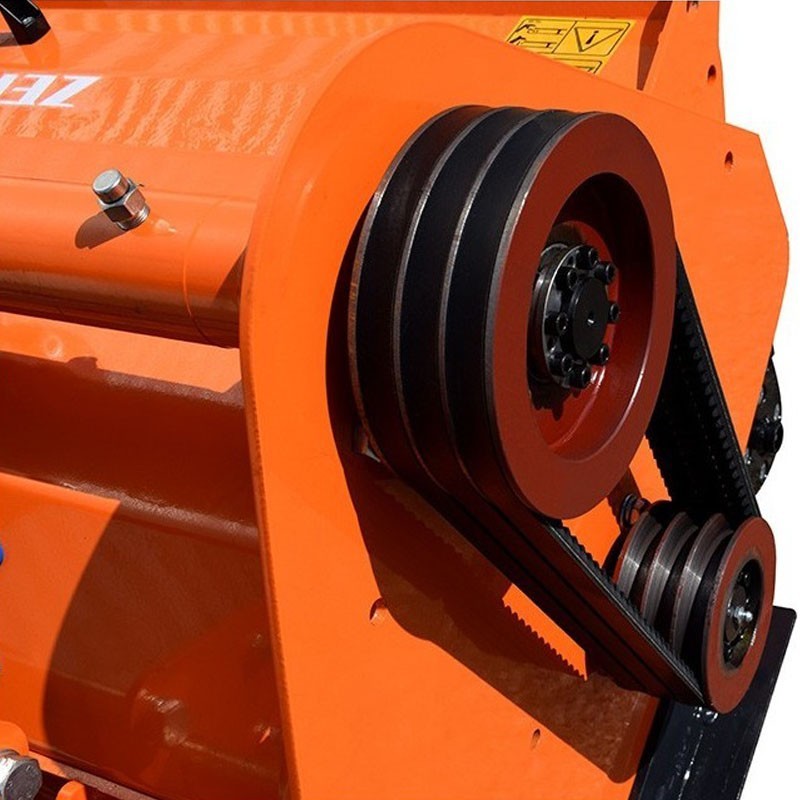

Belts | 3 | 3 | 3 |

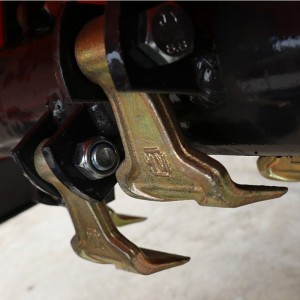

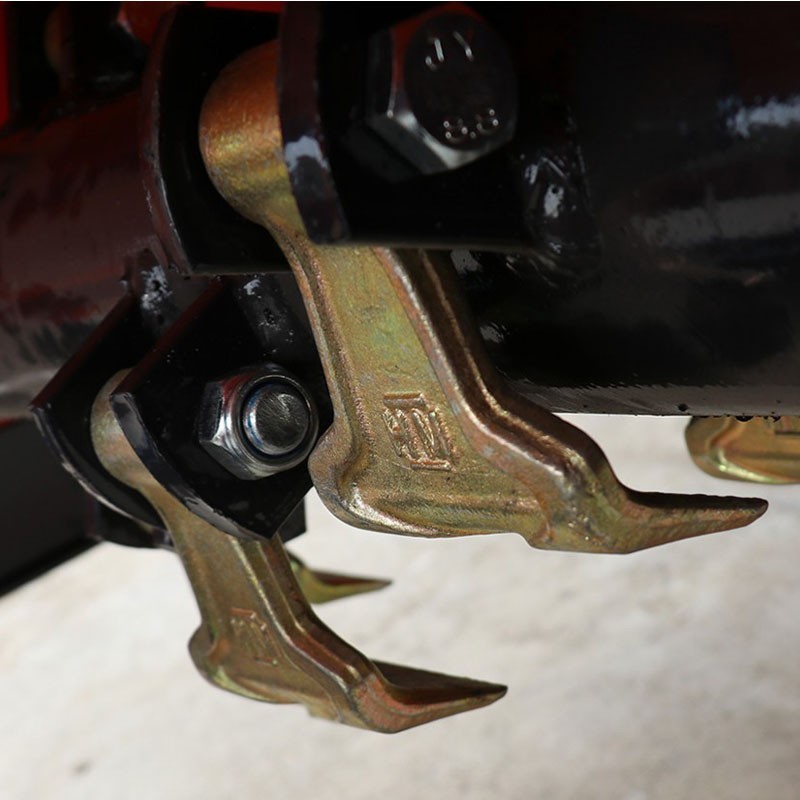

Hammers | 20 | 24 | 28 |
Rotor diameter (mm) | 108 | 108 | 108 |
Power requirement (Hp) | 18-30 | 30-70 | 40-90 |
PTO (rpm) | 540 | 540 | 540 |
Dimensions (mm) | 950 x 1370 x 950 | 950 x 1670 x 950 | 950 x 1870 x 950 |
Displacement (mm) | 300 | 340 | 365 |
IMPORTANT NOTICES |
It is compulsory for the customer to check oil and grease levels before starting the machine. If it is not possible to check the goods at the moment of reception, it must be indicated on the transporter's sheet that the customer is in agreement except for pending examination. |
