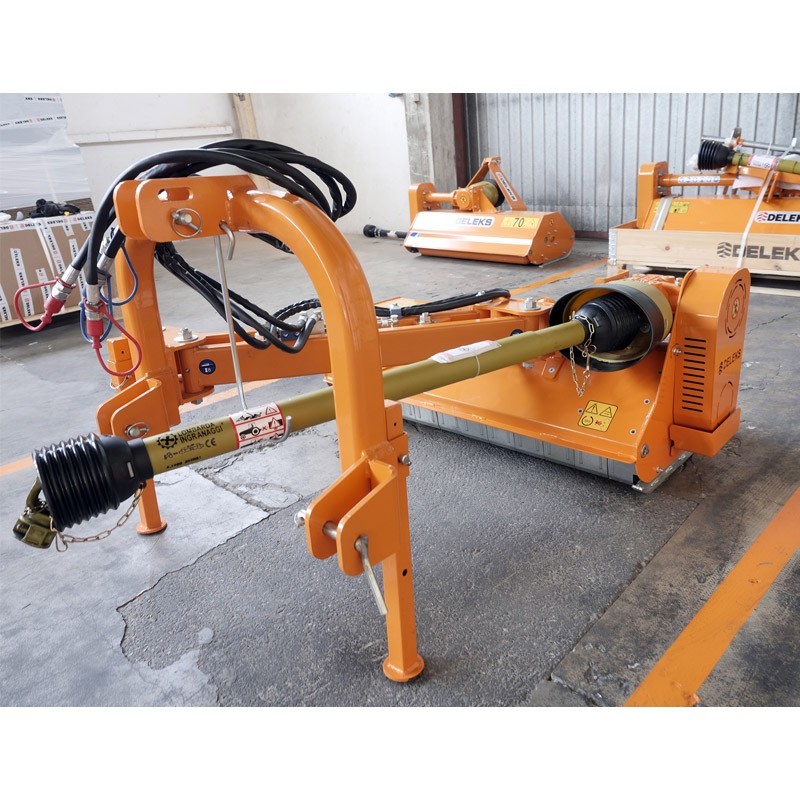

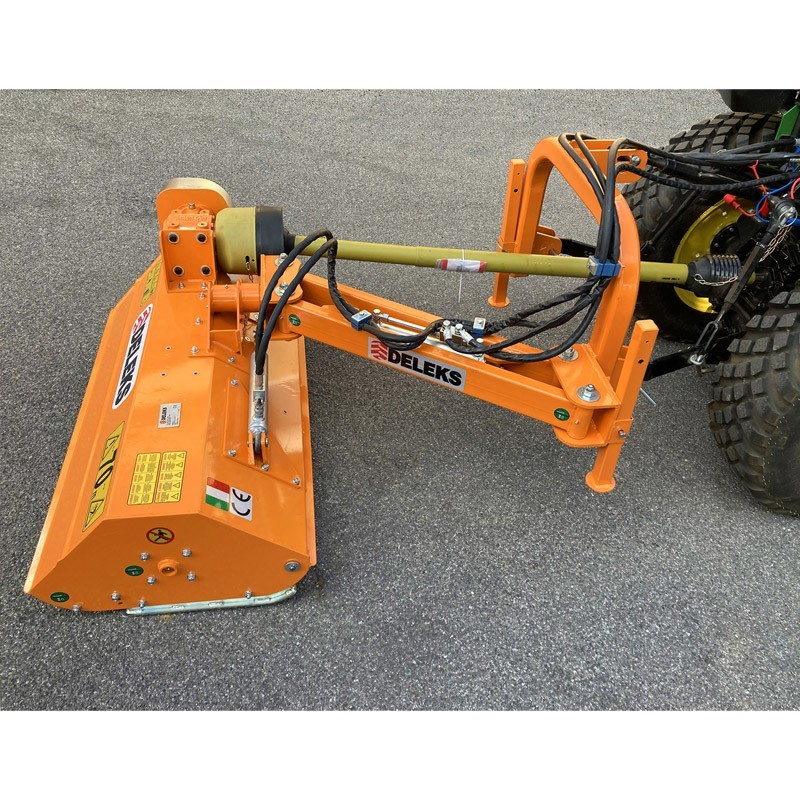

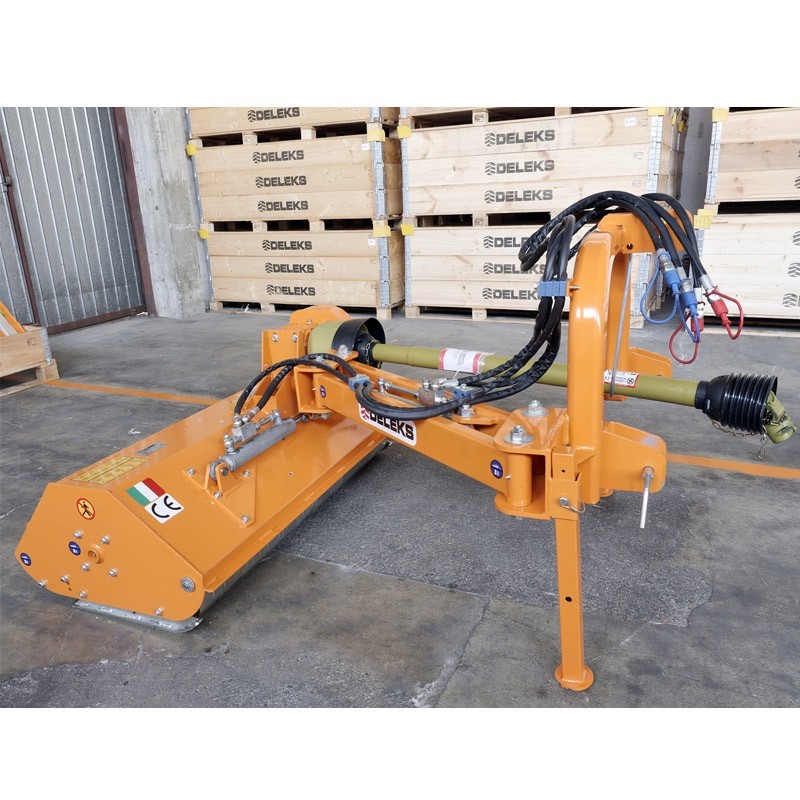

The Light arm shredder Deleks VOLPE-120 is specially designed for tractors with low horsepower, and is 25-45HP. This model of shredder is used for meadows, gardens and vineyards.

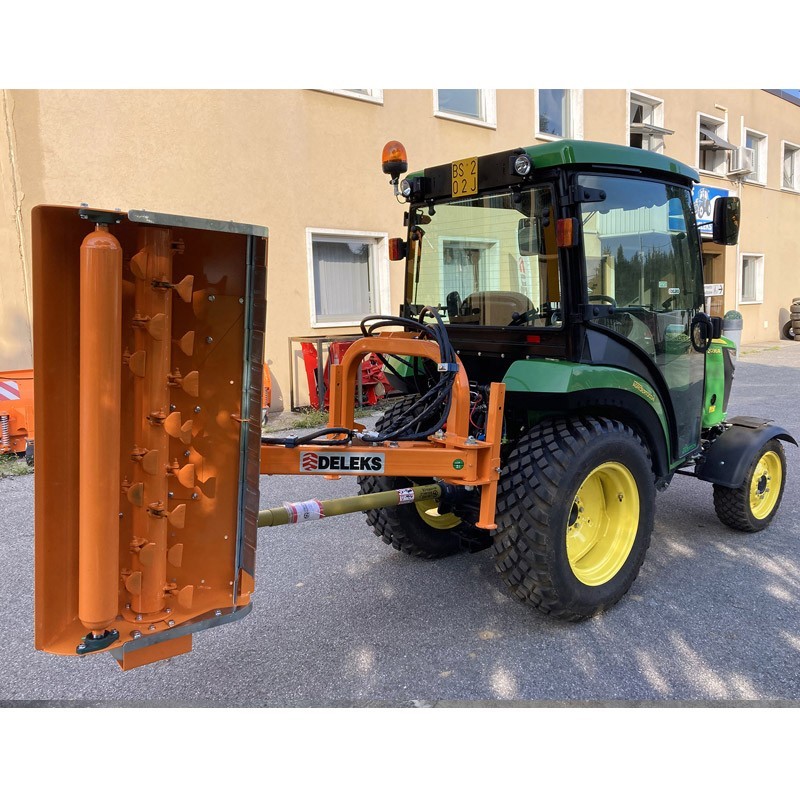

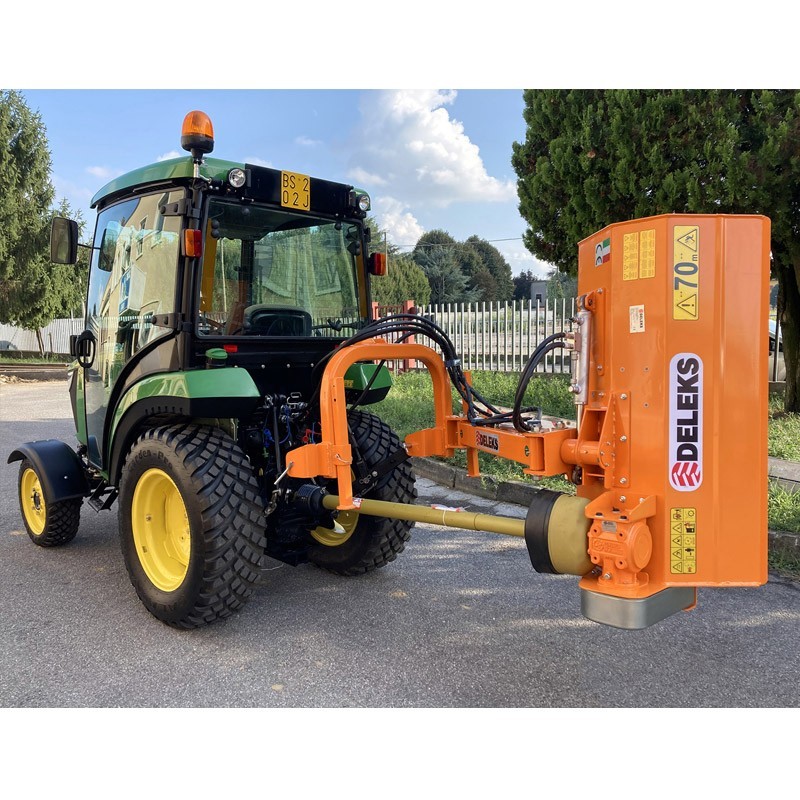

The model Deleks VOLPE-120 is designed for cutting grass and brambles from 2 to 3 cm in diameter. It is ideal for roadside verges. It can also be used to cut bushes as it tilts about 88 degrees above and 60 degrees below
This Crusher Deleks also has a cAT 1 universal 3-point linkage. It is compatible with tractors from 25 to 45 HP. As for its features we can highlight its good transmission box Lombarda Ingranaggi. This one comes with freewheel.

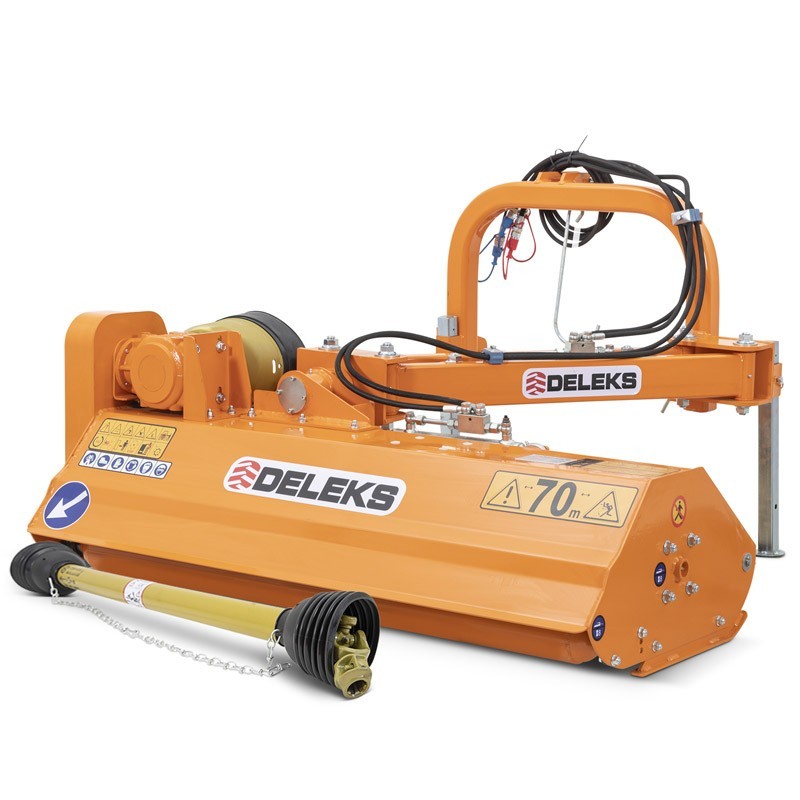

The VOLPE-120 Shredder comes with 140cm CE gimbal included, it also includes a double slat side disc. The implement can be used on tractors with low power in gardens and orchards. This is thanks to its light weight of 180kg.
This model of Light arm shredder Deleks guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these features we can highlight the 1200mm working width and the total width 1320 mm. We can also highlight the adjustable cutting height from 10 up to 45mm and the total height 750mm.
Working width | 1200 mm |
Overall width | 1320 mm |
Cutting height min/max | 10 - 45 mm |
Weight | 180 kg |
Total height | 750 mm |
Tractor power | 25 - 45 hp |
3-point hitch | Cat. 1 (ø 19-22mm) |
Position of the gearbox | Internal |
Hood height | 370 mm |
Distance between the lower points | 655 - 755 mm |
Number of hammers | 18 |
Max. cutting diameter | 20 - 30 mm |
Total length | 1550 mm (closed) |
Ground to gearbox spacing | 472 mm |
Plate thickness | 3mm |
Thickness of sheet metal on the sides | 5 mm |
Skid thickness | 6 mm |
Transmission type | V-belts |
Transmission: Gearbox | Lombarda Ingranaggi Srl (Italy) |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 3150 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: diameter of upper pulley | 206 mm |
Transmission: lower pulley diameter | 106 mm |
Transmission: number of Koreas | 3 |
Transmission: dimensions of the Koreas | AX39 |
Rotor: diameter | 102 mm |
Rotor: bearing type and dimension | SKF UCF-207 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 8 mm |
Hammers: weight | 330 g |
Hammers: hole dia | 11 mm |
Hammers: base width | 80 mm |
Hammers: head width | 14 mm |
Hammers: diagonal | 75 mm |
Roll: diameter | 102 mm |
Roll: sheet thickness | 4.5 mm |
Roll: bearing type and dimension | FL204 |
Displacement and dimensions | View photos |

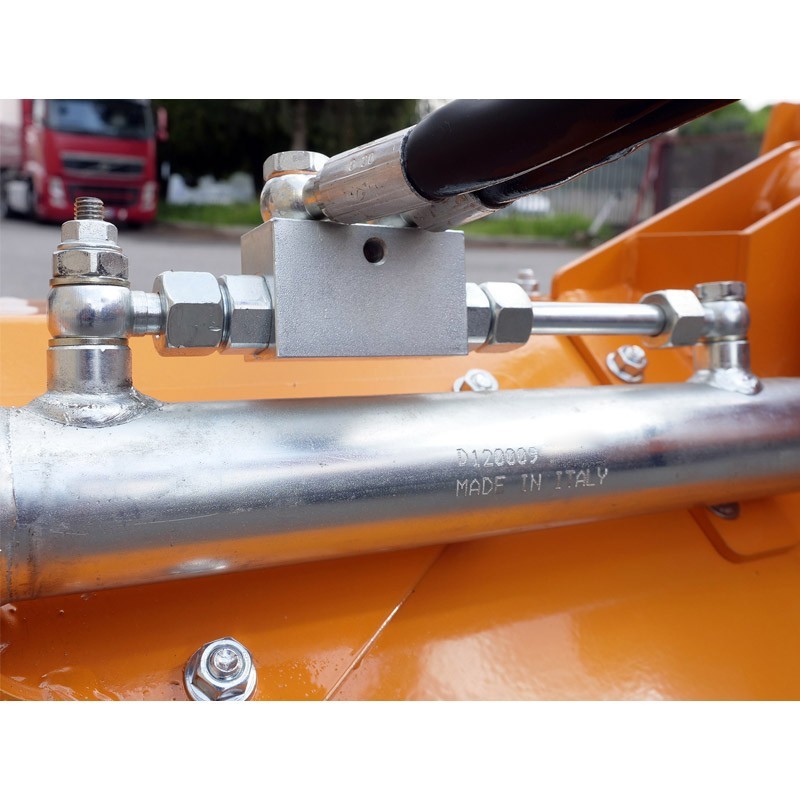

ø Hydraulic Cylinder A | 50-25 mm |
ø Hydraulic Cylinder B | 60-30 mm |
Oil pressure min/max | 120 - 150 bar |
Optiomal oil flow | 18 - 22 l/min |
Hydraulic hoses | WP 400 Bar, 1/2" Agri Standard |
Cardan | CE 4x1400 mm |
Hood length | 665 mm |
Packing dimensions | 1350*850*700 mm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, check oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
