  • Working width: 1250-2389 mm (1250-2389 in.)
  • Belts: 5
  • Hammers: 12-24
  • Power requirement: 50-120 HP

CARDAN SHAFT INCLUDED

Assembly and set-up INCLUDED
En stock
icon Shredder type
Shredder type
Rear shredder
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
125 - 239 cm
icon Tractor power
Tractor power
50 - 120 HP
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Medium-Heavy
icon Reinforced chassis
Reinforced chassis
Yes
icon Number of hammers
Number of hammers
12 - 24
icon Weight
Weight
490 - 830 kg
€3,370.64 excl. VAT
- 11%
€2,999.87 excl. VAT
€3,629.84 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Reinforced sliding shredder Zeppelin Arizona Tech
€3,629.84
Select
Qty

Arizona Tech 50-120 HP walk-behind shredder Zeppelin

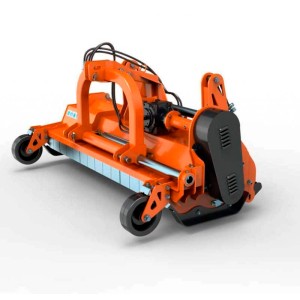

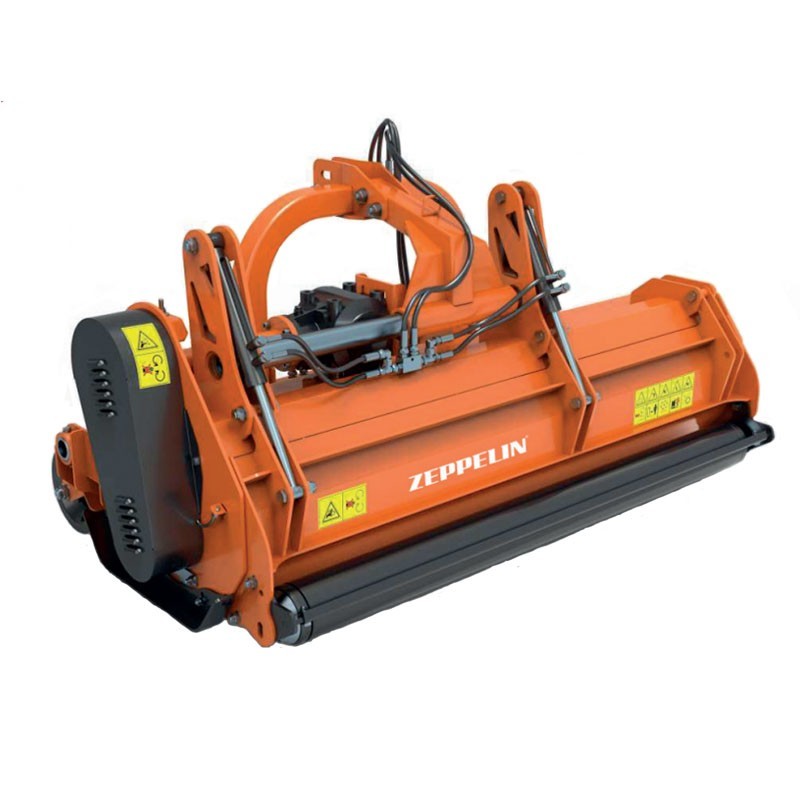

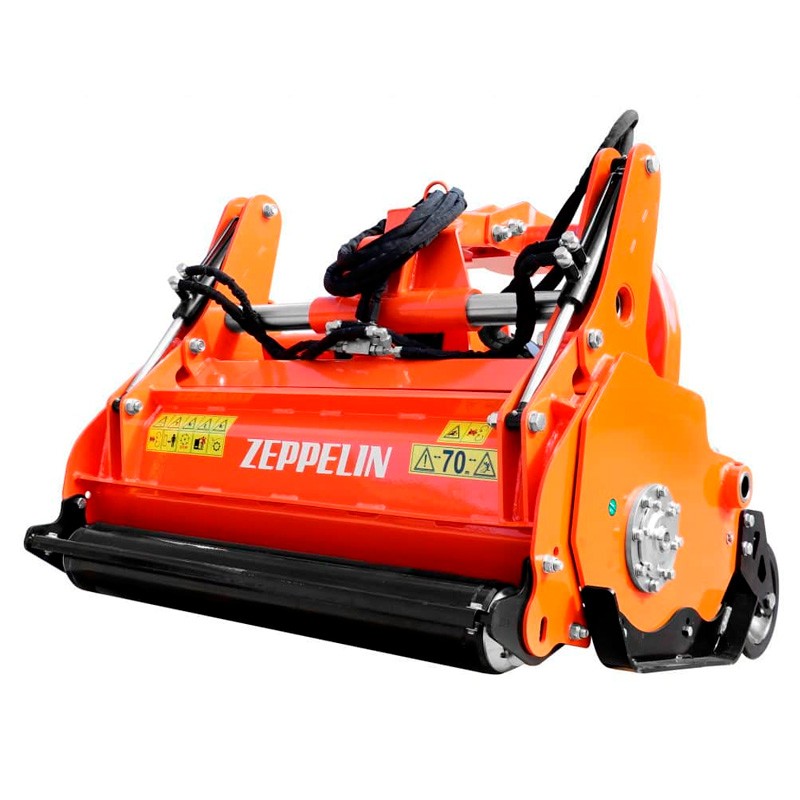

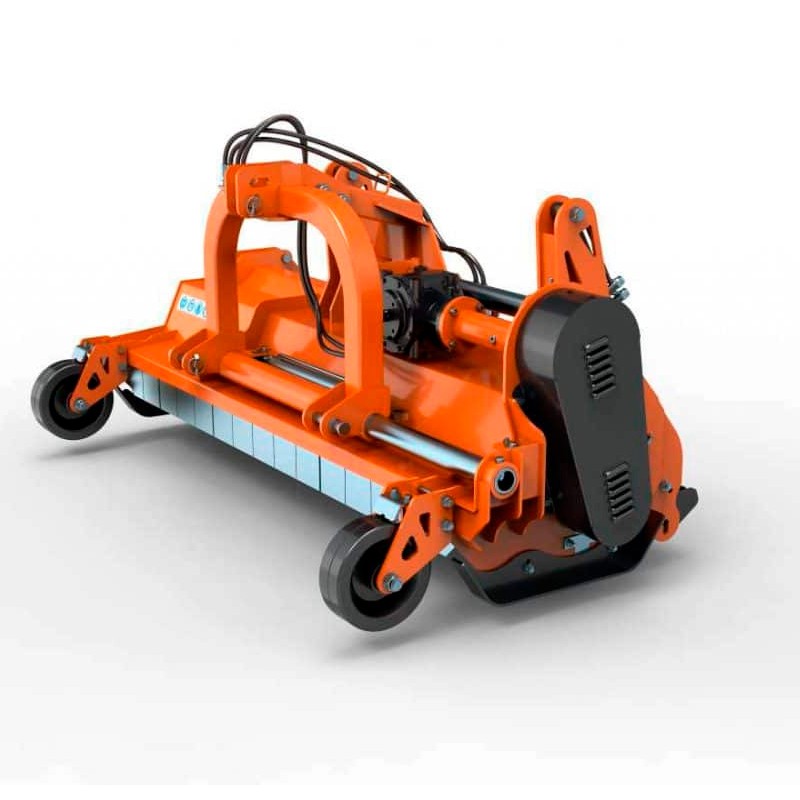

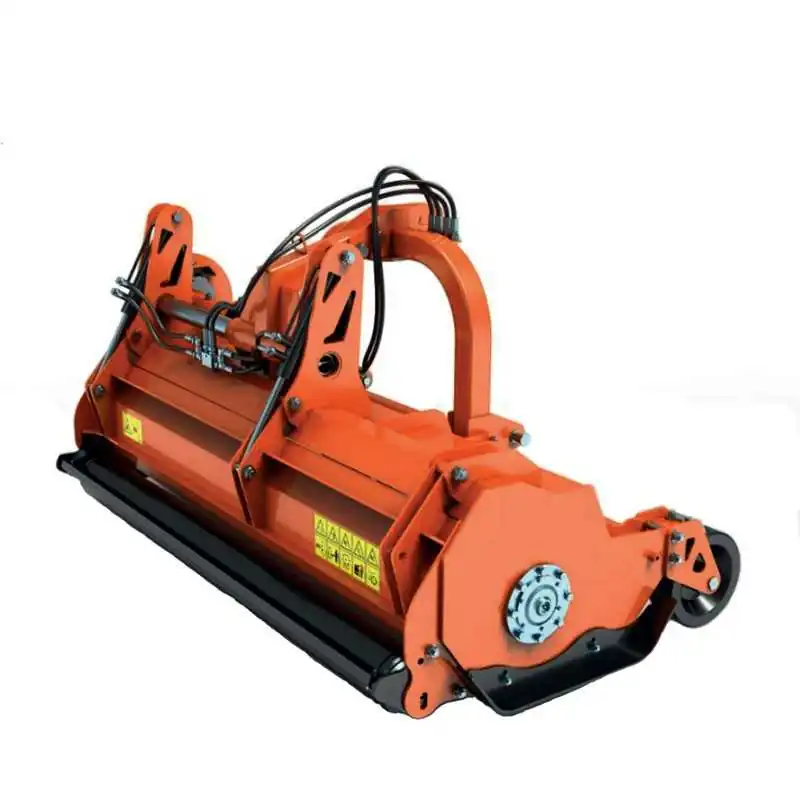

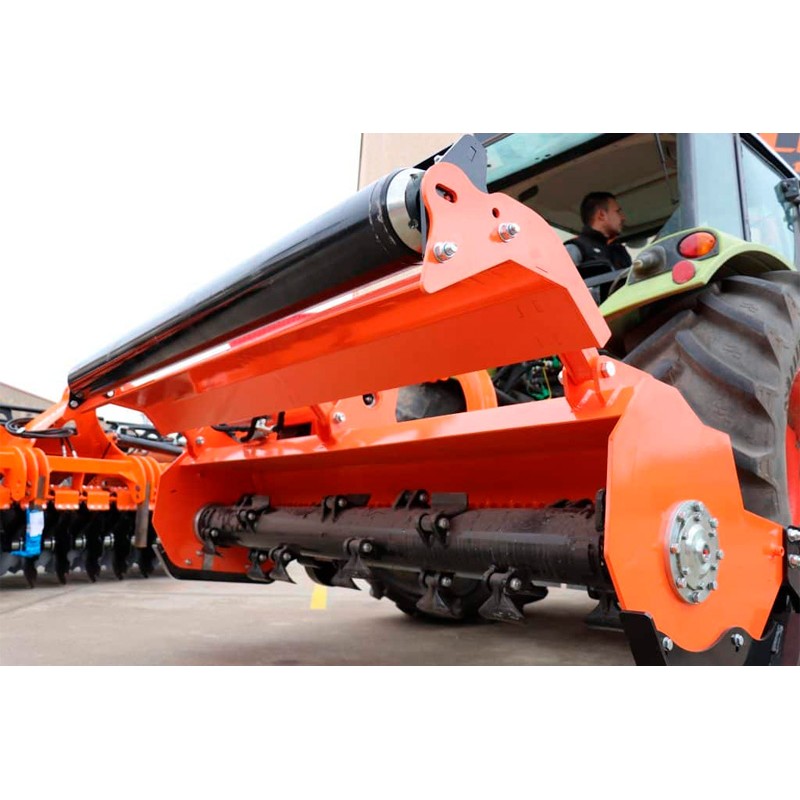

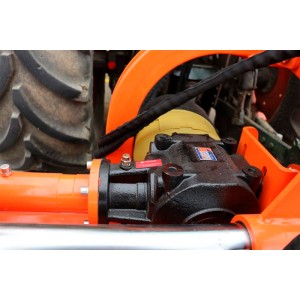

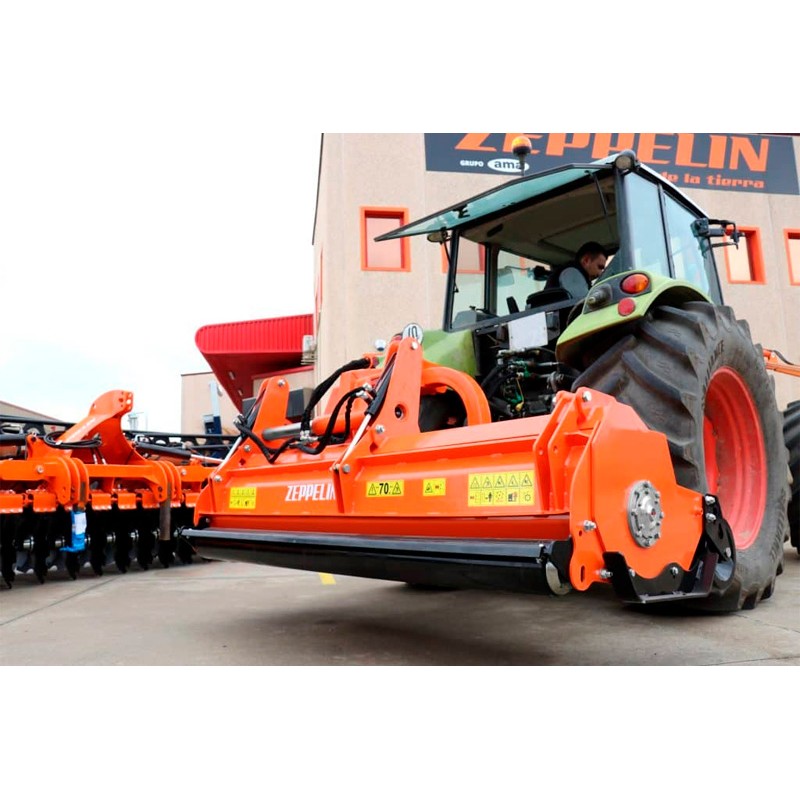

Reinforced mulcher Zeppelin Arizona Tech is a walk-behind hammermill mulcher designed for intensive work on farms, ditches, and cultivation lanes. The lateral displacement allows to bring the head closer to the edge to cut under branches and next to borders without putting the tractor in complicated areas. It operates at 540 rpm and includes a cardan shaft, with a hammer-ready rotor that shreds grass, prunings and weeds with a uniform finish.

What makes the difference in this range is the hydraulic tailgate opening, much more comfortable to operate from the tractor. Opening the hydraulic tailgate facilitates the evacuation of material when heavily loaded, reduces the risk of clogging and improves performance in dense vegetation. It also allows the shredding behavior to be adjusted according to the type of residue, making the equipment more versatile for changing campaigns.

There are several working widths and recommended powers depending on the model, from 1250 mm for tractors around 50 hp to 2389 mm versions that require 100 to 120 hp. The structure is reinforced to withstand continuous use and the assembly is designed to work both forward and backward hitched to the rear of the tractor, a clear advantage when maneuvering in headlands or narrow areas.

Model ESTRDESP12STECH ESTRDESP15STECH ESTRDESP16STECH
Working width 1250 mm 1490 mm 1590 mm
Belts 5 5 5
Hammers 12 16 16
Weight 490 Kg 666 Kg 688 Kg
Dimensions (mm) 1210 x 1440 x 1030 1210 x 1720 x 1030 1210 x 1820 x 1030
PTO r/min 540 540 540
Power requirement 50 HP 80-100 HP 80-100 HP
Model ESTRDESP18STECH ESTRDESP20STECH ESTRDESP22STECH
Working width 1790 mm 1990 mm 2190 mm
Belts 5 5 5
Hammers 16 18 20
Weight 716 Kg 754 Kg 790 Kg
Dimensions (mm) 1210 x 2020 x 1030 1210 x 2220 x 1030 1210 x 2420 x 1030
PTO r/min 540 540 540
Power requirement 80-100 HP 90-120 HP 100-120 HP
Model ESTRDESP24STECH
Working width 2389 mm
Belts 5
Hammers 24
Weight 830 Kg
Dimensions (mm) 1210 x 2640 x 1030
PTO r/min 540
Power requirement 100-120 HP

IMPORTANT NOTICES
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
2584605

Data sheet

Shredder type
Rear shredder
Type of cut
Hammers
Working width PTO
125 - 239 cm
Tractor power
50 - 120 HP
Cardan shaft
Including
Type of coupling
Lateral displacement
Displacement
Hydraulic
Robustness
Medium-Heavy
Reinforced chassis
Yes
Number of hammers
12 - 24
Working width (cm)
120 - 129 cm
140 - 149 cm
150 - 159 cm
170 - 179 cm
190 - 199 cm
210 - 219 cm
230 - 239 cm
Weight
490 - 830 kg

Specific References

mpn
ESTRDESP12STECH
