Zeppelin Gran Canyon Shredder adjustable 190 - 240 cm

Rating:
(0)
  • Working width: 1900 / 2400 mm
  • Power requirement: 80 - 130 Hp
  • Weight: 664 - 763 kg

CARDAN SHAFT INCLUDED

Assembly and set-up INCLUDED
En stock
icon Shredder type
Shredder type
Rear shredder
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
190 - 240 cm
icon Tractor power
Tractor power
80 - 130 HP
icon Cardan shaft
Cardan shaft
Included
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Heavy
icon Number of hammers
Number of hammers
20 - 24
icon ✔️
✔️
Rear rakes
icon Weight
Weight
664 - 763 kg
€4,004.21 excl. VAT
- 7%
€3,723.92 excl. VAT
€4,505.94 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Zeppelin Gran Canyon Shredder adjustable 190 - 240 cm
€4,505.94
Select
Qty

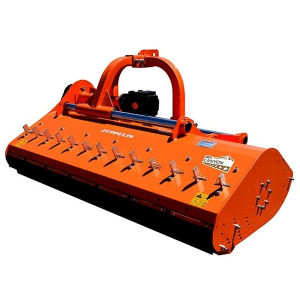

Hydraulic crusher Zeppelin Grand Canyon

TheOffset shredder Zeppelin Great Canyon Z it is a machine designed to crush large volumes of remnants of leaves, branches, and smaller debris.

It has several options, varying mainly: the working width (1900 / 2400 mm), the required power (80-100 / 90-130 Hp) and the hammers (20/24), thus adapting to all types of terrains and budgets.

Finally, it has a maximum displacement of 500 mm.

Characteristics

Model I'm sorry, but the text "ESTRDESPGV190Z" does not appear to be in Spanish or any recognizable language. It seems to be a code or a string of characters. Could you please provide more context or clarify the text? I'm sorry, but the text "ESTRDESPGV200Z" does not appear to be in Spanish or any recognizable language. It seems to be a code or a string of characters. Could you please provide more context or clarify what you need? I'm sorry, but the text "ESTRDESPGV220Z" does not appear to be in Spanish or any recognizable language. It seems to be a code or a string of characters. Could you please provide more context or clarify? I'm sorry, but the text "ESTRDESPGV240Z" does not appear to be in Spanish or any recognizable language. It seems to be a string of characters or a code. Could you please provide more context or clarify the text?
Working width 1900 mm 2000 mm 2200 mm 2400 mm
Weight (kg) 664 683 725 763

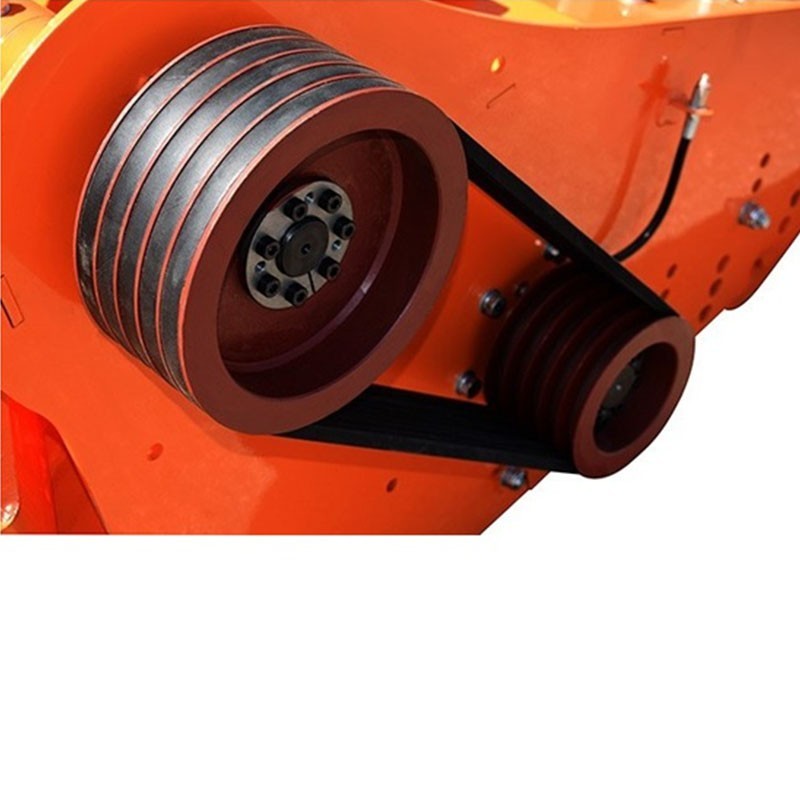

Belts 5 5 5 5
Hammers 20 20 24 24
Rotor diameter 168 168 168 168
Required power (Hp) 80-100 80-100 90-120 90-130
PTO (rpm) 540 540 540 540
Dimensions 105x205x110 cm 105x216.5x110 cm 105x236.5x110 cm 105x256.5x110 cm
Displacement 500 mm 500 mm 500 mm 500 mm
Rear rakes No. 13 13 15 Optional:
-Without rakes
-17
IMPORTANT NOTICES

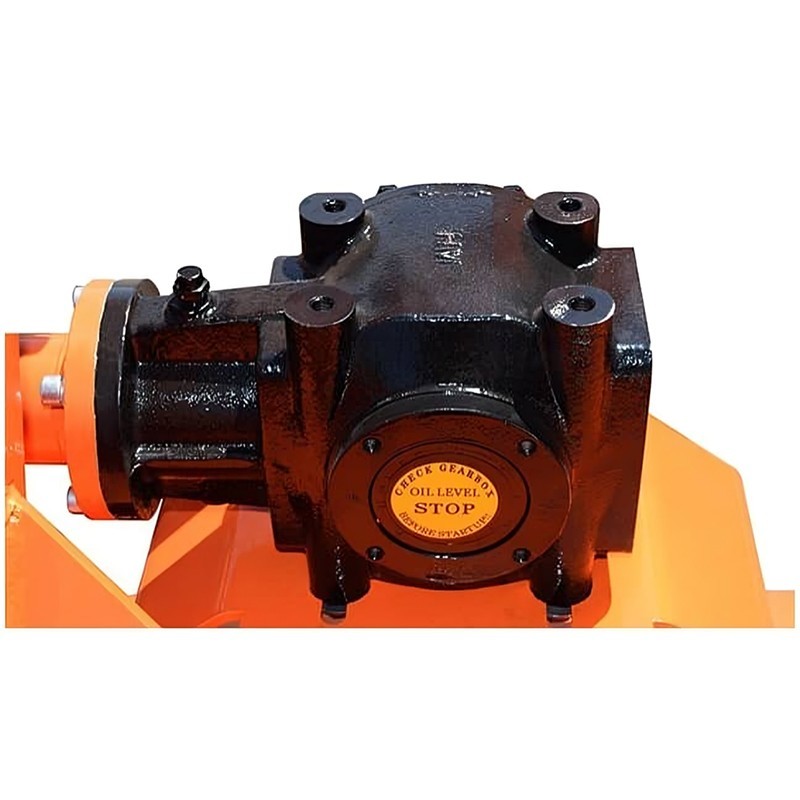

Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam.

Links of interest

    Related products

    32373

    Data sheet

    Shredder type
    Rear shredder
    Type of cut
    Hammers
    Working width PTO
    190 - 240 cm
    Tractor power
    80 - 130 HP
    Cardan shaft
    Included
    Type of coupling
    Lateral displacement
    Displacement
    Hydraulic
    Robustness
    Heavy
    Number of hammers
    20 - 24
    ✔️
    Rear rakes
    Working width (cm)
    190 - 199 cm
    200 - 209 cm
    220 - 229 cm
    240 - 249 cm
    Weight
    664 - 763 kg

    Specific References

    mpn
    ESTRDESPGV190Z
    New

    ✔️ Advantages of making purchases in the Spanish territory

    • National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
    • Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.

    ❌ Disadvantages of buying outside Spanish territory

    • Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
    • Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
    • Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.
