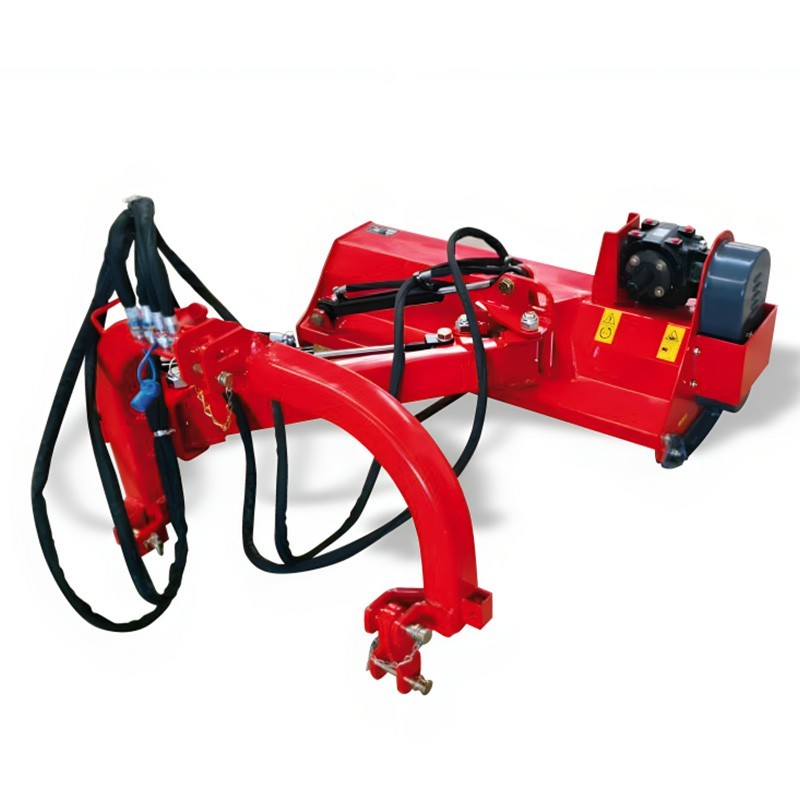

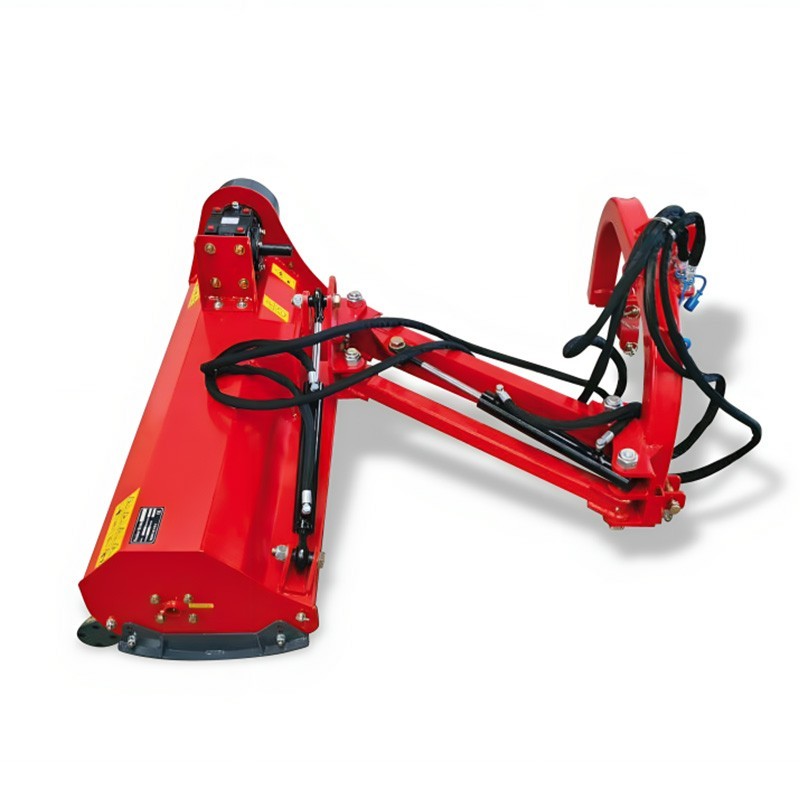

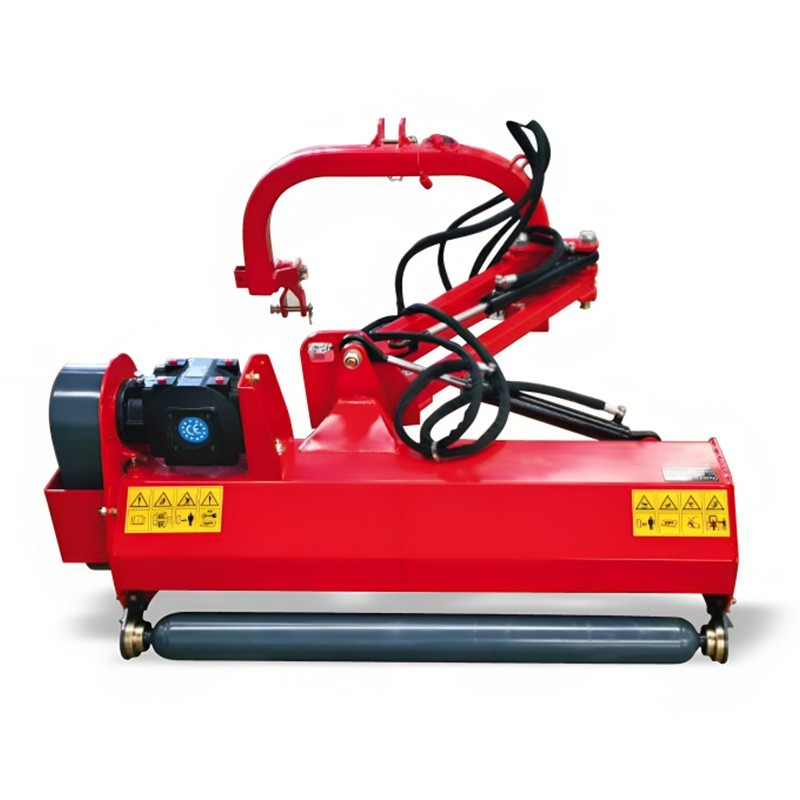

Light shredder with hydraulic arm VG Agro KDS
Light shredder with hydraulic arm VG Agro KDS
Light shredder with hydraulic arm VG Agro KDS

Light shredder with hydraulic arm VG Agro KDS


  • Belts: 3
  • Cast iron gearbox with free wheel
  • Adjustable height: rear roller with scraper
  • Accepts pruning residue of 3 cm maximum thickness

Cardan shaft included

En stock
icon Shredder type
Shredder type
Shredder with side arm
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
125 - 165 cm
icon Tractor power
Tractor power
minimum 25 HP
icon Cardan shaft
Cardan shaft
Included
icon Type of coupling
Type of coupling
Pantograph displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Medium-Light
icon Number of hammers
Number of hammers
20 - 28
icon Weight
Weight
278 - 350 kg
€2,328.46 excl. VAT
- 4%
€2,235.32 excl. VAT
€2,704.74 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Light shredder with hydraulic arm VG Agro KDS
€2,704.74
Select
Qty

Hydraulic arm shredder VG Agro KDS

The light shredder VG Agro KDS is ideal for the maintenance of field edges and verges as it has a hydraulic arm to reach all the edges easily and quickly.

The maximum shredding diameter of this machine is 3 centimeters and the weight of the machine varies according to the model chosen from 278 to 350 Kg.

The shredder with hydraulic arm VG Agro KDS has a rotor diameter of 108 cm and has three belts. The number of hammers equipped with the machine ranges from 20 hammers for the smallest model to 28 for the largest.

As for its working width, we can say that the light shredder VG Agro KDS reaches up to 165 cm depending on the model we choose.

It should also be noted that it is height adjustable by side skids and has a cardan shaft as standard.

Technical data

MODEL KDS125 KDS145 KDS165
Minimum power (HP) 25 35 50
Rotor diameter (mm) 108 108 108
No. of hammers 20 24 28
Weight (Kg) 278 305 350
Belts 3 3 3
Dimensions M (mm) 990 990 990
Dimensions S (mm) 1410 1610 1810
Dimensions T (mm) 1840 2040 2240
U dimensions (mm) 1500 1500 1500

IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
259212

Data sheet

Shredder type
Shredder with side arm
Type of cut
Hammers
Working width PTO
125 - 165 cm
Tractor power
minimum 25 HP
Cardan shaft
Included
Type of coupling
Pantograph displacement
Displacement
Hydraulic
Robustness
Medium-Light
Number of hammers
20 - 28
Working width (cm)
120 - 129 cm
140 - 149 cm
160 - 169 cm
Weight
278 - 350 kg
