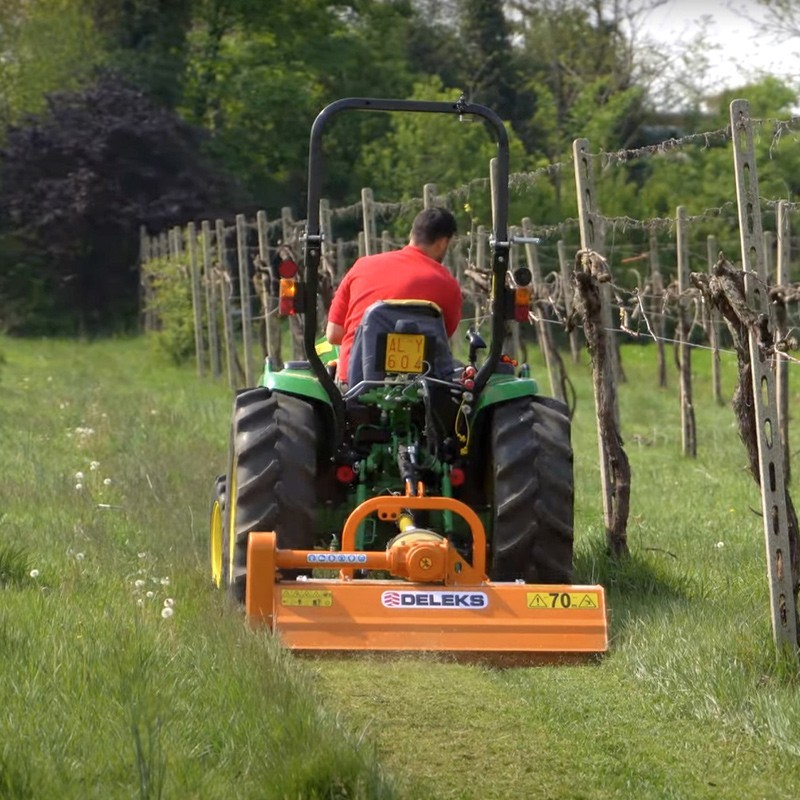

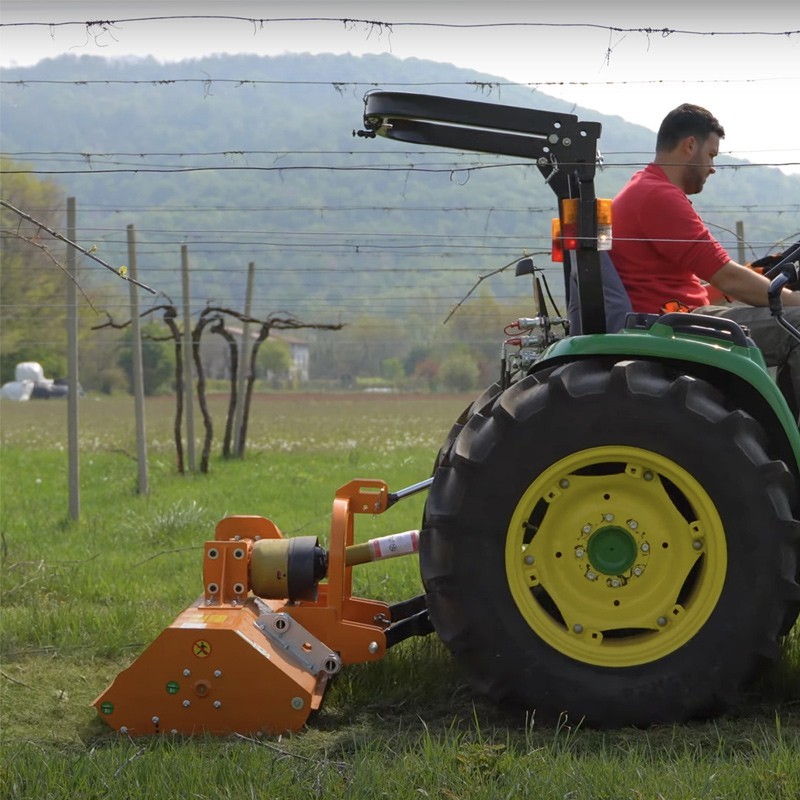

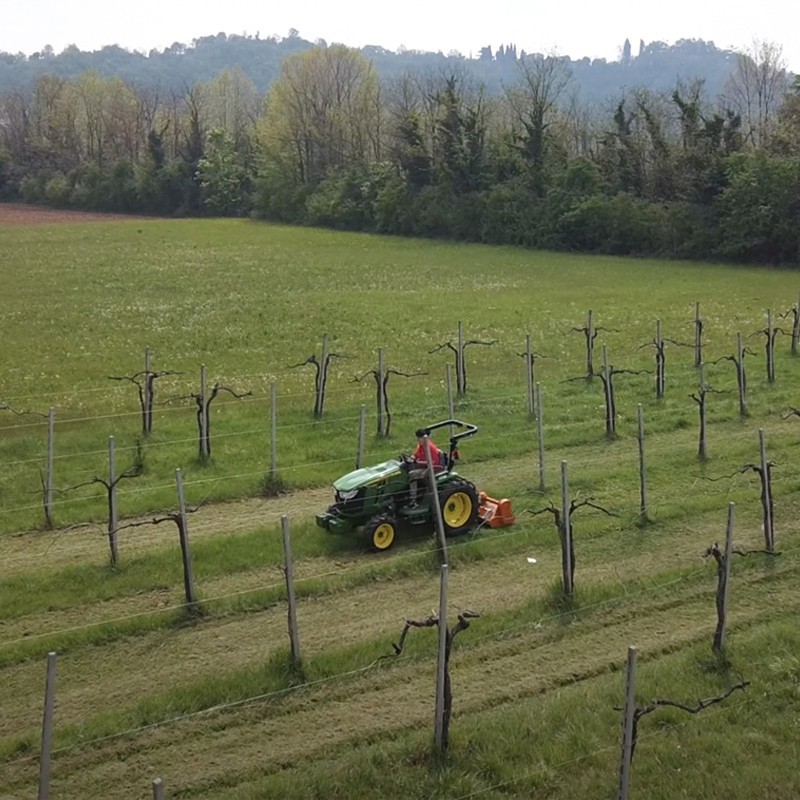

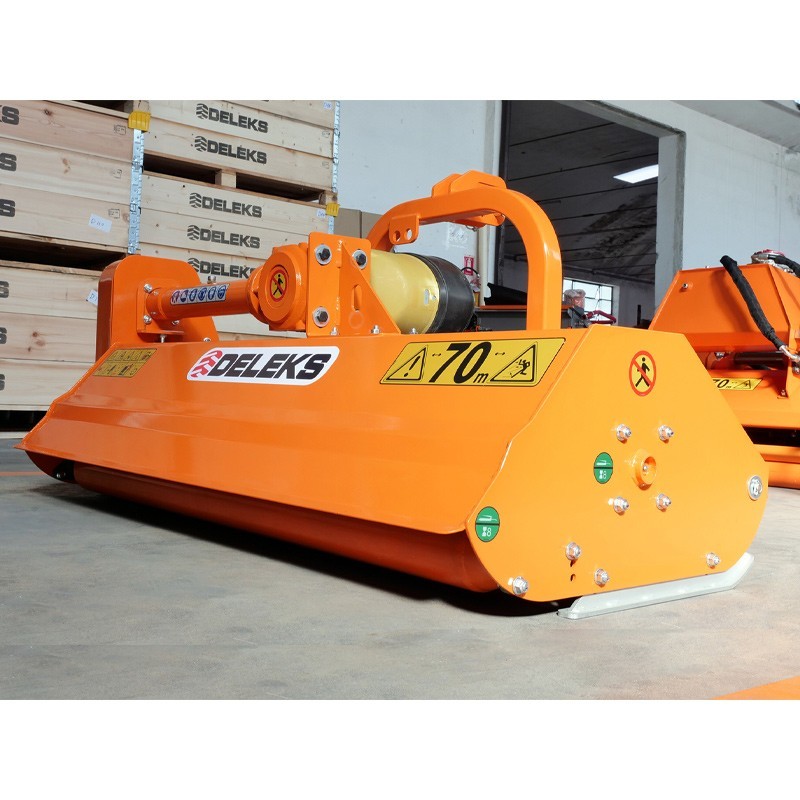

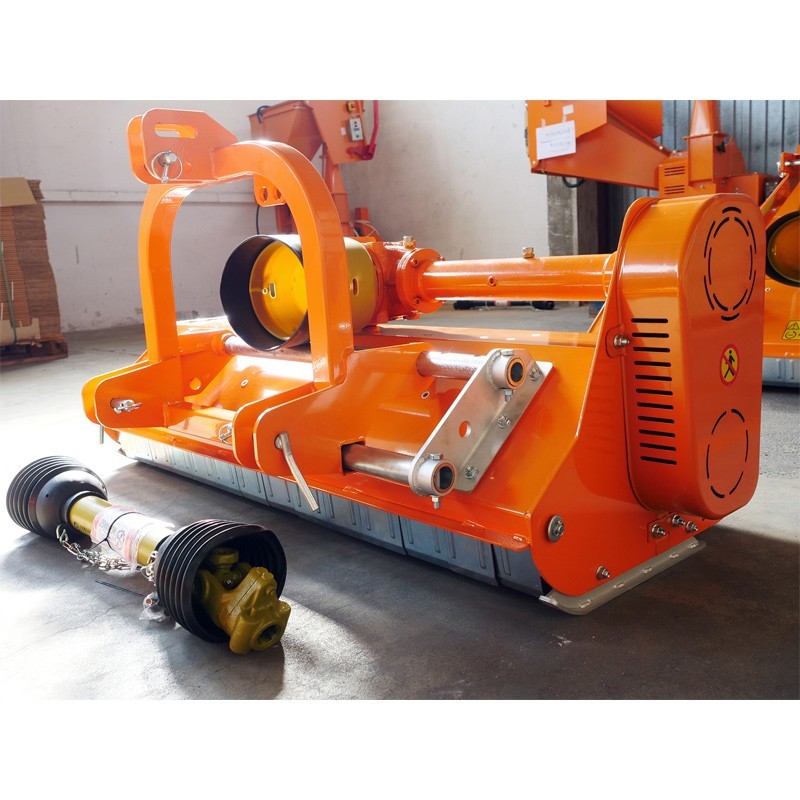

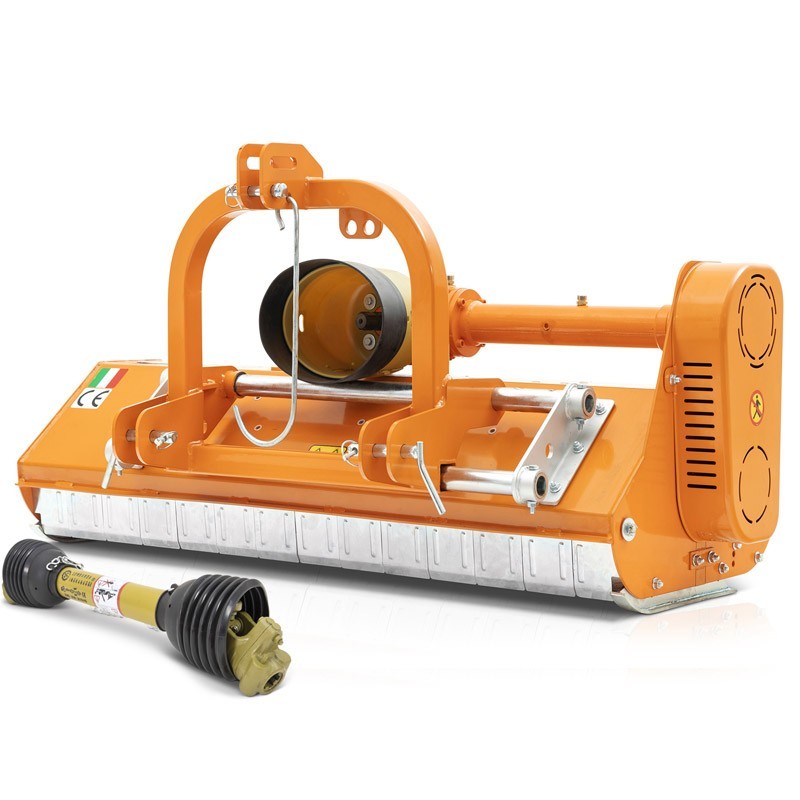

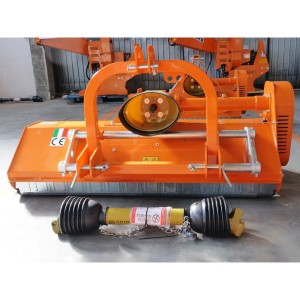

The Hammer crusher Deleks LINCE-SP140 is specially designed for tractors with low horsepower, and is 20 to 40 HP. This shredder model is used for gardens and agricultural fields.

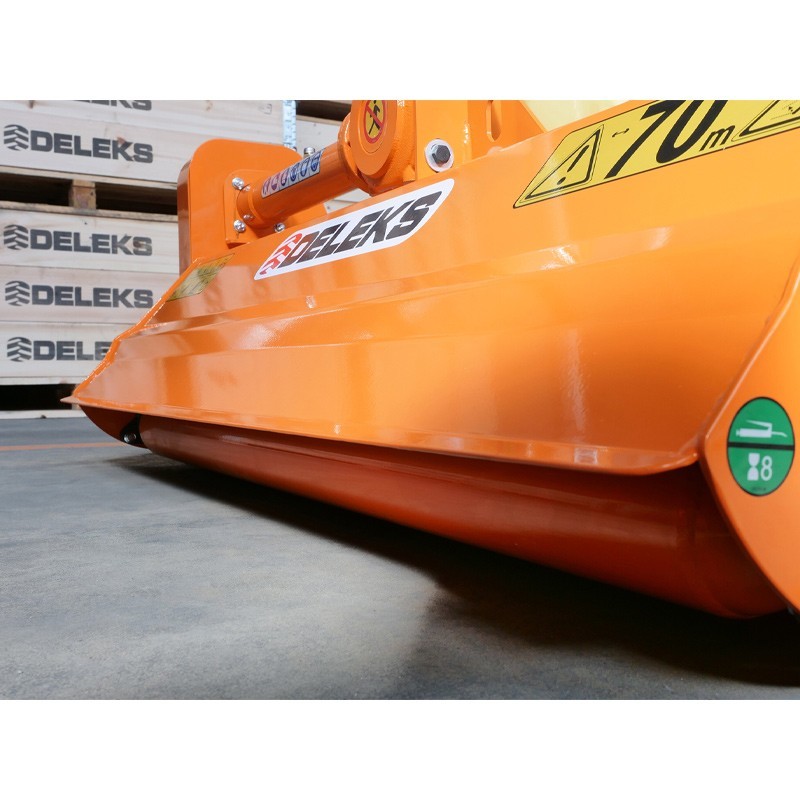

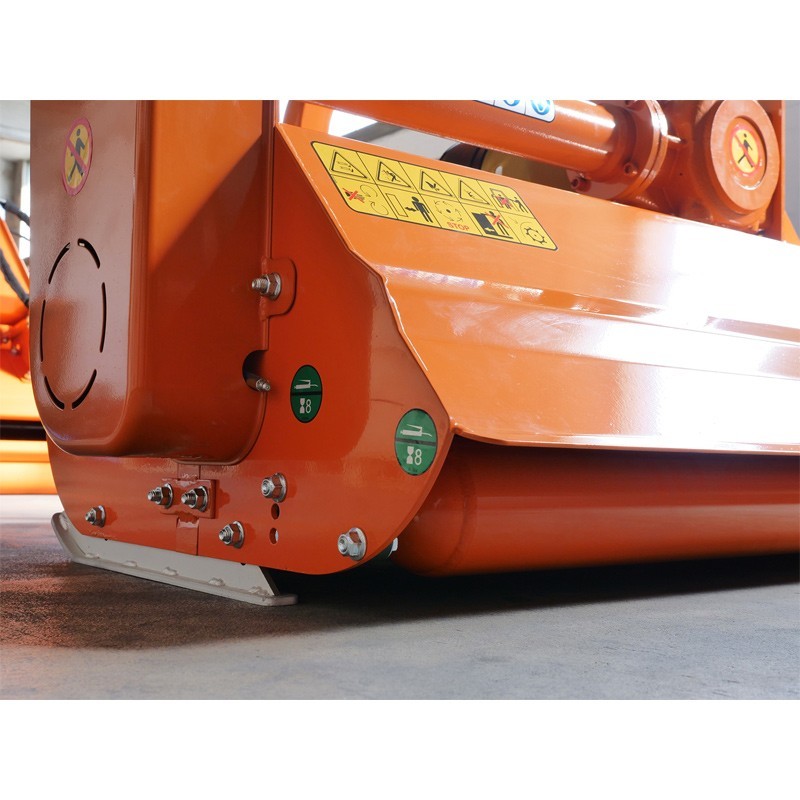

The model Deleks LINCE-SP140 has forged hammers for grass and small brambles. It has an adjustable cutting height thanks to the rear roller and adjustable skids. It also has a cAT 1 universal 3-point linkage.

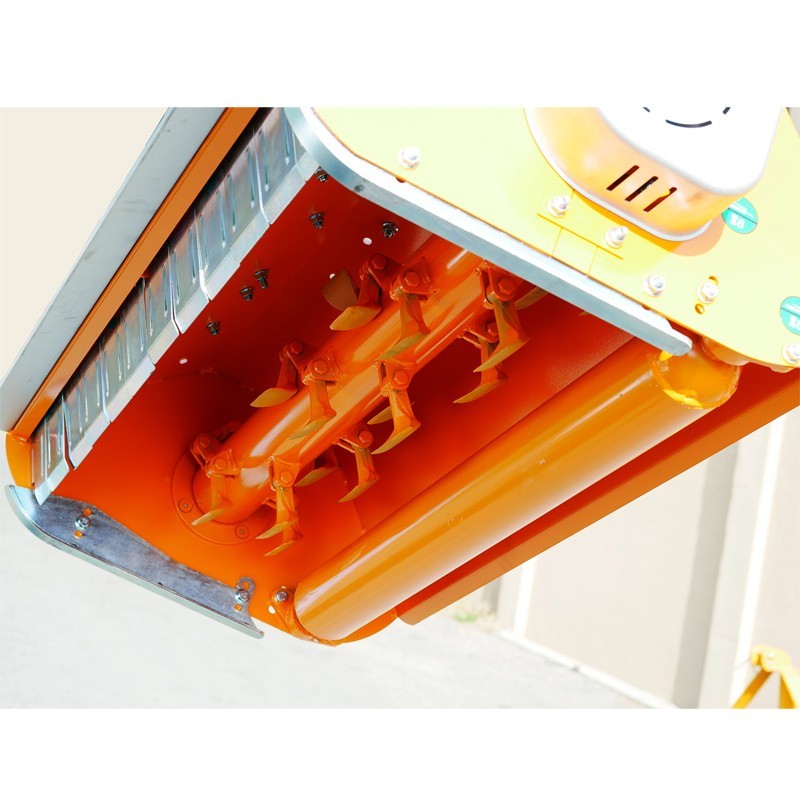

In terms of its characteristics, we can highlight its good structure completely in swedish steel SSAB. It also offers a rotor made of ARVEDI tube (Cremona) electronically balanced. It is made of S355 steel with 8mm thickness and hammers mounted on 6 rows.

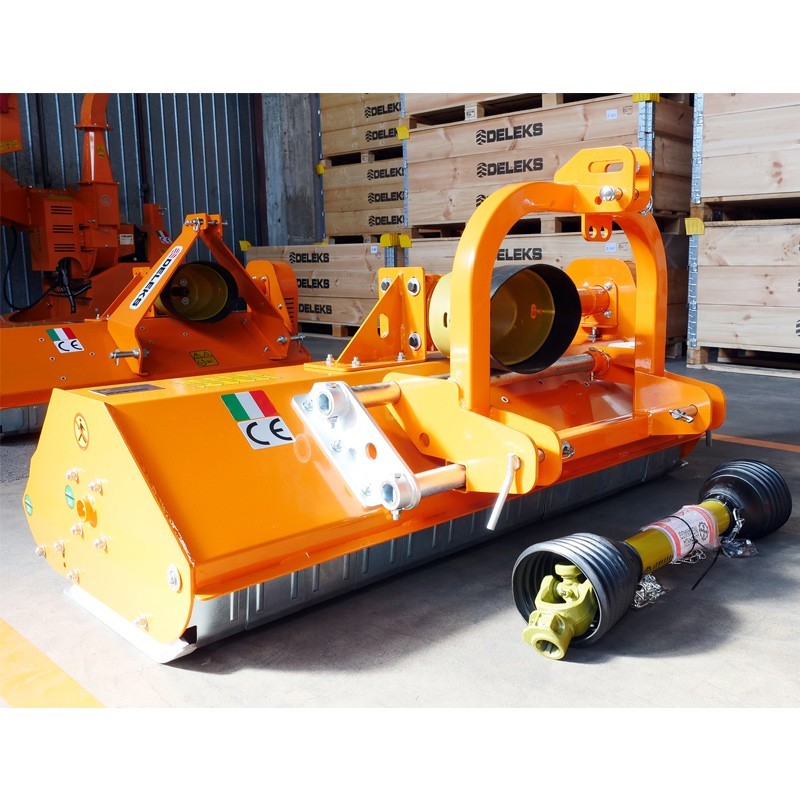

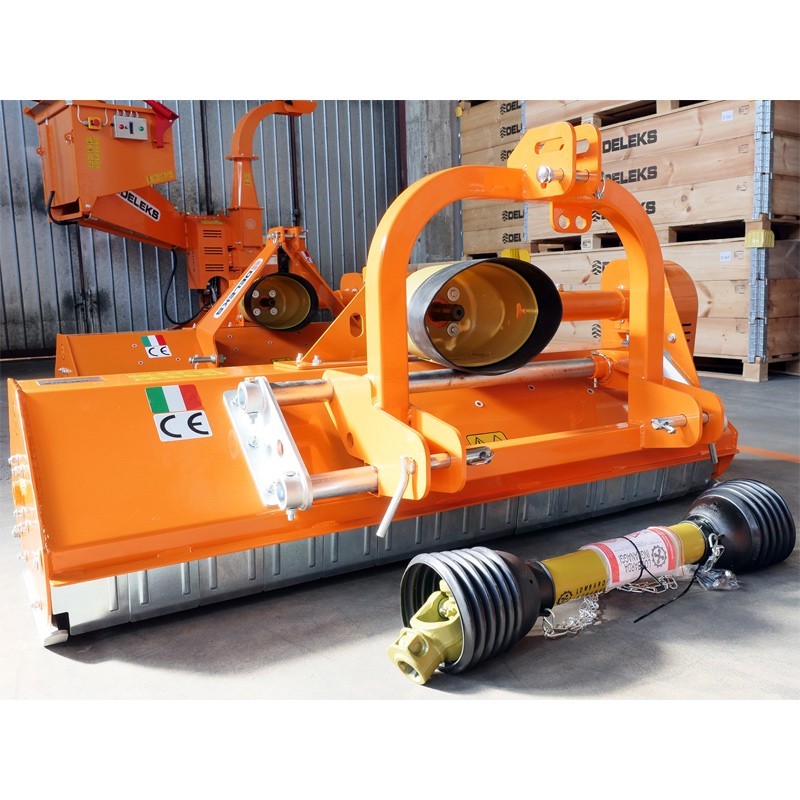

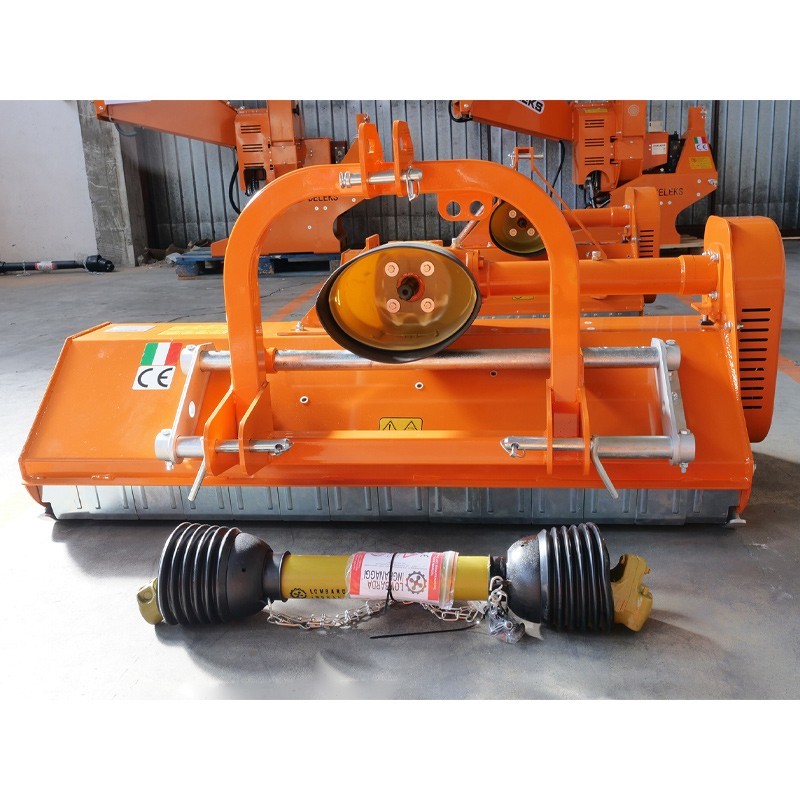

The Hammer crusher Deleks LINCE-SP140 comes with cE gimbal included, it also includes hammer supports in HARDOX. The implement can be used on tractors with low power in gardens and orchards thanks to its light weight of 195kg.
This model of hammer crusher Deleks guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.

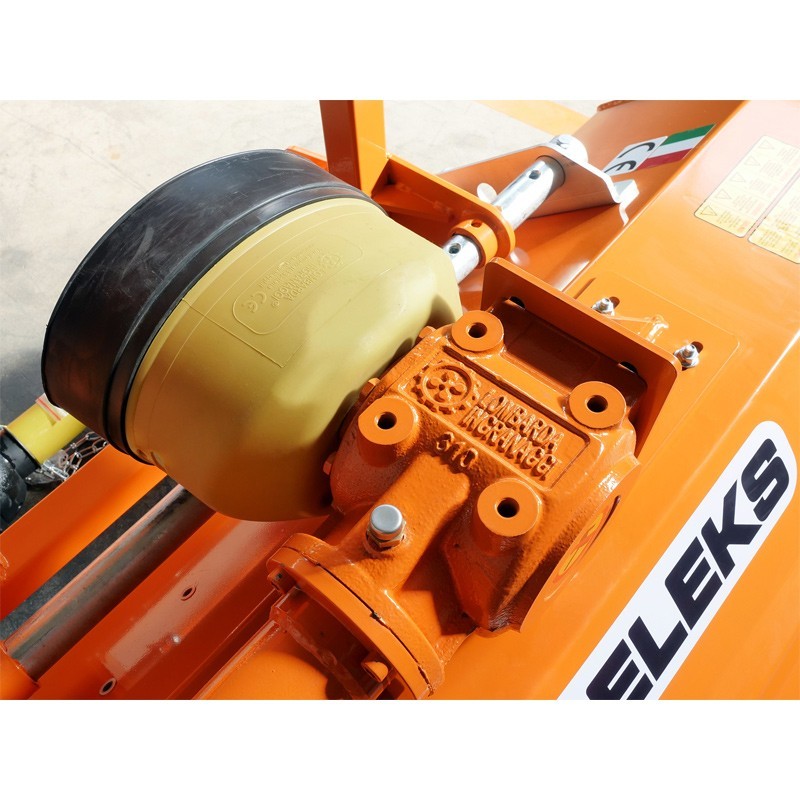

Among these features we can highlight the working width of 1400mm and the total width 1520mm. We can also highlight the cutting height adjustable from 10 to 45 mm and the total height 750mm. It has a transmission box Lombarda IngranaggiWith a freewheel.
Working width | 1400 mm |
Overall width | 1520 mm |
Min/max cutting height | 10 - 45 mm |
Weight | 195 kg |
Total height | 750 mm |
Tractor power | 20 - 40 HP |
3-point hitch | Cat. 1 (ø 19-22mm) |
Position of the gearbox | 748 mm from left side / 773 mm from right side. |
Hood height | 370 mm |
Distance between the lower points | 520 - 620 mm |
Number of hammers | 24 |
Max. cutting diameter | 20 - 30 mm |
Total length | 880 mm |
Ground to gearbox spacing | 472 mm |
Plate thickness | 3 mm |
Thickness of sheet metal on the sides | 5 mm |
Skid thickness | 6 mm |
Transmission type | V-belts |
Transmission: Gearbox | Lombarda Ingranaggi Srl (Italy) |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 3150 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: diameter of upper pulley | 206 mm |
Transmission: lower pulley diameter | 106 mm |
Transmission: number of Koreas | 3 |
Transmission: dimensions of the Koreas | AX39 |
Rotor: diameter | 102 mm |

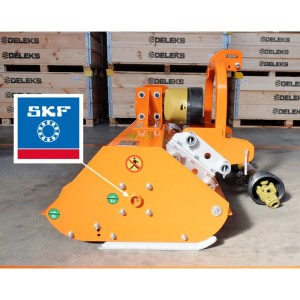

Rotor: bearing type and dimension | SKF UCF-207 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 8 mm |
Hammers: weight | 330 g |
Hammers: hole dia | 11 mm |
Hammers: base width | 80 mm |
Hammers: head width | 14 mm |
Hammers: diagonal | 75 mm |
Roll: diameter | 102 mm |
Roll: sheet thickness | 6 mm |
Roll: bearing type and dimension | FL205 |

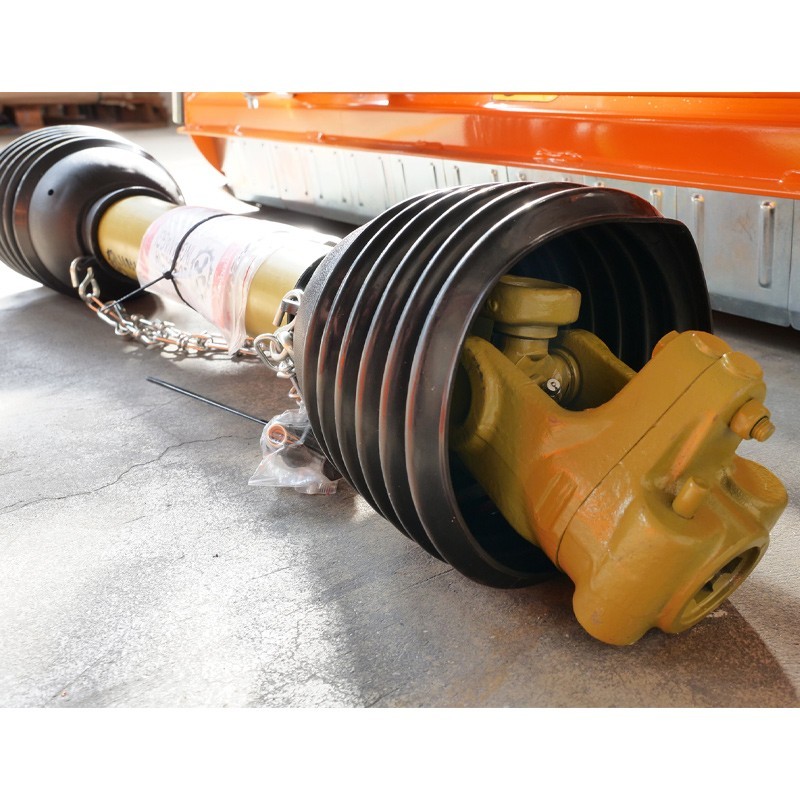

Cardan | CE 4x800 mm |
Hood length | 665 mm |

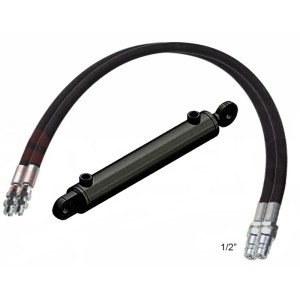

Horizontal displacement | 250 mm manual/hydr. |
Packing dimensions | 1550*850*700 mm |
