INCLUDES PTO SHAFT
| Assembly and set-up INCLUDED |

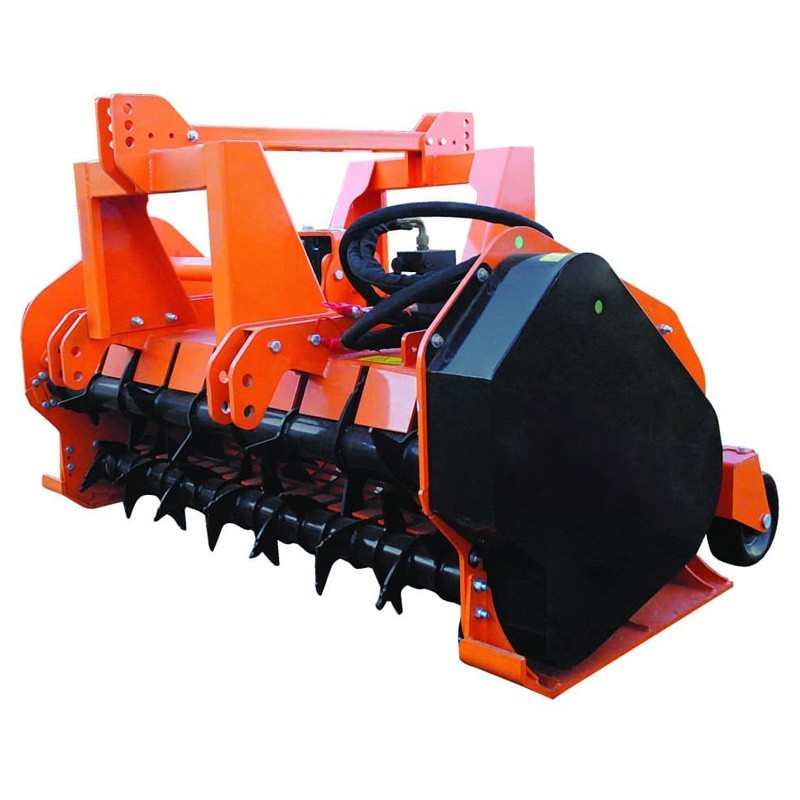

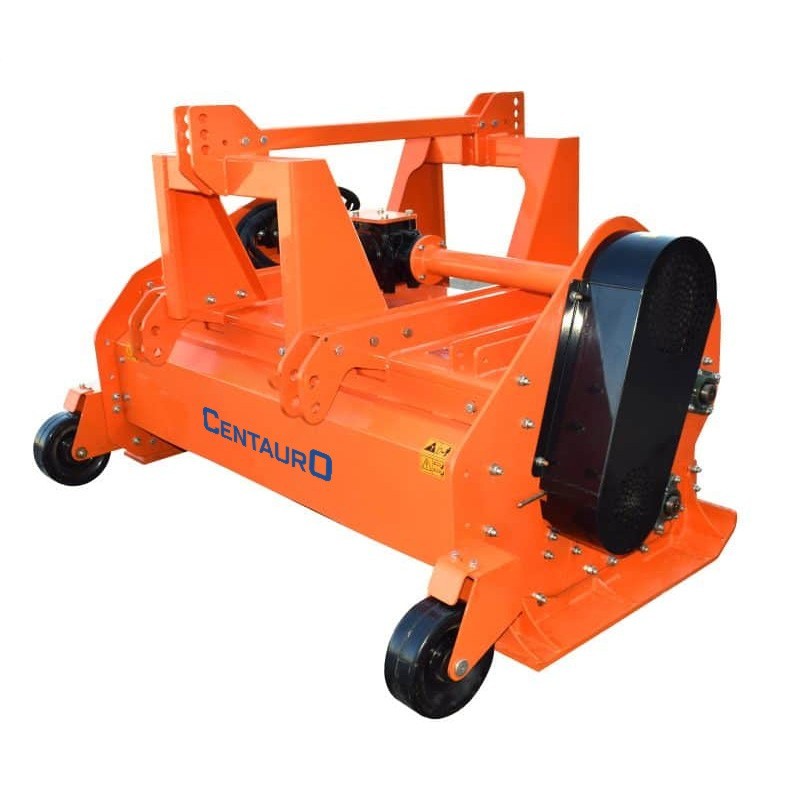

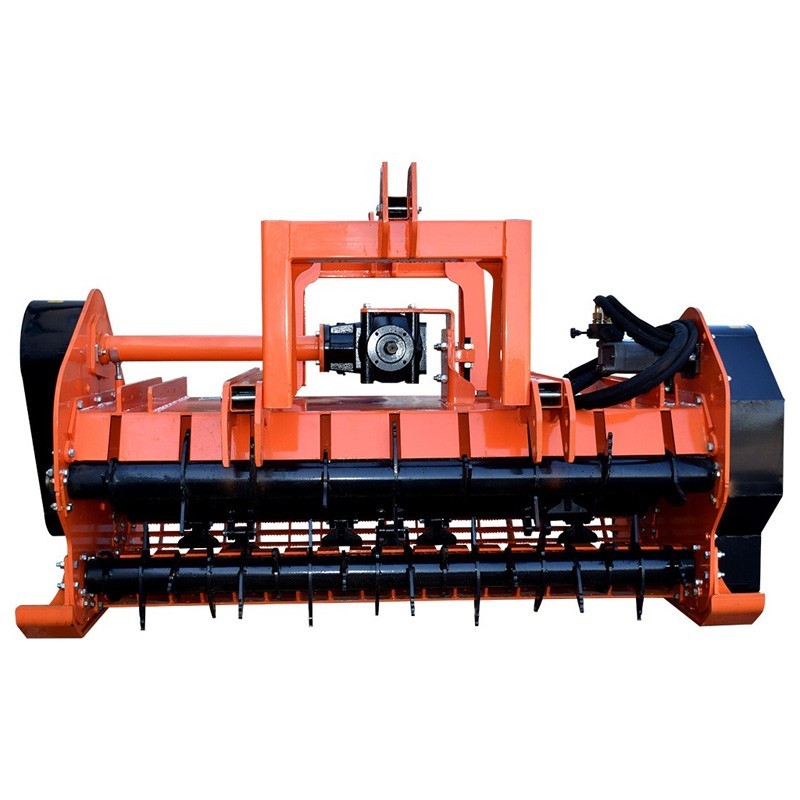

The Reversible shredder for tractor EuroCentauro Lugo It is a versatile and robust machine, specially designed for pruning residues in vineyards and olive groves. With the capacity to shred branches up to 12 cm in diameter, stands out for its reversible system that allows efficient work in both directions. Its design complies with the CE safety regulations, ensuring reliable use in any environment.

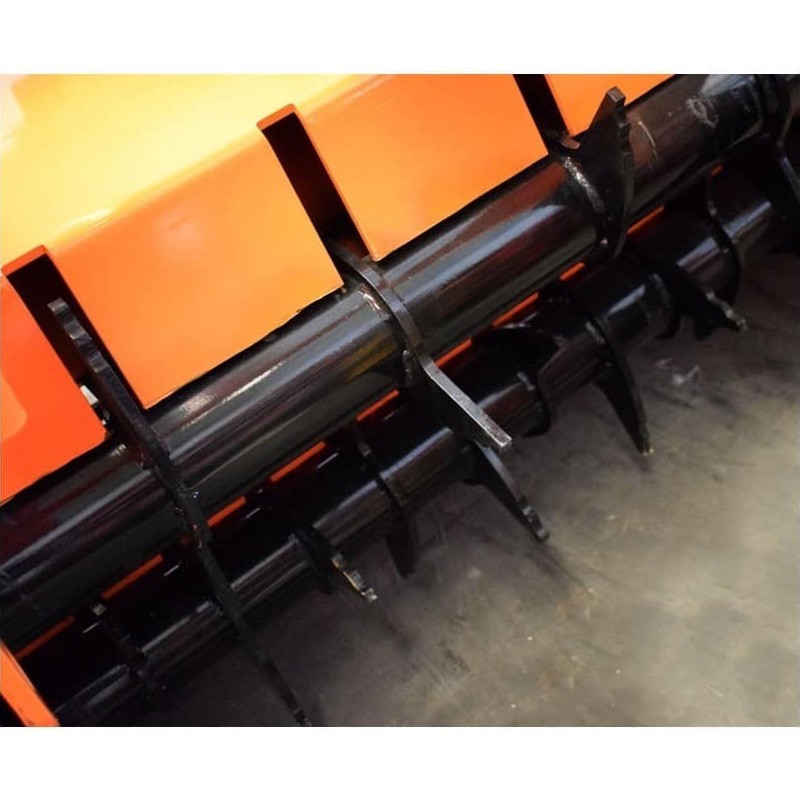

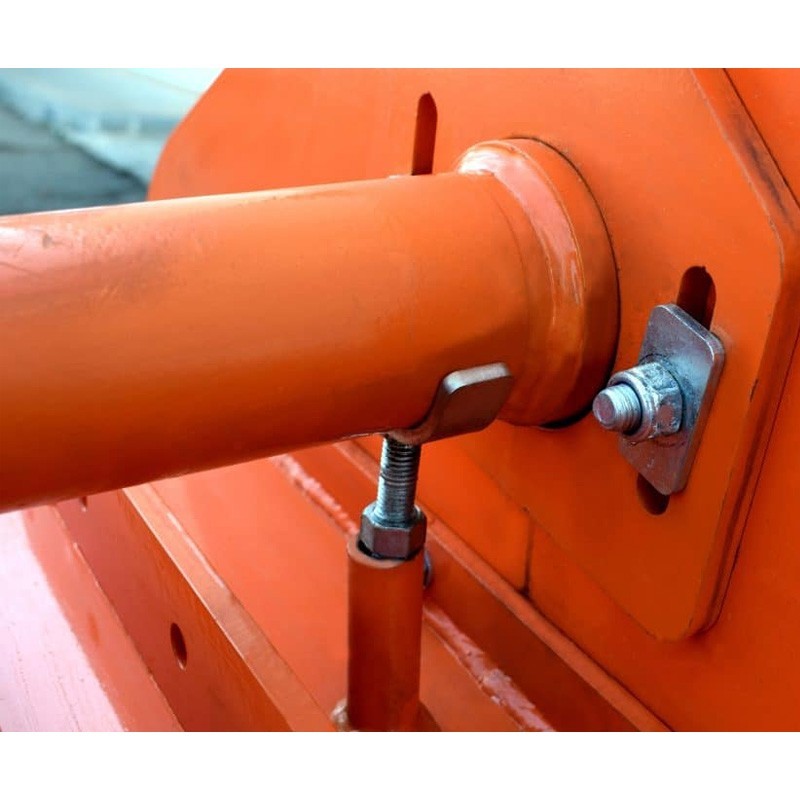

Available in models Lugo 13, 15, 16, and 18, it offers working widths of 1300 to 1800 mm and is equipped with 16 to 22 reinforced hammers, ensuring precise and uniform cuts. The machine includes Chain and belt tensioners, a Reinforced reversible group, and a rear grille for optimal shredding.
Compatible with tractors of 80 to 150 HP, according to the model, it operates with a system 540 RPM PTO for maximum performance. With a weight that varies between 910 and 1458 kg, the EuroCentauro Lugo combines durability with ease of handling.

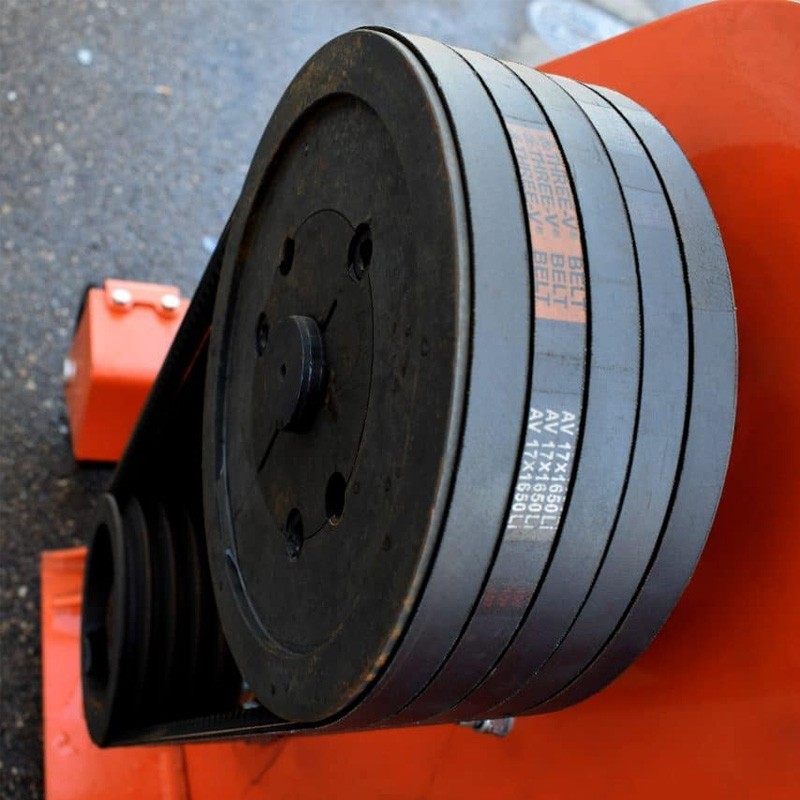

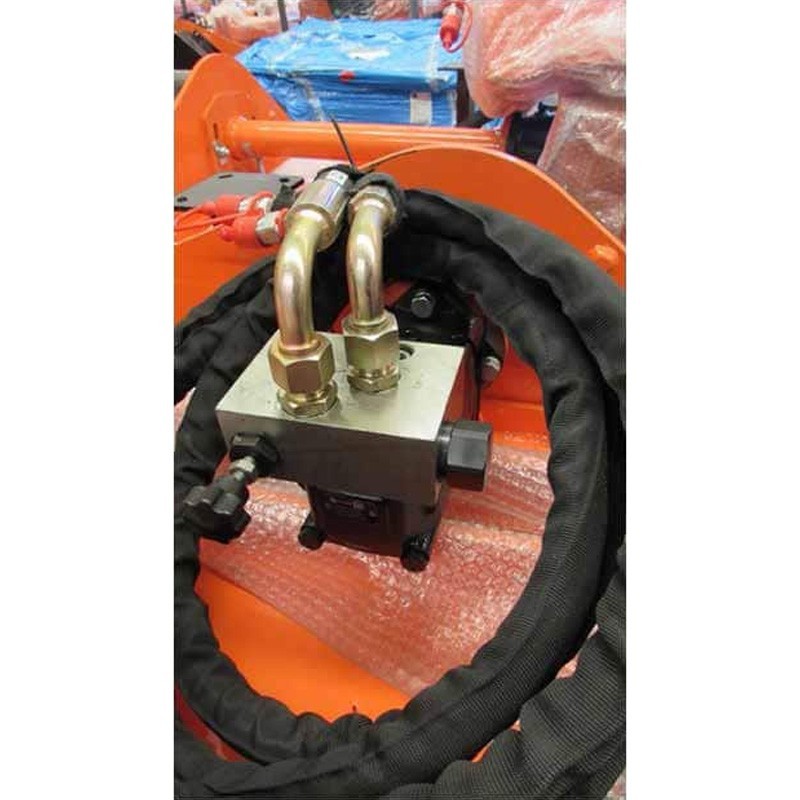

Your High-quality chains and belts, along with the Hydraulic regulation, they guarantee an efficient workflow. Additionally, it includes a Cardan for a secure connection to the tractor, positioning it as an essential tool for high-demand agricultural maintenance.
| Model | Lugo 13 | Lugo 15 | Lugo 16 | Lugo 18 |
| Weight (kg) | 910 | 1300 | 1350 | 1458 |
| Working width (mm) | 1300 | 1500 | 1600 | 1800 |
| Hammers | 16 | 18 | 18 | 22 |
| PTO (rpm) | 540 | 540 | 540 | 540 |
| Required power (Hp) | 80 - 100 | 90 - 120 | 100 - 120 | 120 - 150 |
| A (mm) | 1213 | 1308 | 1308 | 1308 |
| B (mm) | 1654 | 1866 | 1966 | 2150 |
| C (mm) | 1472 | 1470 | 1470 | 1550 |
| IMPORTANT NOTICE |
| Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
Data sheet
Specific References
DRIVESHAFT INCLUDED
INCLUDES PTO SHAFT
CARDAN SHAFT INCLUDED
