| Deleks products take about 15 to 25 days. |

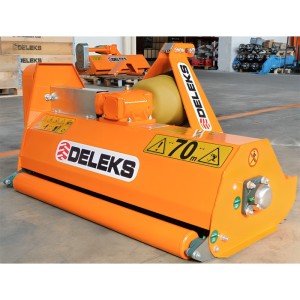

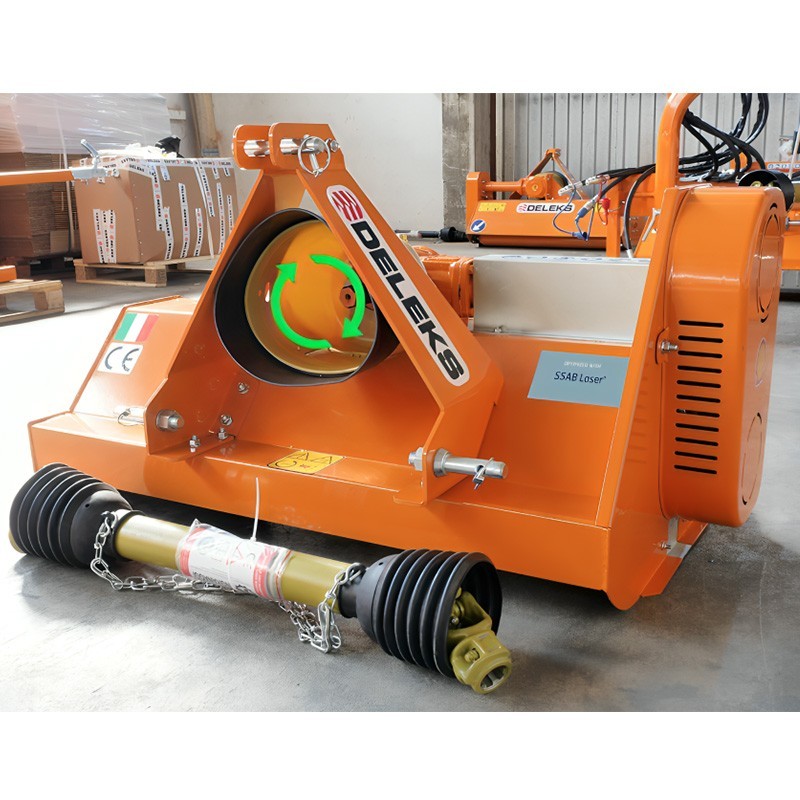

The Rear Crusher for Tractor Deleks APE 120 SX, this designed for tractors that they have a small power, That is to say, with power ranging from 16 to 30 HP, it is designed for the care of gardens and agricultural fields.
And by having forged steel hammers For grass and small brambles, it makes it an even more efficient machine when it comes to the care of gardens and agricultural fields.
It features an adjustable cutting height thanks to the adjustable rear roller, also, the brush cutter is equipped with a Category 1 fixed 3-point hitch.

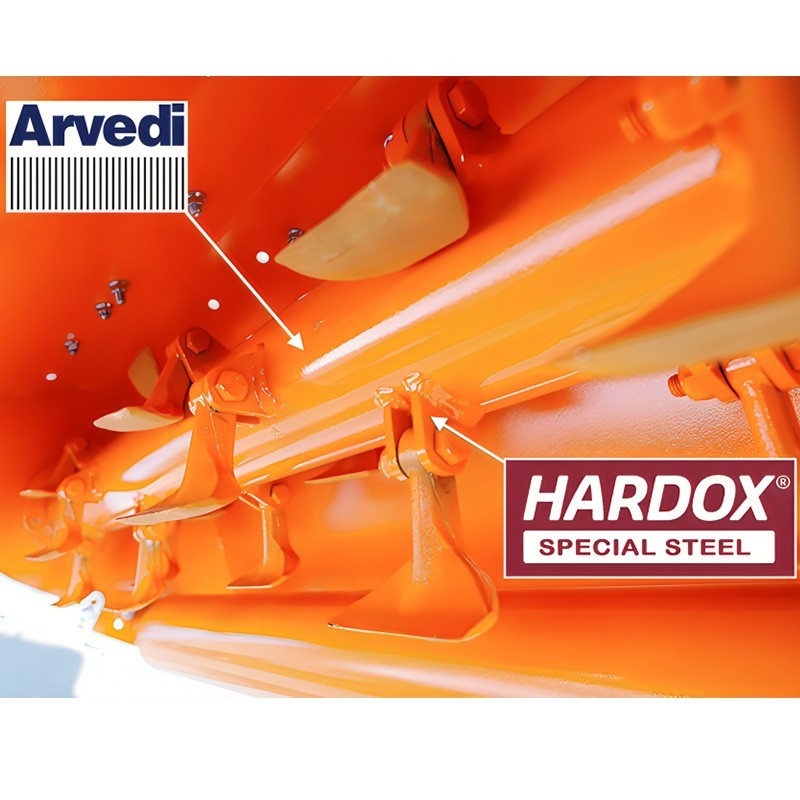

The structure of the Rear Crusher for Tractor Deleks APE 120 SX 1200 mm features aSwedish steel SSAB, and its rotor this is manufactured with ARVEDI tube In addition to being electronically balanced, it features supports for HARDOX hammers

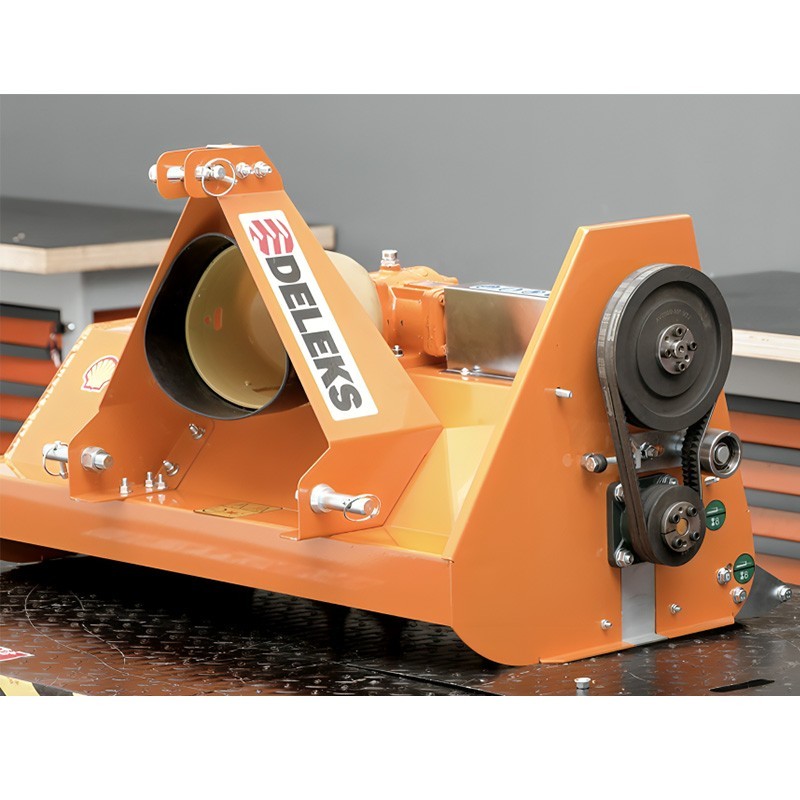

It also has a transmission box Lombarda Ingranaggi Srl with reverse rotation and freewheel. Due to its lightweight design, it allows for use with low-power tractors. The hammers of this brush cutter are equipped with 330g forged steel that allow the cutting of vegetation up to 2 cm thick.
| Working width | 1200.0 mm |
| Total width | 1350.0 mm |
| Minimum/maximum cutting height | 20.0 - 35.0 mm |
| Weight | 120.0 kg |
| Total height | 623.0 mm |
| Tractor power | 16 - 30 HP |
| 3-point hitch | Cat. 1 (ø 19.0-22.0mm) |
| Hood height | 317.0 mm |
| Distance between the lower points | 380.0 - 580.0 mm |
| Number of hammers | 28 |
| Maximum cutting diameter | 10.0 - 20.0 mm |
| Space between the ground and the transmission box | 385.0 mm |
| Total length | 640.0 mm |
| Sheet thickness | 3.0 mm |
| Sheet thickness on the sides | 3.0 mm |
| Transmission type | Correas V |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (3-year warranty) |

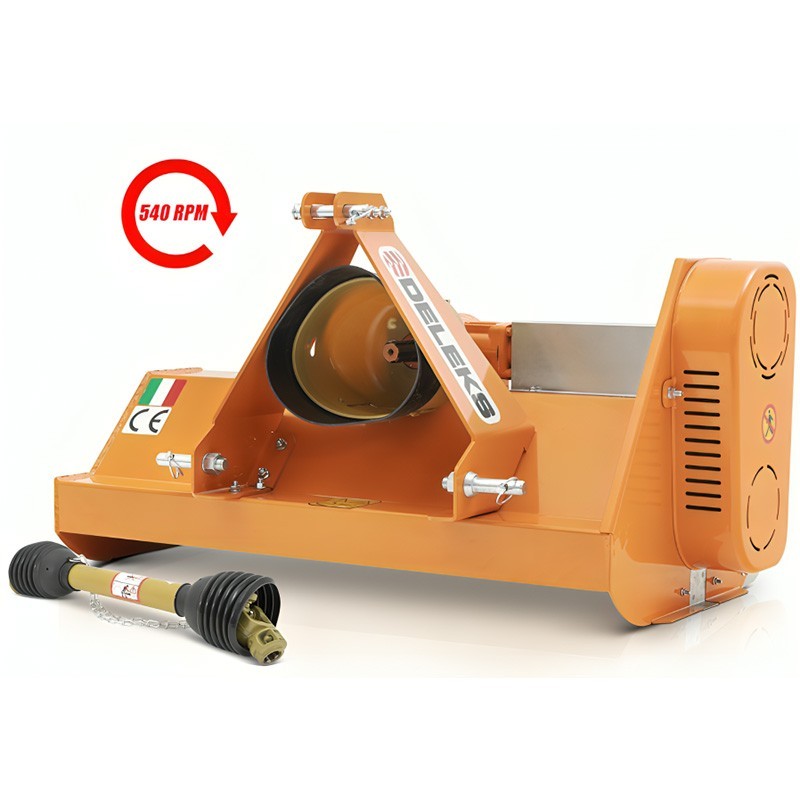

| Transmission: PTO | 540 rpm (revolutions per minute) |
| Transmission: direction of rotation | Counterclockwise |
| Transmission: freewheel | √ |
| Transmission: rotor speed | 3000 rpm |
| Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
| Transmission: diameter of the upper pulley | 185.0 mm |
| Transmission: diameter of the lower pulley | 96.0 mm |
| Transmission: number of cores | 2 |
| Transmission: dimensions of the Koreas | AX35 (889LI) |
| Rotor: diameter | 76.0 mm |
| Rotor: type of bearings and dimension | UCF206 |
| Rotor: balancing | Electronic |
| Rotor: blade thickness | 8.0 mm |
| Hammers: weight | 330.0 g |
| Hammers: ø hole | 11.0 mm |
| Hammers: base width | 80.0 mm |
| Hammers: head width | 14.0 mm |
| Hammers: diagonal | 75.0 mm |
| Roll: diameter | 85.0 mm |
| Roll: sheet thickness | 6.3 mm |
| Roll: type of bearings and dimension | UCFL204 |

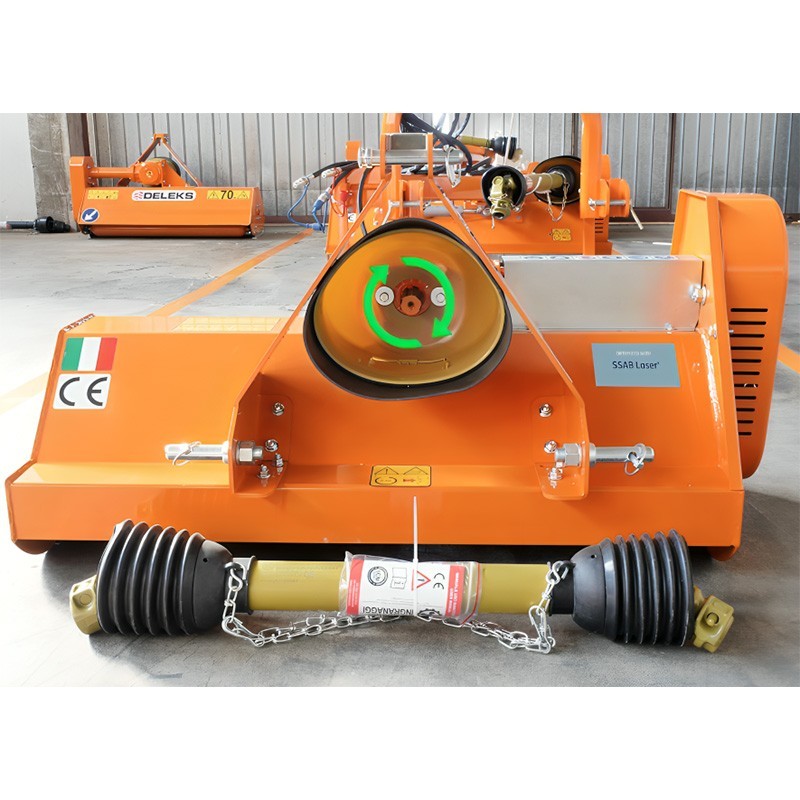

| Cardan | CE 2x800 mm |
| Length of the hood | 525.0 mm |
| Packaging dimension | 130*60*70 |
| IMPORTANT NOTICE |
| Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
