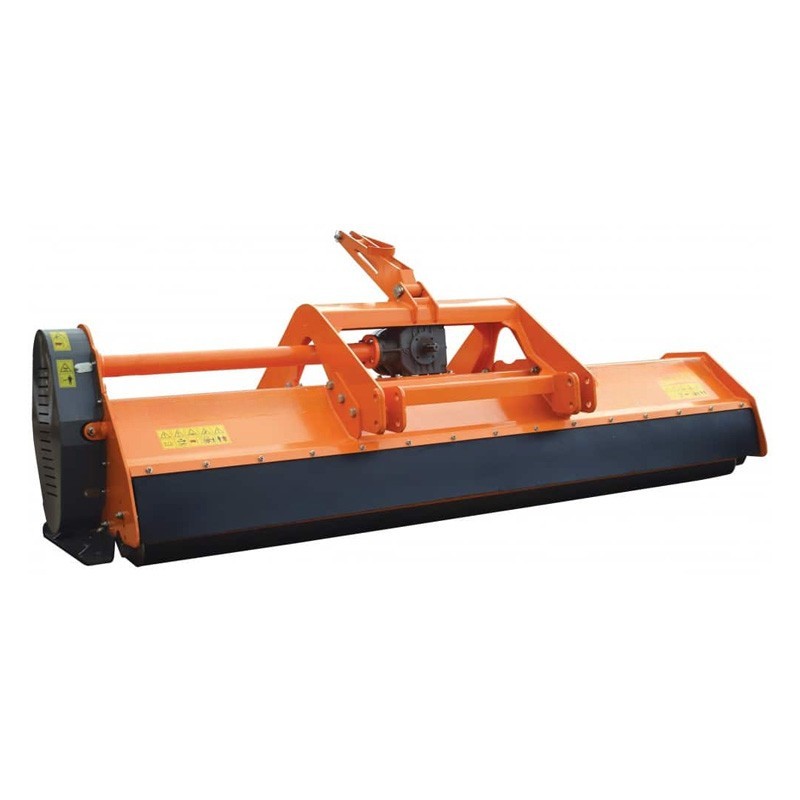

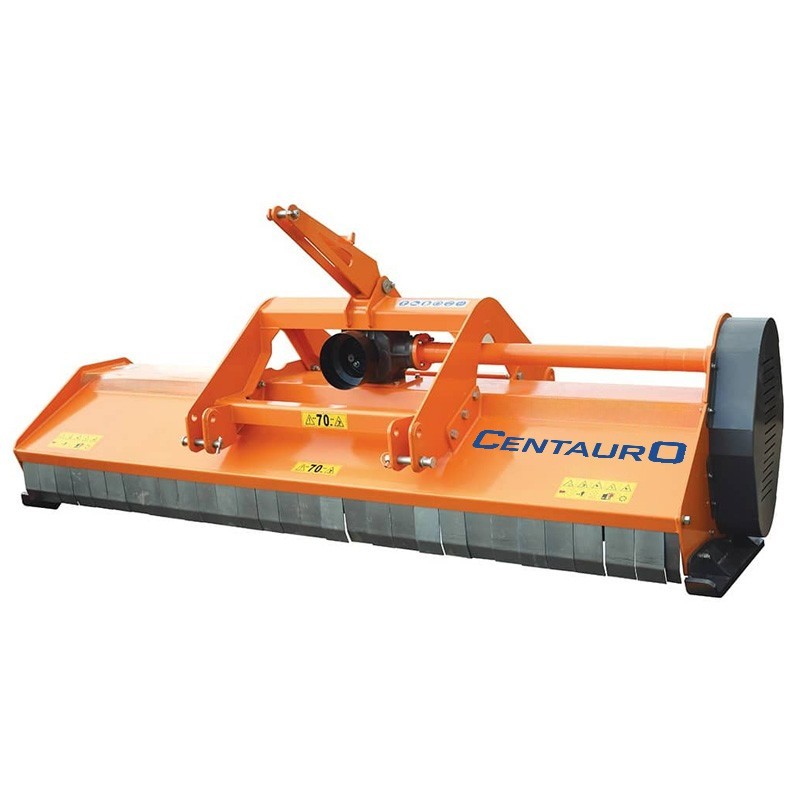

The Fixed reversible hammer crusher Centauro Zaragoza It is a powerful and versatile tool for handling pruning debris and thick branches up to 10 cm in diameter. With a working width of 3 meters, it allows for covering large areas quickly and efficiently, making it ideal for extensive lands in olive groves, vineyards, and forest areas.
Its design includes a reversible system and a reinforced double tripping point, which ensures flexibility in work orientation and stability in tasks with higher demand.

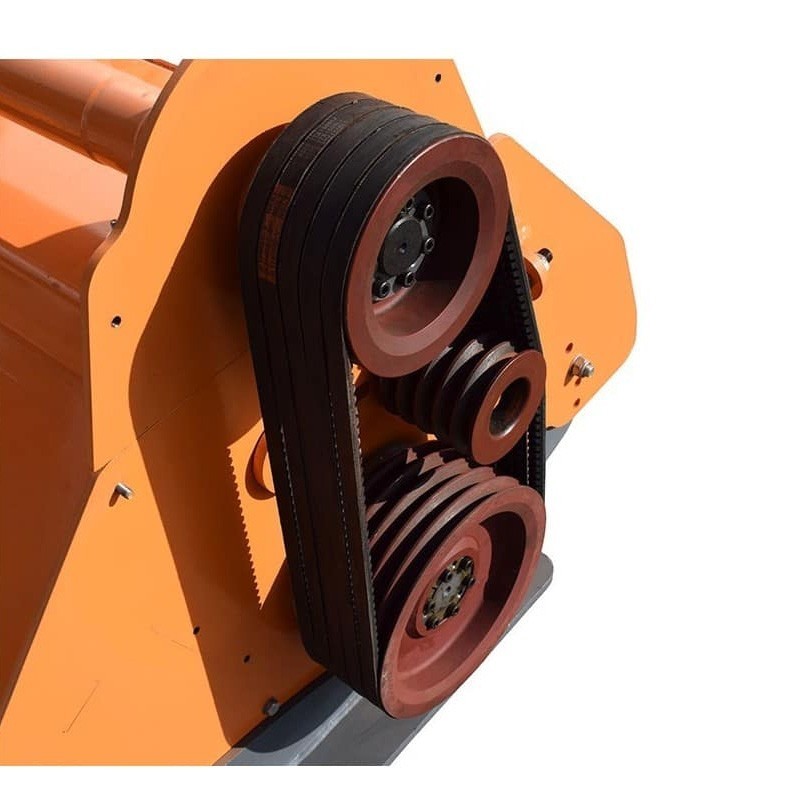

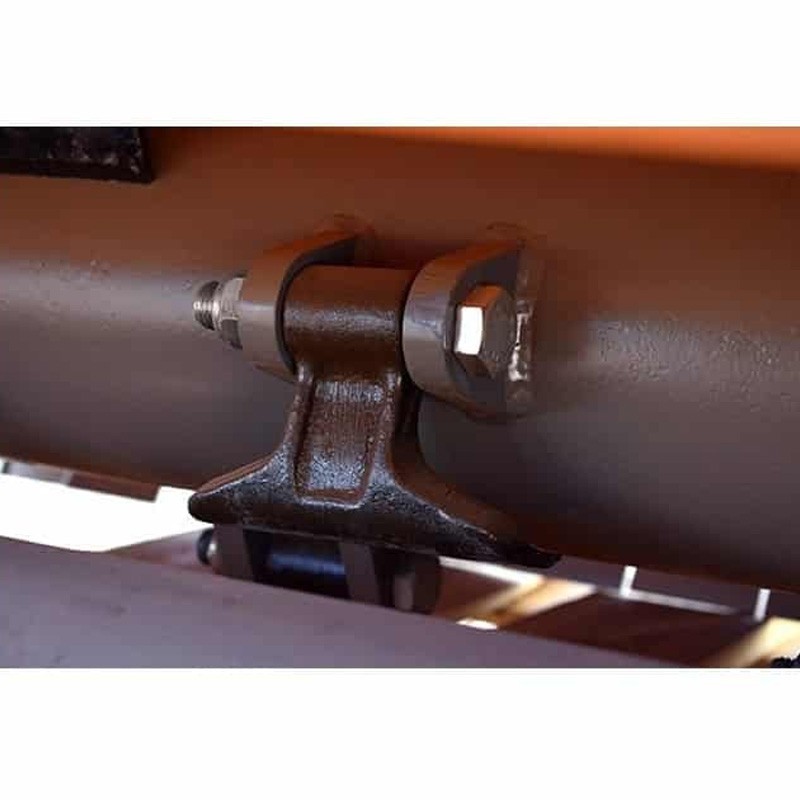

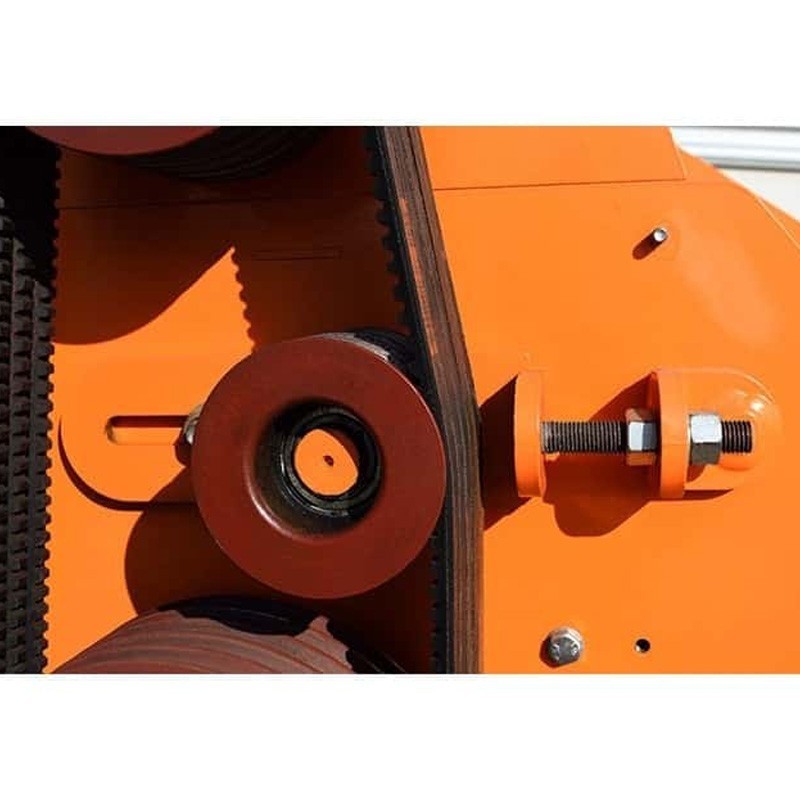

Built with high-quality materials, the Zaragoza has 30 reinforced hammers, 5 premium belts, and a rotor of 194 mm in diameter which ensures a constant and uniform shredding. Additionally, its side plates of 10 mm thick they provide greater durability and wear resistance. The adjustable rear roller facilitates leveling the ground, while the displacement of 500 mm it grants great versatility to adapt to different needs.

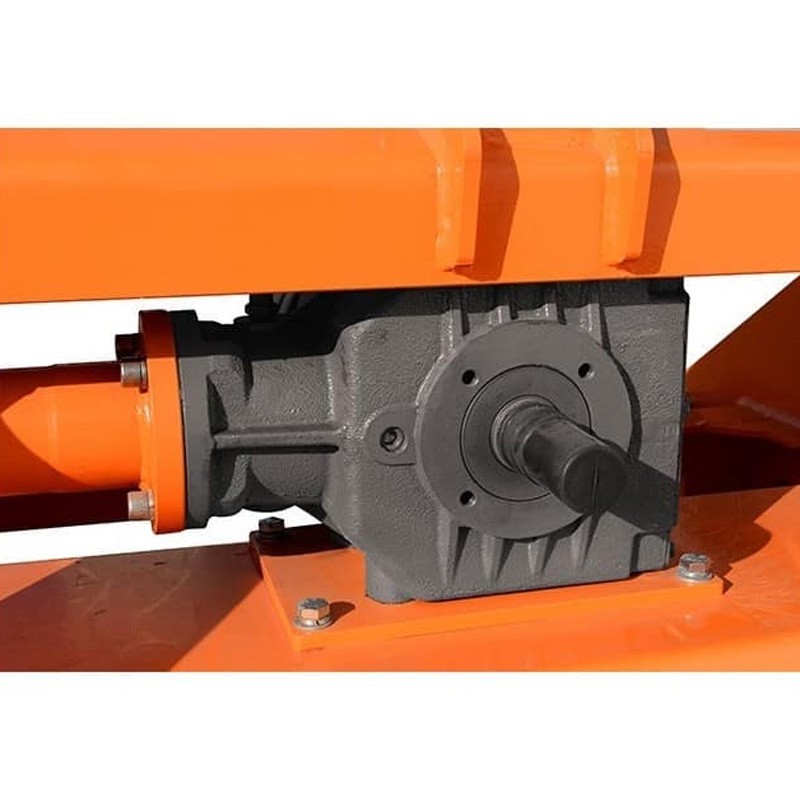

Weighing 1230 kg and with dimensions of 110 x 308 x 80 cm, this shredder requires a minimum power of 100 HP and operates at 540 rpm PTO, which optimizes its efficiency in the field. Additionally, it includes a rear roller, an adjustable displacement system, and a PTO shaft, making it a complete and robust option for professionals looking for Superior performance in the maintenance of their grounds.
MODEL | Zaragoza |
Working width | 3000 mm |
Weight | 1230 kg |
Straps | 5 |
Hammers | 30 |
Rotor diameter | 194 |
Required power | +100 hp |
PTO (rpm) | 540 |
Dimensions (cm) | 110 x 308 x 80 |
IMPORTANT NOTICES |
Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement. except for pending exam. |
