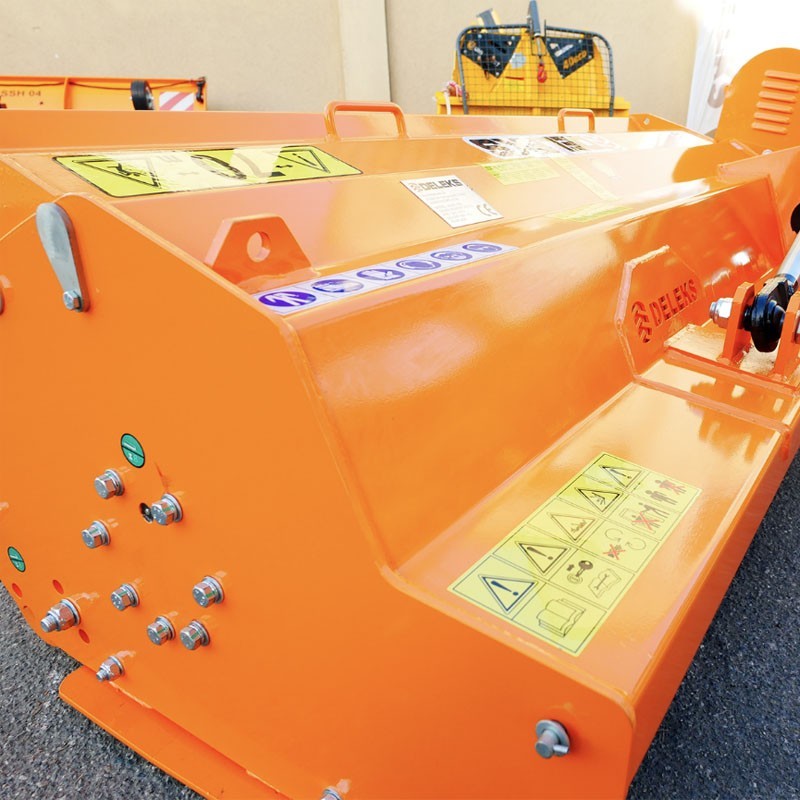

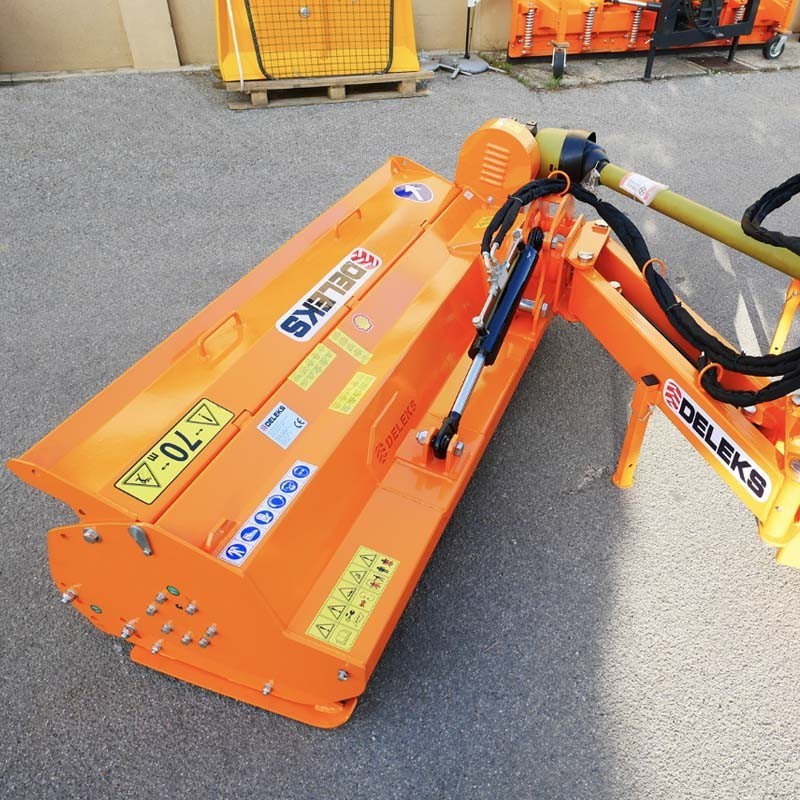

Side flail mower for tractor DELEKS ALCE 160 600 kg
- Working width:1595 mm
- Weight: 600 kg
- Tractor power: 60 - 100 HP
- Number of hammers: 14

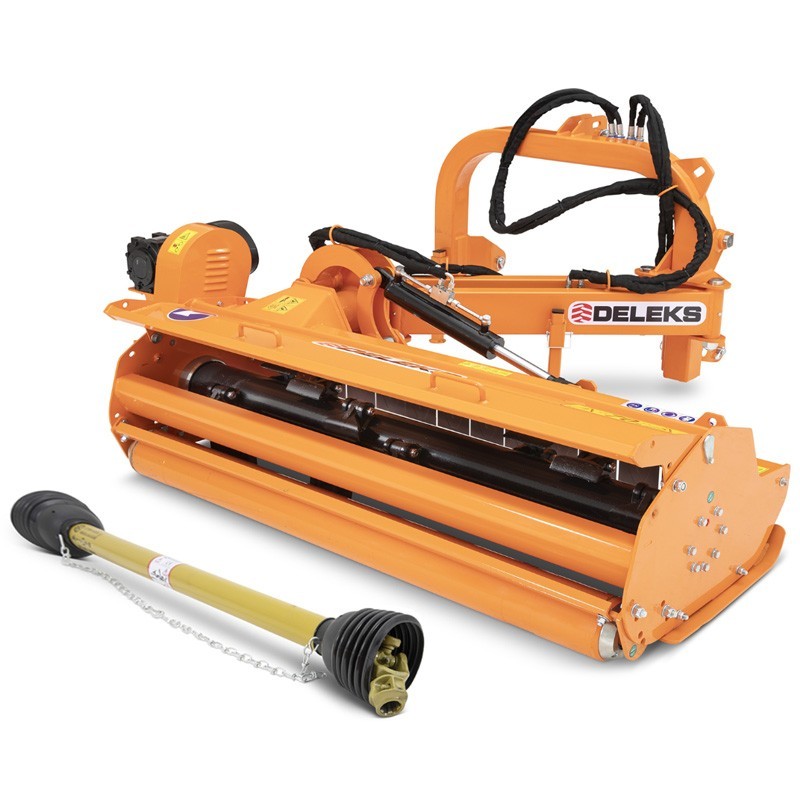

CARDAN SHAFT INCLUDED
Deleks products take about 15 to 20 days. |

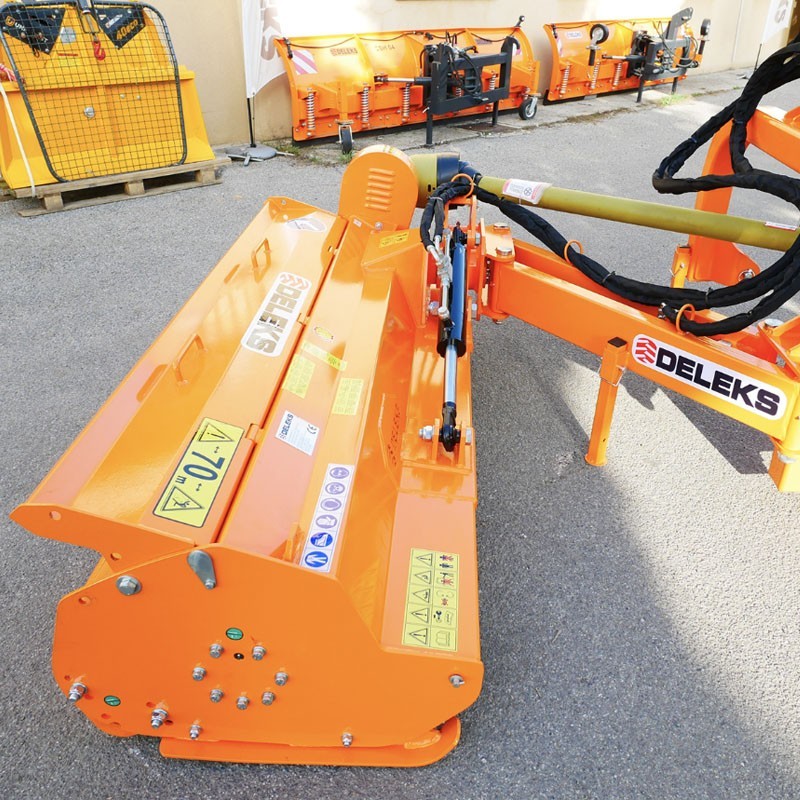

DELEKS ALCE 160 600 kg tractor side shredder for DELEKS tractors

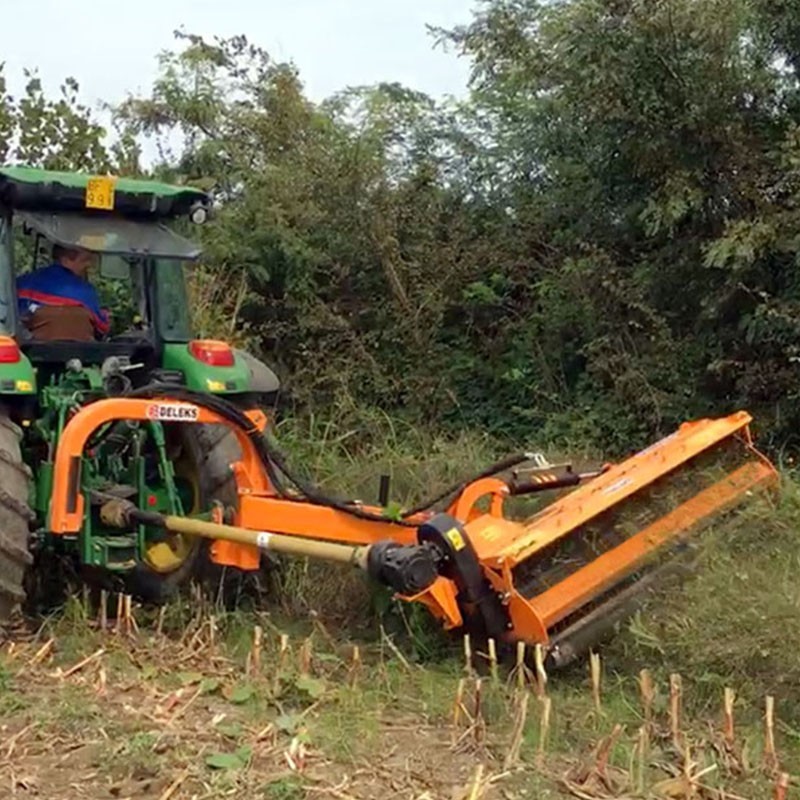

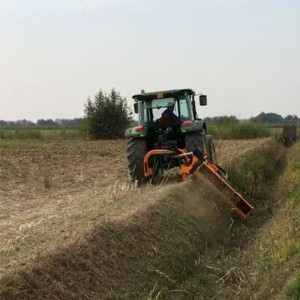

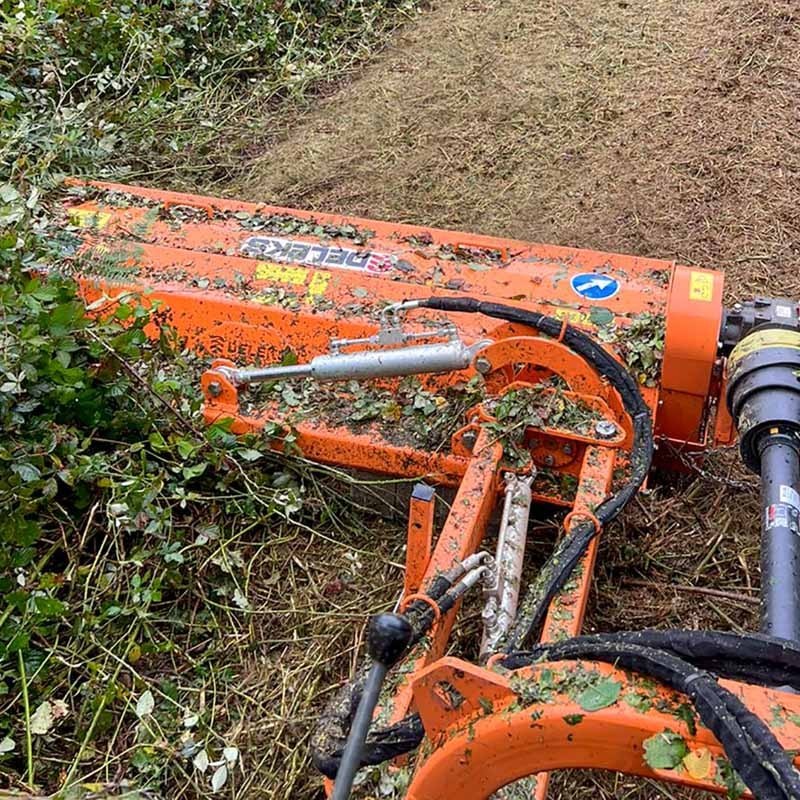

The DELEKS ALCE 160 600 kg tractor side shredder for tractors is designed for private individuals and professionals, for cutting grass, brambles and pruning up to 4 cm in diameter. This model tilts at +90 degrees and -60 degrees, for clearing the edges of ponds, for example.
It has a transmission box outside the chassis to maximize lateral displacement, it has a double box and a heavy and robust design for professional use, it can work horizontally on the tractor axle and laterally for orchards 540g/min transmission box with freewheel.

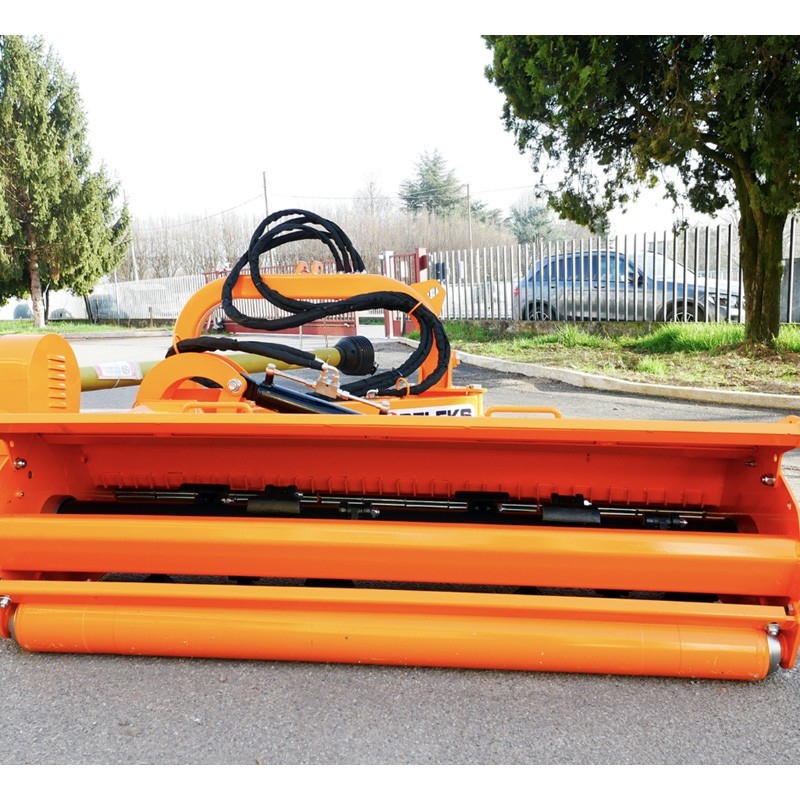

It has 4 high resistance straps, external tension adjustment, one 152 mm rear roller and adjustable side skids, , and also have an electronically balanced rotor.
Working width | 1595.0 mm |
Overall width | 1990.0 mm |
Cutting height min/max | 35.0 - 95.0 mm |
Weight | 600.0 kg |
Total height | 1150.0 mm |
Tractor power | 60 - 100 hp |
3-point hitch | Cat. 2 (ø 25.0-28.0 mm) |
Position of the gearbox | External |
Hood height | 470.0 mm |
Distance between the lower points | 840.0 - 970.0 mm |
Number of hammers | 14 |
Max. cutting diameter | 40.0-50.0 mm |
Total length | 1750.0 mm (closed) |
Ground to gearbox spacing | 650.0 mm |
Plate thickness | 5.0 mm + reinforcements |
Thickness of sheet metal on the sides | 8.0 mm |
Skid thickness | 8.0 mm |
Transmission type | V-belts |
Transmission: Gearbox | Lombarda Ingranaggi Srl (Warranty 3 years) |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 2134 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: diameter of upper pulley | 220.0 mm |
Drive: diameter of lower pulley | 165.0 mm |
Transmission: number of Koreas | 4 |
Transmission: dimensions of the Koreas | 17x1270 |
Rotor: diameter | 152.0 mm |
Rotor: bearing type and dimension | 40x90 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 8.0 mm |
Hammers: weight | 1100.0 g |
Hammers: hole dia | 16.0 mm |
Hammers: base width | 140.0 mm |
Hammers: head width | 40.0 mm |
Hammers: diagonal | 97.0 mm |

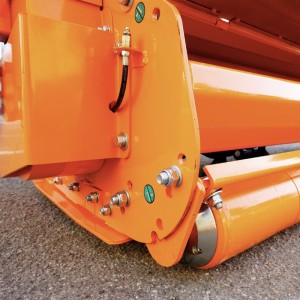

Roll: diameter | 152.0 mm |
Roll: sheet thickness | 6.0 mm |
Roll: bearing type and dimension | 90x40 mm - GB276-6308 |

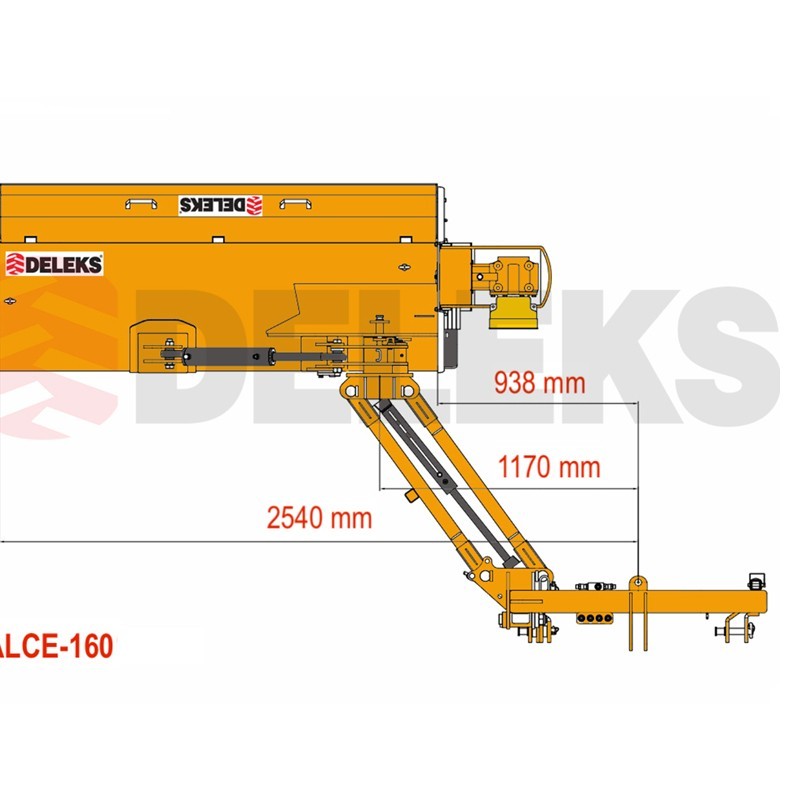

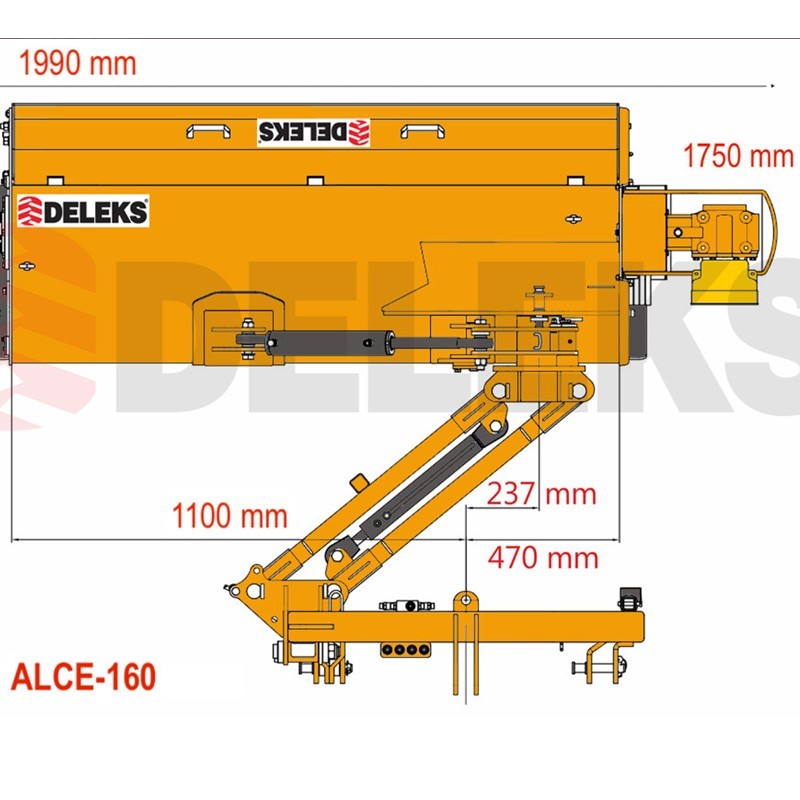

Displacement and dimensions | View photos |
ø Hydraulic Cylinder A | 80.0-35.0 mm |
ø Hydraulic Cylinder B | 60.0-30.0 mm |
Oil pressure min/max | 120 - 150 bar |
Optimal oil flow | 18 - 22 l/min |
Hydraulic hoses | WP 400 Bar, 1/2" Agri Standard |

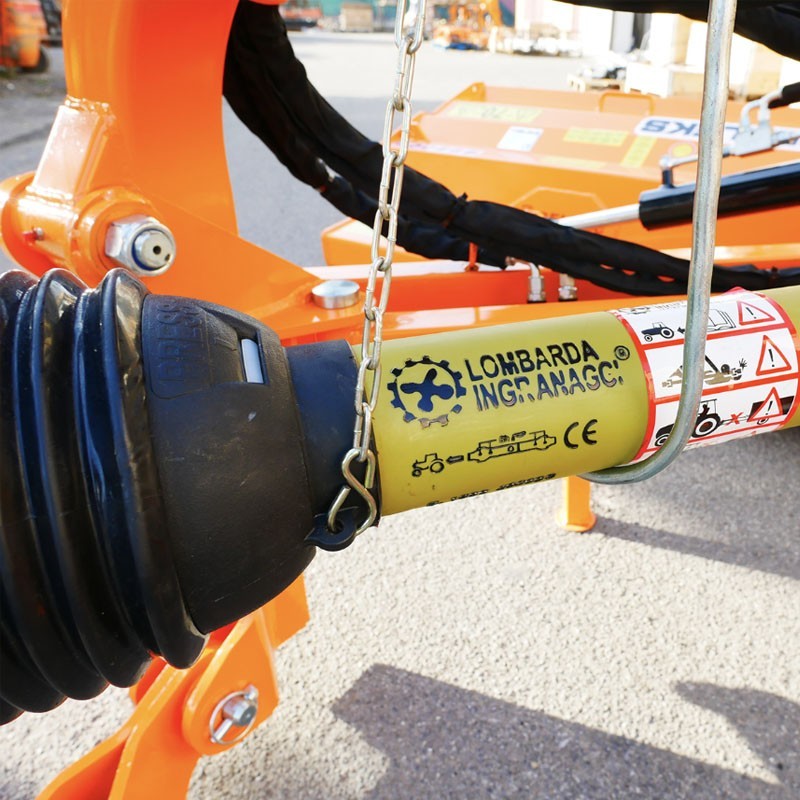

Cardan | CE 5x1800 mm |
Hood length | 770.0 mm |
Packing dimensions | 2000.0*1000.0*1000.0 mm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
- Shredder type
- Shredder with side arm
- Type of cut
- Hammers
- Working width PTO
- 160 cm
- Tractor power
- 60 - 100 HP
- Cardan shaft
- Included
- Type of coupling
- Pantograph displacement
- Displacement
- Hydraulic
- Robustness
- Medium-Heavy
- Number of hammers
- 14
- ✔️
- Rear rakes
- Working width (cm)
- 160 - 169 cm
- Country of manufacture
- Italy
- Weight
- 600 kg
Specific References
- EAN-13
- 8053470231070
