Fixed hammer crusher Centauro Cádiz
Fixed hammer crusher Centauro Cádiz
Fixed hammer crusher Centauro Cádiz
Fixed hammer crusher Centauro Cádiz
Fixed hammer crusher Centauro Cádiz
Fixed hammer crusher Centauro Cádiz
Fixed hammer crusher Centauro Cádiz

Fixed hammer crusher Centauro Cádiz

Rating:
(0)
  • Working width: 850 - 1750 mm
  • Power: 10 - 70 HP
  • Belts: 3
  • Rotor diameter: 108 mm

CARDAN SHAFT INCLUDED

Assembly and set-up INCLUDED
En stock
icon Shredder type
Shredder type
Rear shredder
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
85 - 175 cm
icon Tractor power
Tractor power
10 - 90 HP
icon Cardan shaft
Cardan shaft
Included
icon Type of coupling
Type of coupling
Fixed hitch
icon Robustness
Robustness
Medium-Light
icon Number of hammers
Number of hammers
14 - 28
icon Weight
Weight
180 - 294 kg
€1,620.30 excl. VAT
€1,960.56 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Fixed hammer crusher Centauro Cádiz
€1,960.56
Select
Qty

Centauro Cadiz Tractor Hammermill Crusher

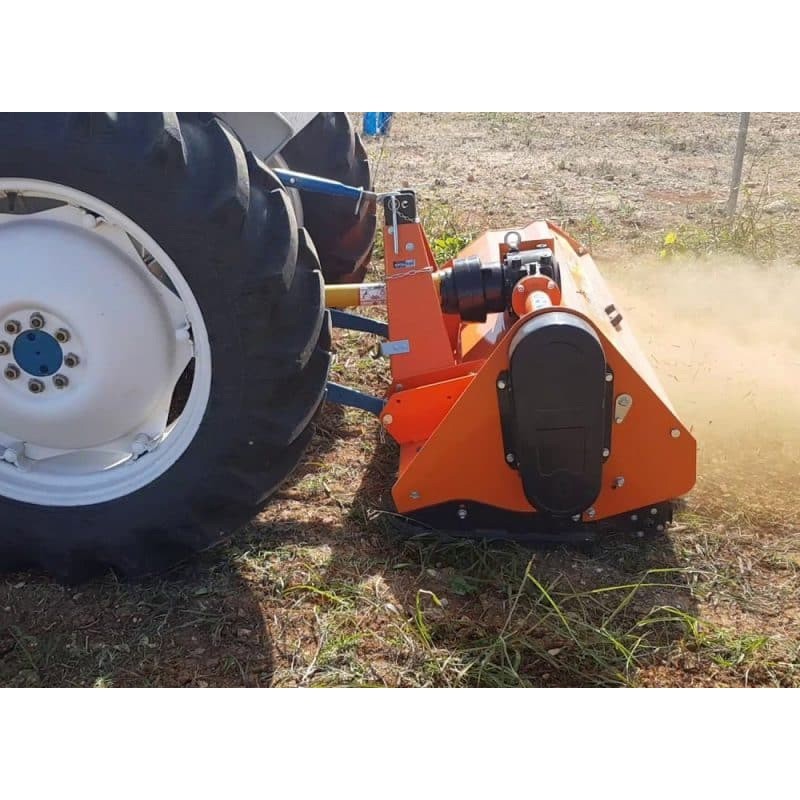

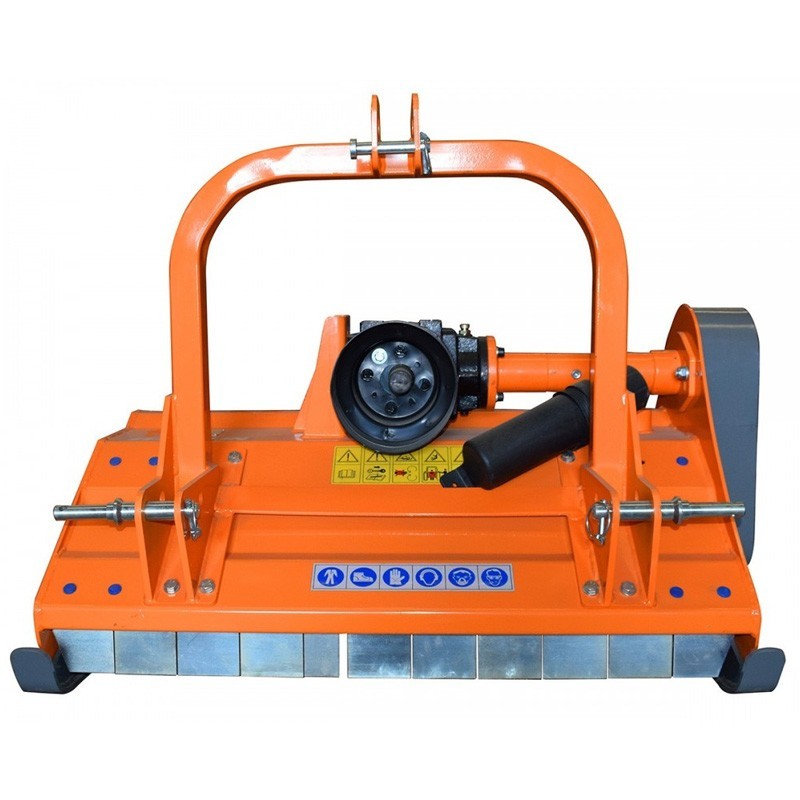

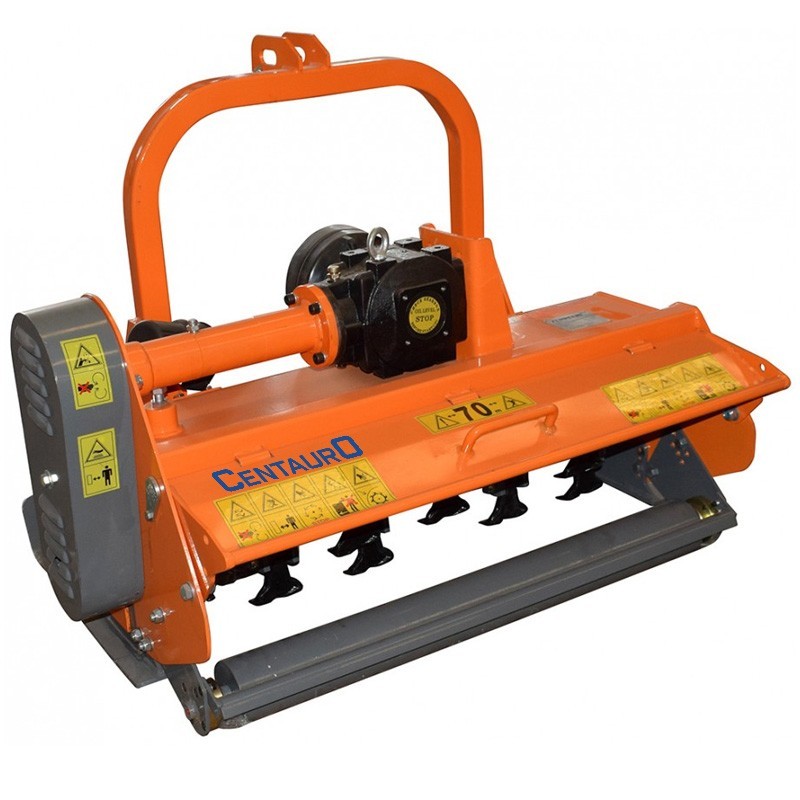

The Centauro Cadiz fixed hammermill is ideal for agricultural clearing work, offering efficiency and robustness in difficult terrain. Available in Cádiz 85, Cádiz 105 and Cádiz 125 models, it has working widths from 850 mm to 1250 mm and a rotor diameter of 108 mm that ensures efficient cutting. Its 540 rpm PTO and a power requirement of 10 to 60 hp make it compatible with a wide range of tractors, optimizing performance in every use.

For larger needs, the Cadiz 145, Cadiz 155 and Cadiz 175 models are ideal, with working widths from 1450 mm to 1750 mm and power up to 90 hp. Equipped with three belts and additional hammers (up to 28), these fixed hammer crushers provide efficient transmission and high cutting capacity. Their heavy construction, ranging from 180 kg to 294 kg, ensures stability and durability, even in demanding conditions.

The Centauro Cadiz mulcher is the perfect choice for those looking for high quality agricultural equipment for the maintenance of agricultural land. Its compatibility with multiple types of tractors and its adaptable dimensions facilitate coupling and allow an efficient work in the management of plant residues.

Features

Models Cadiz 85 Cadiz 105 Cadiz 125
Working width 850 mm 1050 mm 1250 mm
No. of belts 3 3 3
No. hammers 14 16 20
Rotor diameter 108 108 108
Power requirement 10 - 20 30 - 50 30 - 60
PTO 540 540 540
Weight 180 Kg 230 Kg 249 Kg
Dimensions 920 x 920 x 950 mm 920 x 1170 x 950 mm 920 x 1370 x 950 mm
Models Cadiz 145 Cadiz 155 Cadiz 175
Working width 1450 mm 1550 mm 1750 mm
No. of belts 3 3 3
Number of hammers 22 24 28
Rotor diameter 108 108 108
Power requirement 60 - 70 60 - 80 60 - 90
PTO 540 540 540
Weight 260 Kg 276 Kg 294 Kg
Dimensions 920 x 1570 x 950 mm 920 x 1670 x 950 mm 920 x 1870 x 950 mm

IMPORTANT WARNINGS
It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.

Related products

261354

Data sheet

Shredder type
Rear shredder
Type of cut
Hammers
Working width PTO
85 - 175 cm
Tractor power
10 - 90 HP
Cardan shaft
Included
Type of coupling
Fixed hitch
Robustness
Medium-Light
Number of hammers
14 - 28
Working width (cm)
80 - 89 cm
100 - 109 cm
120 - 129 cm
140 - 149 cm
150 - 159 cm
170 - 179 cm
Weight
180 - 294 kg

Specific References

mpn
CTO Cádiz 85
New

✔️ Advantages of making purchases in the Spanish territory

  • National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
  • Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.

❌ Disadvantages of buying outside Spanish territory

  • Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
  • Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
  • Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.
