CARDAN SHAFT INCLUDED
| Deleks products take about 15 to 25 days. |

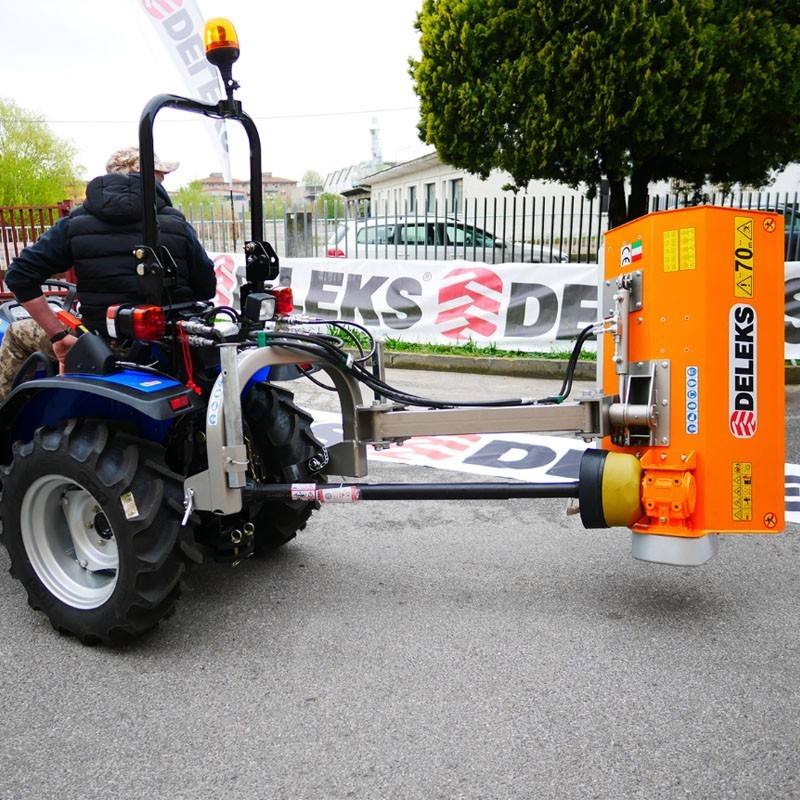

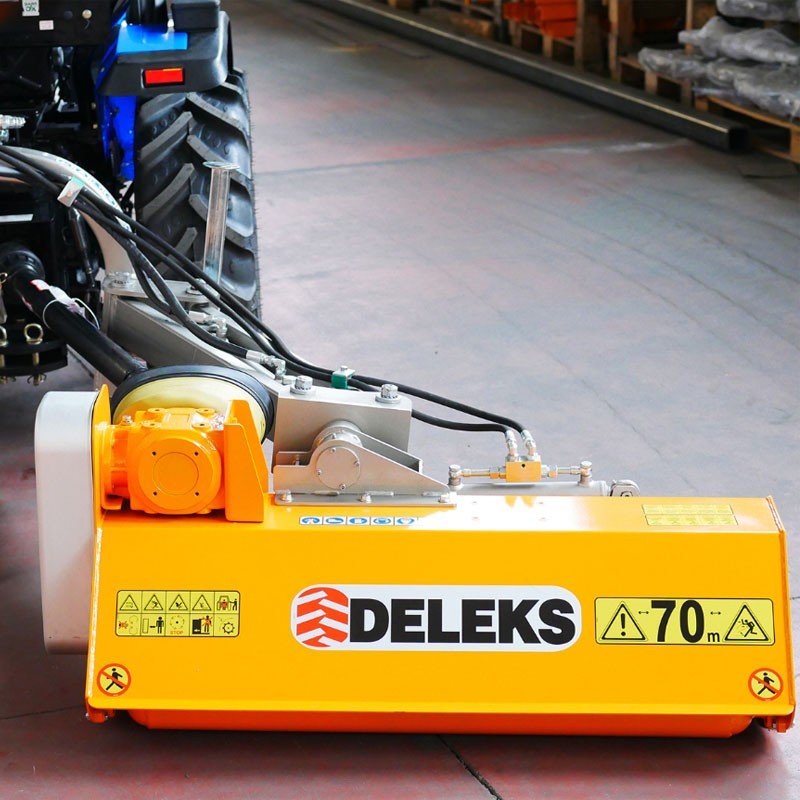

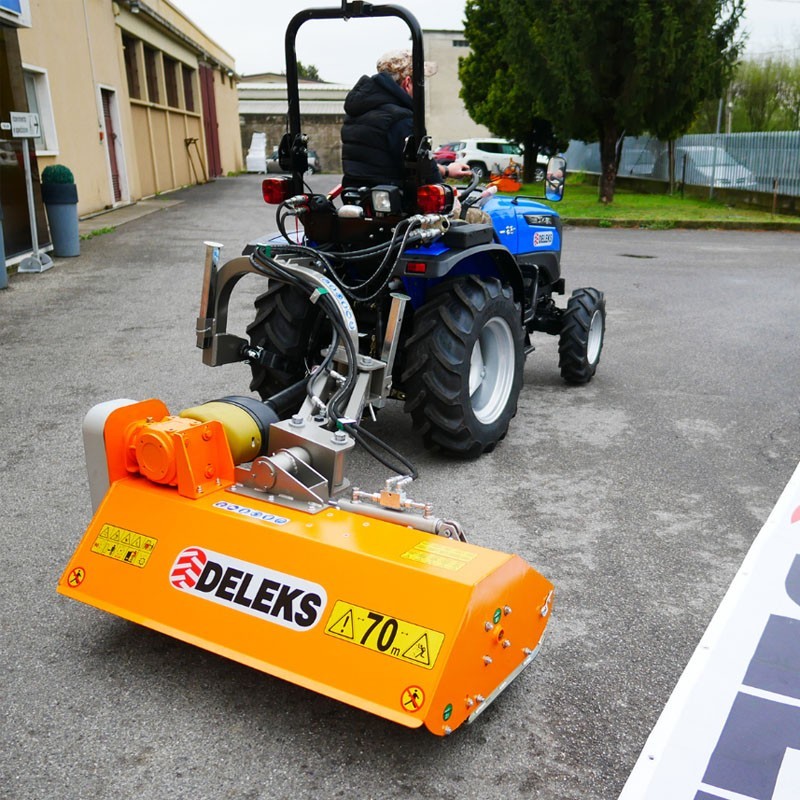

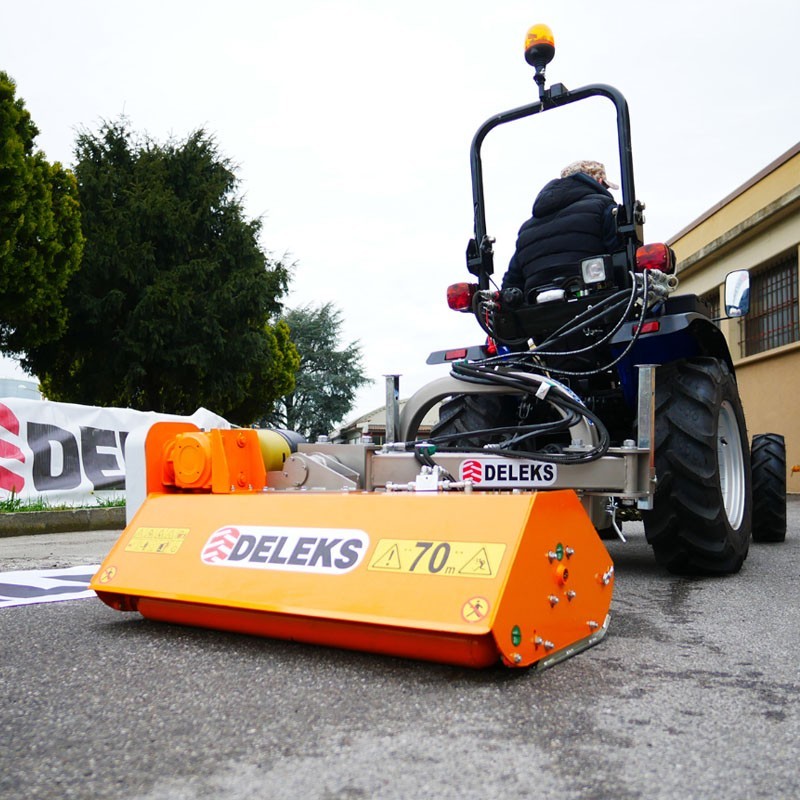

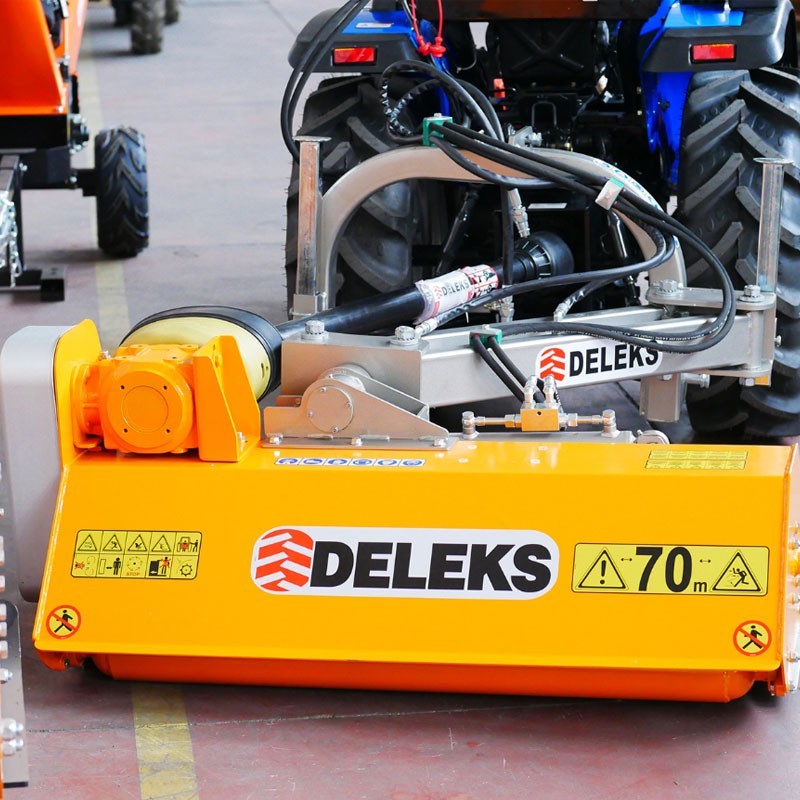

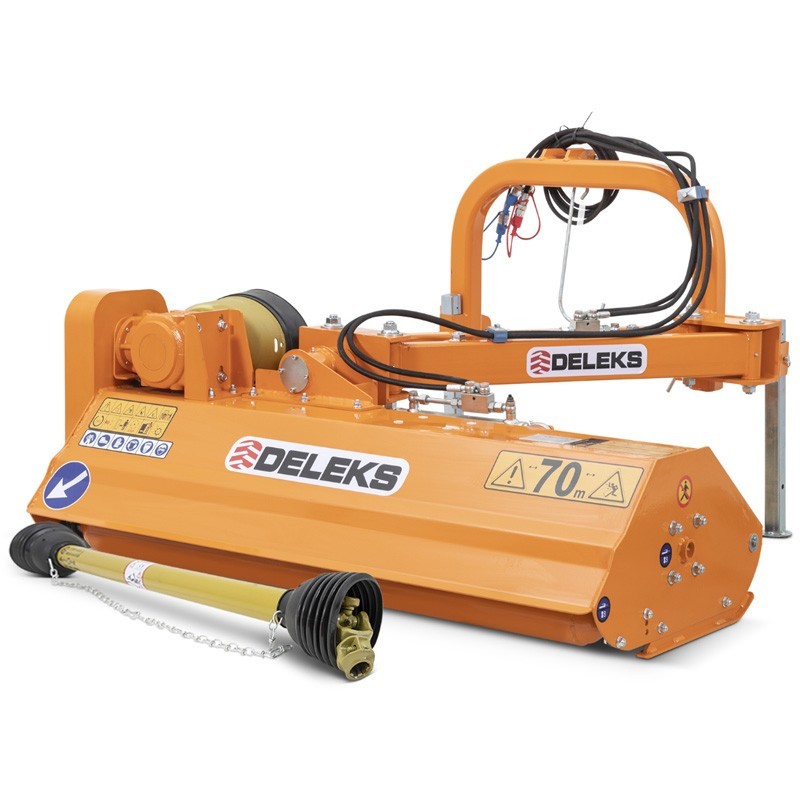

The DELEKS VOLPE 100 160 kg side shredder for tractor is adapted for the tractors from 25 to 45 HP. This model is designed for cutting grass and also for brambles up to 2-3 cm in diameter, ideal for roadside edges. This shredder can be used for cutting bushes, tilting around 88 degrees upwards and 60 degrees downwards.

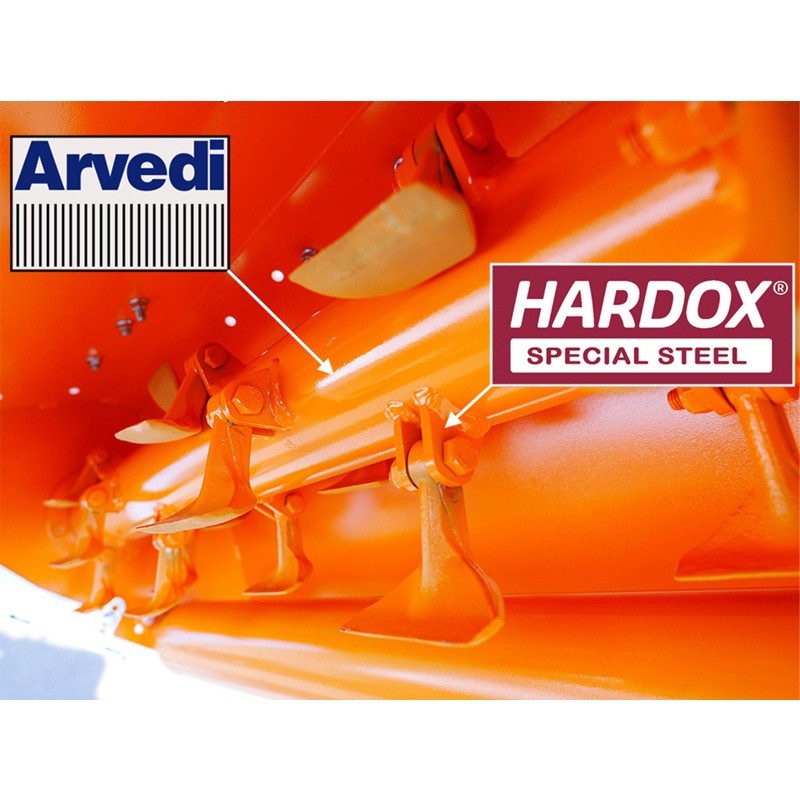

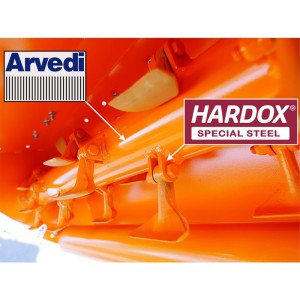

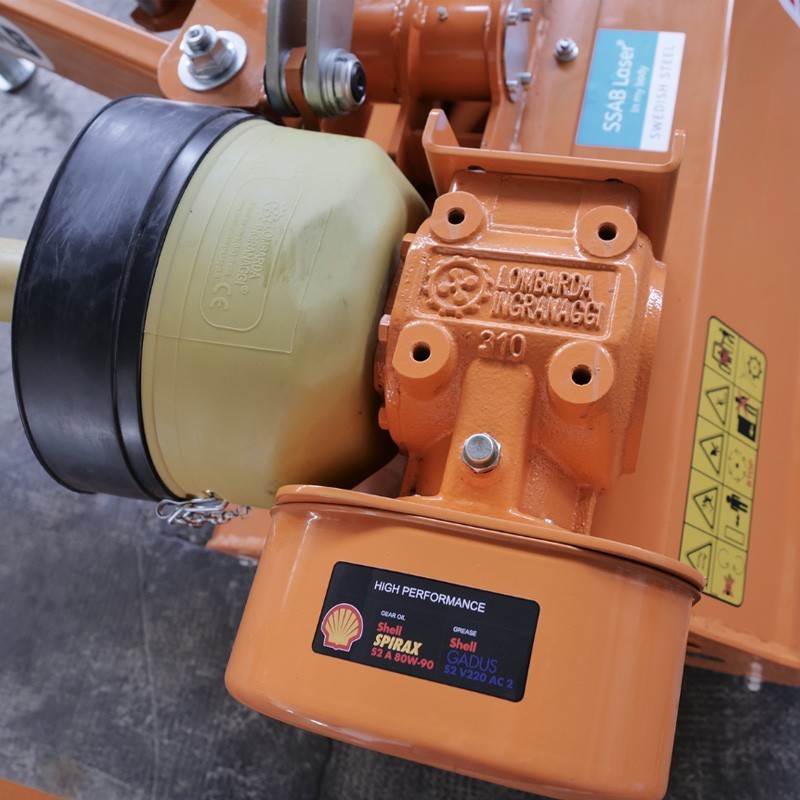

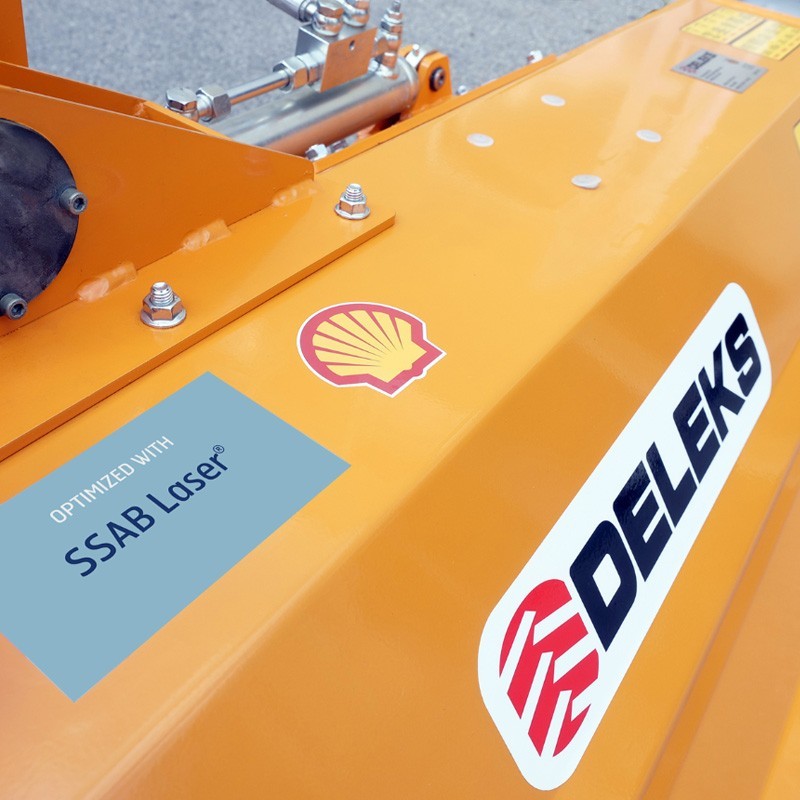

Its structure is made entirely of Swedish SSAB steel., rotor manufactured with tube ARVEDI, electronically balanced, of S355 steel with a thickness of 8 mm with hammers mounted on 6 rows instead of 4.. "The" Hammer supports in HARDOX, ideal for clearing between trees, Lombarda Ingranaggi transmission box with freewheel.
Located on the chassis to be able to work on the tractor axle or right side.. Its fairly light weight allows its use in orchards. The frame is equipped with an inner curb that diverts the airflow towards the rotor for a mulching effect.. The internal positioning of the roller provides more efficiency and reduces execution time.
The cut grass passes over the roller without being crushed and is removed more quickly.. Forged steel hammers weighing 330g for cutting up to 2-3 cm thick, It has 3 high-strength straps with external tension adjustment., its rear wheel and adjustable side skates.
| Working width | 1000.0 mm |
| Total width | 1120.0 mm |
| Minimum/maximum cutting height | 10.0 - 45.0 mm |
| Weight | 160.0 kg |
| Total height | 750.0 mm |
| Tractor power | 20 - 45 hp |
| Three-point hitch | Cat. 1 (ø 19.0-22.0mm) |
| Position of the transmission box | Internal |
| Hood height | 370.0 mm |
| Distance between the lower points | 655.0 - 755.0 mm |
| Number of hammers | 16 |
| Maximum cutting diameter | 20.0 - 30.0 mm |
| Total length | 1550.0 mm (closed) |
| Space between the ground and the transmission box | 472.0 mm |
| Thickness of the sheet metal | 3.0 mm |
| Thickness of the sheet on the sides | 5.0 mm |
| Thickness of the skates | 6.0 mm |
| Type of transmission | Correas V |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (Italy) (3-year warranty) |
| Broadcast: PTO | 540 rpm (revolutions per minute) |
| Transmission: direction of rotation | Schedule |
| Transmission: freewheel | √ |
| Transmission: rotor speed | 3150.0 rpm |
| Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
| Transmission: diameter of the upper pulley | 206.0 mm |
| Transmission: diameter of the lower pulley | 106.0 mm |
| Transmission: number of cores | 3 |
| Transmission: dimensions of the Koreas | AX39 |
| Rotor: diameter | 102.0 mm |
| Rotor: type of bearings and dimension | SKF UCF-207 |
| Rotor: balancing | Electronic |
| Rotor: blade thickness | 8.0 mm |
| Hammers: weight | 330.0 g |
| Hammers: ø hole | 11.0 mm |
| Hammers: base width | 80.0 mm |
| Hammers: head width | 14.0 mm |
| Hammers: diagonal | 75.0 mm |
| Roll: diameter | 102.0 mm |
| Roll: sheet thickness | 4.5 mm |
| Roll: type of bearings and dimension | FL204 |

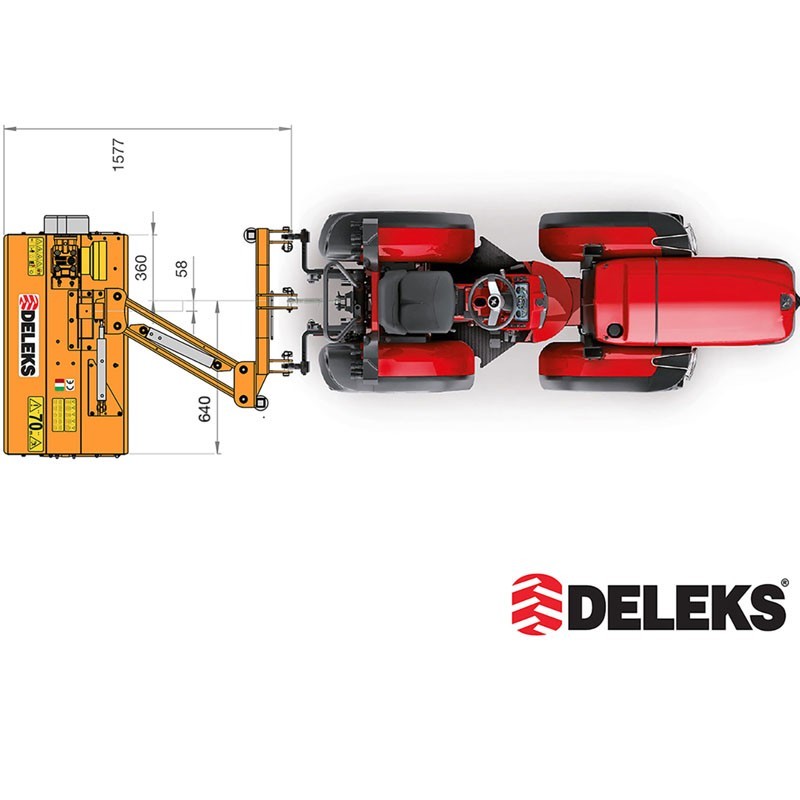

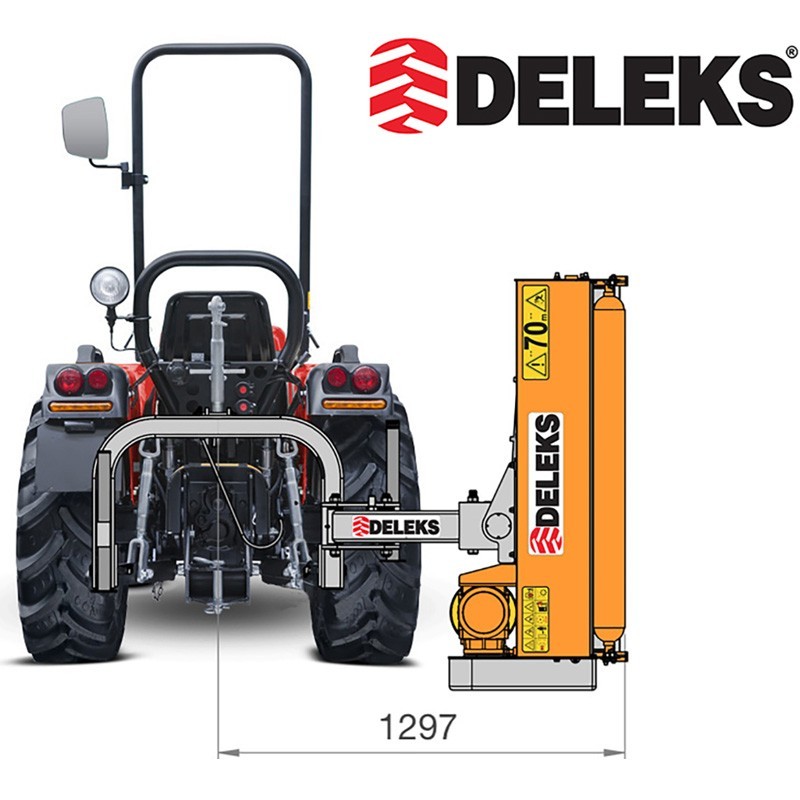

| Displacement and dimensions | View photos |

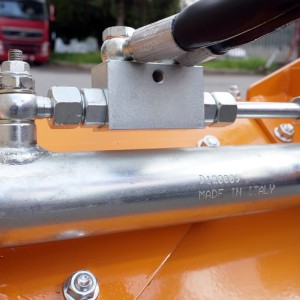

| ø Hydraulic Cylinder A | 50.0-25.0 mm |
| ø Hydraulic Cylinder B | 60.0-30.0 mm |
| Oil pressure min./max. | 120 - 150 bar |
| Optimal oil flow | 18 - 22 l/min |

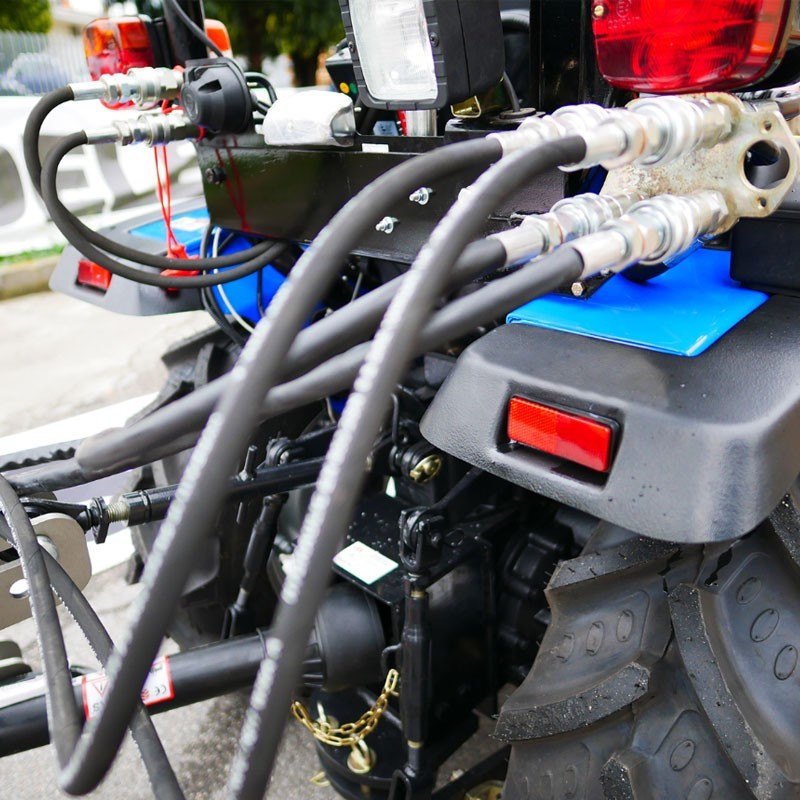

| Hydraulic tubes | WP 400 Bar, 1/2" Agri Standard |

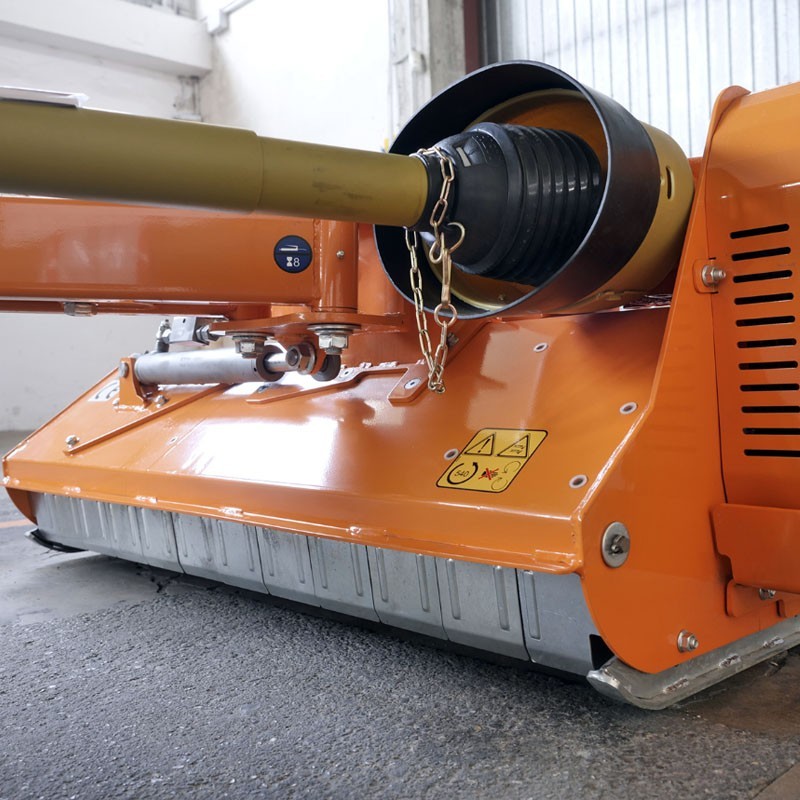

| Cardan | CE 4x1400 mm |
| Length of the hood | 665.0 mm |
| Packaging dimension | 1250.0*850.0*700.0 mm |
| IMPORTANT NOTICE |
| Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
