Hydraulic Shredder for Tractor Dimago Standard 155 40-60 hp
- Tractor power: 40 - 60 HP
- Working width. 1,55 m
- Hammers: 24 + 4 belts
- Weight: 340 kg
€2,407.53 VAT incl.
Cardan shaft included

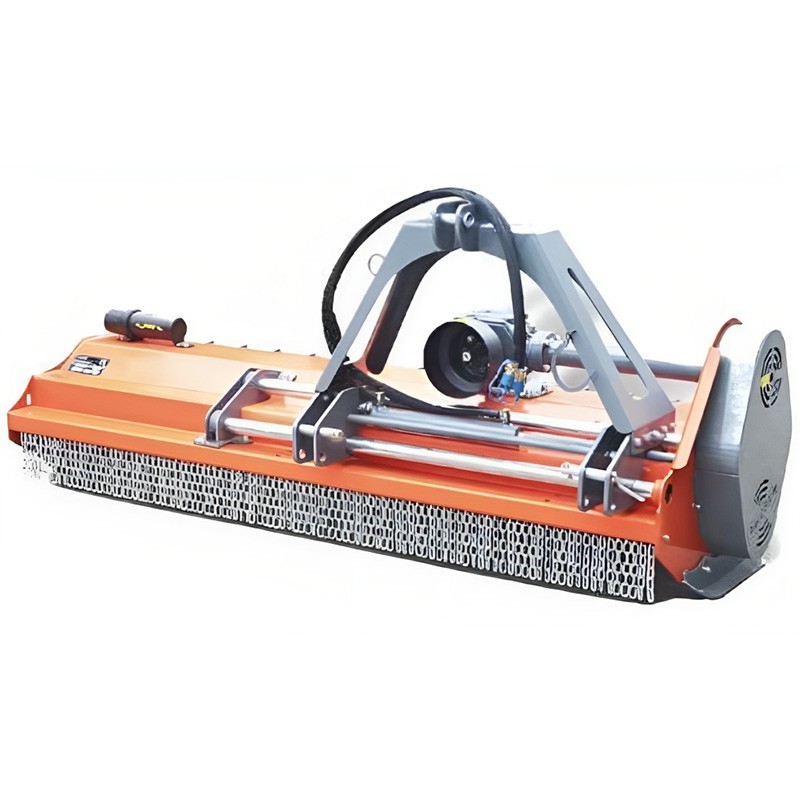

The hammer shredder VG Agro KMHR is the new model of the brand that allows shredding up to 7 cm in diameter. The weight of this machine can vary from 558 kg to 650 kg depending on the model chosen.
The machine has a manual tailgate and comes with a more reinforced chassis to ensure greater reliability and durability of its components.

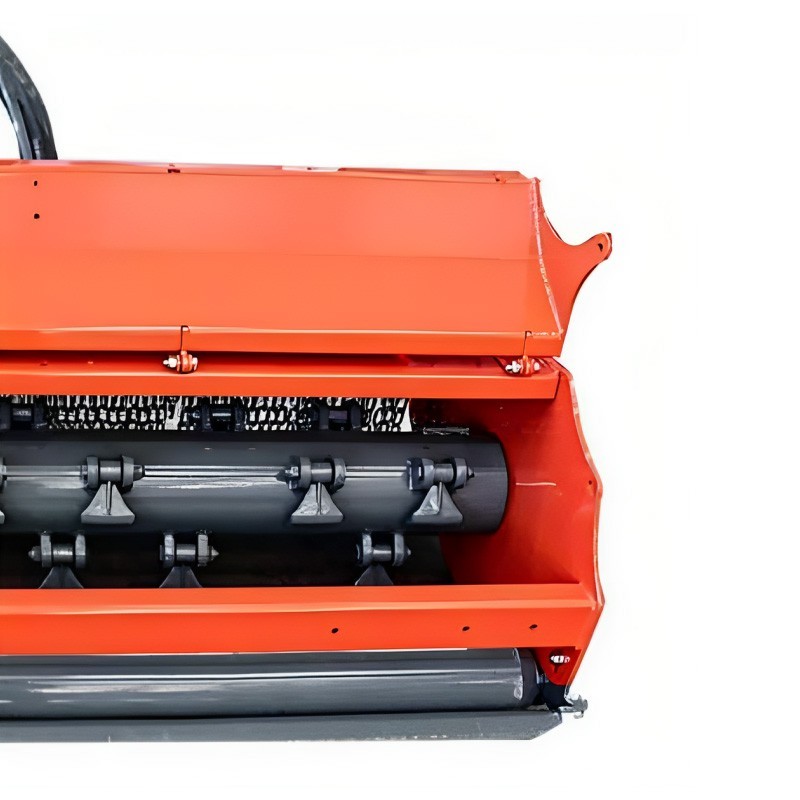

The rotor diameter of this tractor hammermill shredder is 127 mm and has 18 hammers in the top version. The machine comes with 4 belts for all models.
Finally, this shredder needs at least a tractor power of 50 HP in its basic model.
MODELS | KMHR185 | KMHR205 | KMHR225 |
Minimum power (HP) | 50 | 60 | 70 |
Rotor diameter (mm) | 127 | 127 | 127 |
No. of hammers | 14 | 16 | 18 |
Weight (Kg) | 558 | 594 | 650 |
Belts | 4 | 4 | 4 |
Dimensions (cm) | 94 x 205 x 101 | 94 x 225 x 101 | 94 x 245 x 101 |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
CARDAN SHAFT INCLUDED
