Tractor-mounted arm crusher BullMach Estia 140 - 160 cm
- Cutting width : 140 - 160 cm
- Shreddable firewood : Up to 40 mm
- Number of hammers : 20
- CARDAN SHAFT INCLUDED
€2,861.96 VAT incl.

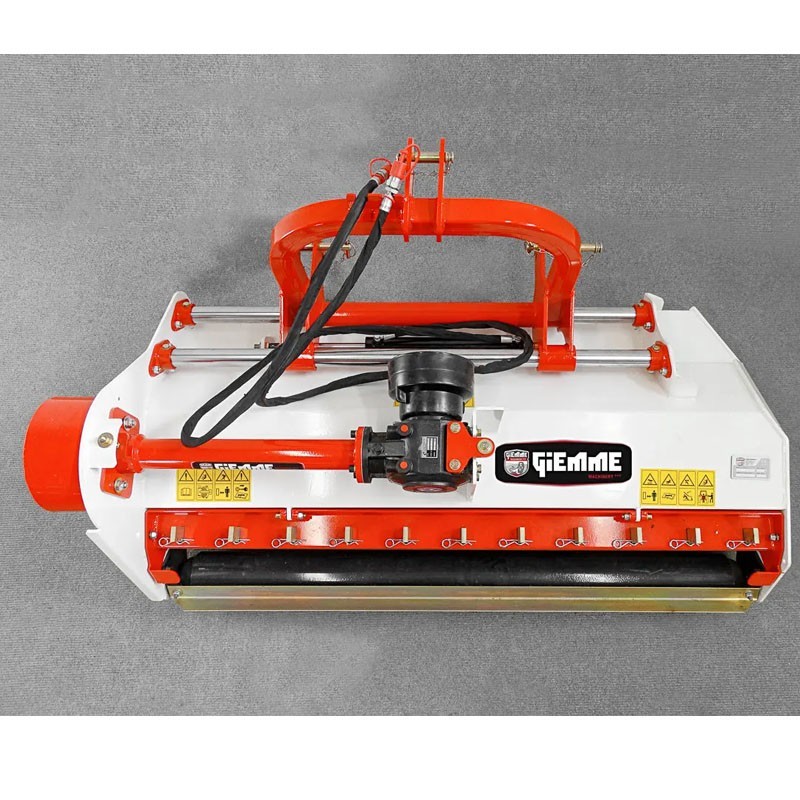

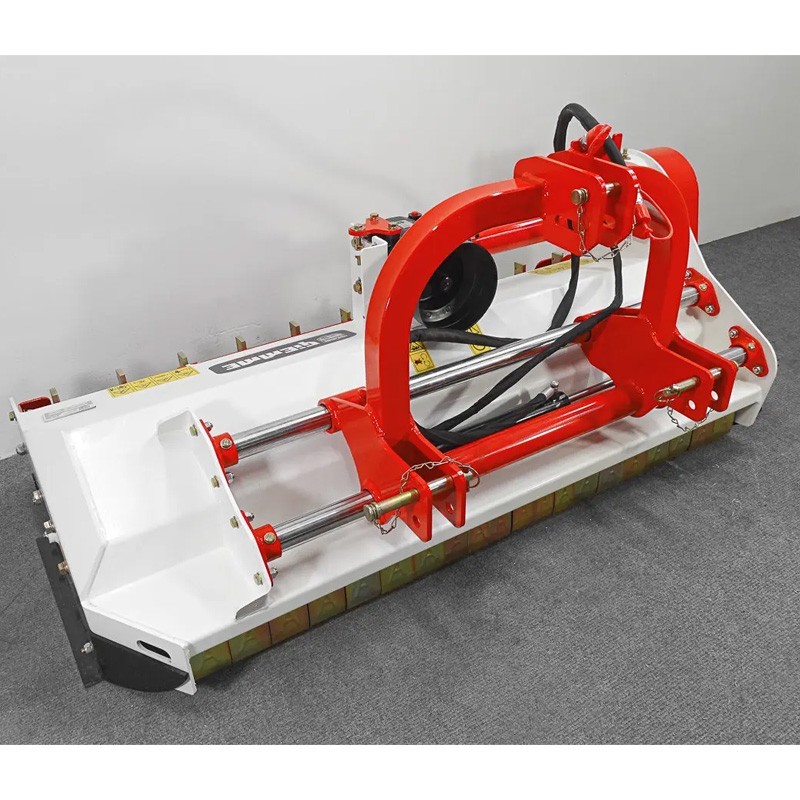

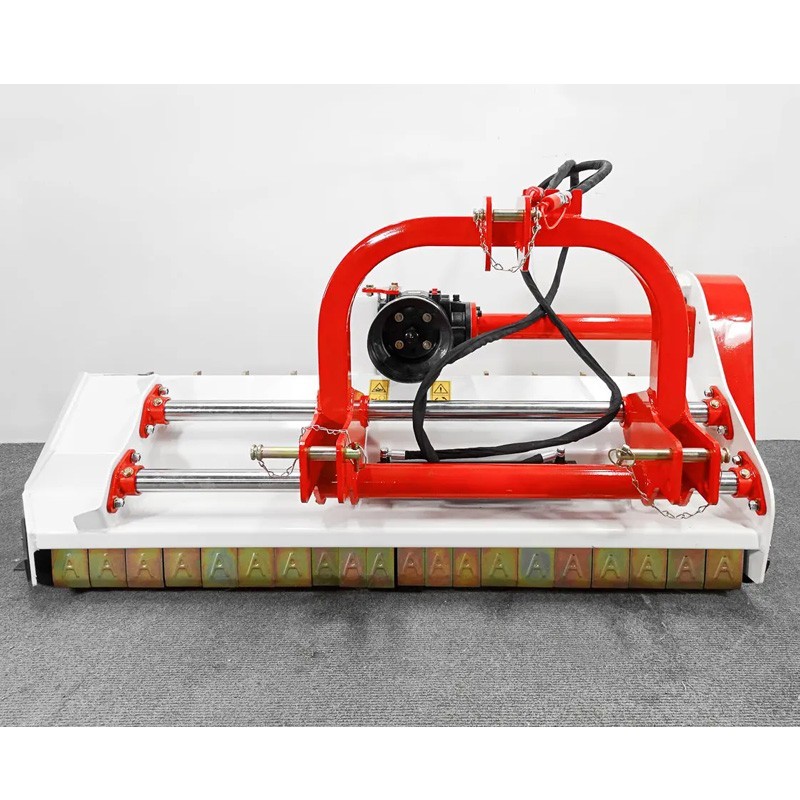

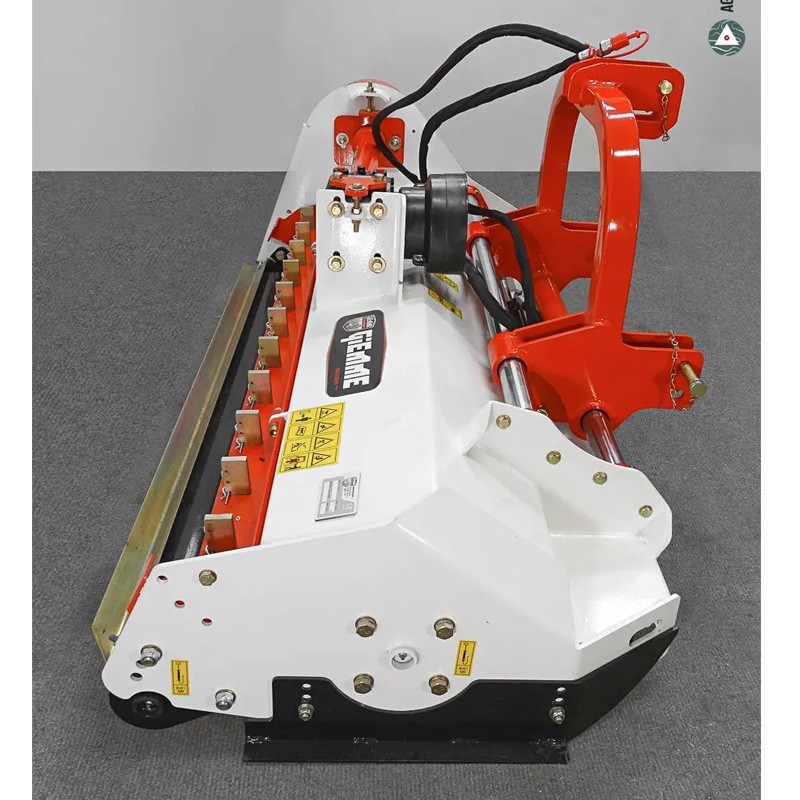

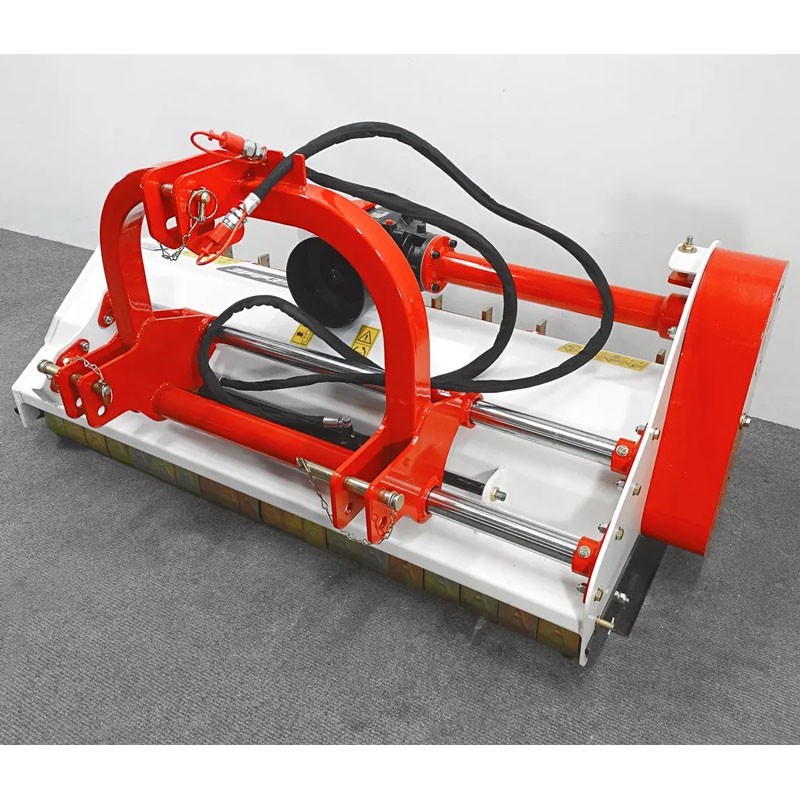

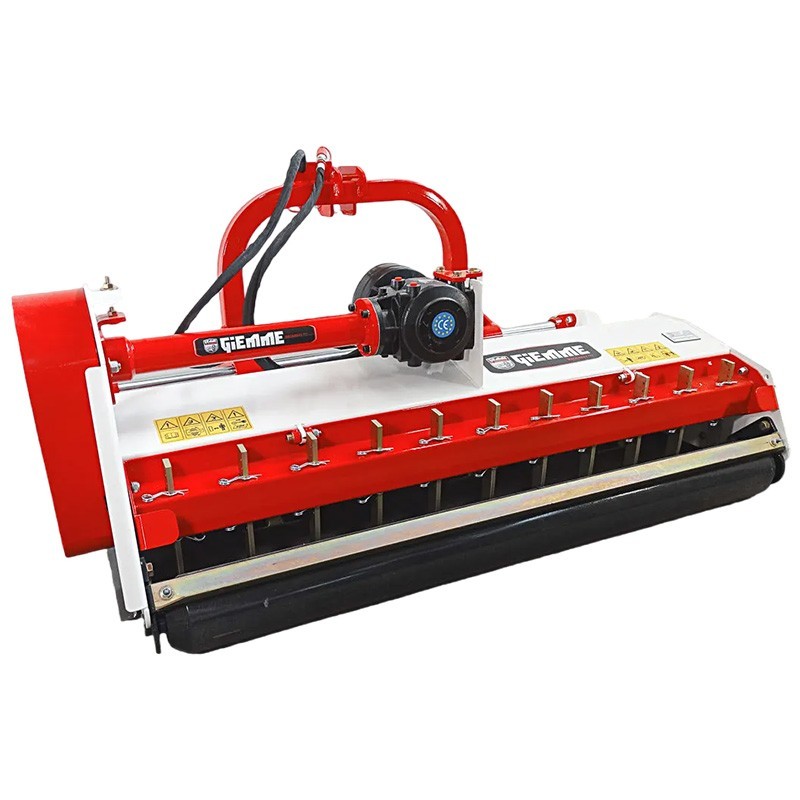

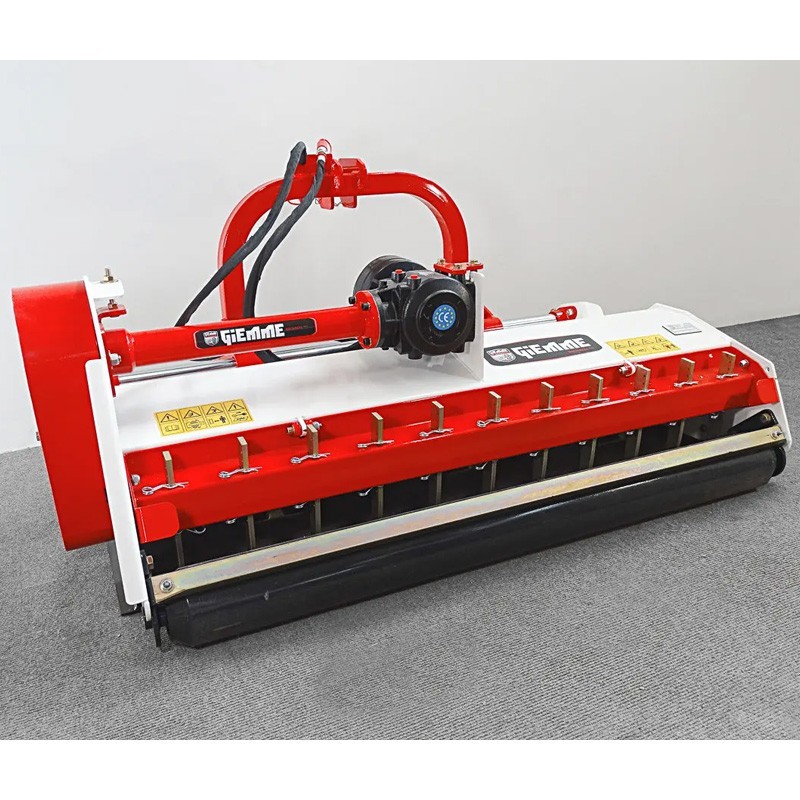

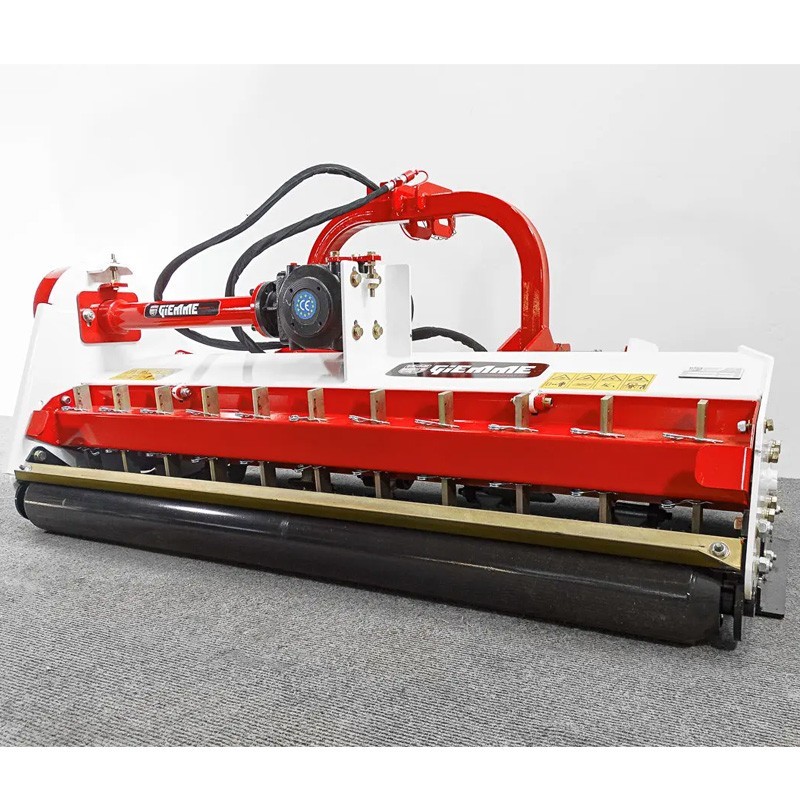

The Giemme MFZ mulcher is available in four models with working widths ranging from 150 to 200 cm, this mulcher is adaptable to tractors with a power from 50 to 70 HP, offering a wide range of options according to the specific needs of the terrain and the user.

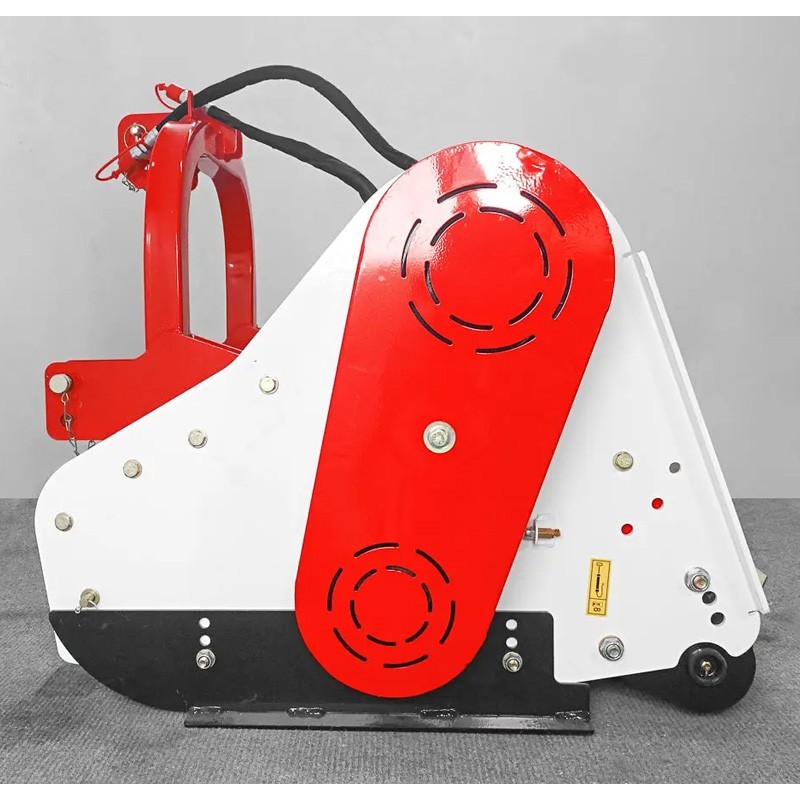

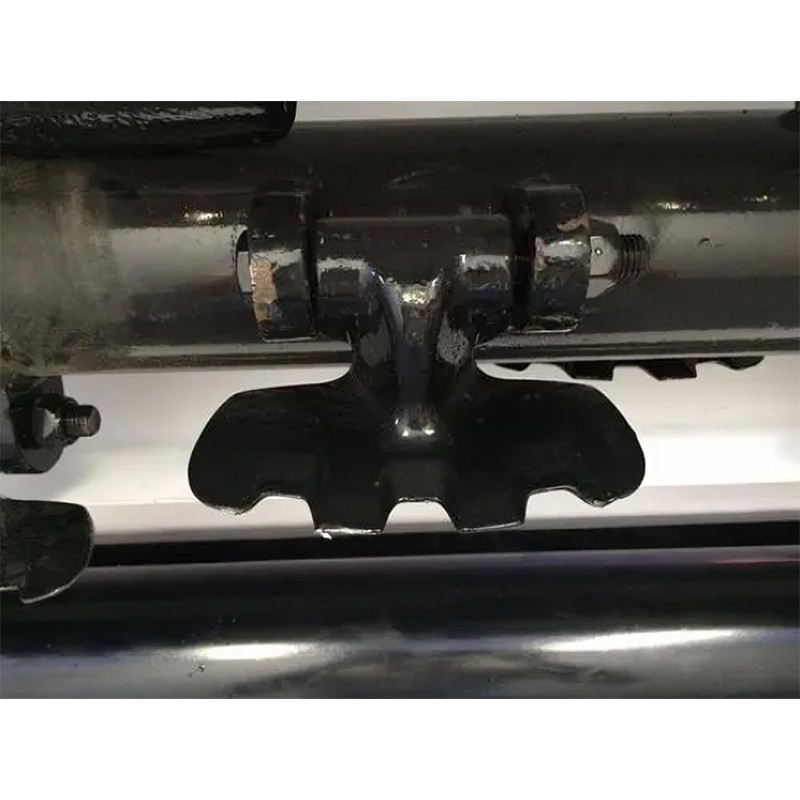

Each model is equipped with a variable number of hammers and belts, ensuring optimal and efficient performance in shredding plant material.

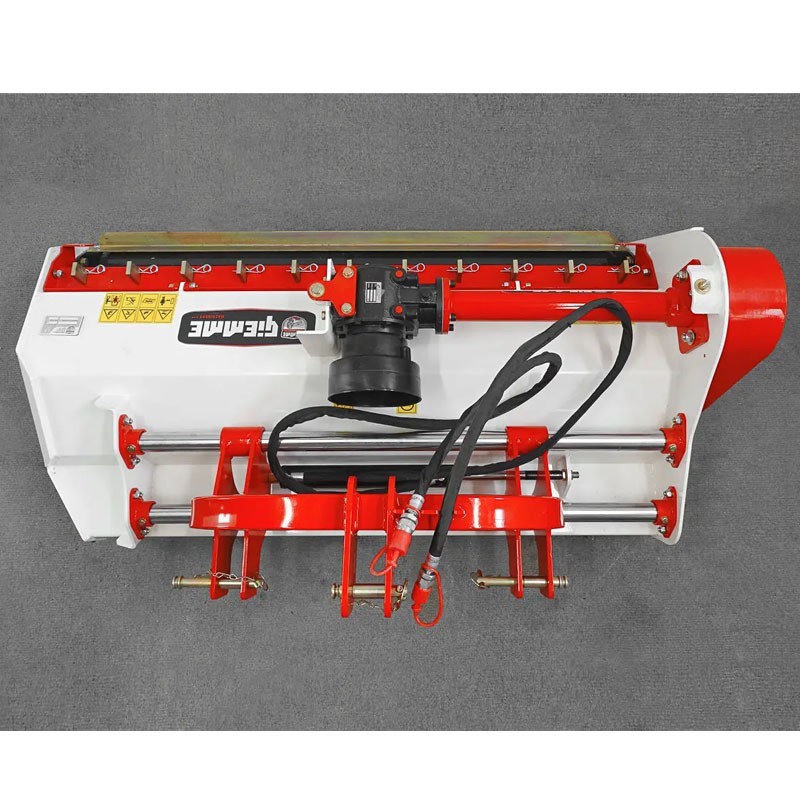

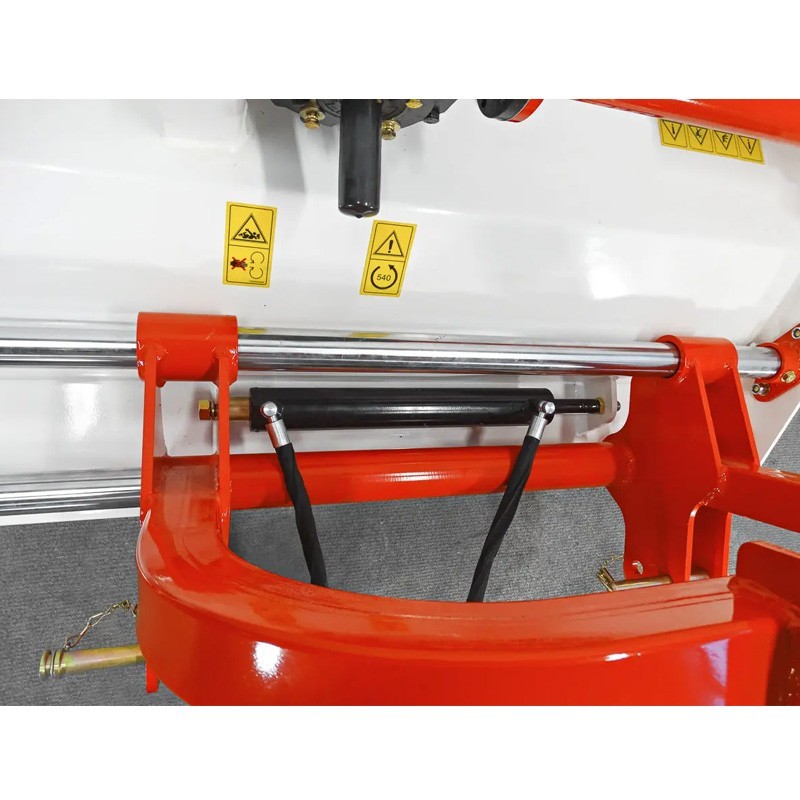

The Giemme MFZ has advanced features such as an electronically balanced spiral rotor, height-adjustable rakes, and a hydraulic three-point linkage offset, which facilitates its use and improves the quality of the work performed.

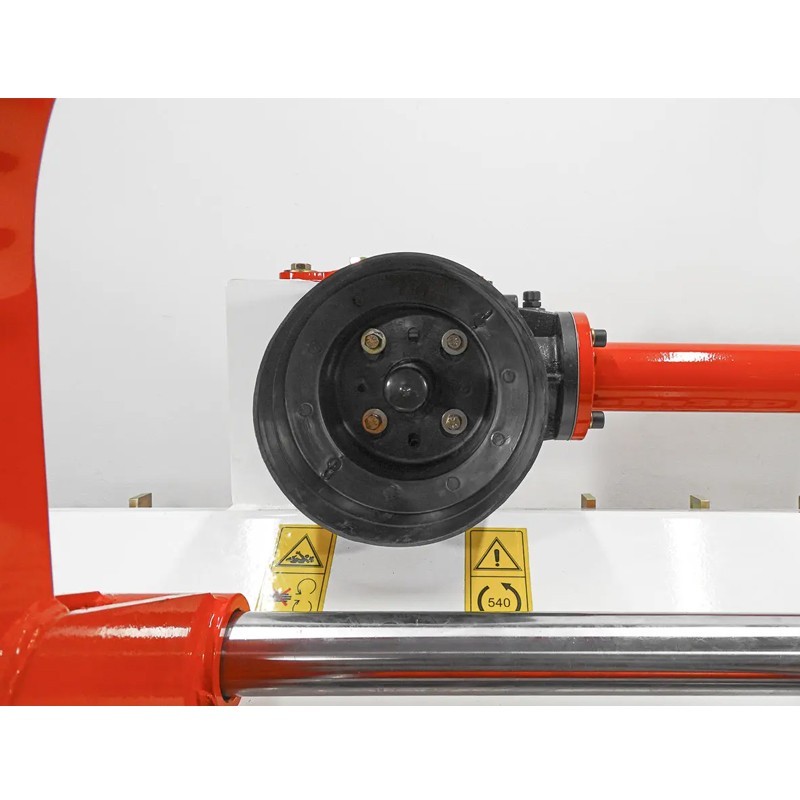

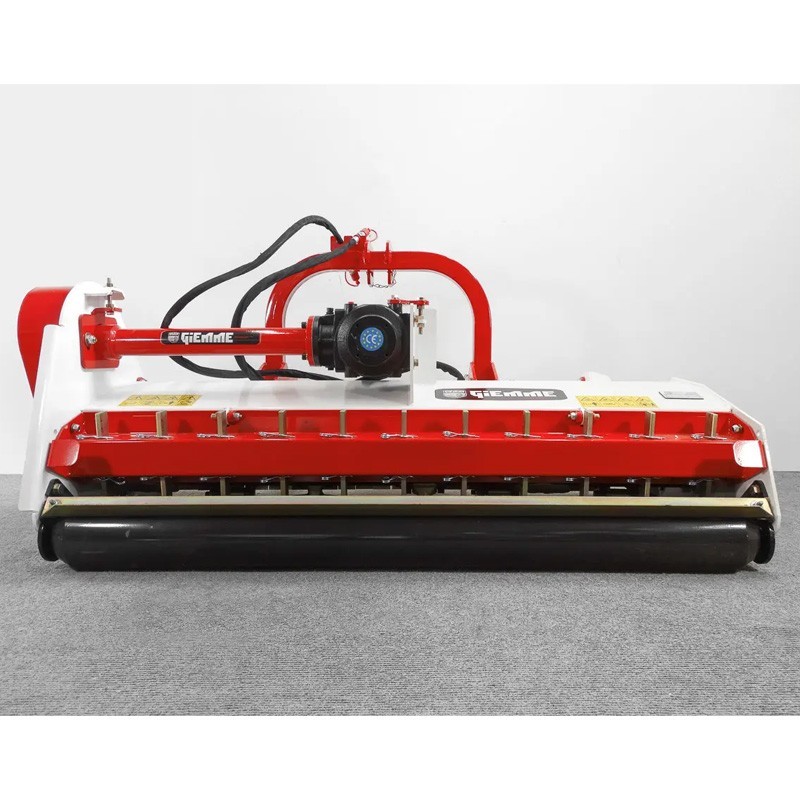

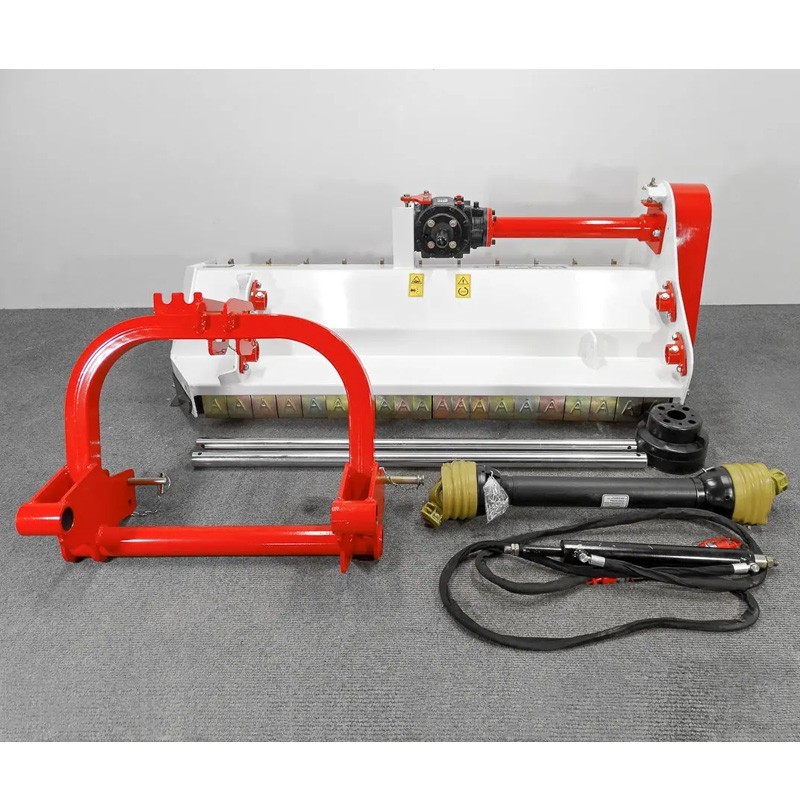

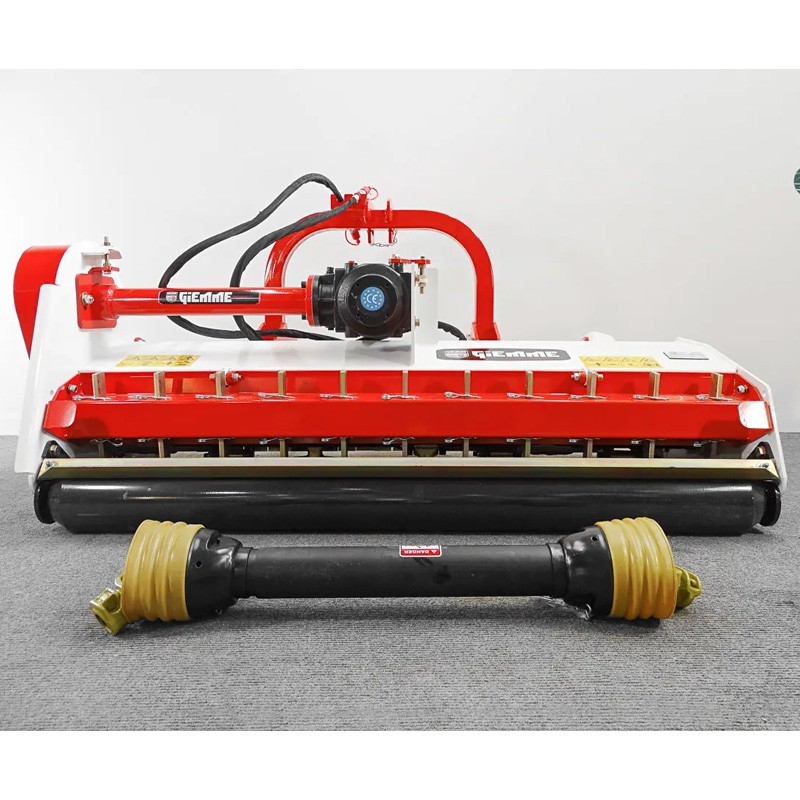

In addition, it includes a folding tailgate and an adjustable rear roller with scraper, allowing precise adaptation to the type of terrain and working conditions. Includes T5 1,000 mm cardan shaft.
Model | MFZ 150 | MFZ 165 |
Working width | 150 cm | 165 cm |
Total width | 170 cm | 185 cm |
Tractor power | 50/70 HP | 50/70 HP |
Weight | 430 kg | 449 kg |
Hammers | 12 | 14 |
Belts | 4 | 4 |
Model | MFZ 180 | MFZ 200 |
Working width | 180 cm | 200 cm |
Total width | 200 cm | 220 cm |
Tractor power | 50/70 HP | 50/70 HP |
Weight | 468 kg | 505 kg |
Hammers | 16 | 16 |
Belts | 4 | 4 |
Model | A | B | C | D |
MFZ 150 | 82 cm | 68 cm | 47 cm | 103 cm |
MFZ 165 | 90 cm | 75 cm | 55 cm | 110 cm |
MFZ 180 | 90 cm | 90 cm | 55 cm | 125 cm |
MFZ 200 | 90 cm | 110 cm | 55 cm | 145 cm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
