PTO Hammer Crusher Deleks INTERFILA 170 40 - 70HP
- Tractor power: 40 - 70 HP
- Cutting height: 5 - 55 mm
- Total width: 2100 mm
- Number of hammers: 26
CARDAN SHAFT INCLUDED
€3,845.44 VAT incl.
CARDAN SHAFT INCLUDED

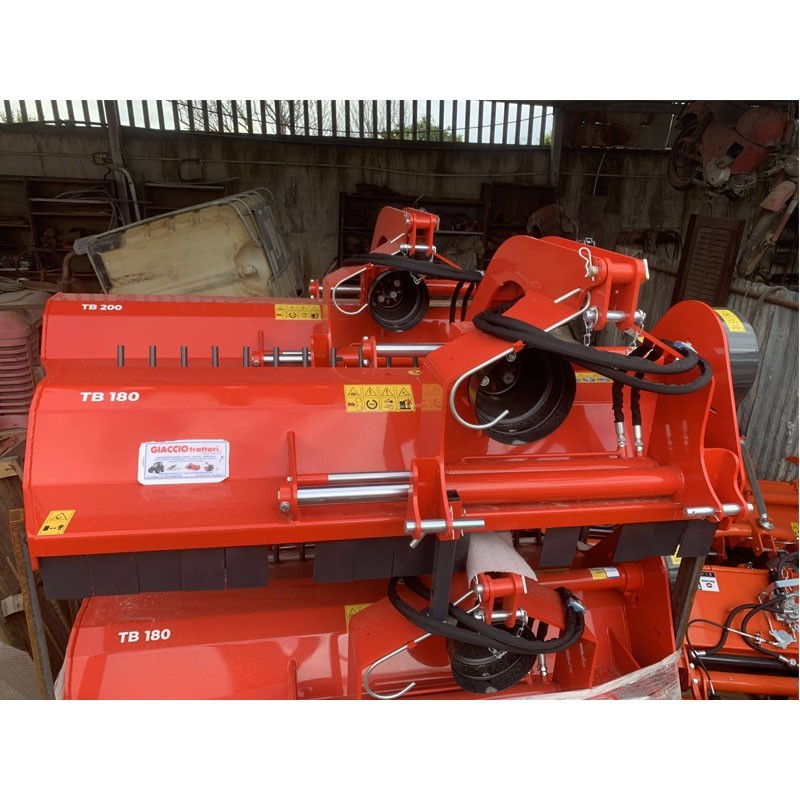

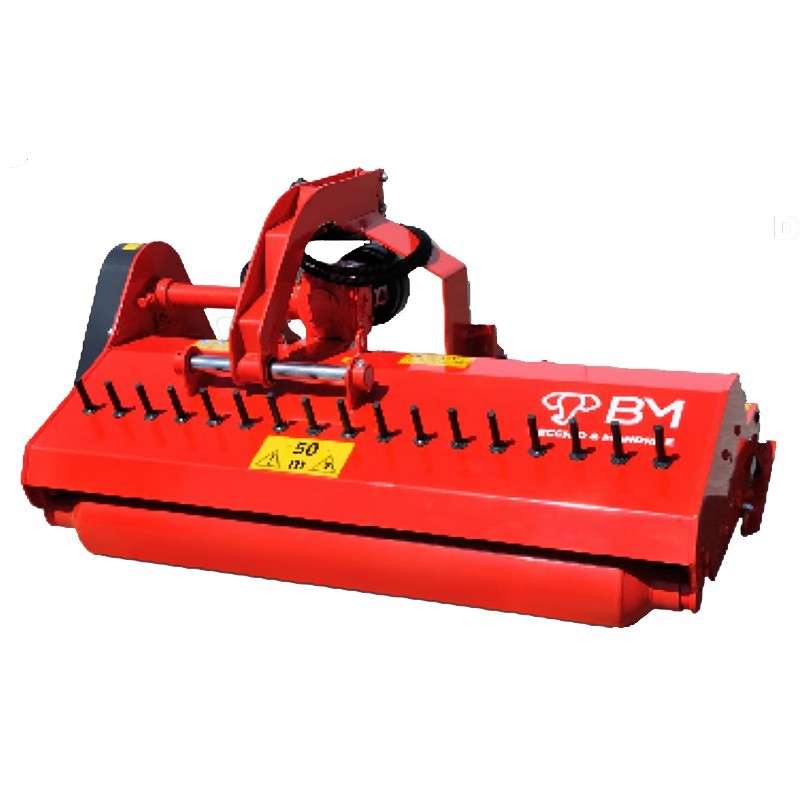

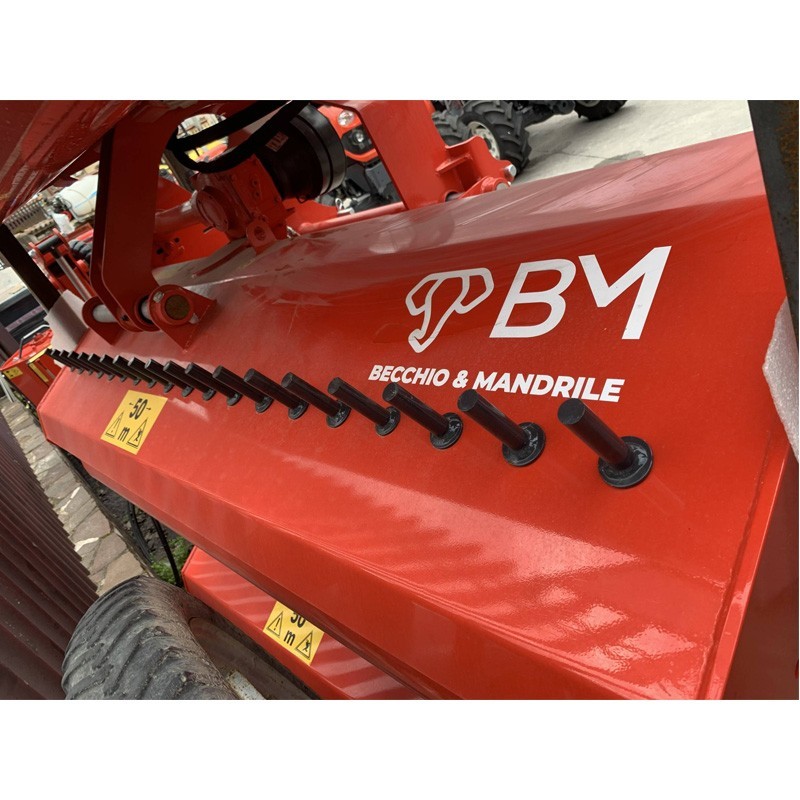

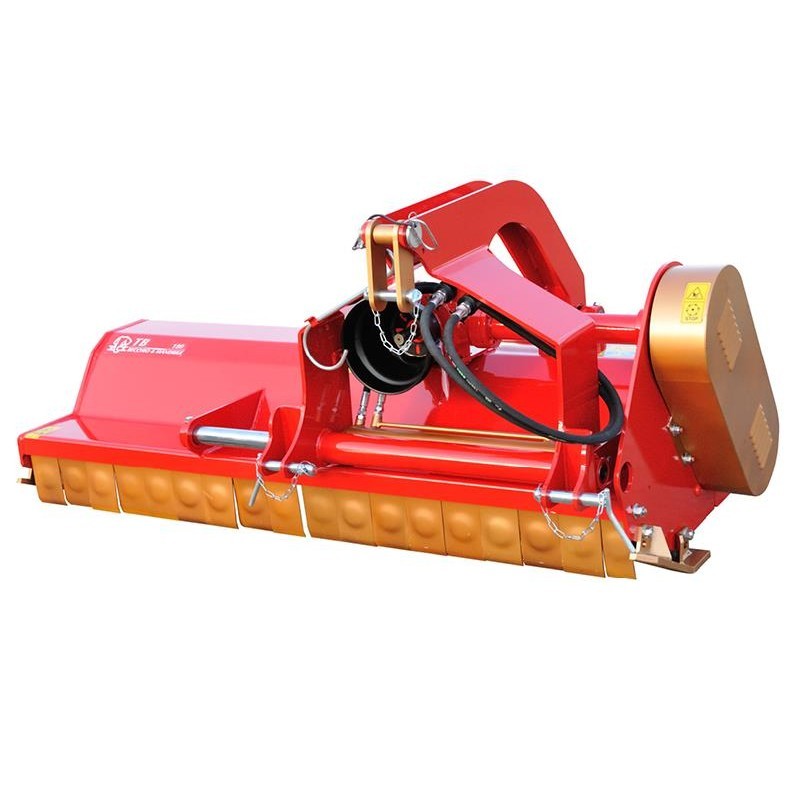

The pTO shredder Becchio Mandrile TB is a versatile tool designed for the shredding of grass, leaves y vine shoots with a maximum diameter of 4 to 6 cm. This machine is ideal for the maintenance of green spaces, allowing an efficient and fast management of plant residues.

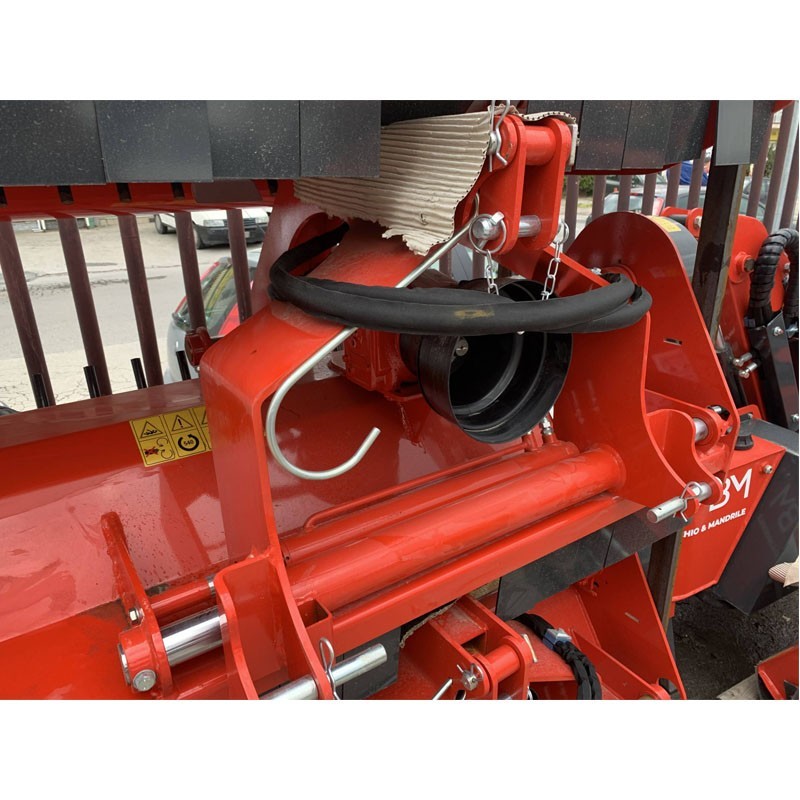

Its rounded and low chassis profile facilitates work between the rows, optimizing performance in different types of terrain. Equipped with hydraulic displacement, the Becchio Mandrile TB shredder is easily adjusted to reach difficult areas.

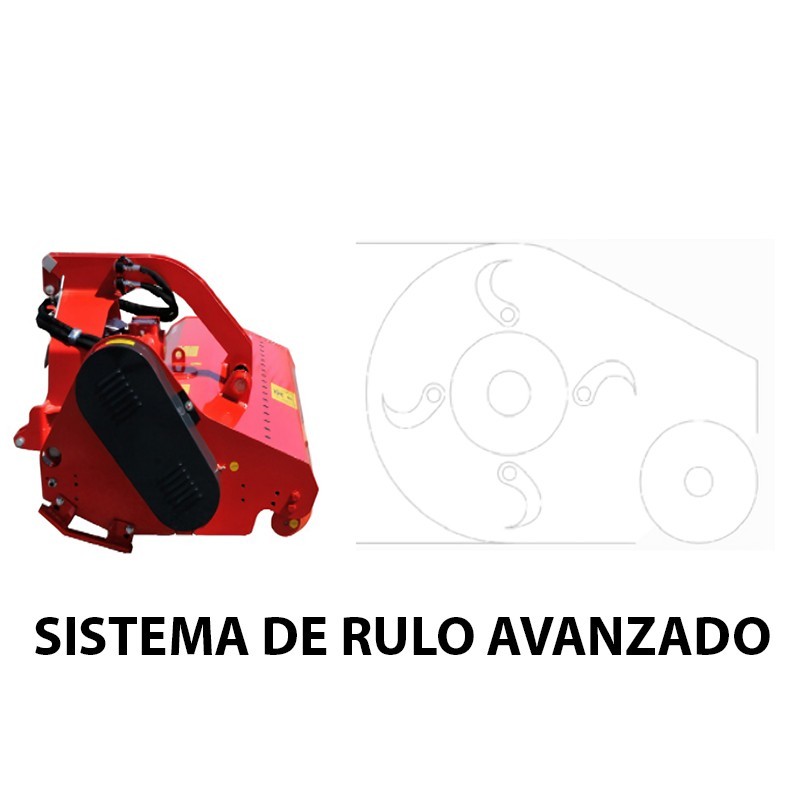

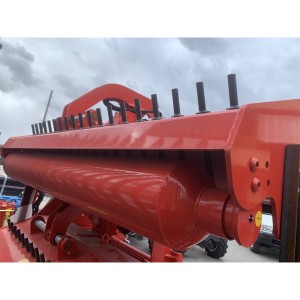

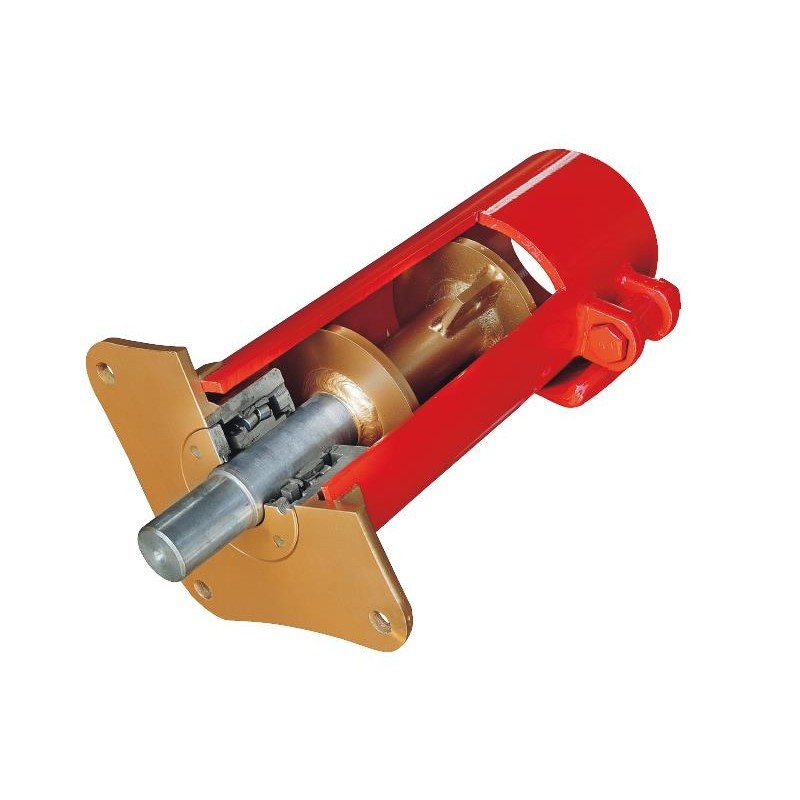

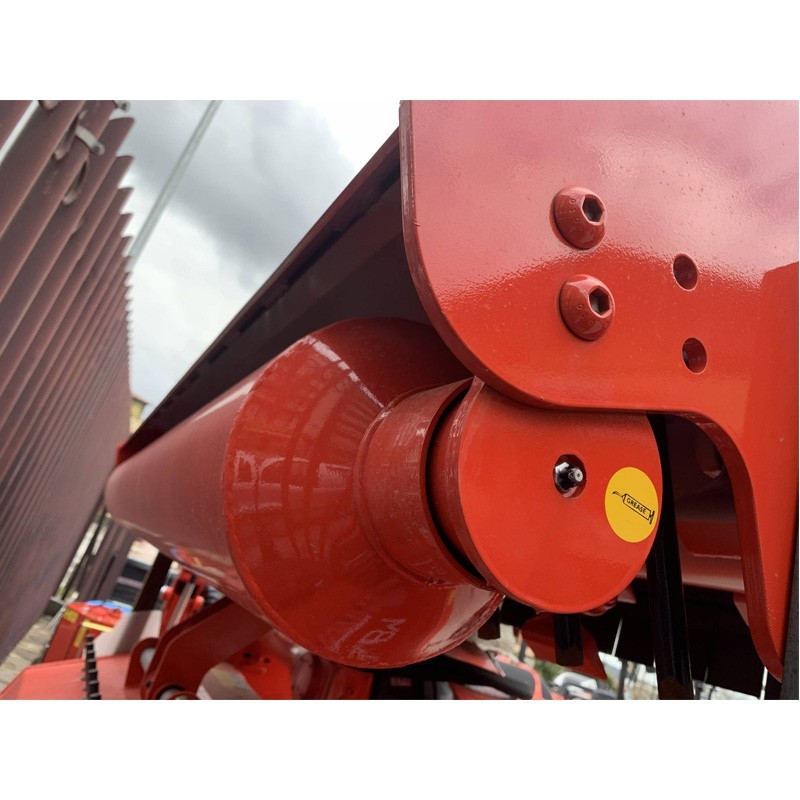

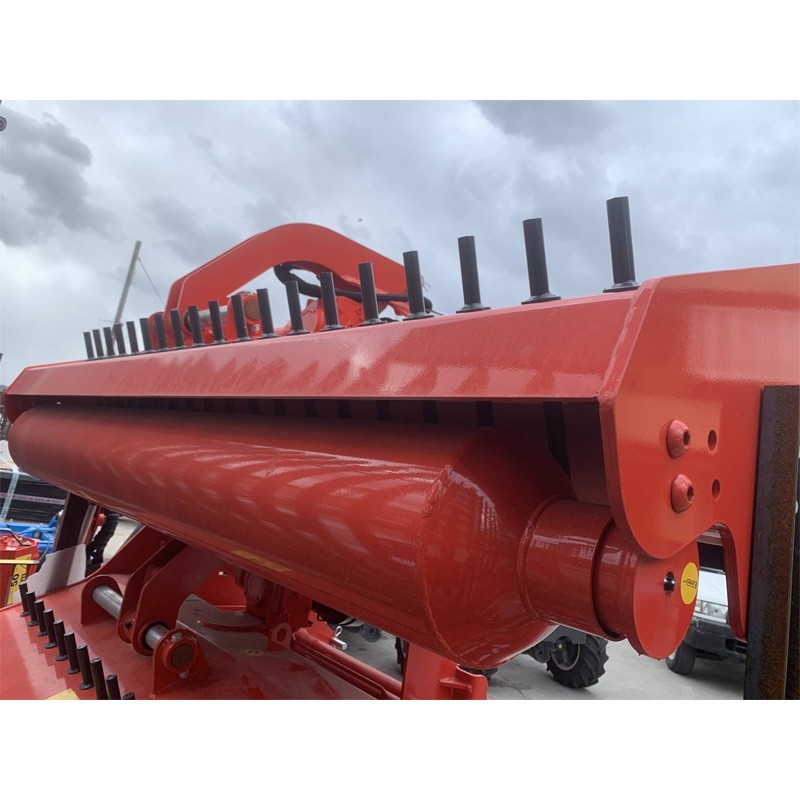

It has a 170 mm rotor diameter and a cutting diameter 410 mm, as well as a rear roller 220 mm autopulente that regulates the cutting height.

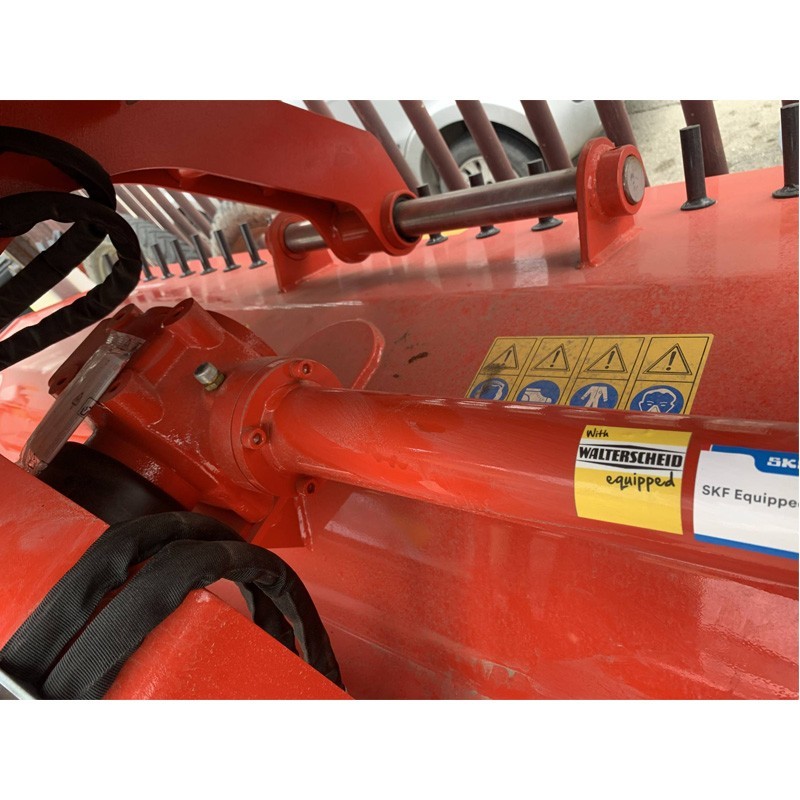

Other highlights include a gearbox with freewheel 540 rpm, the machine is equipped with high durability blades or hammers, and multiple safety protections, complying with CE standards.
Model | TB120 | TB140 | TB160 |
Working width | 120 cm | 140 cm | 160 cm |
Total width | 133 cm | 153 cm | 173 cm |
Minimum tractor power | 35 HP | 35 HP | 45 HP |
Tractor transmission | 540 rpm | 540 rpm | 540 rpm |
Cutting speed | 2550 rpm | 2550 rpm | 2550 rpm |
Weight | 365 kg | 465 kg | 490 kg |
Hammers | 12 | 14 | 16 |
Belts | 3 | 3 | 3 |
Model | TB180 | TB200 | TB225 |
Working width | 180 cm | 200 cm | 225 cm |
Total width | 193 cm | 213 cm | 238 cm |
Minimum tractor power | 50 HP | 60 HP | 70 HP |
Tractor transmission | 540 rpm | 540 rpm | 540 rpm |
Cutting speed | 2550 rpm | 2550 rpm | 2550 rpm |
Weight | 515 kg | 540 kg | 560 kg |
Hammers | 18 | 20 | 24 |
Belts | 3 | 4 | 4 |
Model | TB240 | ||
Working width | 240 cm | ||
Total width | 253 cm | ||
Minimum tractor power | 75 HP | ||
Tractor transmission | 540 rpm | ||
Cutting speed | 2550 rpm | ||
Weight | 580 kg | ||
Hammers | 26 | ||
Belts | 4 |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |

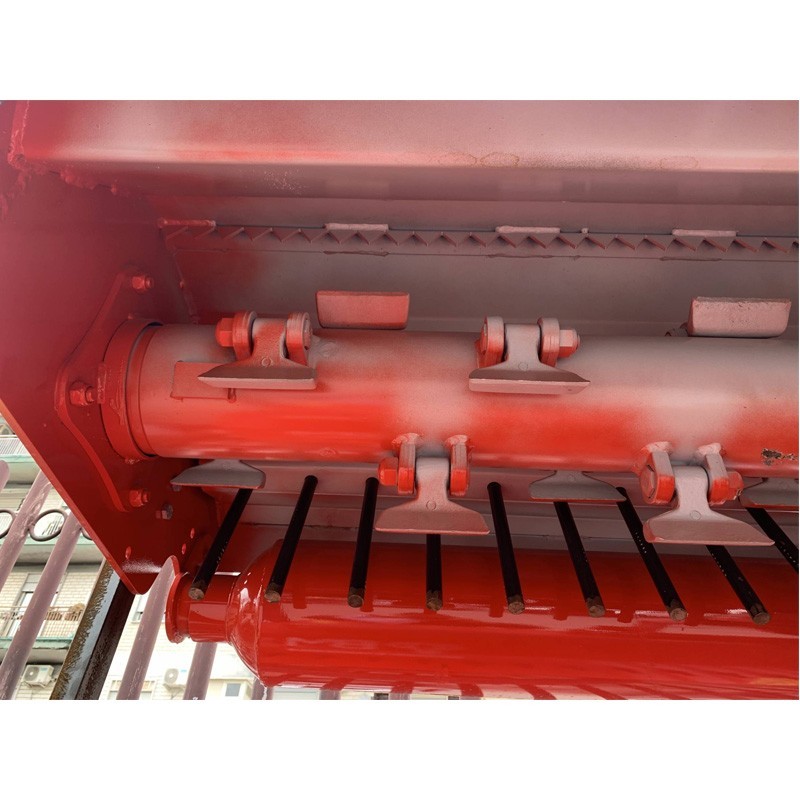

This tractor shredder includes a hammer cutting system. It also has the option to order blade system by calling our customer service. |
