Tractor hammer crusher Deleks TIGRE-180 50-90HP
Tractor hammer crusher Deleks TIGRE-180 50-90HP
Tractor hammer crusher Deleks TIGRE-180 50-90HP
Tractor hammer crusher Deleks TIGRE-180 50-90HP
Tractor hammer crusher Deleks TIGRE-180 50-90HP
Tractor hammer crusher Deleks TIGRE-180 50-90HP
Tractor hammer crusher Deleks TIGRE-180 50-90HP
Tractor hammer crusher Deleks TIGRE-180 50-90HP

Tractor hammer crusher Deleks TIGRE-180 50-90HP

Rating:
(0)
  • Tractor power: 50 - 90 HP
  • Cutting height: 5 - 65 mm
  • Total width: 1970 mm
  • Number of hammers: 28
Deleks products take about 15 to 20 days.
En stock
icon Shredder type
Shredder type
Rear shredder
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
180 cm
icon Tractor power
Tractor power
50 - 90 HP
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Manual
icon Robustness
Robustness
Medium
icon Number of hammers
Number of hammers
28
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
400 kg
€2,235.35 excl. VAT
- 4%
€2,145.94 excl. VAT
€2,596.58 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Tractor hammer crusher Deleks TIGRE-180 50-90HP
€2,596.58
Qty

Tractor hammer crusher Deleks TIGRE-180 50-90HP

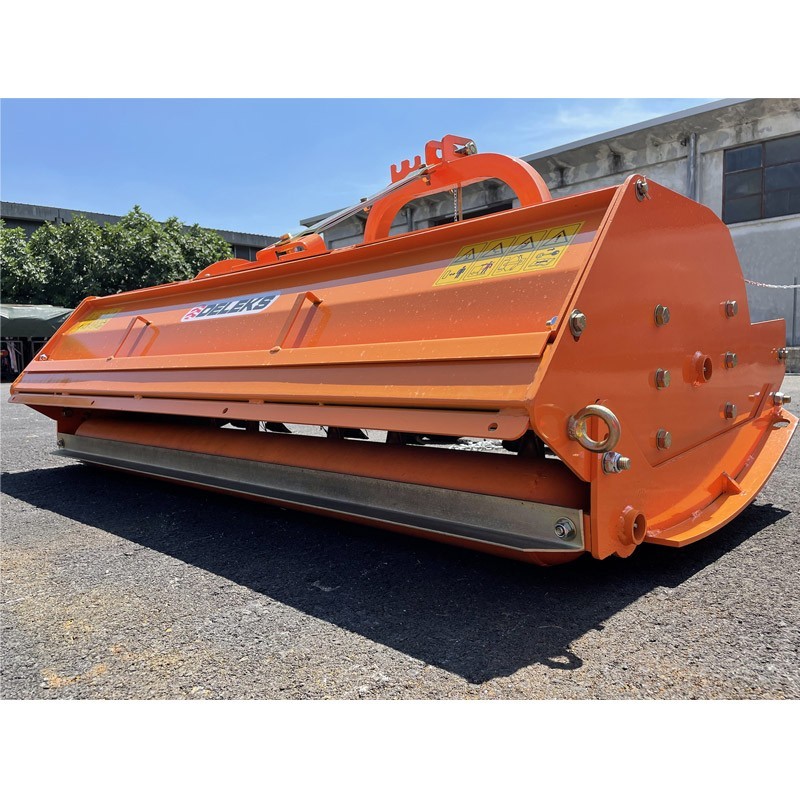

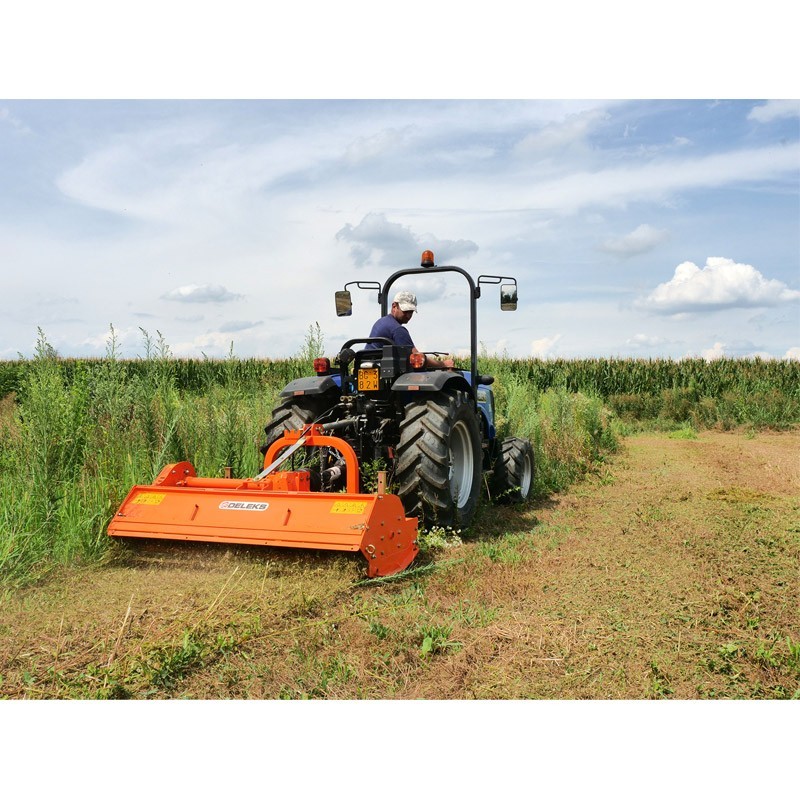

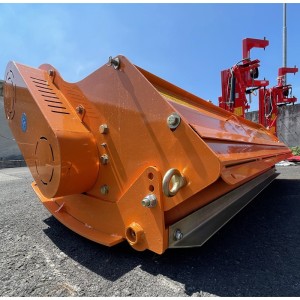

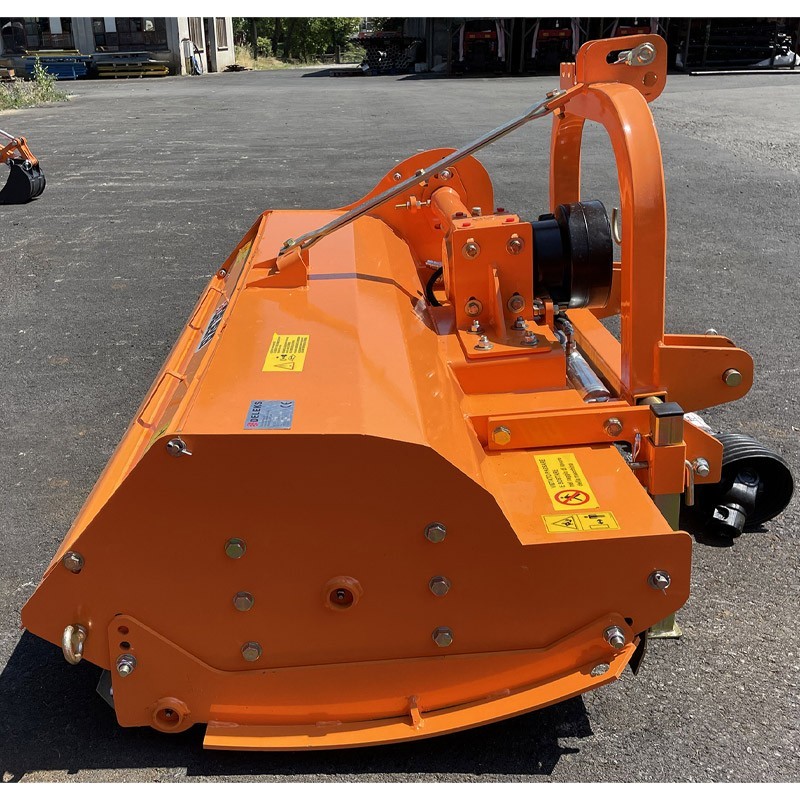

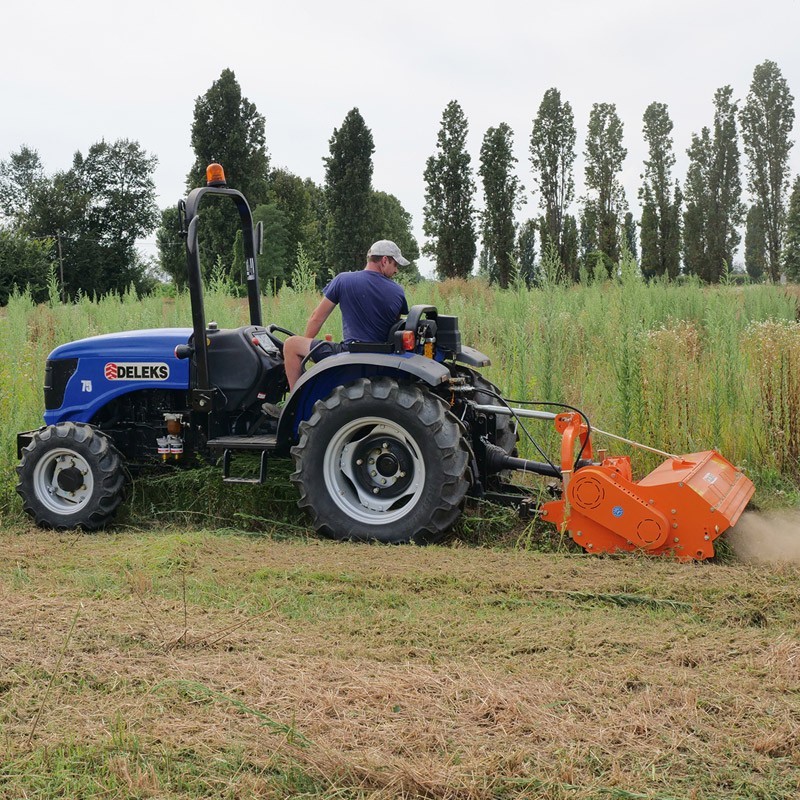

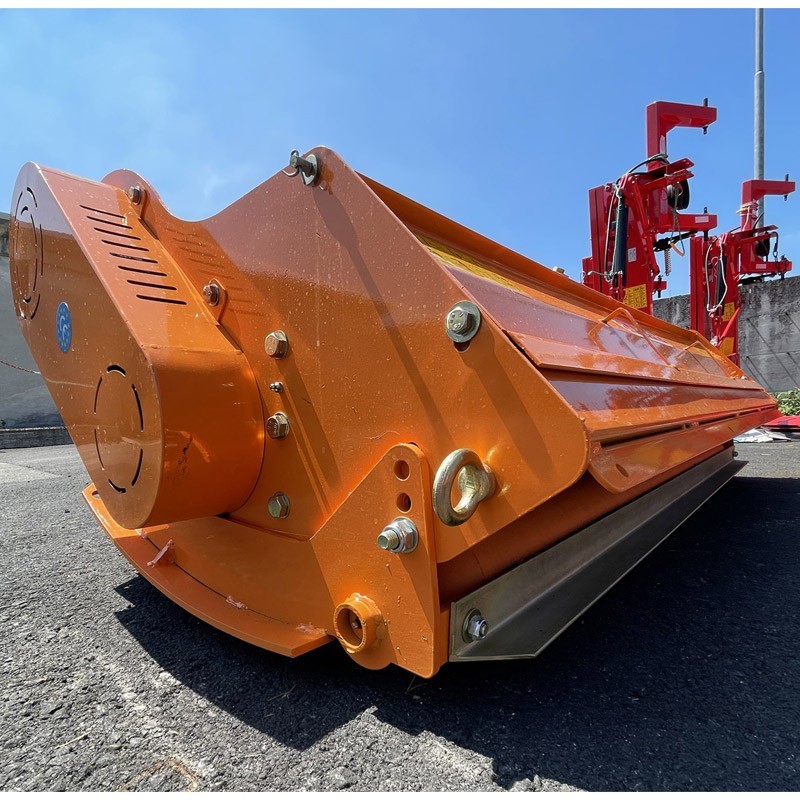

The hammer shredder Deleks TIGRE-180 is specially designed for tractors with low power of 50-90HP. This mulcher model is used for meadows, parks and vineyards.

The Deleks TIGRE-180 model has a robust chassis for use in fields and orchards. This model is suitable for mowing lawns and also for pruning olive trees and vine shoots.

This shredder from Deleks also features a universal CAT 1-2 3-point hitch . It is compatible with all tractors with a hitch. As for its features we can highlight its good GB Bologna transmission box made inItaly. It comes with freewheel

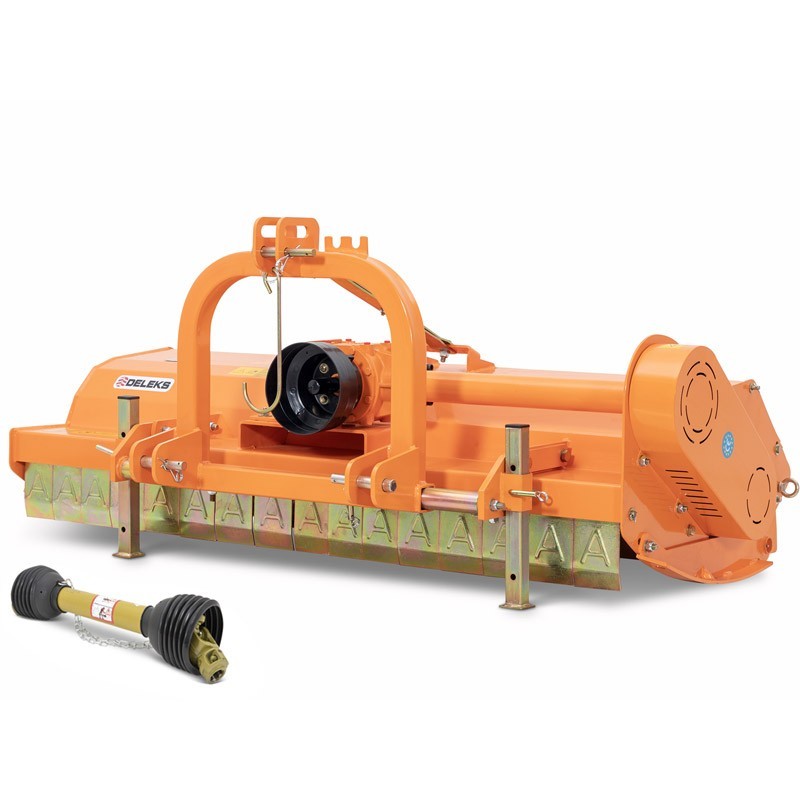

The TIGRE-180 shredder comes with CE cardan shaft included, also includes SKF rotor bearings. The implement can be used on low horsepower tractors in gardens and orchards. This is thanks to its light weight of 382kg.

This model ofHammermill Shredder Deleks ensures good operator comfort and ease of operation. This is thanks to its outstanding features.

Among these features we can highlight the working width of 1800mm and the overall width of 1970mm. We can also highlight the adjustable cutting height from 5 to 65mm and the total height of 915mm.

Features

Working width 1800 mm
Total width 1970 mm
Cutting height min/max 5 - 65 mm
Weight 400 kg
Total height 915 mm
Tractor power 50 - 90 HP
3-point hitch Cat. 1-2 (ø 19-22mm / 25-28mm)
Transmission box position 790 mm from the left side / 1005 mm from the right side
Hood height 495 mm
Distance between lower points 550 - 660 mm

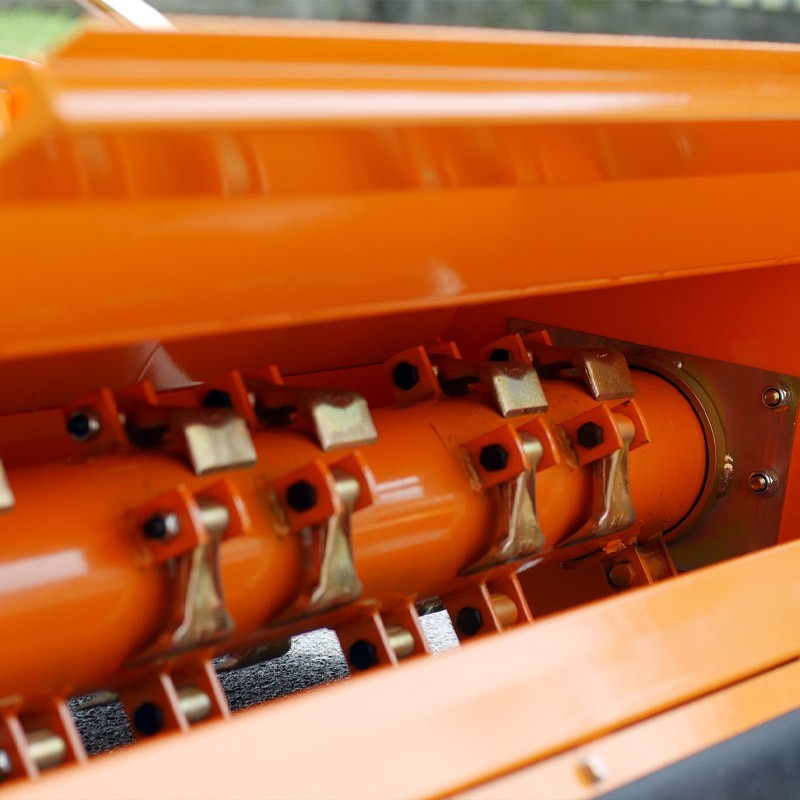

Number of hammers 28
Max. cutting diameter 40 - 50 mm
Total length 1220 mm
Space between ground and transmission box 400 mm
Plate thickness 4 mm
Sheet thickness at sides 8 mm
Skids thickness 8 mm
Transmission type V-belts
Transmission: Gearbox GB Bologna (Italy)
Transmission: PTO 540 r/min
Transmission: rotation direction Time
Transmission: freewheel √
Drive: rotor speed 2050 rpm
Transmission: gearbox oil Yes / SAE 120 - ISO 72925
Transmission: upper pulley diameter 189 mm
Transmission: lower pulley diameter 150 mm
Drive: number of cores 4
Drive: dimensions of cores 17x1250
Rotor: diameter 160 mm
Rotor: bearing type and dimension SKF 6309
Rotor: balancing Electronic
Rotor: blade thickness 8 mm
Hammers: weight 820 g
Hammers: hole dia 15 mm
Hammers: base width 82 mm
Hammers: head width 45 mm
Hammers: diagonal 95 mm
Roll: diameter 140 mm
Roll: sheet thickness 5 mm
Roll: bearing type and dimension 6205
Cardan CE 6x1000 mm
Hood length 880 mm
Horizontal displacement 270 mm manual/hydr.
Packing dimension 2000*1000*750 mm
258019

Data sheet

Shredder type
Rear shredder
Type of cut
Hammers
Working width PTO
180 cm
Tractor power
50 - 90 HP
Cardan shaft
Including
Type of coupling
Lateral displacement
Displacement
Manual
Robustness
Medium
Number of hammers
28
Working width (cm)
180 - 189 cm
Country of manufacture
Italy
Weight
400 kg

Specific References

EAN-13
8053470230998
