CARDAN SHAFT INCLUDED
| Deleks products take about 15 to 20 days. |

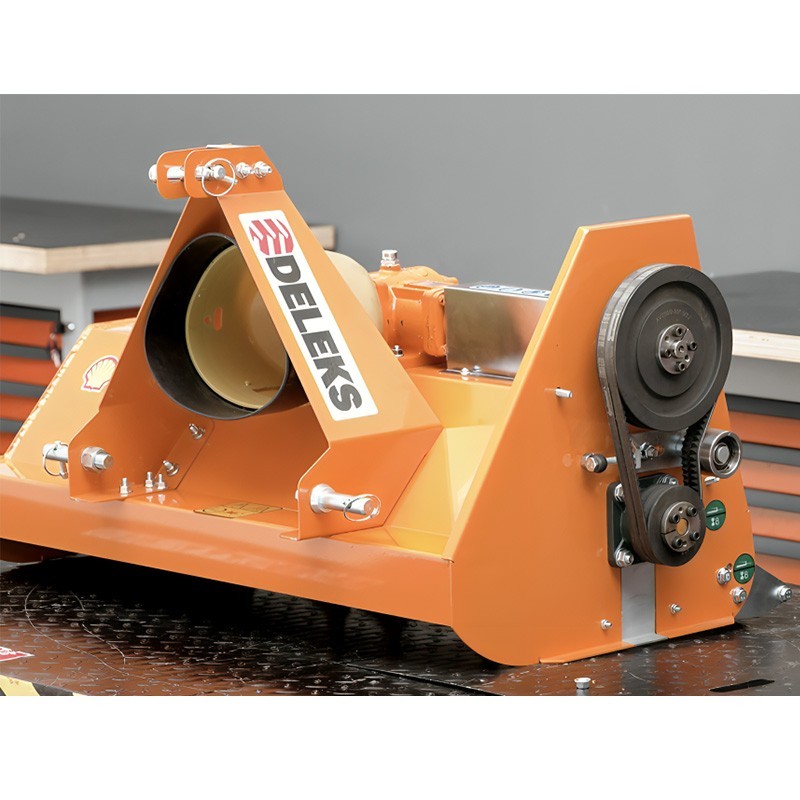

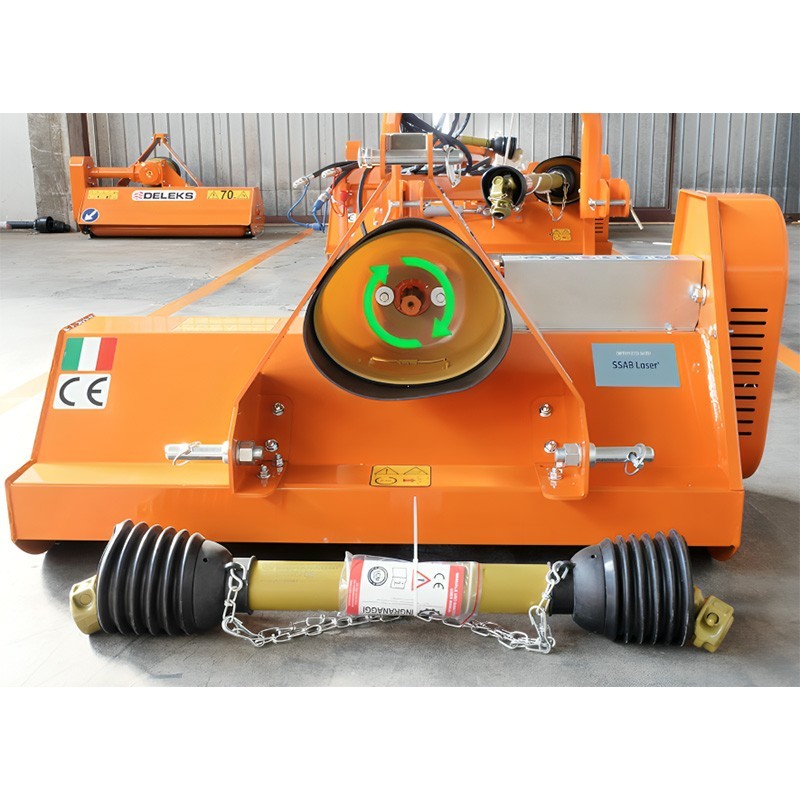

Tractor Rear Shredder Deleks APE 100 SX, this designed for tractors that have a small power, with power ratings ranging from 12 to 30 HP, this brushcutter is designed for the care of gardens and agricultural fields.

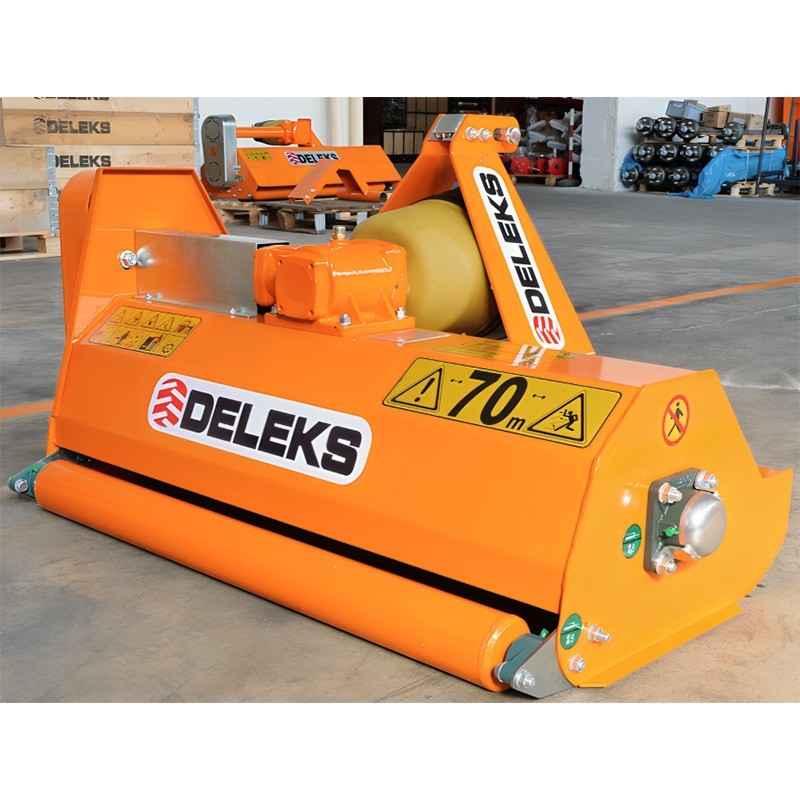

It has forged steel hammers for grass and small brambles, it has a cutting height that can be adjusted thanks to the adjustable rear roll, it is also equipped with a category 1 fixed 3-point linkage.

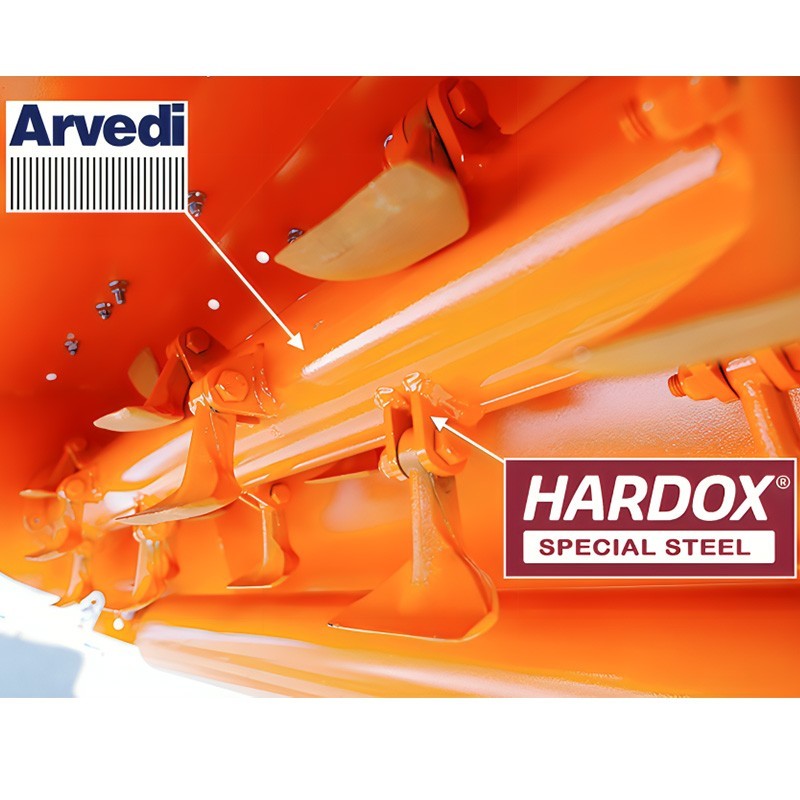

The structure of the Tractor Rear Shredder Deleks APE 100 SX 100 cm is made entirely with swedish steel SSAB, its rotor this made of ARVEDI pipe in addition to being electronically balanced, it is equipped with hARDOX hammers

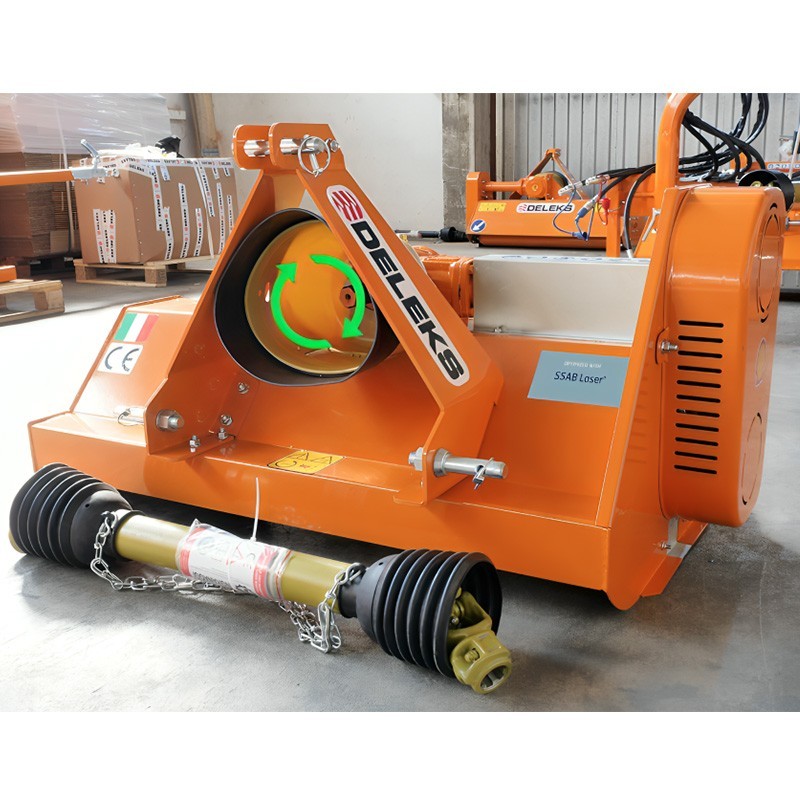

It also has a transmission box Lombarda Ingranaggi Srl with reverse direction of rotation and freewheel. Being so light in weight, it can be used on low horsepower tractors, the hammers of this brushcutter are equipped with 330g forged steel that allow the cutting of vegetation up to 2 cm thick.

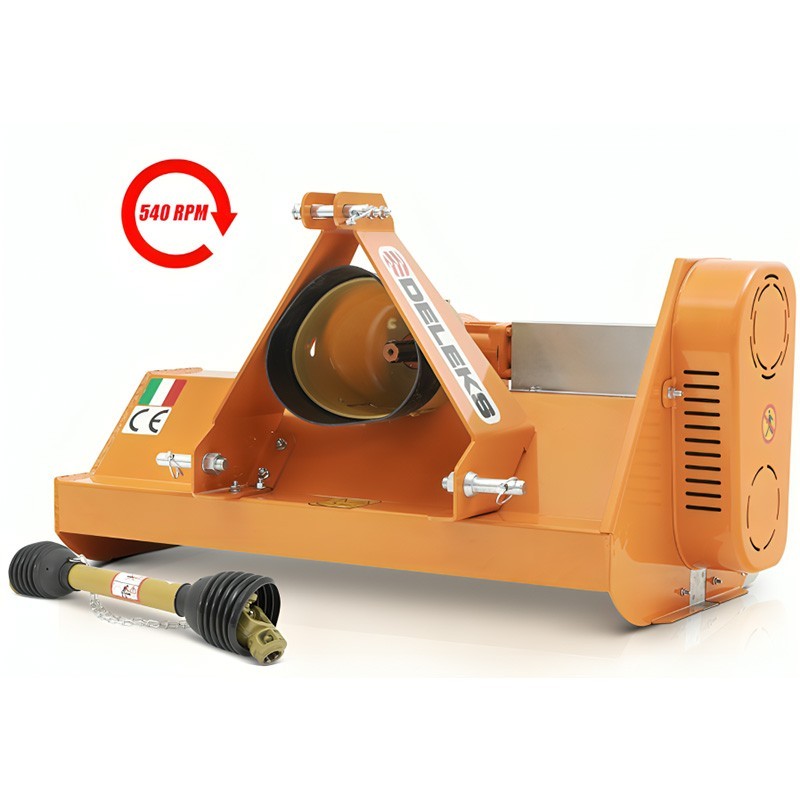

It has a working width of 100 cm, a weight of 105 kg, , 24 hammers and an RPM of 540.
| Working width | 1000.0 mm |
| Overall width | 1150.0 mm |
| Cutting height min/max | 20.0 - 35.0 mm |
| Weight | 105.0 kg |
| Total height | 623.0 mm |
| Tractor power | 12 - 30 HP |
| 3-point hitch | Cat. 1 (ø 19.0-22.0mm |
| Hood height | 317.0 mm |
| Distance between the lower points | 380.0 - 580.0 mm |
| Number of hammers | 24 |
| Max. cutting diameter | 10.0 - 20.0 mm |
| Ground to gearbox spacing | 385.0 mm |
| Total length | 640.0 mm |
| Plate thickness | 3.0 mm |
| Thickness of sheet metal on the sides | 3.0 mm |
| Transmission type | V-belts |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (Warranty 3 years) |
| Transmission: PTO | 540 r/min |
| Transmission: direction of rotation | Anti-schedule |
| Transmission: freewheel | √ |
| Transmission: rotor speed | 3000 rpm |
| Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
| Transmission: diameter of upper pulley | 185.0 mm |
| Transmission: lower pulley diameter | 96.0 mm |
| Transmission: number of Koreas | 2 |
| Transmission: dimensions of the Koreas | AX35 (889LI) |
| Rotor: diameter | 76.0 mm |
| Rotor: bearing type and dimension | UCF206 |
| Rotor: balancing | Electronic |
| Rotor: blade thickness | 8.0 mm |
| Hammers: weight | 330.0 g |
| Hammers: hole dia | 11.0 mm |
| Hammers: base width | 80.0 mm |
| Hammers: head width | 14.0 mm |
| Hammers: diagonal | 75.0 mm |
| Roll: diameter | 85.0 mm |
| Roll: sheet thickness | 6.3 mm |
| Roll: bearing type and dimension | UCFL204 |
| Cardan | CE 2x800 mm |
| Hood length | 525.0 mm |
| Packing dimensions | 130*60*70 |
| IMPORTANT NOTICE |
| Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
Specific References

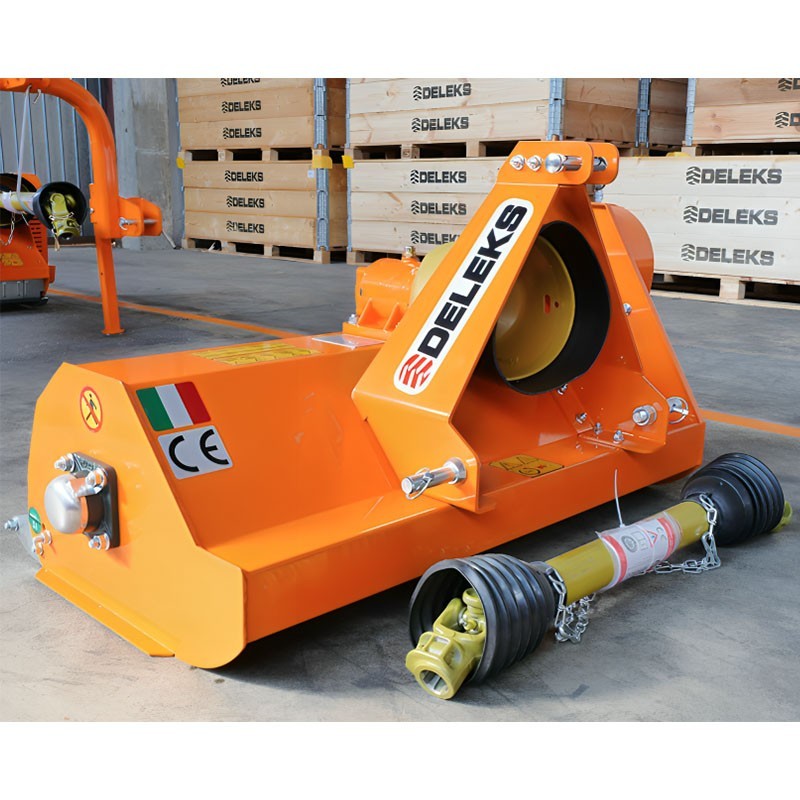

CARDAN SHAFT INCLUDED
Cardan shaft included
Displacement brushcutter disc not included as standard
CARDAN SHAFT INCLUDED
