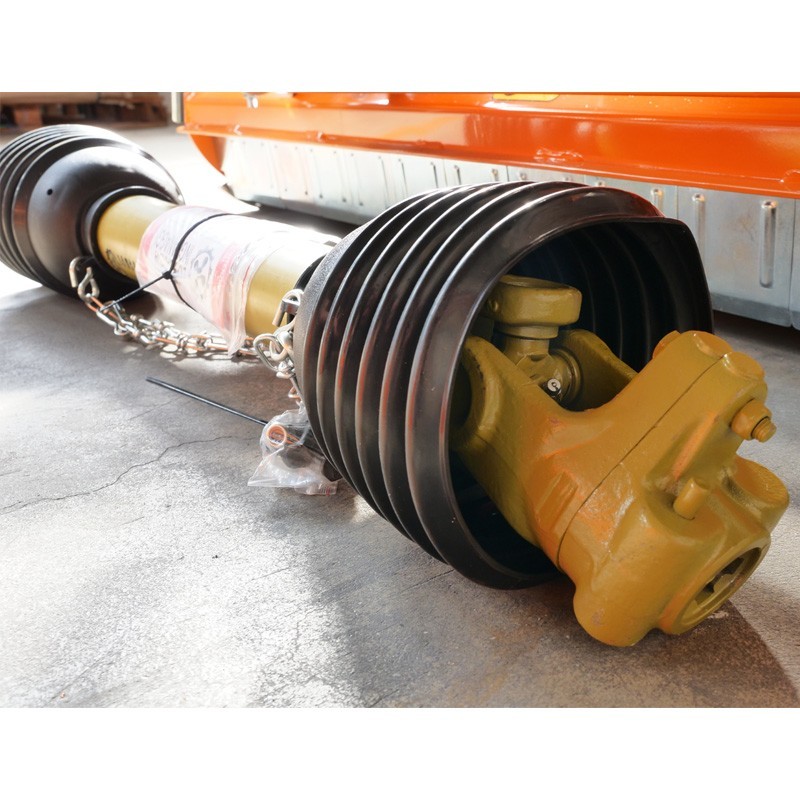

CARDAN SHAFT INCLUDED
Deleks products take about 15 to 25 days. |

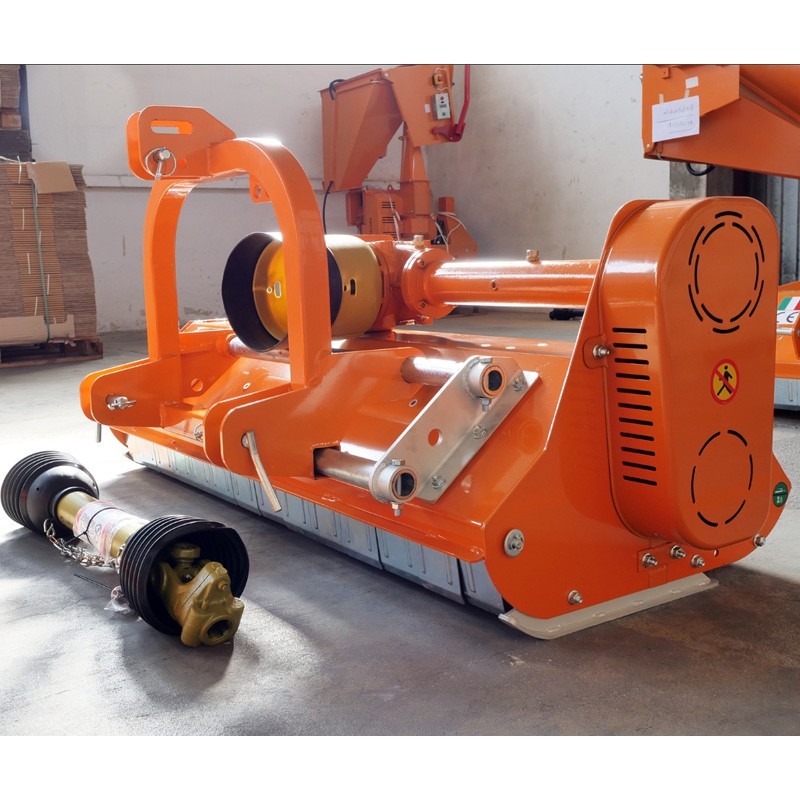

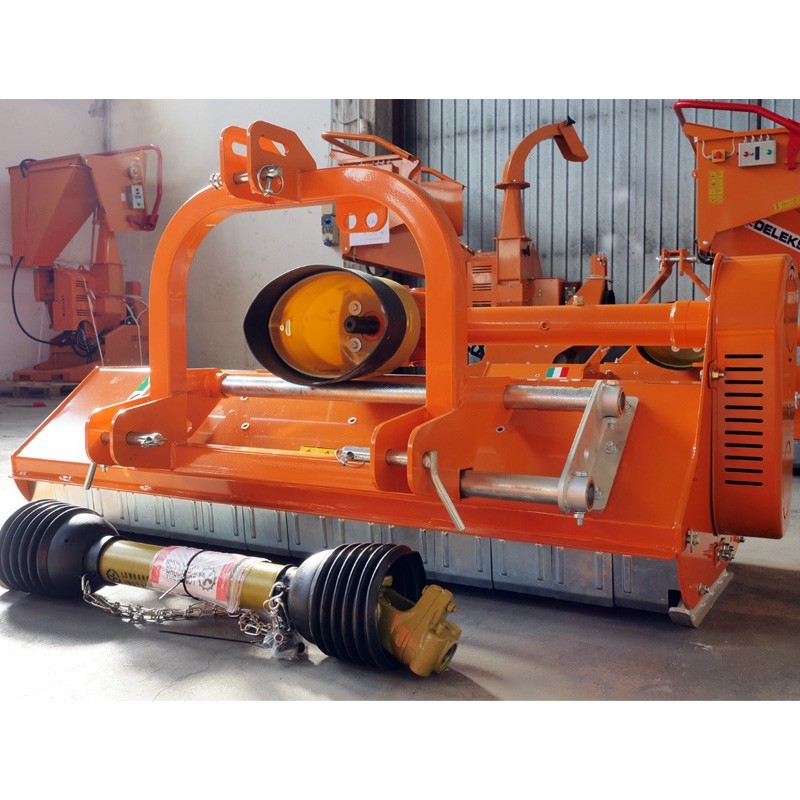

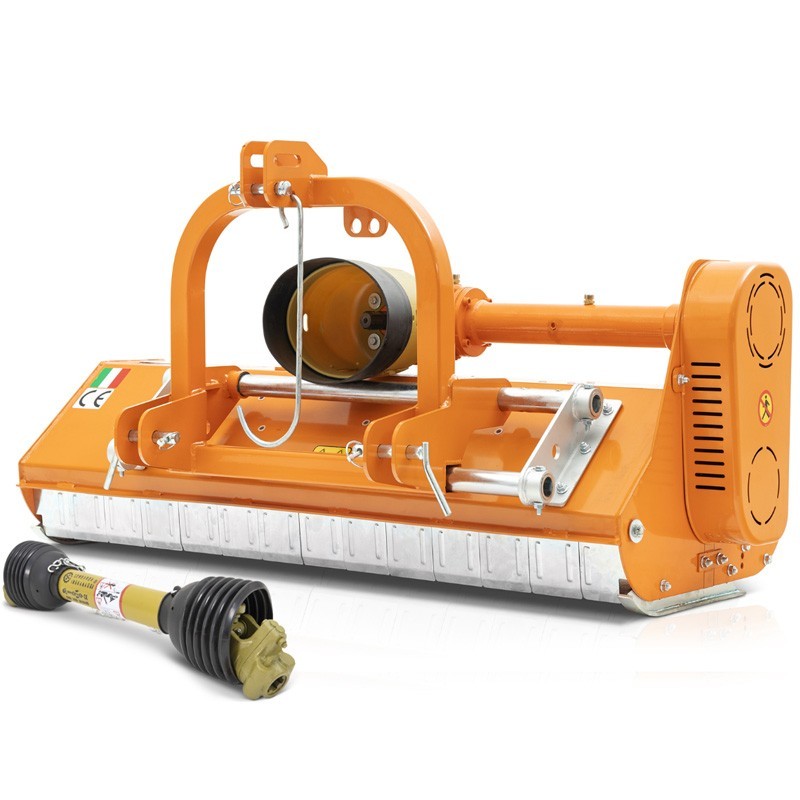

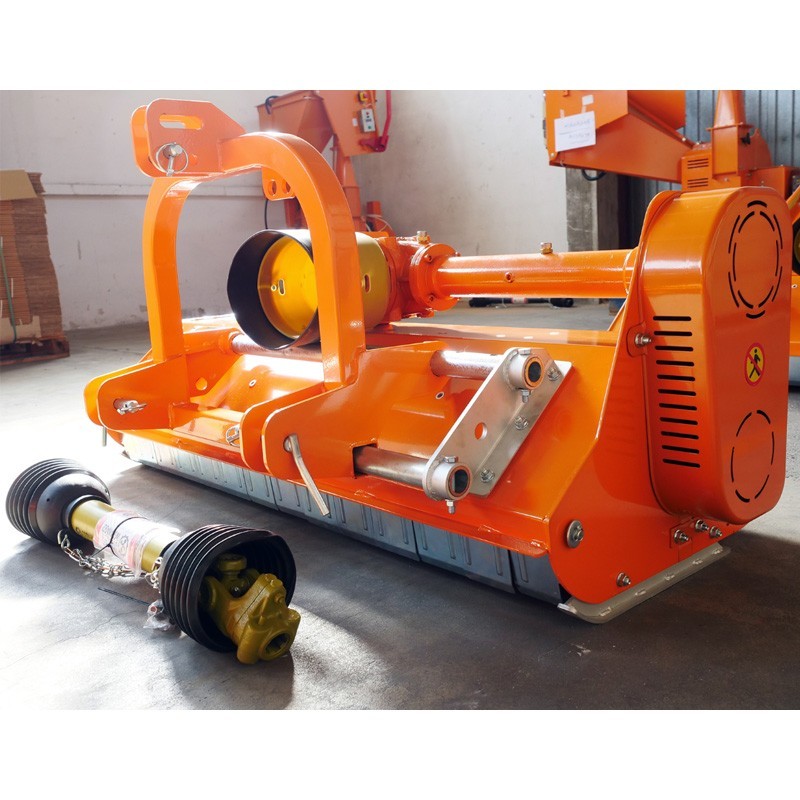

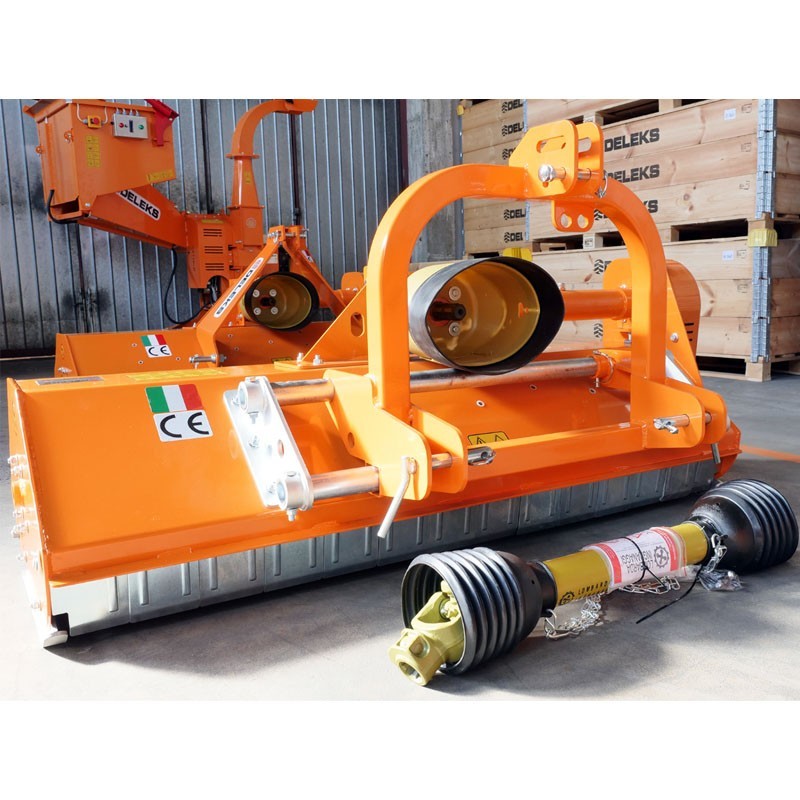

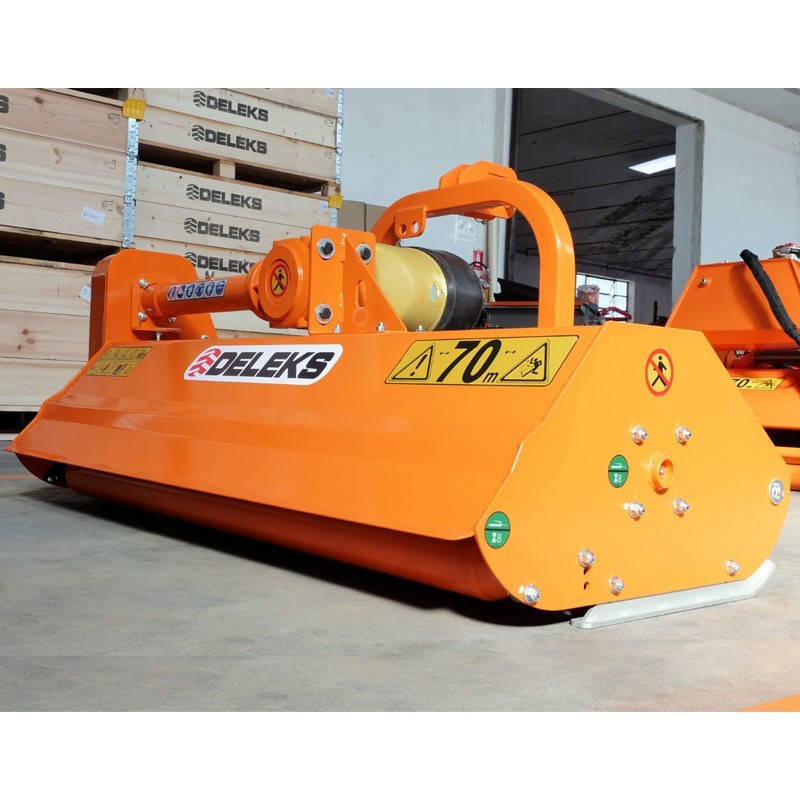

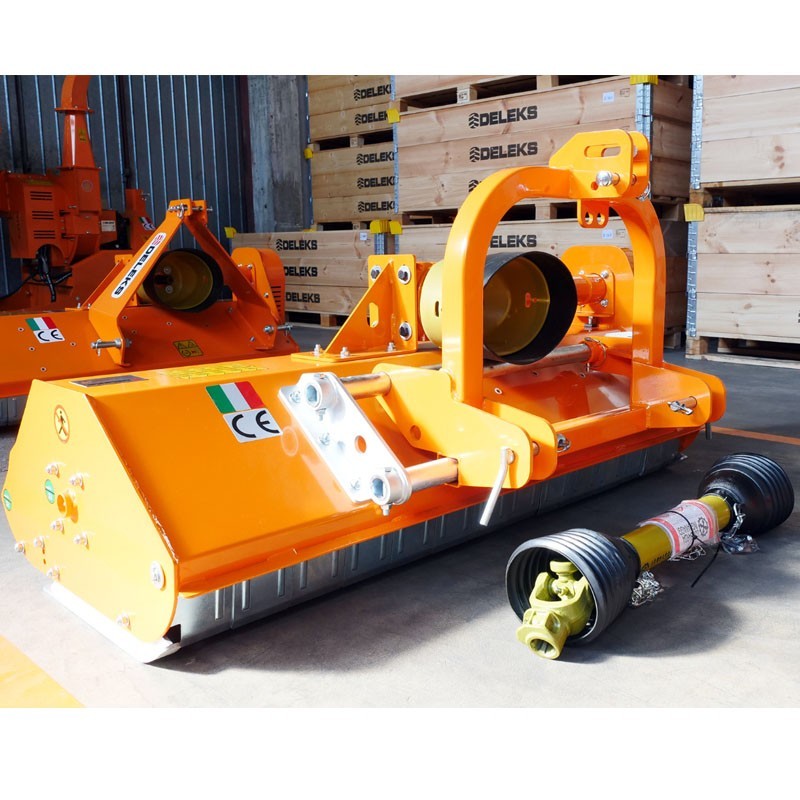

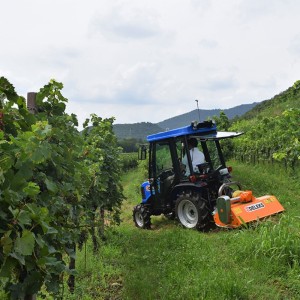

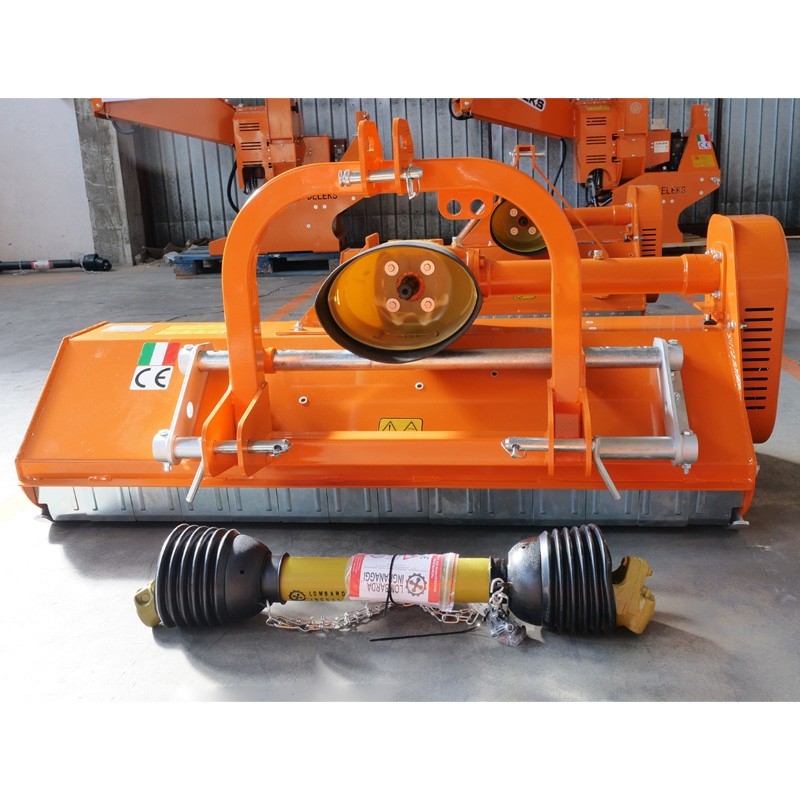

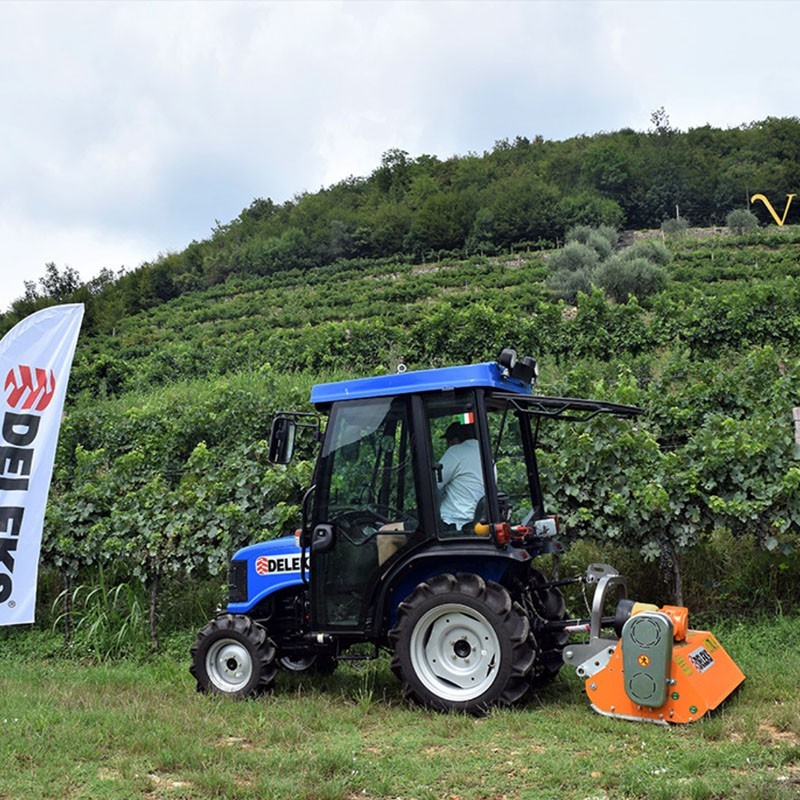

The LINCE-SP100 DELEKS Tractor Rear-mounted Shredder LINCE-SP100 can be used on the tractor axle or can be moved manually or hydraulically. The grass cutting result is very clean and can also cut brambles up to 2.5 cm in diameter.

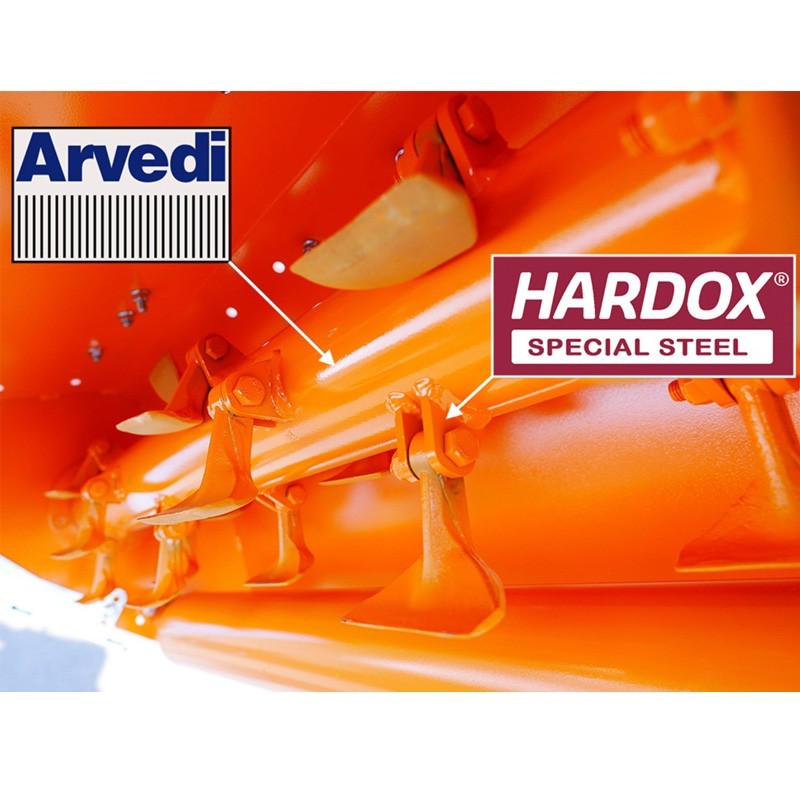

The shredder is attached to the tractor with a universal 3-point hitch and is compatible with most tractors from 14 to 40 HP. It has a structure made entirely of swedish steel SSAB, its rotor is made of tube ARVEDI, electronically balanced, of s355 steel.

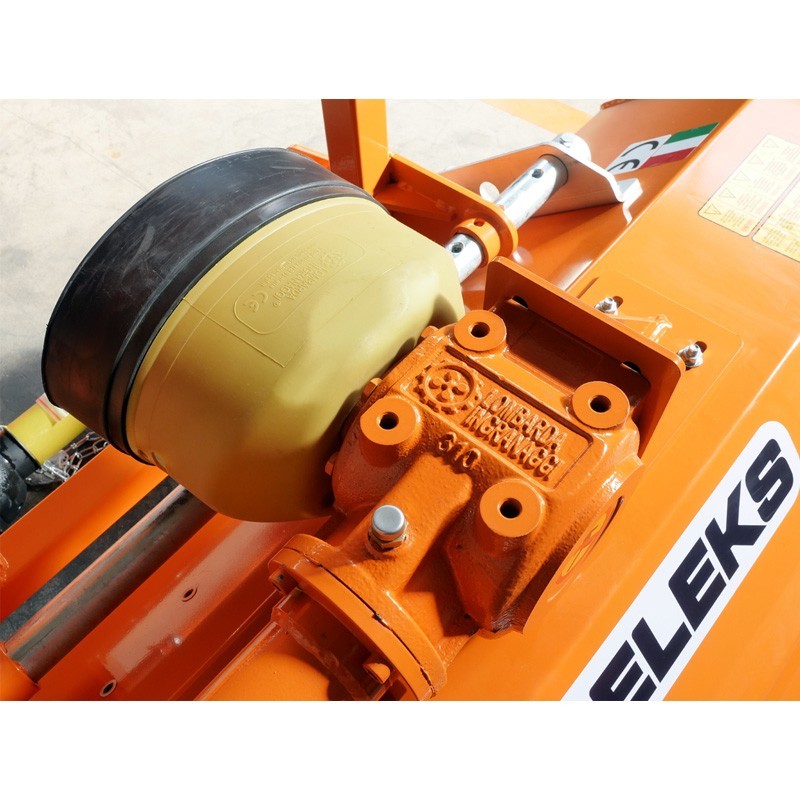

Its hammers are mounted on 6 blades instead of 4, the hammer brackets are made in HARDOX, sKF rotor bearings, a Lombarda Ingranaggi gearbox with freewheel and 3-year warranty. 25 cm manual displacement (hydraulic optional), the frame is equipped with an inner curb that deflects the air flow towards the rotor.

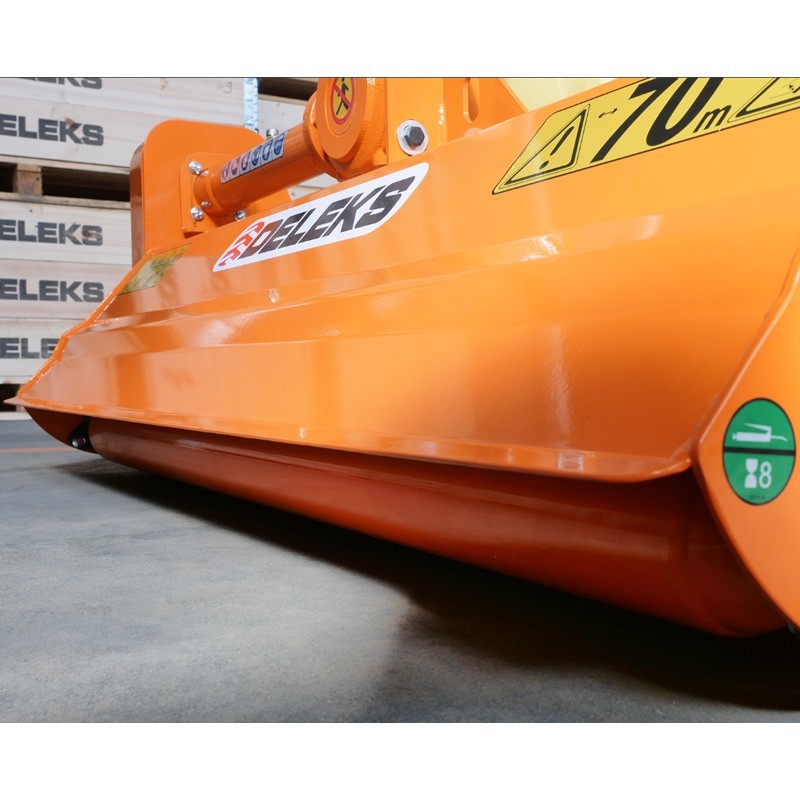

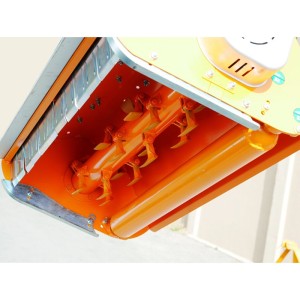

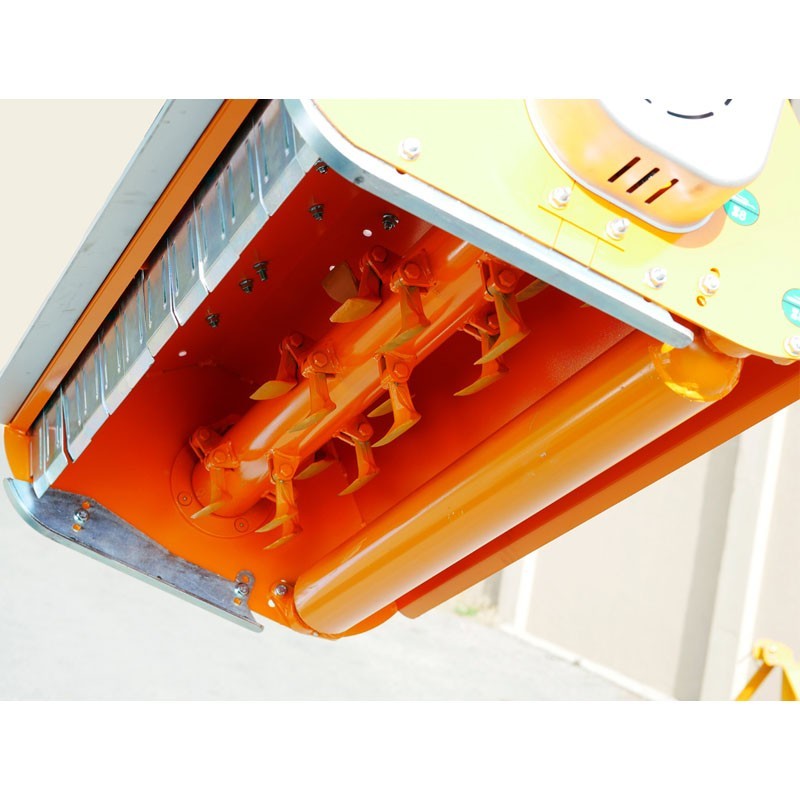

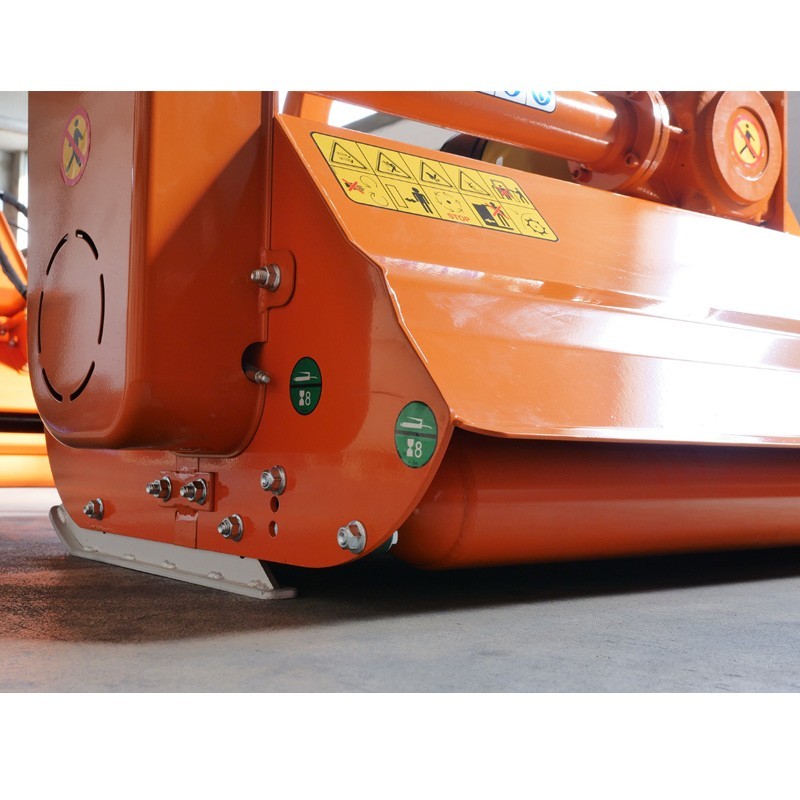

Inner roller positioning provides more efficiency and reduces run time: the cut grass passes over the roller without being crushed, and is removed more quickly, its 330g forged steel hammers for cutting up to 2.5 cm diameter. 3 heavy-duty straps with external tension adjustment and adjustable rear roller and side skids
Working width | 1000.0 mm |
Overall width | 1120.0 mm |
Cutting height min/max | 10.0 - 45.0 mm |
Weight | 155.0 kg |
Total height | 750.0 mm |
Tractor power | 14 - 40 hp |
3-point hitch | Cat. 1 (ø 19.0-22.0mm |

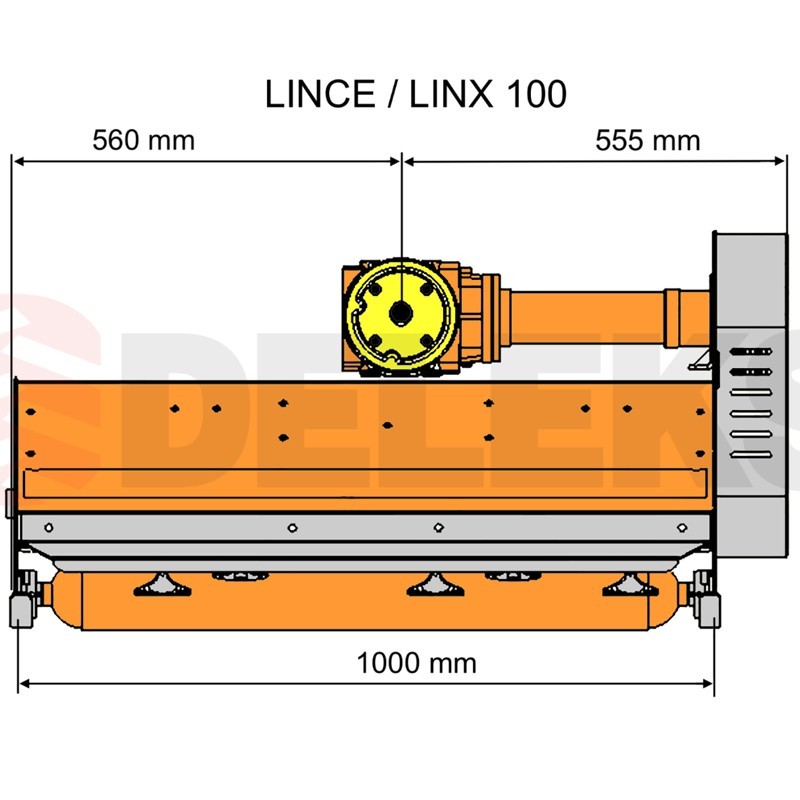

Position of the gearbox | 555.0 mm from the left side / 561.0 mm from the right side. |
Hood height | 370.0 mm |
Distance between the lower points | 520.0 - 620.0 mm |
Number of hammers | 16 |
Max. cutting diameter | 20.0 - 30.0 mm |
Total length | 880.0 mm |
Ground to gearbox spacing | 472.0 mm |
Plate thickness | 3.0 mm |
Thickness of sheet metal on the sides | 5.0 mm |
Skid thickness | 6.0 mm |
Transmission type | V-belts |
Transmission: Gearbox | Lombarda Ingranaggi Srl (Italy) (Warranty 3 years) |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 3150.0 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: diameter of upper pulley | 206.0 mm |
Transmission: lower pulley diameter | 106.0 mm |
Transmission: number of Koreas | 3 |
Transmission: dimensions of the Koreas | AX39 |
Rotor: diameter | 102.0 mm |
Rotor: bearing type and dimension | SKF UCF-207 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 8.0 mm |
Hammers: weight | 330.0 g |
Hammers: hole dia | 11.0 mm |
Hammers: base width | 80.0 mm |
Hammers: head width | 14.0 mm |
Hammers: diagonal | 75.0 mm |
Roll: diameter | 102.0 mm |
Roll: sheet thickness | 5.0 mm |
Roll: bearing type and dimension | FL205 |
Cardan | CE 2x800 mm |
Hood length | 665.0 mm |
Horizontal displacement | 250.0 mm manual/hydr. |
Packaging dimensions | 1150.0*850.0*700.0 mm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
