| Deleks products take about 15 to 25 days. |

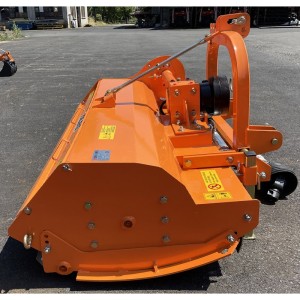

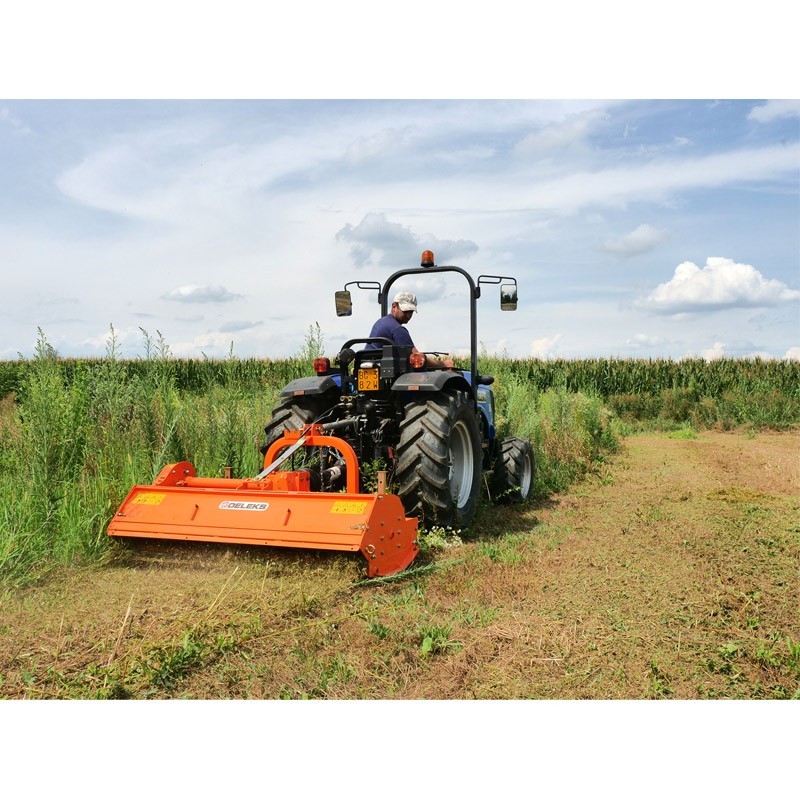

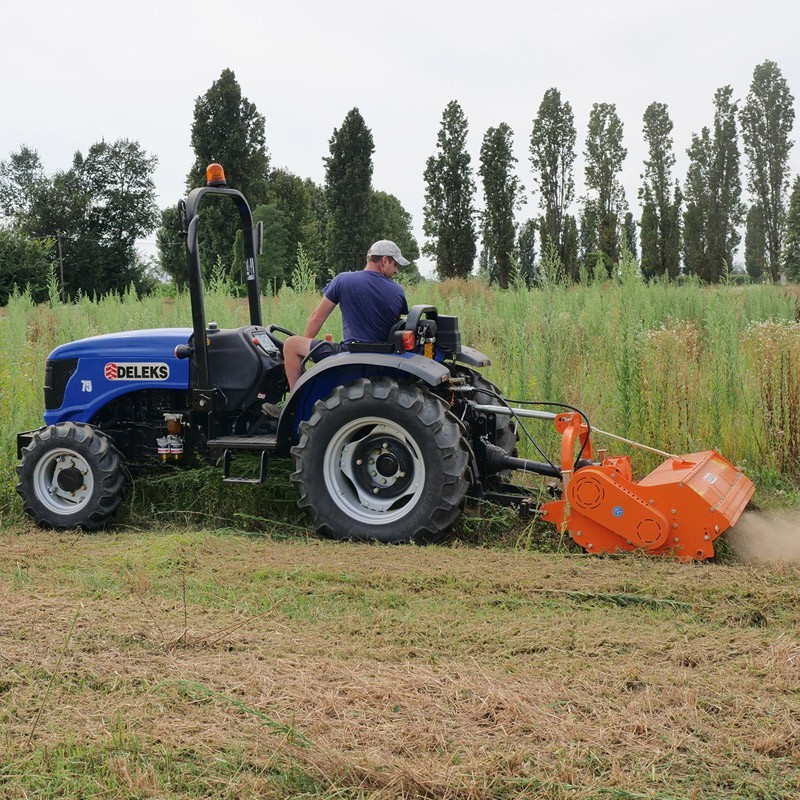

The Hammer crusher Deleks TIGER-200 It is specially designed for tractors with low power of 60-90HP. This model of shredder is used for lawns, parks, and vineyards.

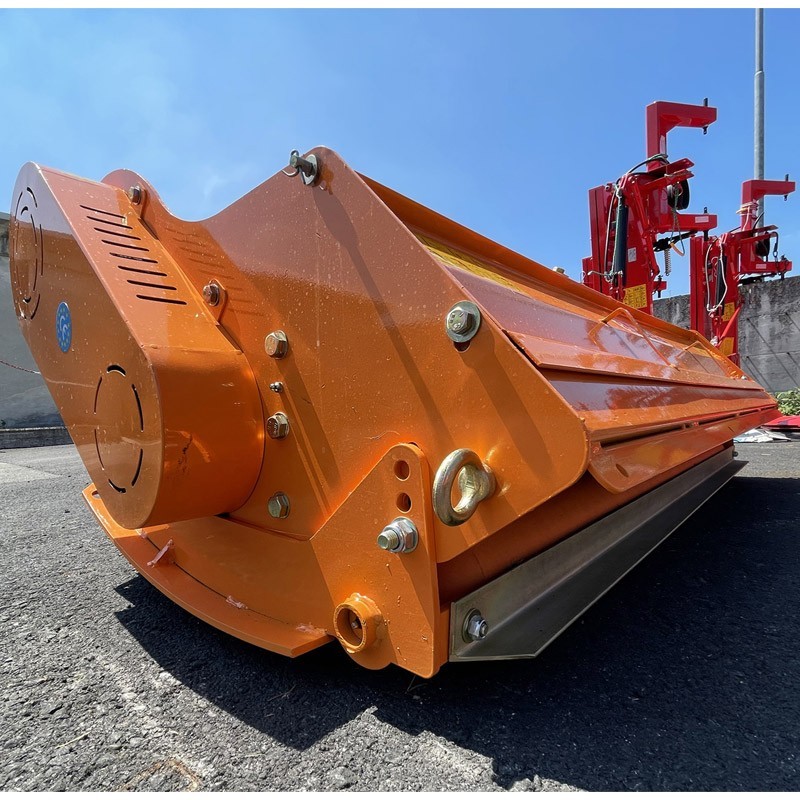

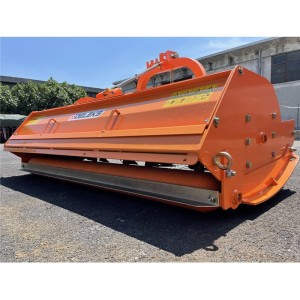

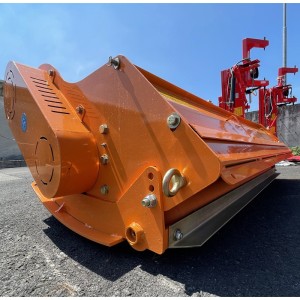

The model Deleks TIGER-200It features a robust chassis for use in fields and orchards. This model is adapted for mowing the lawn and also for pruning olive trees and vineyard shoots.
ThisCrusher of Deleks also includes a universal 3-point hitch of CAT 1-2. This is compatible with all tractors with a hitch. Regarding its features, we can highlight its good transmission box. GB Boloña manufactured in ITalia.This comes with a freewheel.
The TIGRE-200 Shredder comes with CE gimbal included, it also includes SKF brand rotor bearings. The implement can be used on low-power tractors in gardens and orchards. This is thanks to its light weight of 428kg.
This model ofCrusher of hammers Deleks It guarantees the operator good comfort and ease of work. This is thanks to its notable features.
Among these features, we can highlight the working width of 2000mm and the Total width of 2170 mm. We can also highlight the adjustable cutting height from 5 to 65mm and the Total height of 915mm.
| Working width | 2000 mm |
| Total width | 2170 mm |
| Minimum/maximum cutting height | 5 - 65 mm |
| Weight | 428 kg |
| Total height | 915 mm |
| Tractor power | 60 - 90 HP |
| Three-point hitch | Cat. 1-2 (ø 19-22mm / 25-28mm) |
| Transmission box position | 890 mm from the left side / 1105 mm from the right side. |
| Height of the hood | 495 mm |
| Distance between the lower points | 550 - 660 mm |

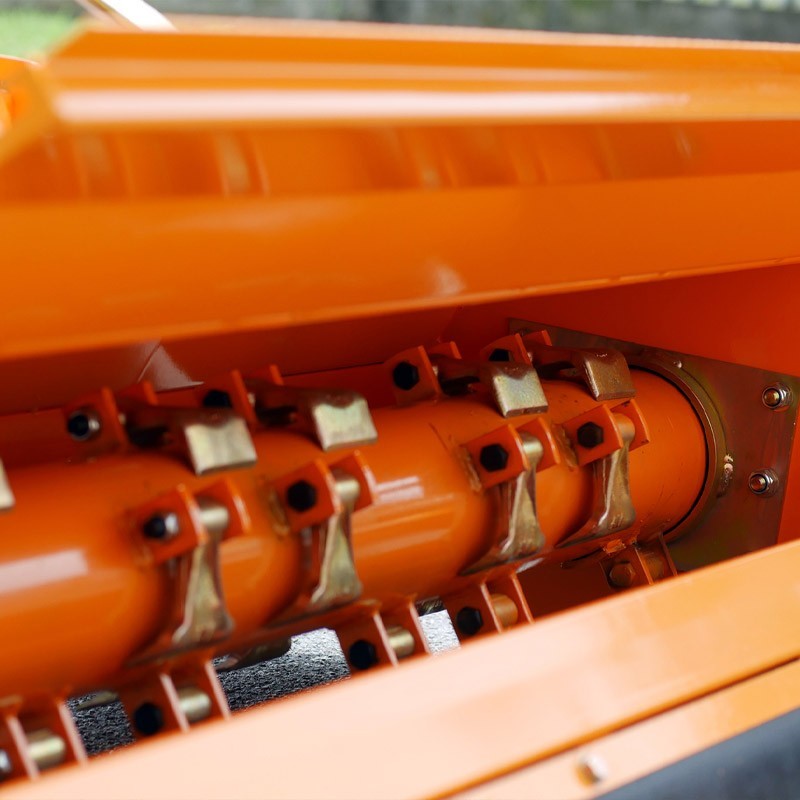

| Number of hammers | 32 |
| Maximum cutting diameter | 40 - 50 mm |
| Total length | 1220 mm |
| Space between the ground and the transmission box | 400 mm |
| Thickness of the sheet | 4 mm |
| Thickness of the sheet on the sides | 8 mm |
| Thickness of the skates | 8 mm |
| Type of transmission | Correas V |
| Transmission: Gearbox | GB Bologna (Italia) |
| Transmission: PTO | 540 rpm (revolutions per minute) |
| Transmission: direction of rotation | Schedule |
| Transmission: freewheel | √ |
| Transmission: rotor speed | 2050 rpm |
| Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
| Transmission: diameter of the upper pulley | 189 mm |
| Transmission: diameter of the lower pulley | 150 mm |
| Transmission: number of cores | 4 |
| Transmission: dimensions of the Koreas | 17x1250 |
| Rotor: diameter | 160 mm |
| Rotor: type of bearings and dimension | SKF 6309 |
| Rotor: balancing | Electronic |
| Rotor: blade thickness | 8 mm |
| Hammers: weight | 820 g |
| Hammers: ø hole | 15 mm |
| Hammers: base width | 82 mm |
| Hammers: head width | 45 mm |
| Hammers: diagonal | 95 mm |
| Roll: diameter | 140 mm |
| Roll: sheet thickness | 5 mm |
| Roll: type of bearings and dimension | 6205 |
| Cardan | CE 6x1000 mm |
| Length of the hood | 880 mm |
| Horizontal displacement | 270 mm manual/hydraulic. |
| Packaging dimension | 2200*1000*750 mm |
| IMPORTANT NOTICE |
| Mandatory on the part of the client, check oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
