GEO ITALY EFGCH OT 125-195 cm GEO ITALY PTO traveling shredder OT 125-195 cm
GEO ITALY EFGCH OT 125-195 cm GEO ITALY PTO traveling shredder OT 125-195 cm
GEO ITALY EFGCH OT 125-195 cm GEO ITALY PTO traveling shredder OT 125-195 cm
GEO ITALY EFGCH OT 125-195 cm GEO ITALY PTO traveling shredder OT 125-195 cm
GEO ITALY EFGCH OT 125-195 cm GEO ITALY PTO traveling shredder OT 125-195 cm

GEO ITALY EFGCH OT 125-195 cm GEO ITALY PTO traveling shredder OT 125-195 cm


  • Weight : 240 - 340 kg
  • Power requirement : 25 - 60 HP
  • Working width PTO : 125 - 195 cm

CARDAN SHAFT INCLUDED

En stock
icon Shredder type
Shredder type
Rear shredder
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
125 - 195 cm
icon Tractor power
Tractor power
25 - 60 HP
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Medium-Light
icon Reinforced chassis
Reinforced chassis
Yes
icon Number of hammers
Number of hammers
20 - 32
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
240 - 340 kg
€1,843.80 excl. VAT
- 4%
€1,770.05 excl. VAT
€2,141.76 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


GEO ITALY EFGCH OT 125-195 cm GEO ITALY PTO traveling shredder OT 125-195 cm
€2,141.76
Select
Qty

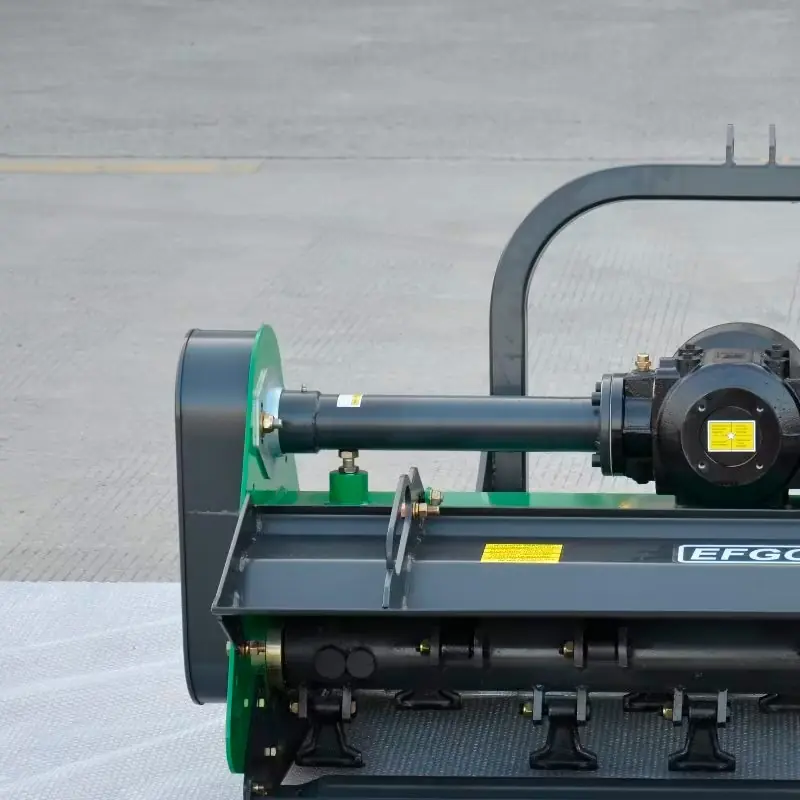

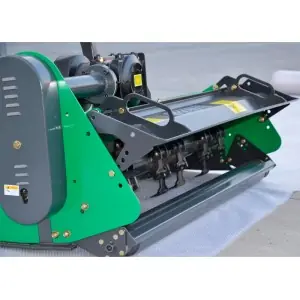

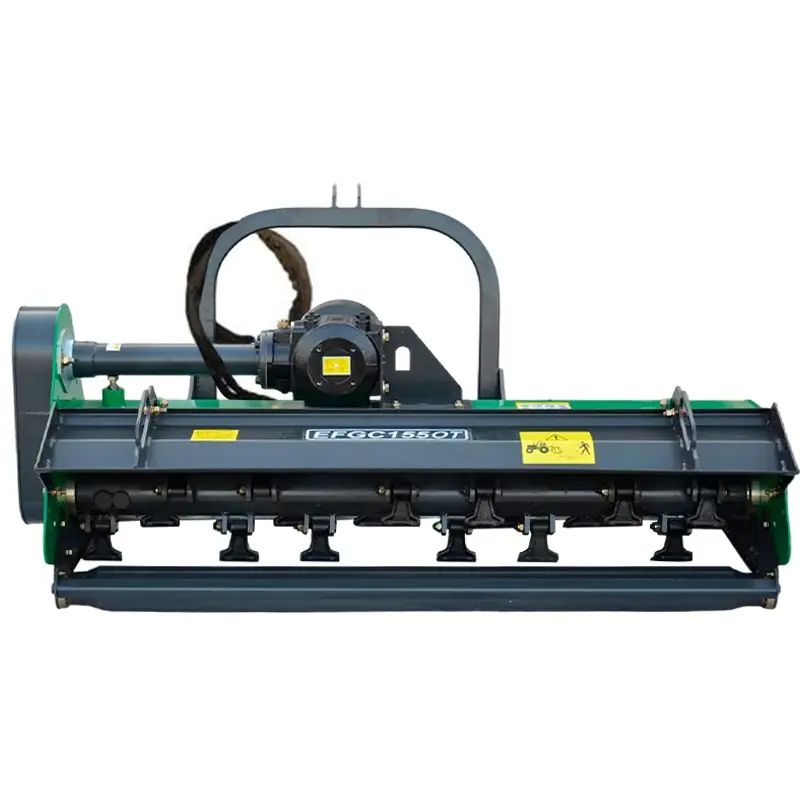

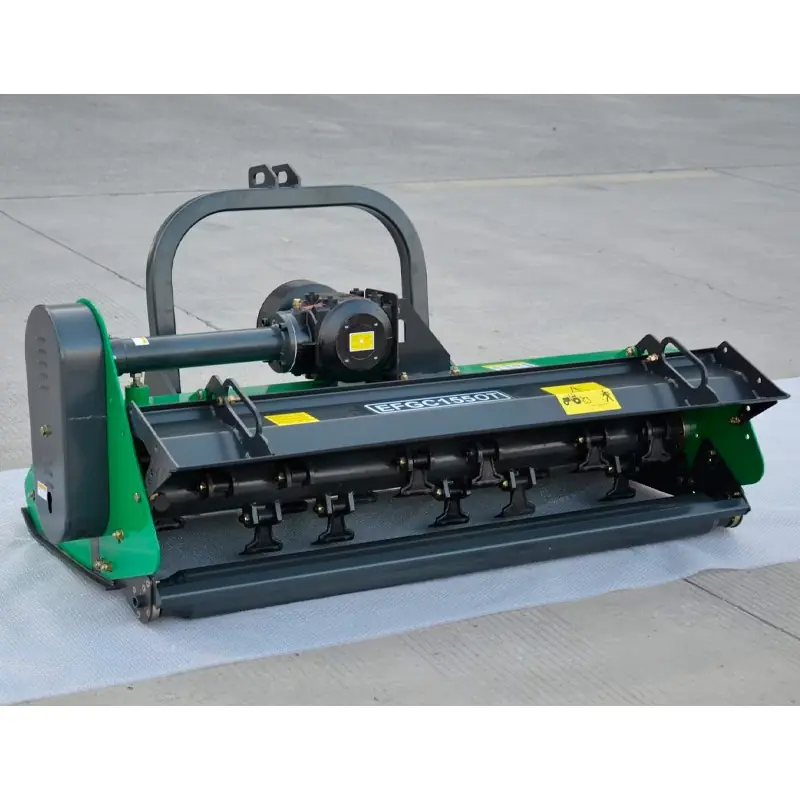

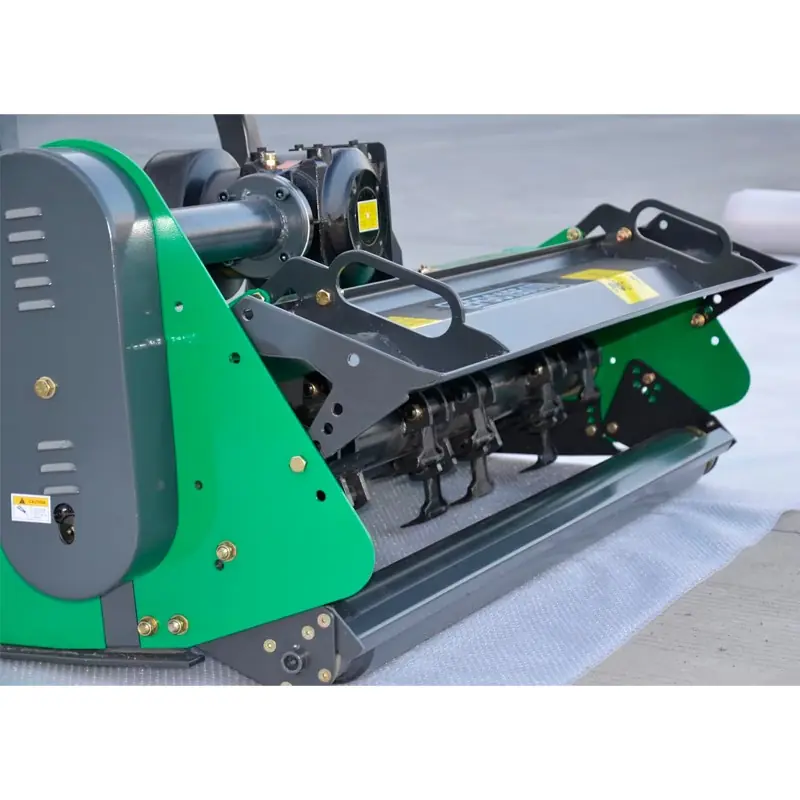

Tractor mounted shredder GEO ITALY EFGCH OT

Shredder GEO ITALY EFGCH OT with hydraulic side shift of 35 cm that allows the rotor to approach trees, poles and ditches without invading the crop line. Ideal for fruit vineyards and farm maintenance where you want to reach the edges with a single pass.

Robust construction with cast iron gearbox with freewheel that protects the transmission. The reinforced chassis and the toothed counter blade increase shredding capacity on weeds and pruning debris for a finer residue.

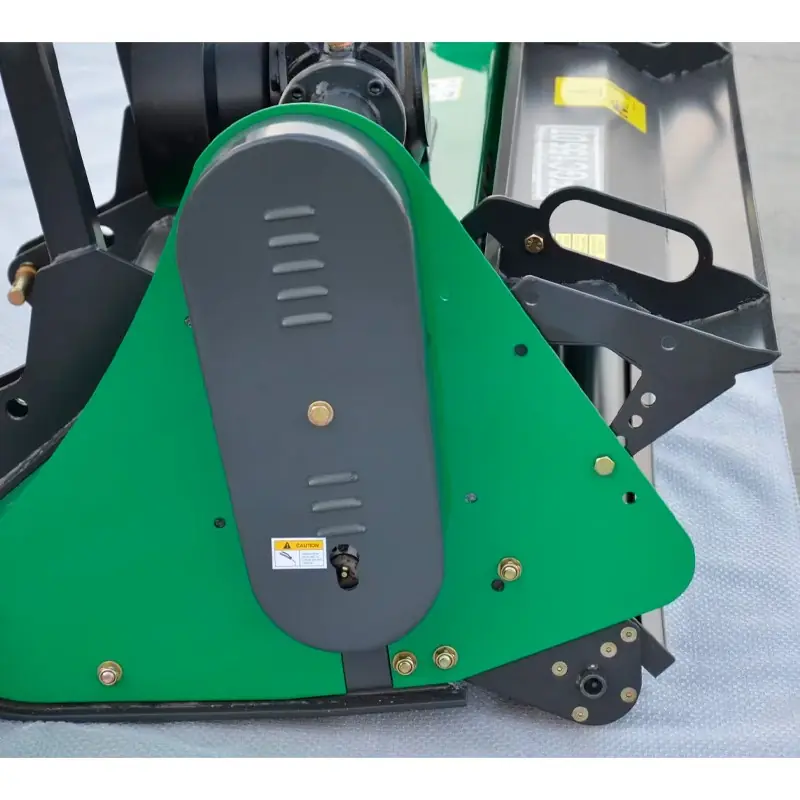

Uniform finish on any terrain thanks to the adjustable rear roller with scraper that maintains constant working height even on wet floors. Adjustable belt tensioner ensures smooth turning and long belt life.

Designed to work safely. Incorporates front skirts and side skids that control projections and improve support on the ground. All protections comply with CE standards.

Quick assembly with three-point linkage category I and cardan shaft support. It can be equipped with hammers or Y-blades depending on the type of vegetation and the desired speed. A version with manual displacement is available on request.

Features

Model EFGCH 125 OT EFGCH 145 OT EFGCH 155 OT
Working width 125 cm 145 cm 155 cm
Total width 135 cm 155 cm 165 cm
Tractor power (HP) 25-40 25-40 30-40
Tractor power (KW) 18-29 18-29 22-37
Weight 240 kg 270 kg 285 kg
Hammers 20 24 24
Belts 2 2 3
Model EFGCH 165 OT EFGCH 175 OT EFGCH 185 OT
Working width 165 cm 175 cm 185 cm
Total width 175 cm 185 cm 200 cm
Tractor power (HP) 40-60 40-60 40-60
Tractor power (KW) 30-44 30-44 30-44
Weight 300 kg 315 kg 335 kg
Hammers 28 28 32
Belts 3 4 4
Model EFGCH 195 OT
Working width 195 cm
Total width 210 cm
Tractor power (HP) 40-60
Tractor power (KW) 30-44
Weight 340 kg
Hammers 32
Belts 4
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
This tractor shredder includes a hammer cutter system. You also have the option of ordering a blade system by calling our customer service department.
262530

Data sheet

Shredder type
Rear shredder
Type of cut
Hammers
Working width PTO
125 - 195 cm
Tractor power
25 - 60 HP
Cardan shaft
Including
Type of coupling
Lateral displacement
Displacement
Hydraulic
Robustness
Medium-Light
Reinforced chassis
Yes
Number of hammers
20 - 32
Working width (cm)
120 - 129 cm
140 - 149 cm
150 - 159 cm
160 - 169 cm
170 - 179 cm
180 - 189 cm
190 - 199 cm
Country of manufacture
Italy
Weight
240 - 340 kg

Specific References

mpn
3.44.125 H
New

Agricultural Machinery After-Sales Service

At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.

Warranty and Factory Repair

Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.

Online Mechanics - Fast and Efficient

To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.

In-Shop Repair

If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.

☎️ Always by your side

Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.

✔️ Advantages of buying in the Spanish territory

  • National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
  • Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.

❌ Disadvantages of buying outside Spanish territory

  • Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
  • Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
  • Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.
