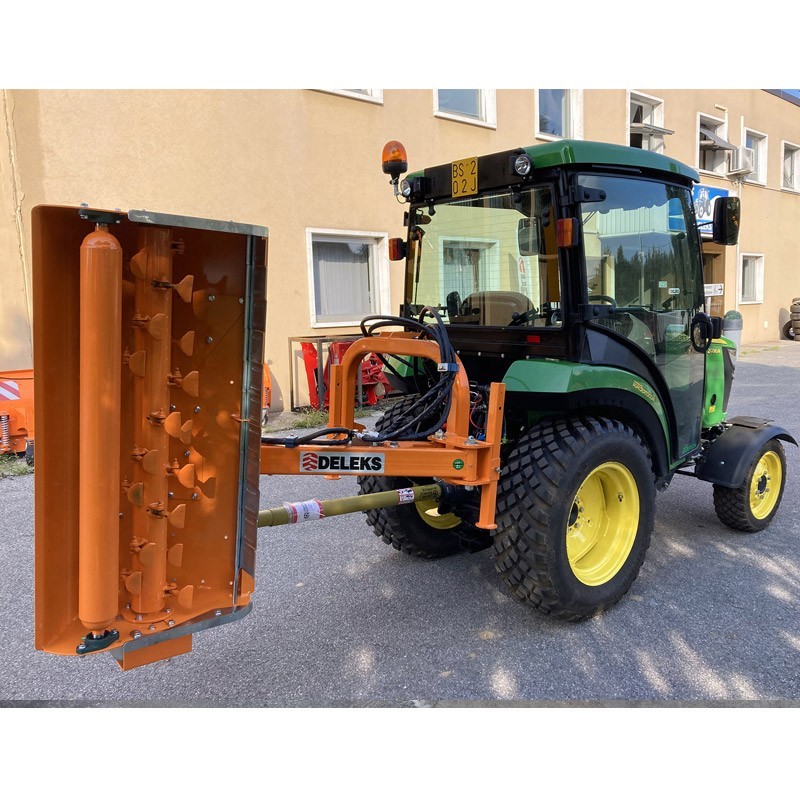

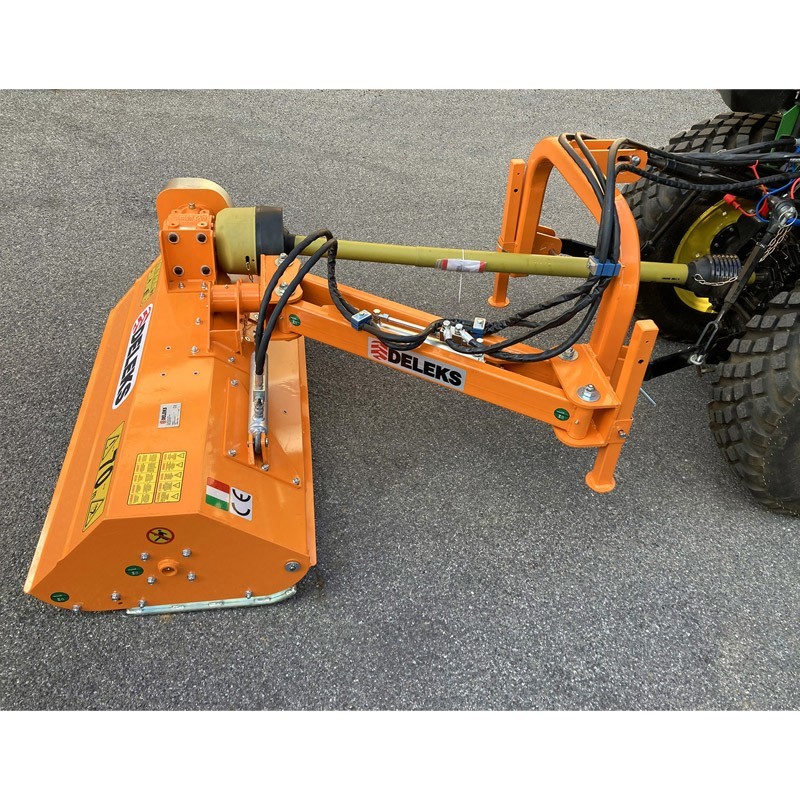

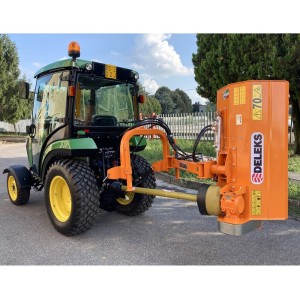

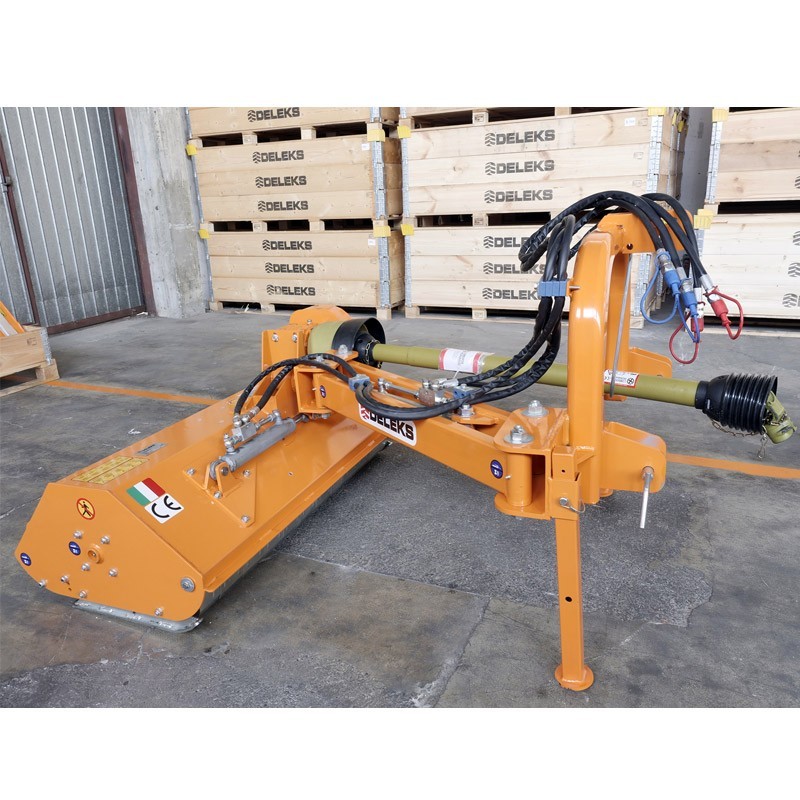

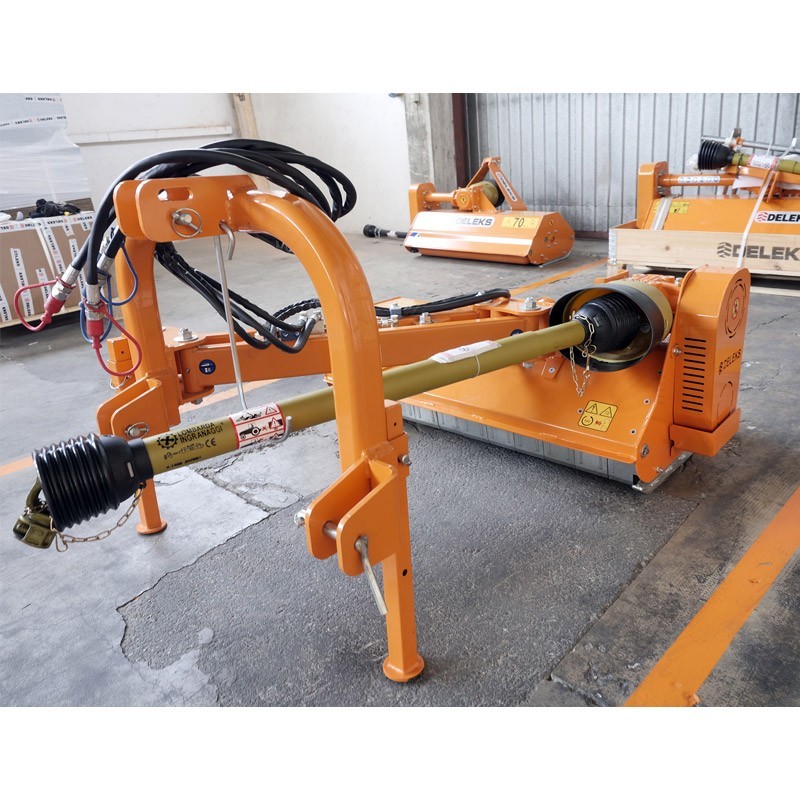

The PTO light arm shredder Deleks VOLPE 165 is adapted for tractors of 35 to 55 HP. This model is designed for cutting grass and also for brambles up to 2-3 cm in diameter, ideal for roadsides.
This brushcutter can be used to cut bushes, bends around 88 degrees upward and 60 degrees downwardit is equipped with a CAT 1 3-point linkage, with 4 flexible hydraulics and a 140 cm CE gimbal included.
It has a structure made entirely of Swedish SSAB steel, it has an electronically balanced rotor made of S355 steel, with a thickness of 8 mm, with hammers mounted on 6 rows instead of 4. Its hammers are supported by HARDOX.
It has a transmission box Lombarda Ingranaggi with free wheel (made in Italy) and 3 years warranty, it is located on the inner chassis to be able to work on the tractor axle or right side.
Its weight is quite light the frame is equipped with an inner curb that deflects the air flow towards the rotor for a more efficient use in orchards mulching effect.
The internal positioning of the roller makes it more efficient and reduces execution time: the cut grass passes over the roller without being crushed and is removed more quickly 330g forged steel hammers for cut up to 2 - 3 cm thick
Working width | 1694.0 mm |
Overall width | 1870.0 mm |
Cutting height min/max | 10.0 - 45.0 mm |
Weight | 322.0 kg |
Total height | 770.0 mm |
Tractor power | 35 - 55 HP |
3-point hitch | Cat. 1 (ø 19.0-22.0mm |
Position of the gearbox | Internal |
Hood height | 358.0 mm |
Distance between the lower points | 650.0 - 900.0 mm |
Number of hammers | 30 |
Max. cutting diameter | 20.0 - 30.0 mm |
Total length | 1400.0 mm (closed) |
Ground to gearbox spacing | 472.0 mm |
Plate thickness | 5.0 mm |
Thickness of sheet metal on the sides | 6.0 mm |
Skid thickness | 6.0 mm |
Transmission type | V-belts |
Transmission: Gearbox | Lombarda Ingranaggi (Italy) (3 years warranty) |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 3150.0 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: diameter of upper pulley | 206.0 mm |
Transmission: lower pulley diameter | 106.0 mm |
Transmission: number of Koreas | 4 |
Transmission: dimensions of the Koreas | AX39 |
Rotor: diameter | 102.0 mm |
Rotor: bearing type and dimension | SKF UCF-207 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 8.0 mm |
Hammers: weight | 330.0 g |
Hammers: hole dia | 11.0 mm |
Hammers: base width | 80.0 mm |
Hammers: head width | 14.0 mm |
Hammers: diagonal | 75.0 mm |
Roll: diameter | 102.0 mm |
Roll: sheet thickness | 4.5 mm |
Roll: bearing type and dimension | FL204 |
Displacement and dimensions | View photos |

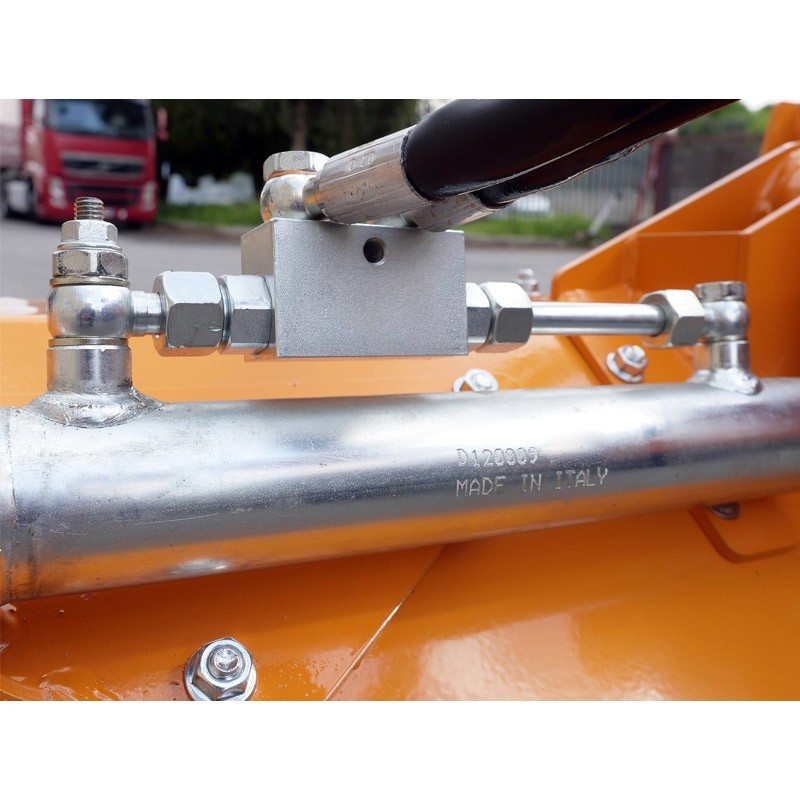

ø Hydraulic Cylinder A | 55.0-21.0 mm |
ø Hydraulic Cylinder B | 55.0-21.0 mm |
Oil pressure min/max | 120 - 150 bar |
Optimal oil flow | 18 - 22 l/min |
Hydraulic hoses | WP 400 Bar, 1/2" Agri Standard |
Cardan | CE 4x1600 mm |
Hood length | 665.0 mm |
Packaging dimensions | 184 x 76 x 66 cm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
