Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
Deleks products take about 15 to 20 days. |

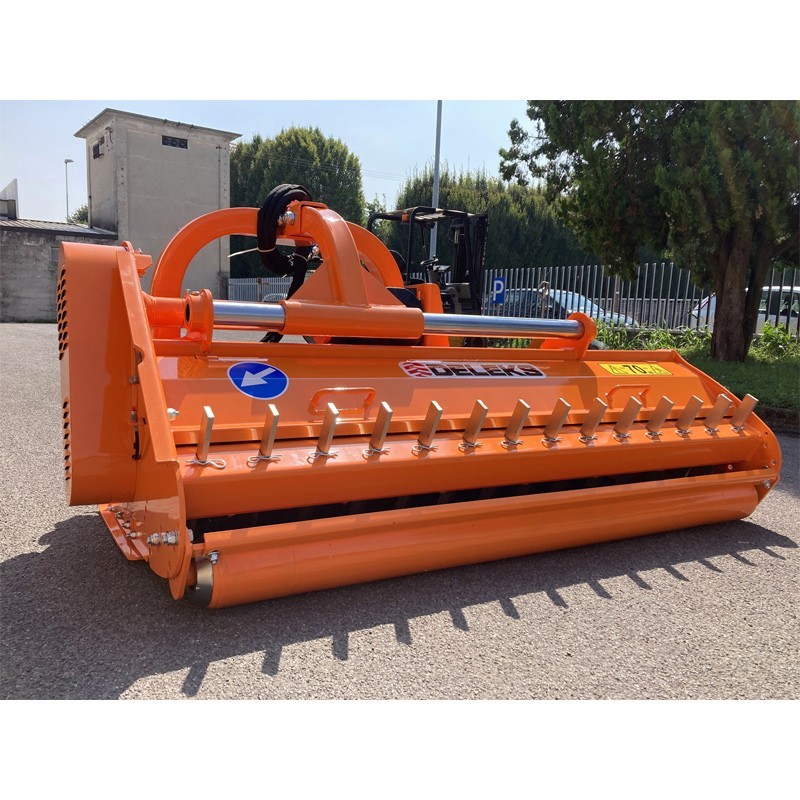

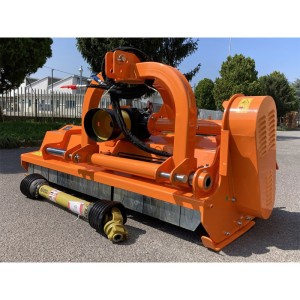

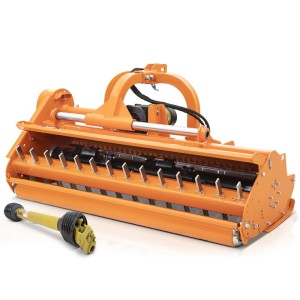

The hammer shredder Deleks TORO-200 is specially designed for tractors with power of 60-120HP. This model of mulcher is used for mowing grass, pruning olive trees and for vineyard.
The model Deleks TORO-200 has a robust chassis for use in fields and orchards. This model is suitable for mowing grass and also for pruning olive trees and vine shoots.
This shredder from Deleks also has a universal CAT 2 3-point hitch . It is compatible with all tractors. As for its features we can highlight its good transmission box Lombarda Ingranaggi made inItaly. It comes with freewheel.
The TORO-200 shredder comes with CE cardan shaft included, it also includes an electronically balanced 170mm rotor bearings. The implement can be used on tractors with low power in gardens and orchards. This is thanks to its weight of 690kg.
This model ofHammermill Shredder Deleks ensures good operator comfort and ease of operation. This is thanks to its outstanding features.
Among these features we can highlight the working width of 2000mm and the total width of 2180mm. We can also highlight the adjustable cutting height from 10 to 75mm and the total height of 990mm.
Working width | 2000 mm |
Total width | 2180 mm |

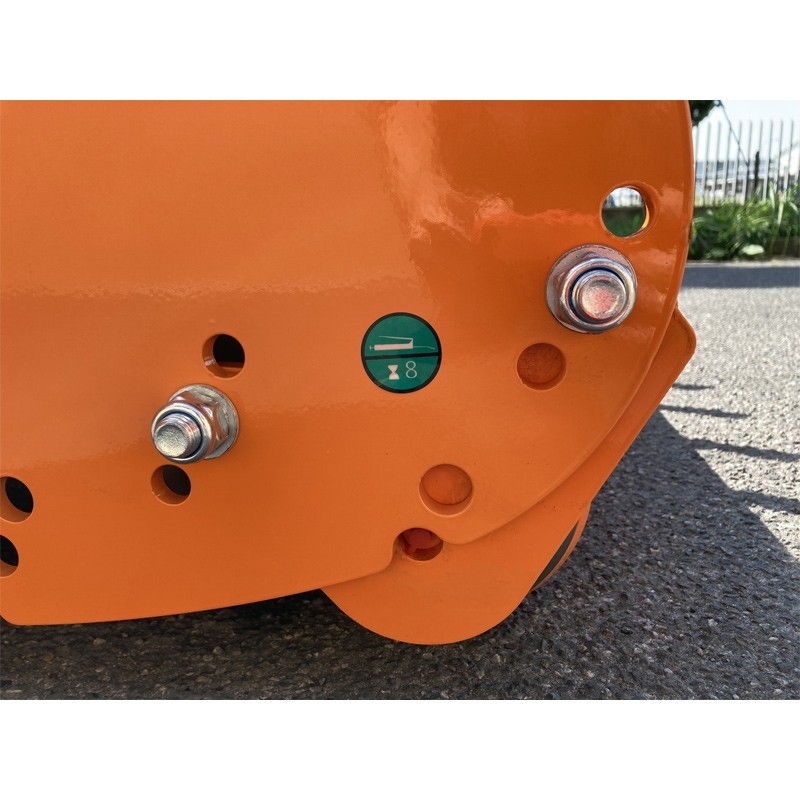

Cutting height min/max | 10 - 75 mm |
Weight | 690 kg |
Total height | 990 mm |
Tractor power | 60 - 120 hp |
3-point hitch | Cat. 2 (ø 25.0-28.0 mm) |
Position of transmission box | 800 mm from the left side / 1200 mm from the right side |
Hood height | 550 mm |
Distance between lower points | 735 - 890 mm |

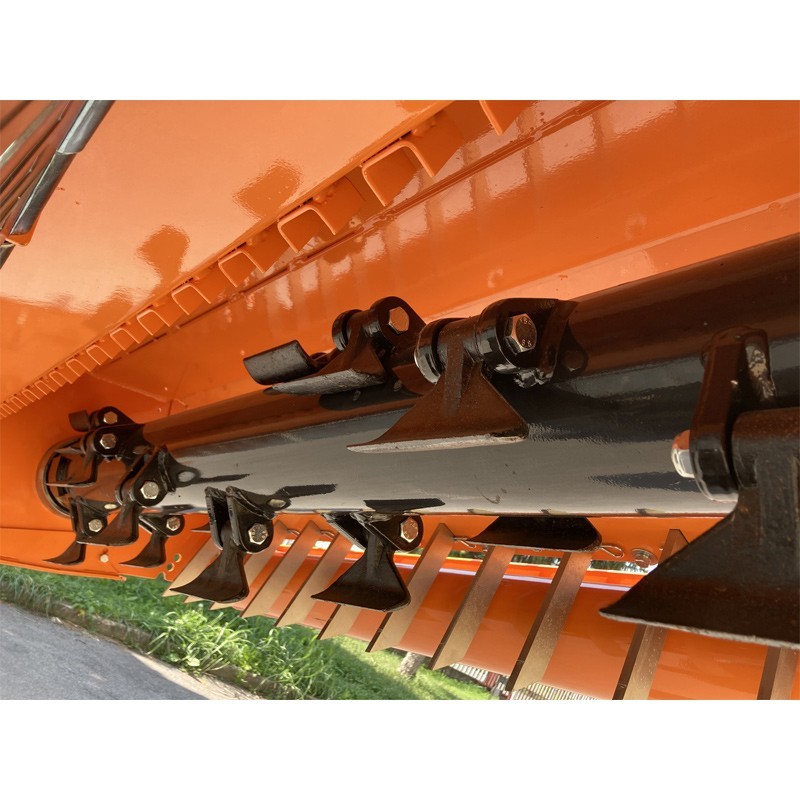

Number of hammers | 18 (or 54 knives) |
Max. cutting diameter | 50-60 mm |
Total length | 1100 mm |
Space between ground and transmission box | 580 mm |
Plate thickness | 5 mm |
Sheet thickness on sides | 10 mm |
Skids thickness | 12 mm |
Transmission type | V-belts |
Transmission: Gearbox | Lombarda Ingranaggi |
Transmission: PTO | 540 r/min |
Transmission: rotation direction | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 2403 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: upper pulley diameter | 230 mm |
Transmission: lower pulley diameter | 155 mm |
Transmission: number of cores | 5 |
Transmission: core dimensions | 17x1300 |

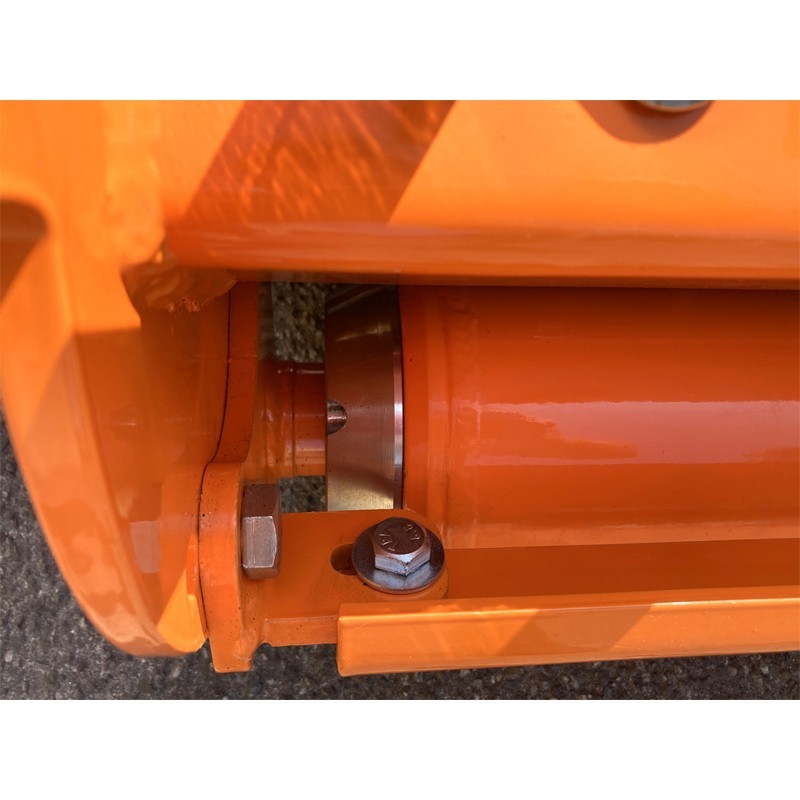

Rotor: diameter | 170 mm |
Rotor: bearing type and dimension | 1309 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 10 mm |
Hammers: weight | 1100 g |
Hammers: hole dia | 16 mm |
Hammers: base width | 140 mm |
Hammers: head width | 40 mm |
Hammers: diagonal | 97 mm |
Roll: diameter | 152 mm |
Roll: sheet thickness | 6 mm |
Roll: bearing type and dimension | 6308 |
Cardan shaft | CE 8x1300 mm + bolt |
Hood length | 1000 mm |

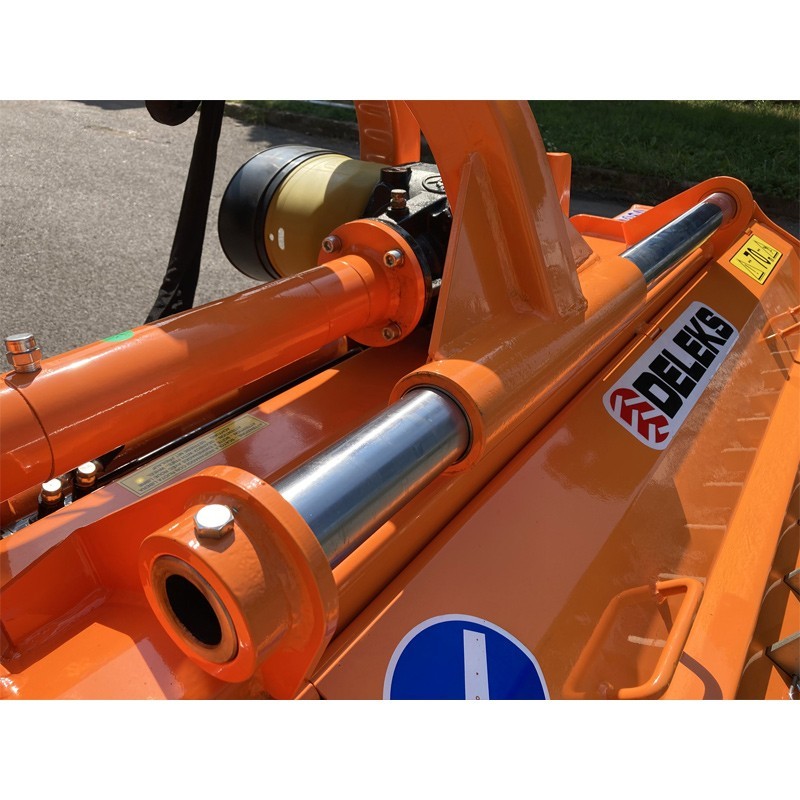

Horizontal displacement | 500 mm hydr. |
Packing dimension | 2150*1150*950.0 mm |
Data sheet
Specific References
Cardan shaft included
Cardan shaft included
CARDAN SHAFT INCLUDED
