Manually Adjustable PTO Shredder Giemme EHM 125 - 175 cm
- Type of shredder : Rear shredder
- Cutting type : Hammer
- Working width PTO : 125 - 175 cm
- Tractor power : 25 - 50 HP
€2,419.16 VAT incl.
INCLUDES PTO SHAFT
Assembly and set-up INCLUDED |

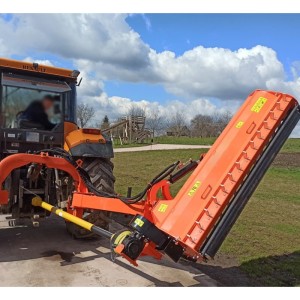

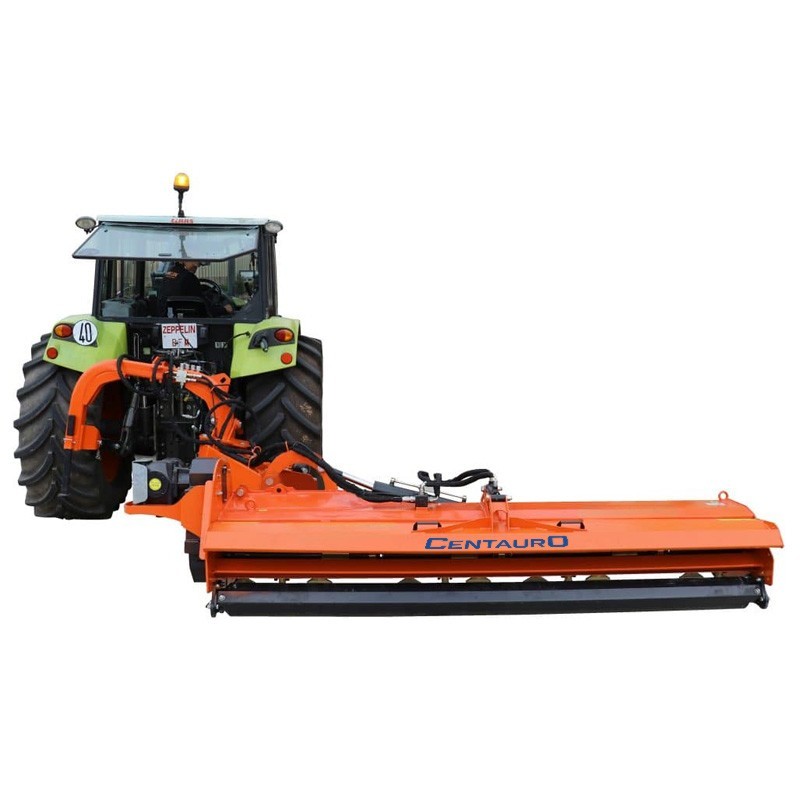

The Hammer crusher for tractor Centauro Valladolid It is a robust and versatile machine designed for intensive shredding tasks in crops, orchards, and areas with thick pruning. Available in various versions, it offers a working width from 1980 mm to 2850 mm, which allows adaptation to different coverage needs.
The shredder has a range of Work angle greater than 90º and Lower angle of up to 55º, providing flexibility on sloped and hard-to-reach terrains.

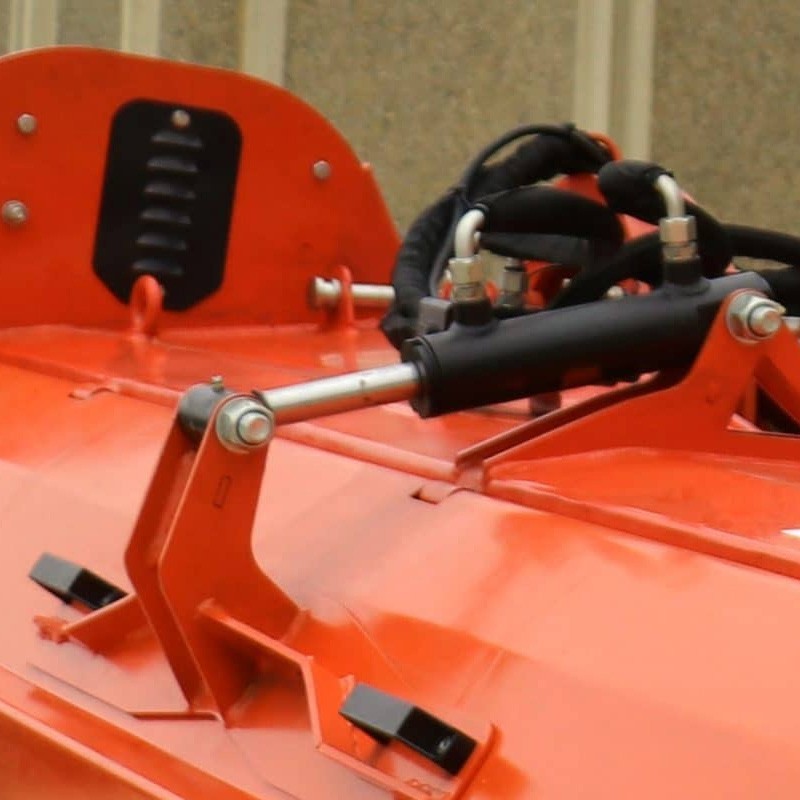

Equipped with 4 to 5 high-quality straps and reinforced hammers (available in configurations of 18 to 28 units), this model offers superior shredding performance. Its Tailgate, with options for manual or hydraulic opening in the larger model, allows for more efficient and convenient handling of pruning debris.
The roller and skate adjustment system, along with the Rear rakes or rear rakes, ensures greater accuracy in the height and depth of the work.

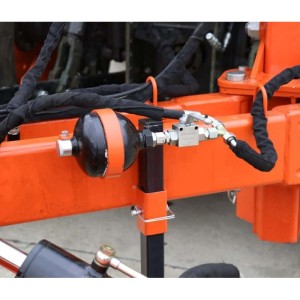

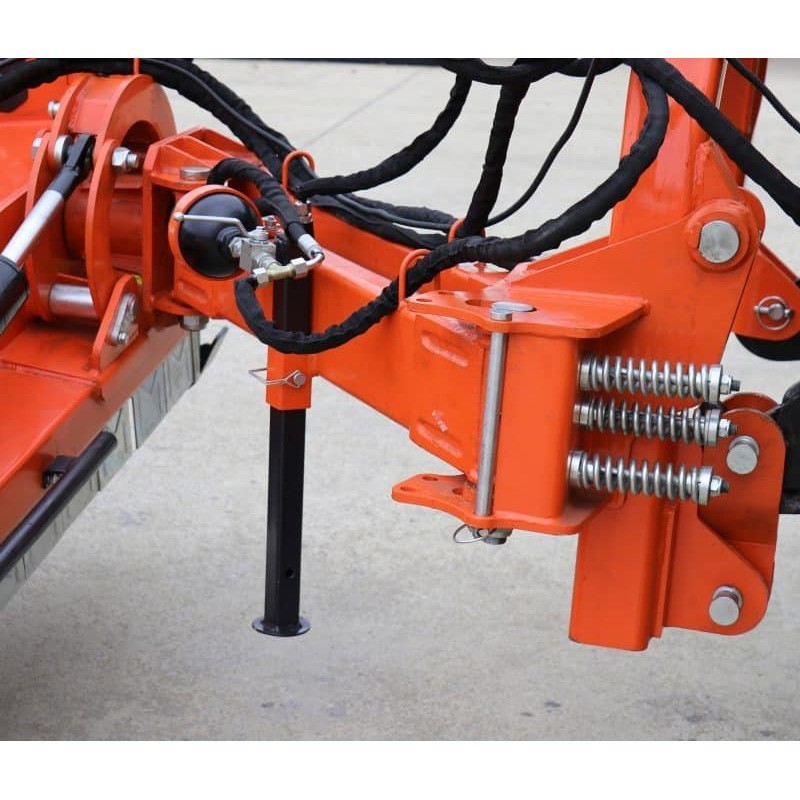

The Centauro Valladolid requires a power of between 90 and 180 HP and operates with a transmission 540 rpm PTO. Built with reinforcements in the rotor support and on the sides, in addition to having a Hydraulic and mechanical security system, this shredder guarantees safety and durability even in the most demanding working conditions.
Model | Valladolid 20 | Valladolid 22 | Valladolid 24 | Valladolid 28 |
Working width | 1980 mm | 2180 mm | 2450 mm | 2850 mm |
Upper angle | 90º | 90º | 90º | 90º |
Lower angle | 65th | 65th | 55th | 55th |
Straps | 4 | 4 | 5 | 5 |
Hammers | 18 | 20 | 26 | 28 |
Rear gate opening | Manual | Manual | Manual | Hydraulics |
Weight | 856 Kg | 917 Kg | 961 Kg | 999 Kg |
PTO rpm | 540 | 540 | 540 | 540 |
Required power | 90-110 HP | 90-120 HP | 110-140 HP | 130-180 HP |
Rear rakes | Yes | Yes | Yes | No |
Dimensions
|
IMPORTANT NOTICES |
Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
Data sheet
Specific References
CARDAN SHAFT INCLUDED
CARDAN SHAFT INCLUDED
CARDAN SHAFT INCLUDED
