Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
CARDAN SHAFT INCLUDED
Deleks products take about 15 to 25 days. |

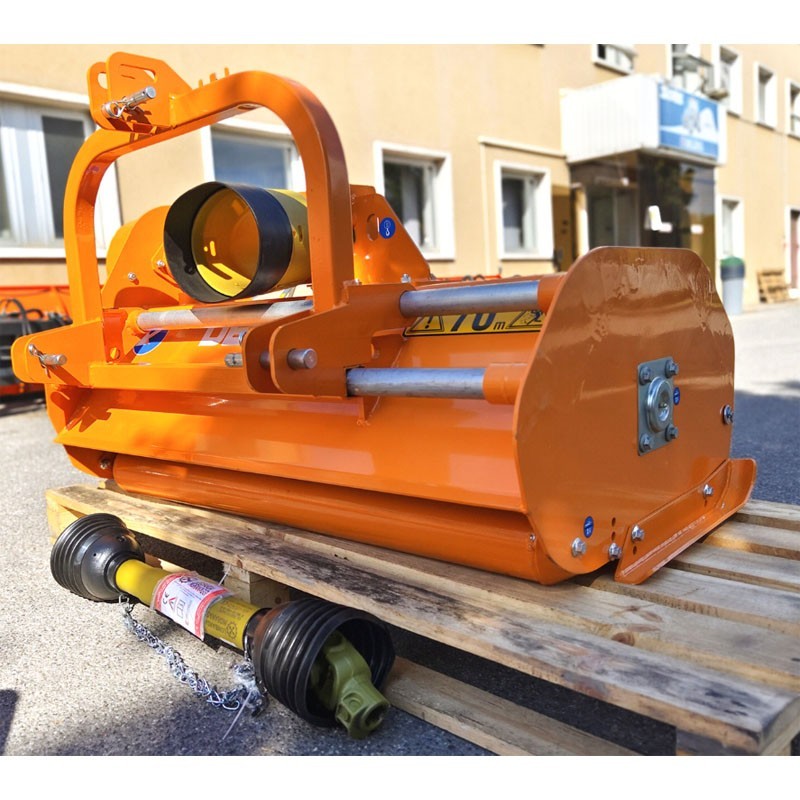

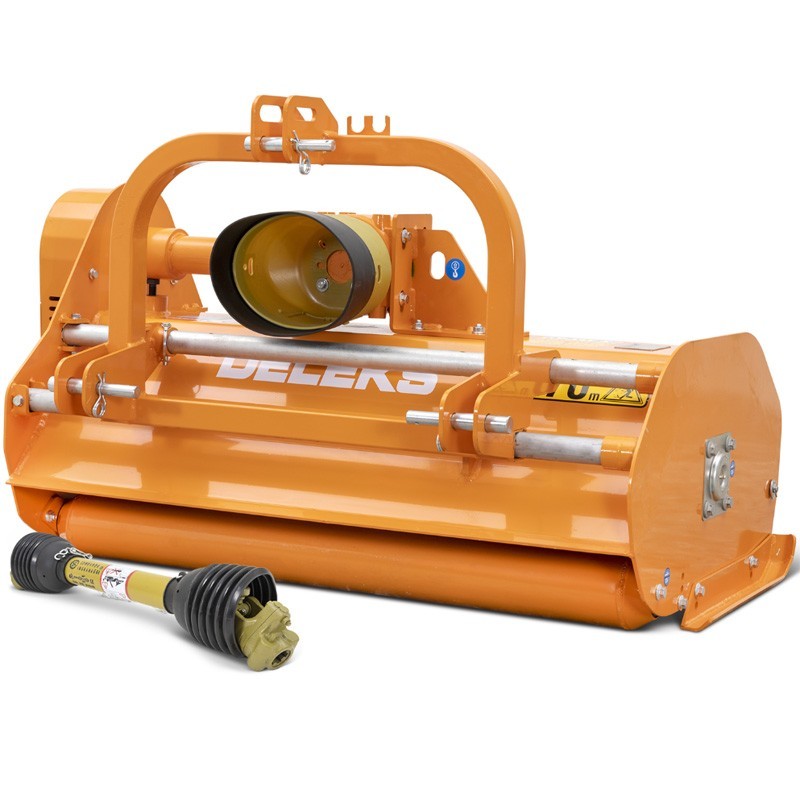

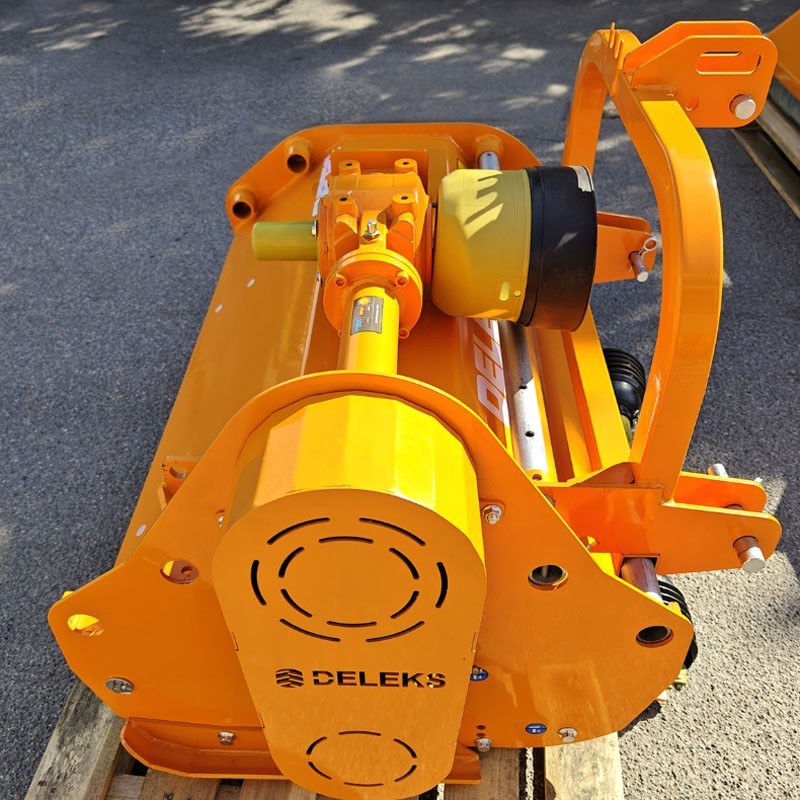

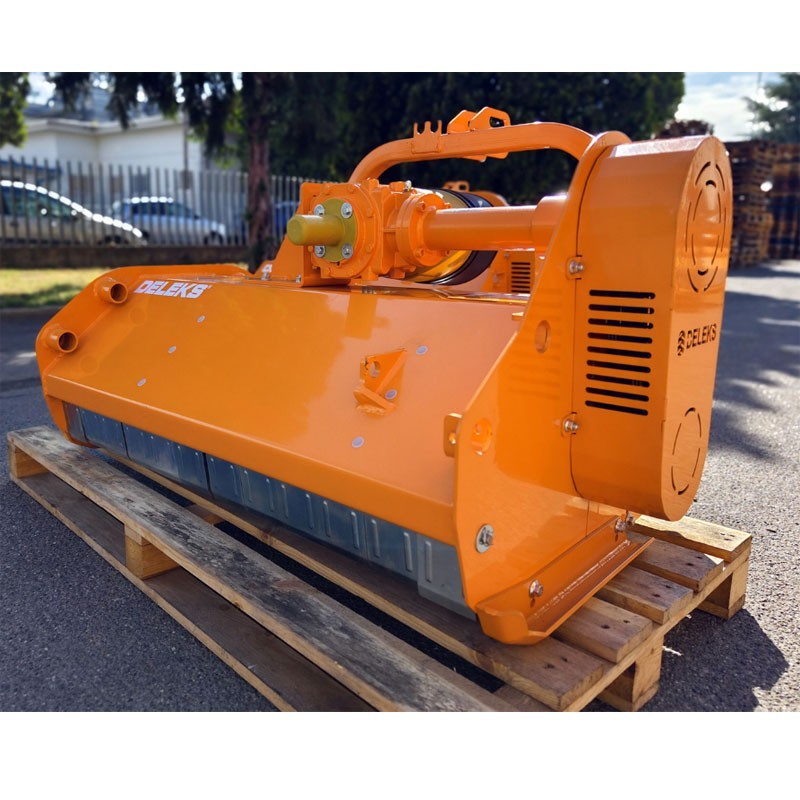

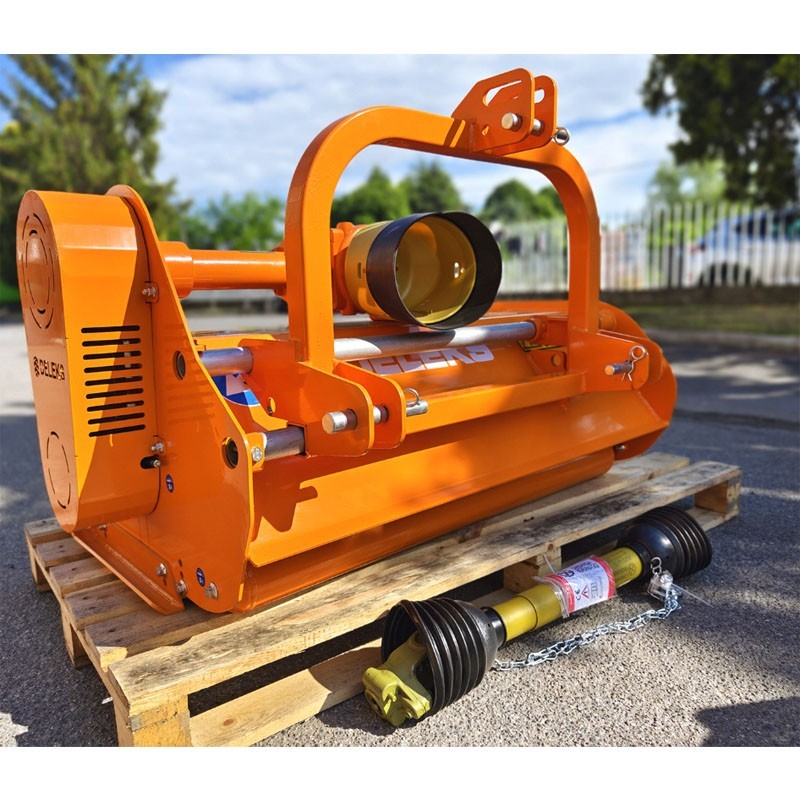

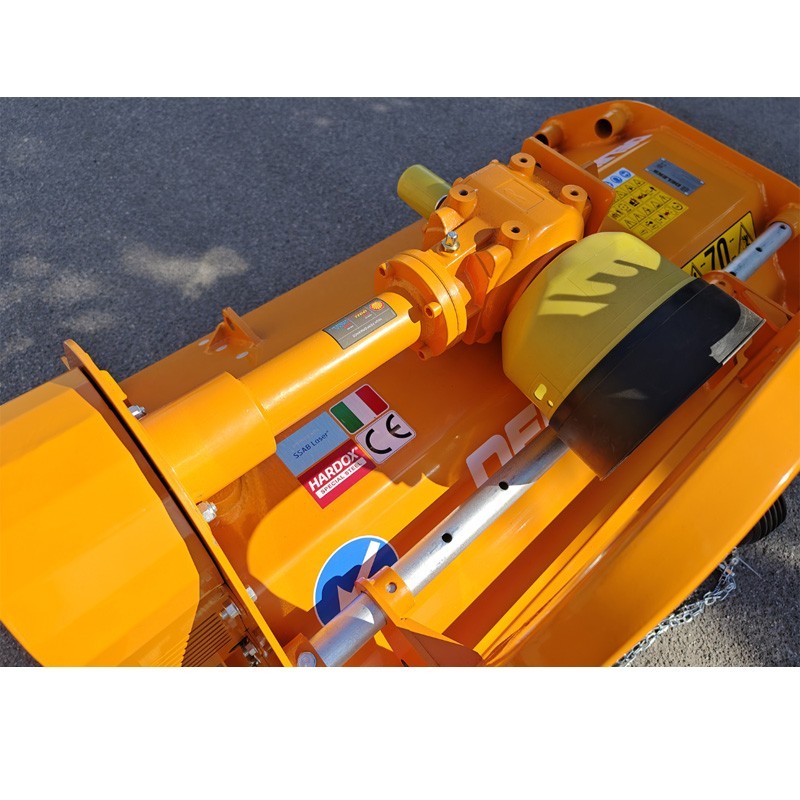

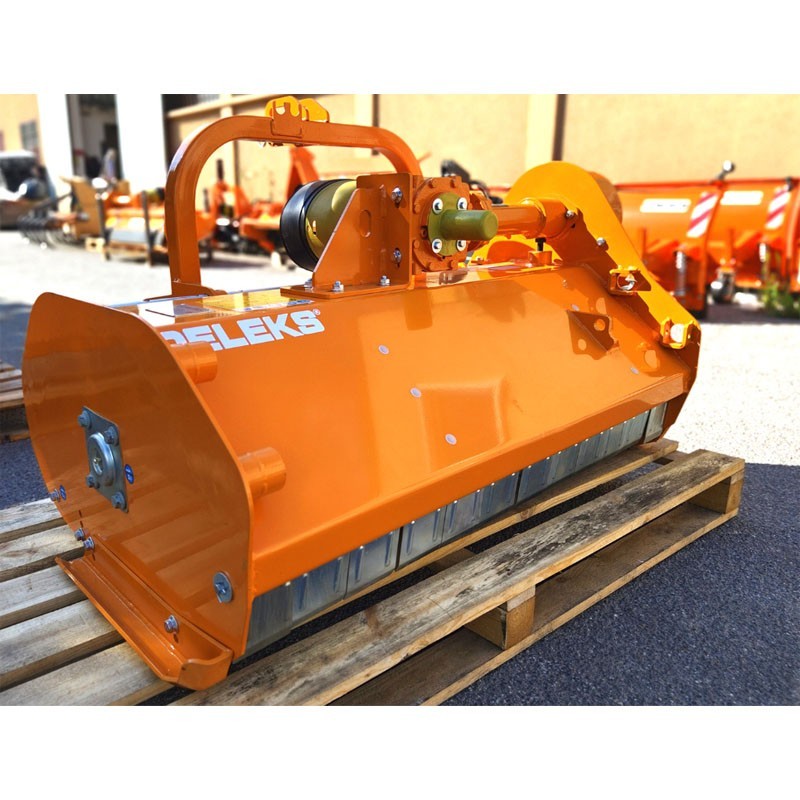

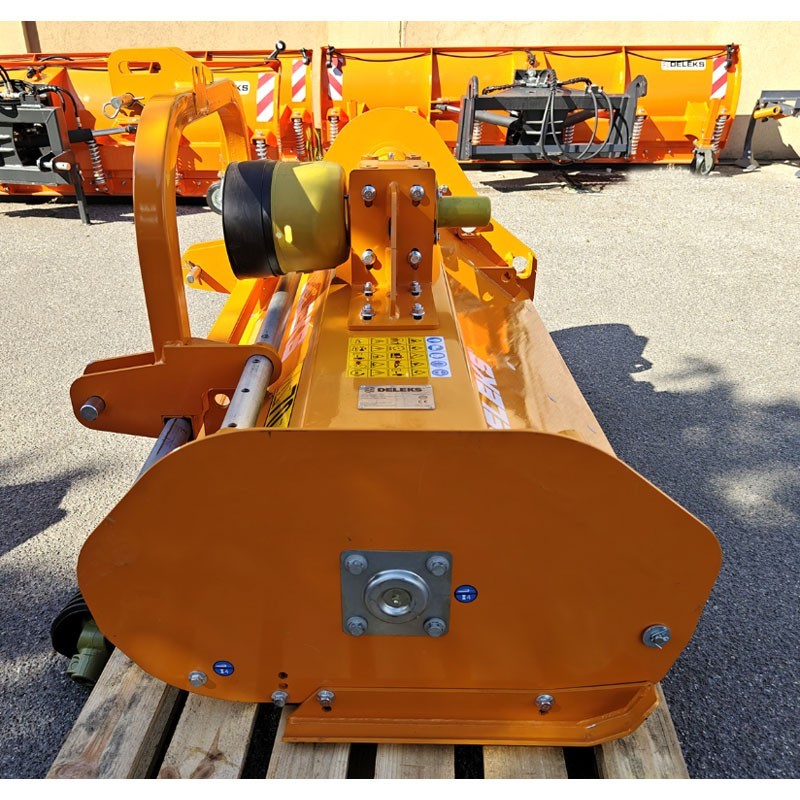

The DELEKS LINCIONE-SP-REV Reversible Tractor Shredder for DELEKS tractors can be mounted in front of or behind the tractor. It is designed for gardens, fields and vine shoots. You can and thanks to its chassis, it can be moved manually and robust 4mm (5mm around the rotor) can cut pruning up to 3 - 4 cm in diameter.
This model is attached to the tractor with a universal 3-point hitch and is adapted for most of the tractors of 30 to 60 HP, its structure is completely made of Swedish SSAB steel, with a thickness of 5 mm and sides of 6 mm.

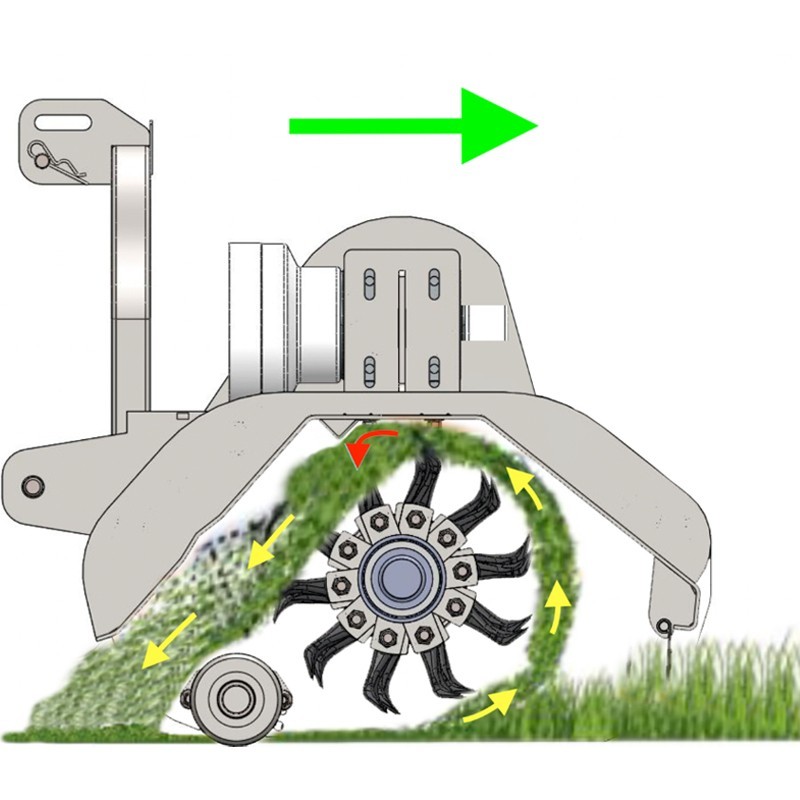

Its special platform design allows for mulching perfect grass and avoids clogging. It has a rotor made of ARVEDI tube, which is electronically balanced, this is made of S355 steel and has a thickness of 8mm. The hammers of the crusher are equipped with HARDOX supports.
It has self-aligning SKF branded rotor bearings. The side skids with double folding prevent the shredder from jamming during lateral movements. Its application is versatile, suitable for any type of residue from the open field to the orchard.
Model | LINCIONE-120-SP-REV | LINCIONE-140-SP-REV | LINCIONE-160-SP-REV | LINCIONE-180-SP-REV |
Working width | 1200.0 mm | 1400.0 mm | 1600.0 mm | 1800.0 mm |
Overall width | 1340.5 mm | 1540.5 mm | 1740.5 mm | 1940.5 mm |
Tractor power | 30 - 60 HP | 30 - 60 HP | 40 - 60 HP | 40 - 70 HP |
Weight | 300.0 kg | 315.0 kg | 340 kg | 360 kg |
Number of hammers | 16 | 20 | 24 | 28 |

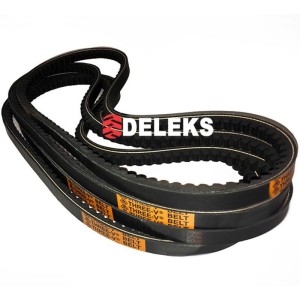

Transmission type | V-belts | V-belts | V-belts | V-belts |
Cutting height min/max | 38.0 - 60.0 mm | |||
Total height | 1130.0 mm | |||
3-point hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm | |||
Hood height | 460.00 mm | |||
Distance between the lower points | 560.0 - 950.0 mm | |||
Max. cutting diameter | 40.0-50.0 mm | |||
Total length | 930.0 mm | |||
Ground to gearbox spacing | 540.0 mm | |||
Plate thickness | 5.0 + 6.0 mm | |||
Thickness of sheet metal on the sides | 6.0 mm | |||
Skid thickness | 6.0 mm | |||
Transmission: Gearbox | REBOS (Italy) (Warranty 3 years) | |||
Transmission: PTO | 540 + 540 r/min | |||
Transmission: direction of rotation | Clockwise / counterclockwise | |||
Transmission: freewheel | √ | |||
Transmission: rotor speed | 2300 rpm | |||
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 | |||
Transmission: number of Koreas | 4 | |||
Transmission: diameter of upper pulley | 180.0 mm | |||
Transmission: lower pulley diameter | 130.0 mm | |||
Transmission: dimensions of the Koreas | BX43 | |||
Rotor: diameter | 115.0 mm | |||
Rotor: bearing type and dimension | SKF 2208-TVH | |||
Rotor: balancing | Electronic | |||
Rotor: blade thickness | 8.0 mm | |||
Hammers: weight | 820.0 g | |||
Hammers: hole dia | 15.0 mm | |||
Hammers: base width | 82.0 mm | |||
Hammers: head width | 45.0 mm | |||
Hammers: diagonal | 95.0 mm | |||
Roll: diameter | 121.0 mm | |||
Roll: sheet thickness | 5.0 mm | |||
Roll: bearing type and dimension | SKF 6207 | |||
Cardan | CE 4x800 mm + Bolt | CE 6x1000 mm | CE 6x1000 mm | CE 6x1000 mm |
Horizontal displacement | 310.0 mm | |||
Packing dimensions | 138 x 90 x 80 cm | 158 x 90 x 80 cm | 178 x 90 x 80 cm | 198 x 90 x 80 cm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
