Arm crusher for tractor Deleks LEO-140

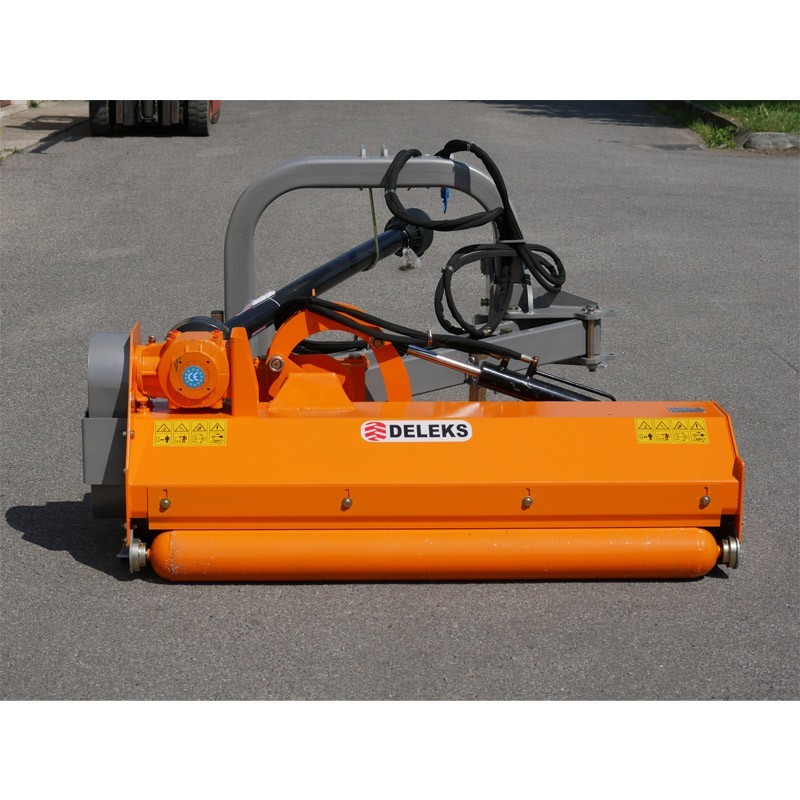

The Arm crusher Deleks LEO-140 It is specially designed for tractors with low power of 40-70HP. This shredder model is used for lawns, gardens, and vineyards.

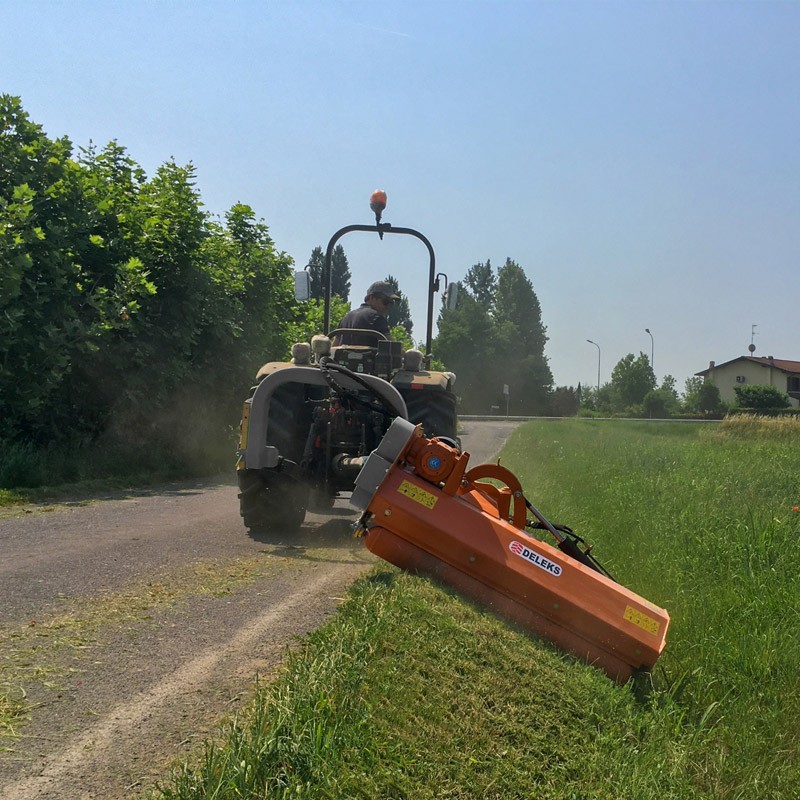

The model Deleks LEO-140 It is designed for cutting grass and brambles with a diameter of 4 to 5 cm. It is ideal for roadside edges. It can also be used for cutting shrubs as it tilts around 90 degrees upwards and 60 degrees downwards.
This Crusher of Deleks also includes a CAT 1-2 universal 3-point hitch. Regarding its features, we can highlight its good GB Bologna transmission box made in Italy with a freewheel.

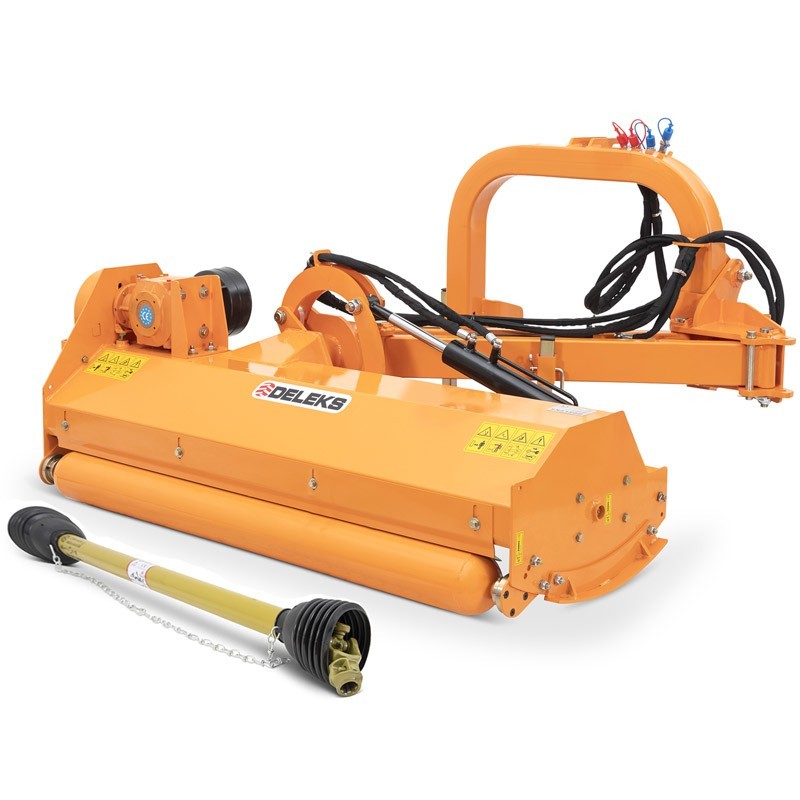

The LEO-140 Shredder comes with CE gimbal included, It also includes an electronically balanced rotor. The implement can be used on low-power tractors in gardens and orchards. It has a weight of 452 kg.
This model of Arm crusher Deleks It guarantees the operator good comfort and ease of work. This is thanks to its notable features.
Among these features, we can highlight the working width of 1392mm and the total width of 1520 mm. We can also highlight the adjustable cutting height from 10 to 45mm and the total height of 850mm.
Characteristics
| Working width |
1392 mm |
| Total width |
1520 mm |
| Minimum/maximum cutting height |
10 - 45 mm |
| Weight |
452 kg |
| Total height |
850 mm |
| Tractor power |
40 - 70 hp |
| Three-point hitch |
Cat. 1-2 (ø 19-22mm / 25-28mm) |
| Position of the transmission box |
Internal |
| Height of the hood |
390 mm |
| Distance between the lower points |
730 - 960 mm |

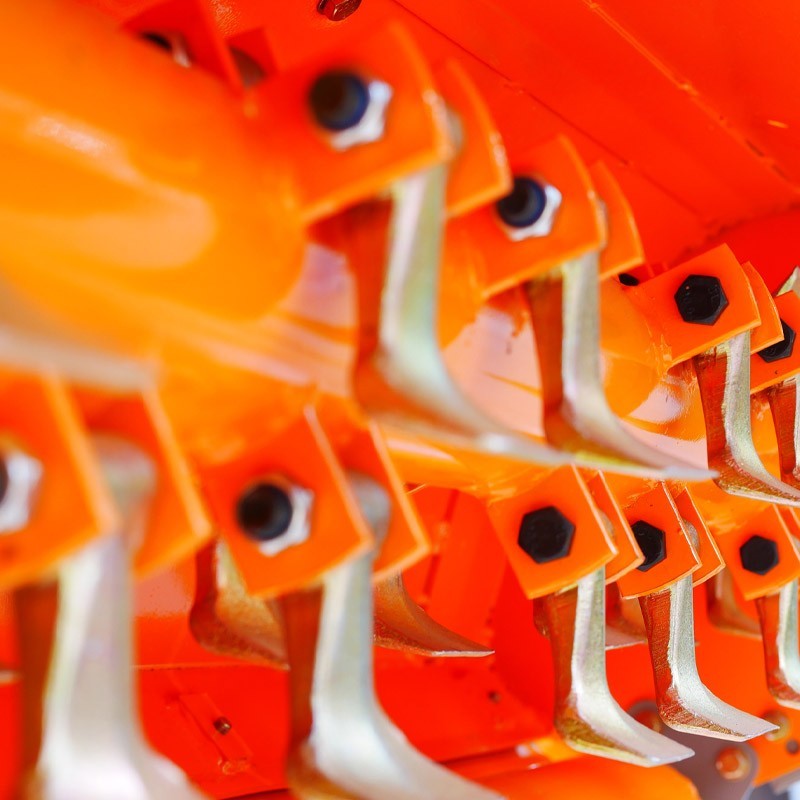

| Number of hammers |
20 |
| Maximum cutting diameter |
40 - 50 mm |
| Total length |
1550 mm (closed) |
| Space between the ground and the transmission box |
490 mm |
| Thickness of the sheet |
4 mm |
| Thickness of the sheet on the sides |
6 mm |
| Thickness of the skates |
6 mm |
| Type of transmission |
Correas V |
| Transmission: Gearbox |
GB Bologna (Italia) |
| Transmission: PTO |
540 rpm (revolutions per minute) |
| Transmission: direction of rotation |
Schedule |
| Transmission: freewheel |
√ |
| Transmission: rotor speed |
2300 rpm |
| Transmission: gearbox oil |
Yes / SAE 120 - ISO 72925 |
| Transmission: diameter of the upper pulley |
170 mm |
| Transmission: diameter of the lower pulley |
120 mm |
| Transmission: number of cores |
4 |
| Transmission: dimensions of the Koreas |
17x1026 |
| Rotor: diameter |
108 mm |
| Rotor: type of bearings and dimension |
SKF 6207 |
| Rotor: balancing |
Electronic |
| Rotor: blade thickness |
8 mm |
| Hammers: weight |
820 g |
| Hammers: ø hole |
15 mm |
| Hammers: base width |
82 mm |
| Hammers: head width |
45 mm |
| Hammers: diagonal |
95 mm |
| Roll: diameter |
140 mm |
| Roll: sheet thickness |
5 mm |
| Roll: type of bearings and dimension |
UC205 |
| Displacement and dimensions |
View photos |
| ø Hydraulic Cylinder A |
70 - 30 mm |
| ø Hydraulic Cylinder B |
65 - 25 mm |
| Minimum/maximum oil pressure |
120 - 150 bar |
| Optimal oil flow |
18 - 22 l/min |

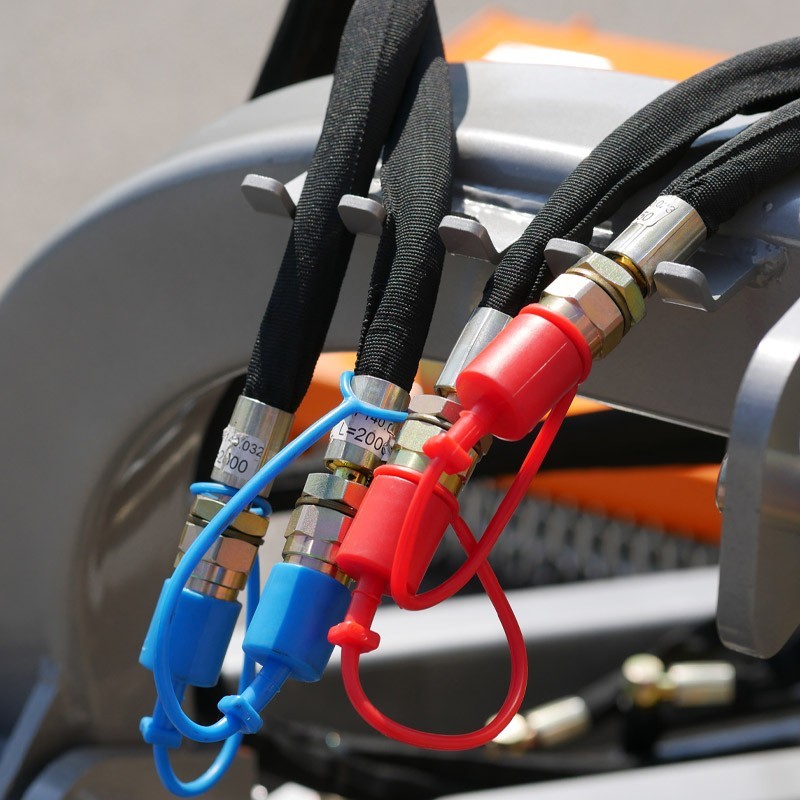

| Hydraulic tubes |
WP 400 Bar, 1/2" Agri Standard |
| Cardan |
CE 5x1800 mm |
| Length of the hood |
630 mm |
| Packaging dimension |
1580*800*760 mm |
| IMPORTANT NOTICE |
|
| Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
