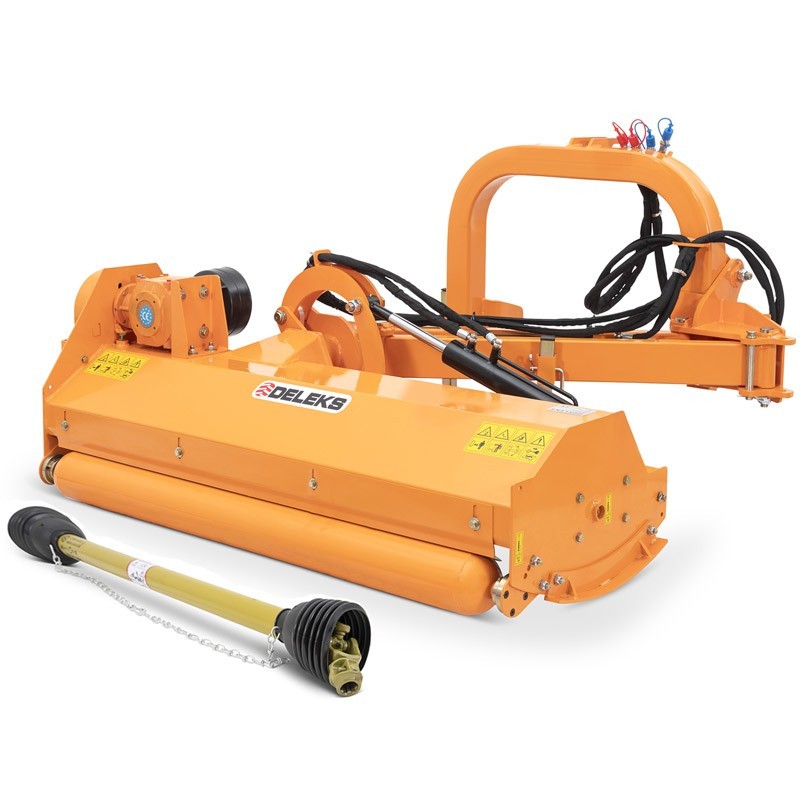

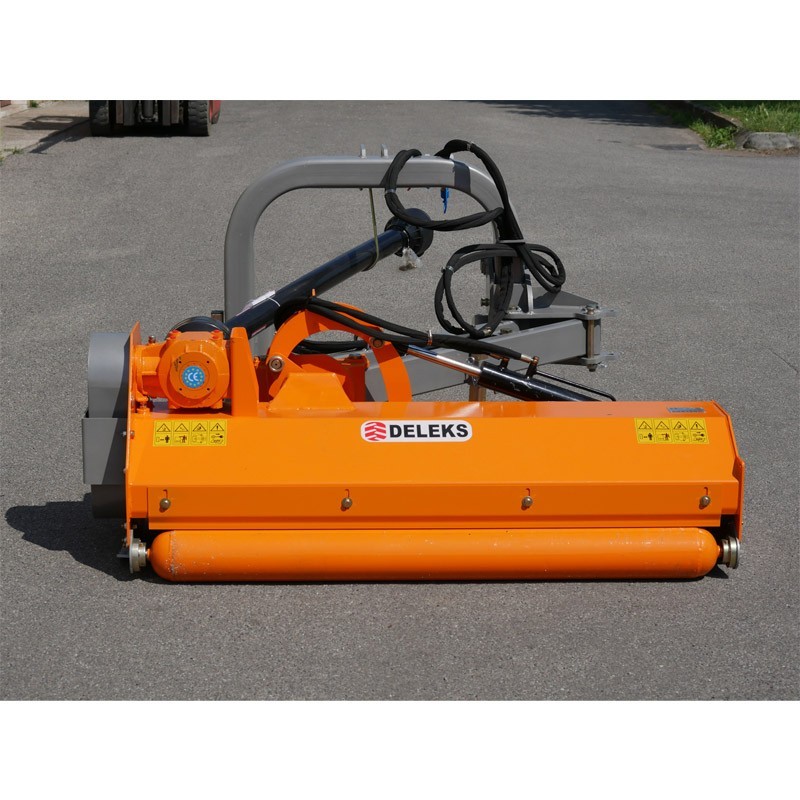

The Arm shredder Deleks LEO-160 is specially designed for tractors with low horsepower, and is 50-70HP. This model of shredder is used for meadows, gardens and vineyards.

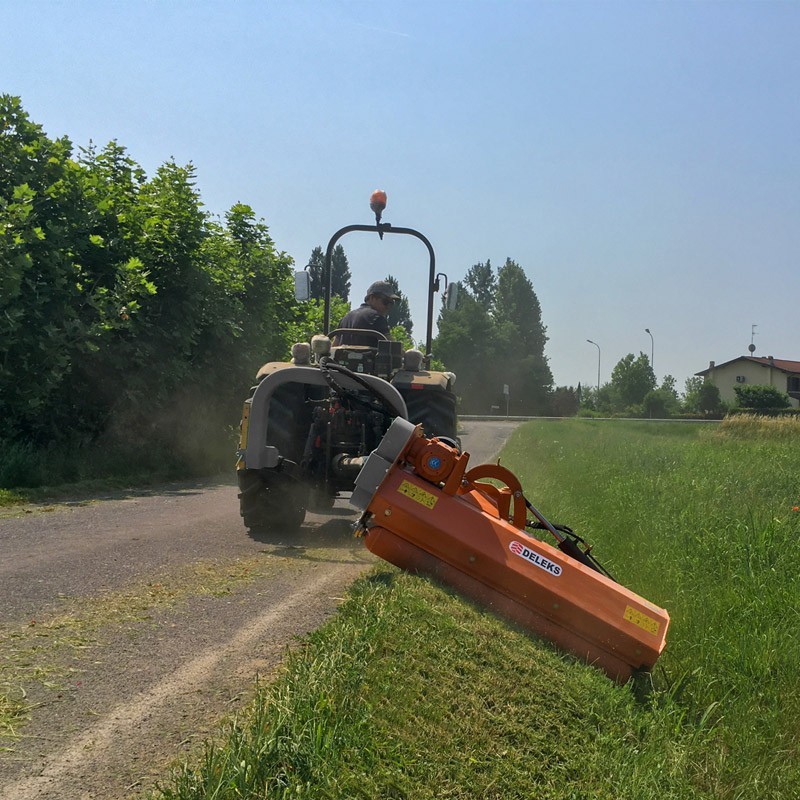

The model Deleks LEO-160Is designed for cutting grass and brambles from 4 to 5 cm in diameter. It is ideal for roadside verges. It can also be used for cutting bushes as it tilts about 90 degrees upwards and 60 degrees downwards
This Crusher Deleks also has a cAT 1-2 universal 3-point linkage. It is compatible with tractors from 40 to 70 HP. As for its features we can highlight its good GB Bologna transmission box made in Italy with free wheel.
The LEO-160 Shredder comes with 180 cm CE gimbal included, it also includes an electronically balanced rotor. The implement can be used on tractors with low power in gardens and orchards. It has a weight of 468 kg.
This model of Arm shredder Deleks guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these features we can highlight the working width of 1592mm and the total width 1720 mm. We can also highlight the adjustable cutting height from 10 up to 45mm and the total height 850mm.
Working width | 1392 mm |
Overall width | 1520 mm |
Cutting height min/max | 10 - 45 mm |
Weight | 452 kg |
Total height | 850 mm |
Tractor power | 40 - 70 HP |
3-point hitch | Cat. 1-2 (ø 19-22mm / 25-28mm) |
Position of the gearbox | Internal |
Hood height | 390 mm |
Distance between the lower points | 730 - 960 mm |

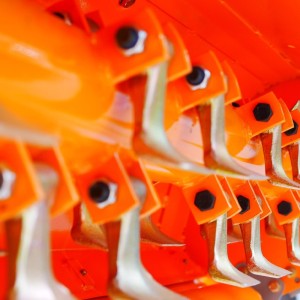

Number of hammers | 20 |
Max. cutting diameter | 40 - 50 mm |
Total length | 1550 mm (closed) |
Ground to gearbox spacing | 490 mm |
Plate thickness | 4 mm |
Thickness of sheet metal on the sides | 6 mm |
Skid thickness | 6 mm |
Transmission type | V-belts |
Transmission: Gearbox | GB Bologna (Italy) |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 2300 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: diameter of upper pulley | 170 mm |
Transmission: lower pulley diameter | 120 mm |
Transmission: number of Koreas | 4 |
Transmission: dimensions of the Koreas | 17x1026 |
Rotor: diameter | 108 mm |
Rotor: bearing type and dimension | SKF 6207 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 8 mm |
Hammers: weight | 820 g |
Hammers: hole dia | 15 mm |
Hammers: base width | 82 mm |
Hammers: head width | 45 mm |
Hammers: diagonal | 95 mm |
Roll: diameter | 140 mm |
Roll: sheet thickness | 5 mm |
Roll: bearing type and dimension | UC205 |
Displacement and dimensions | View photos |
ø Hydraulic Cylinder A | 70 - 30 mm |
ø Hydraulic Cylinder B | 65 - 25 mm |
Oil pressure min/max | 120 - 150 bar |
Optiomal oil flow | 18 - 22 l/min |

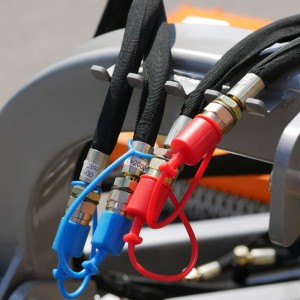

Hydraulic hoses | WP 400 Bar, 1/2" Agri Standard |
Cardan | CE 5x1800 mm |
Hood length | 630 mm |
Packing dimensions | 1580*800*760 mm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
