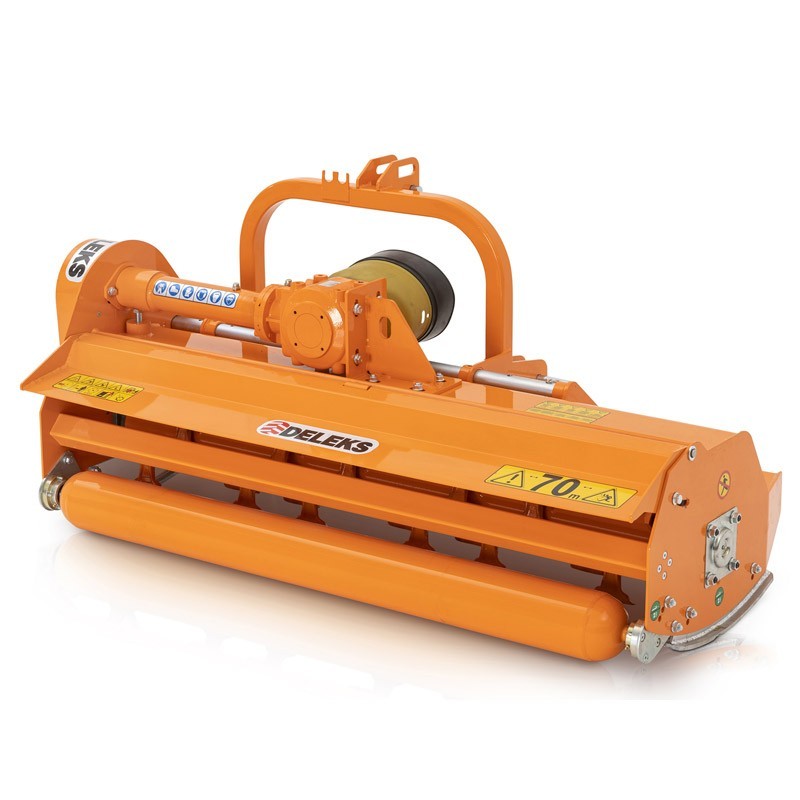

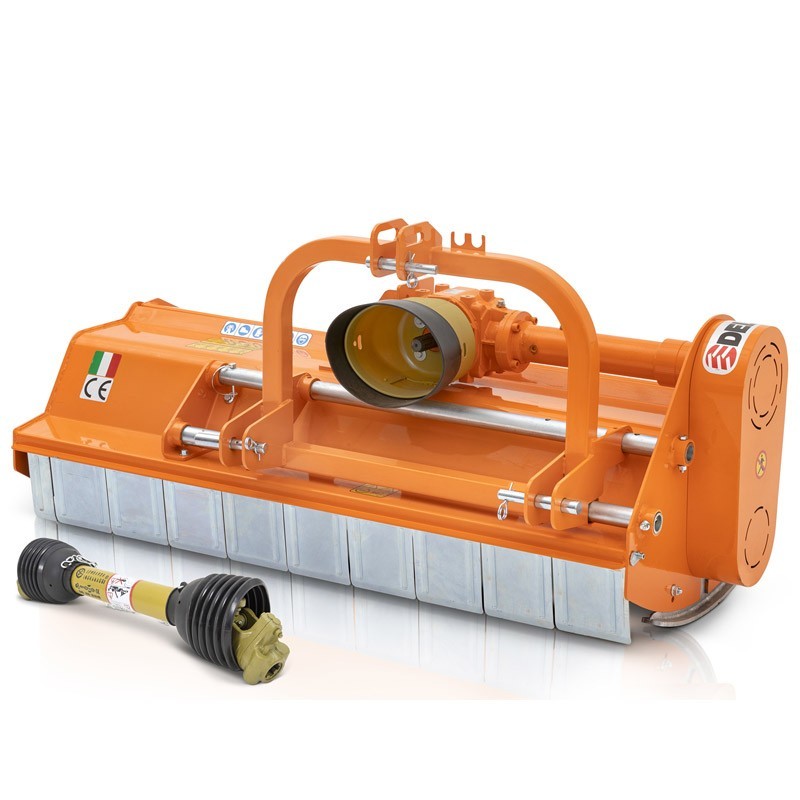

Hammer crusher for tractor Deleks LEOPARD-140-SP 30-70HP
The Hammer crusher Deleks LEOPARD-140-SP It is specially designed for tractors with low power of 30-70HP. This shredder model is used for orchards, vineyards, olive groves, and uncultivated areas.
The model Deleks LEOPARD-140-SPIt features forged hammers for grass and small brambles. It is a shredder. Versatile, suitable for cutting grass. Thanks to its robust structure, it is very useful for cutting prunings and pruning waste, up to 4-5cm in diameter.

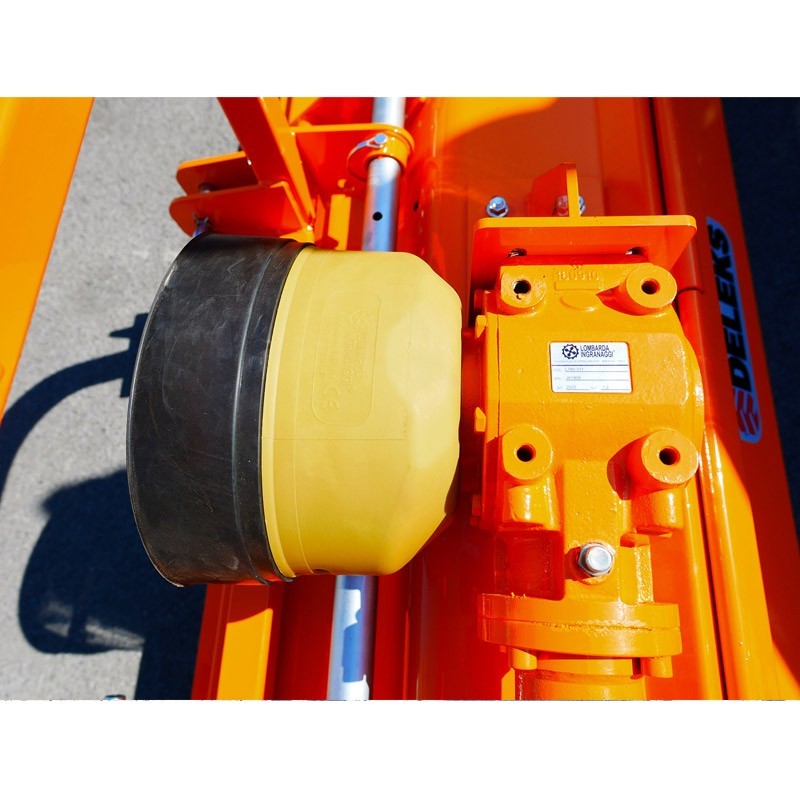

This Crusher of/from Deleks also includes a universal 3-point hitch of CAT 1-2. This is adapted for most tractors from 30 to 70 HP. As for its features, we can highlight its good transmission box. P.d.p. increased to 540 r/min. This comes with an integrated freewheel from the brand Lombarda Ingranaggi.

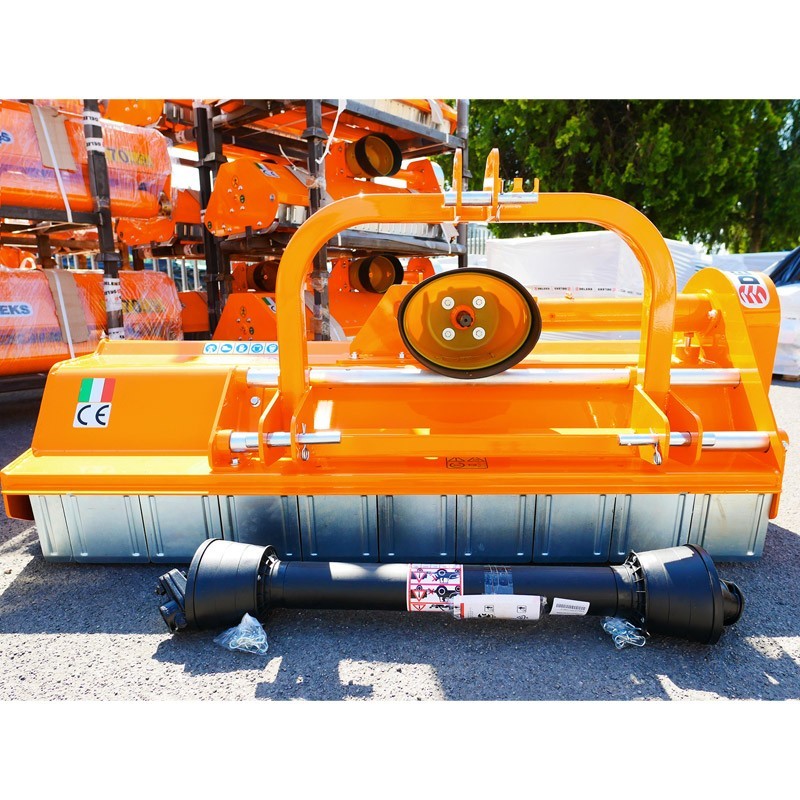

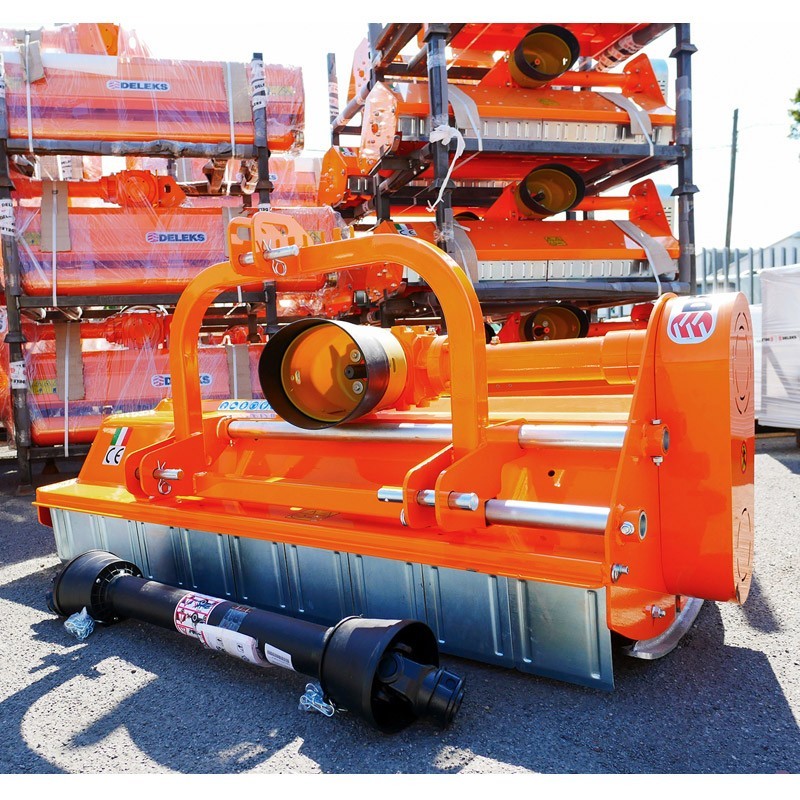

The LEOPARD-140-SP Shredder comes with CE 6x1000 gimbal included, it also includes SKF brand rotor bearings. The implement can be used on low-power tractors in gardens and orchards. This is thanks to its light weight of 310kg.
This model of Hammer crusher Deleks It guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these features, we can highlight the working width of 1400mm and the total width of 1540.5mm. We can also highlight the adjustable cutting height from 10 to 45mm and the total height of 800mm.
Characteristics
| Working width |
1400 mm |
| Total width |
1540.5 mm |
| Minimum/maximum cutting height |
10 - 45 mm |
| Weight |
310 kg |
| Total height |
800 mm |
| Tractor power |
30 - 70 HP |
| Three-point hitch |
Cat. 1-2 (ø 19-22mm / 25-28mm) |
| Height of the hood |
460 mm |
| Distance between the lower points |
560 - 950 mm |
| Number of hammers |
20 |
| Maximum cutting diameter |
40 - 50 mm |
| Total length |
865 mm |
| Space between the ground and the transmission box |
520 mm |
| Thickness of the sheet |
4 + 6 mm |
| Thickness of the sheet on the sides |
6.mm |
| Thickness of the skates |
6 mm |
| Type of transmission |
Correas V |
| Transmission: Gearbox |
Lombarda Ingranaggi (Italy) |
| Transmission: PTO |
540 rpm (revolutions per minute) |
| Transmission: direction of rotation |
Schedule |
| Transmission: freewheel |
√ |
| Transmission: rotor speed |
2300 rpm |
| Transmission: gearbox oil |
Yes / SAE 120 - ISO 72925 |
| Transmission: diameter of the upper pulley |
180 mm |
| Transmission: diameter of the lower pulley |
130 mm |
| Transmission: number of cores |
4 |
| Transmission: dimensions of the Koreas |
BX43 |
| Rotor: diameter |
108 mm |
| Rotor: type of bearings and dimension |
SKF UCF-208 |
| Rotor: balancing |
Electronic |
| Rotor: blade thickness |
8 mm |
| Hammers: weight |
820 g |
| Hammers: ø hole |
15 mm |
| Hammers: base width |
82 mm |
| Hammers: head width |
45 mm |
| Hammers: diagonal |
95 mm |

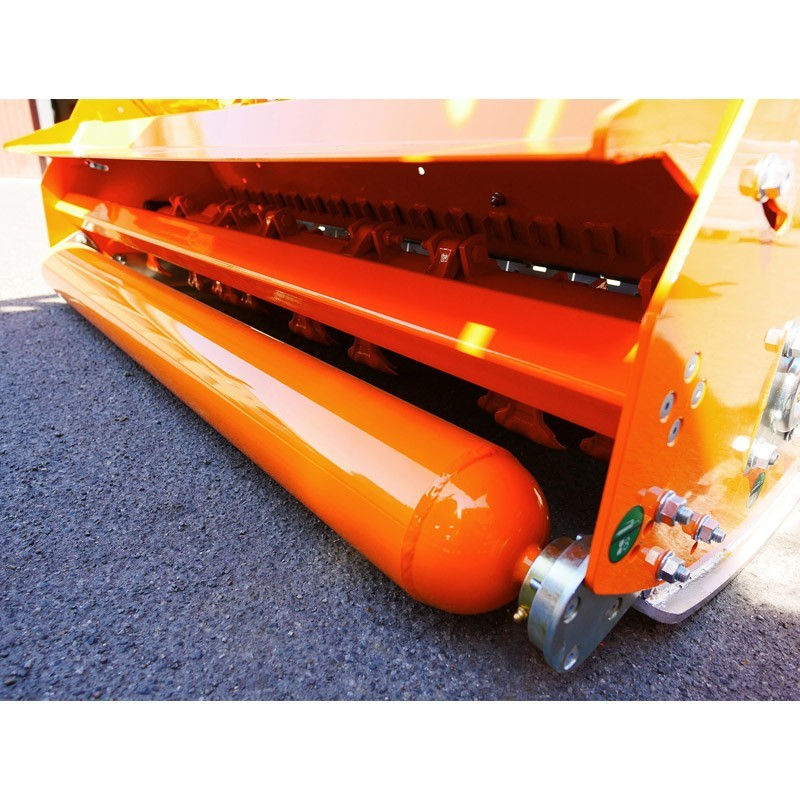

| Roll: diameter |
140 mm |
| Roll: sheet thickness |
5 mm |
| Roll: type of bearings and dimension |
UC205 |
| Cardan |
CE 6x1000 mm + Bolt |
| Horizontal displacement |
310 mm |
| Packaging dimension |
1580*900*800 mm |
| IMPORTANT NOTICE |
|
| Mandatory on the part of the client, check oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
