Brush cutter head with Zeppelin hydraulic pump
- Motor: Hydraulic 100L/MIN
- Working width: 790-1190 mm
CARDAN SHAFT INCLUDED
€2,928.24 VAT incl.

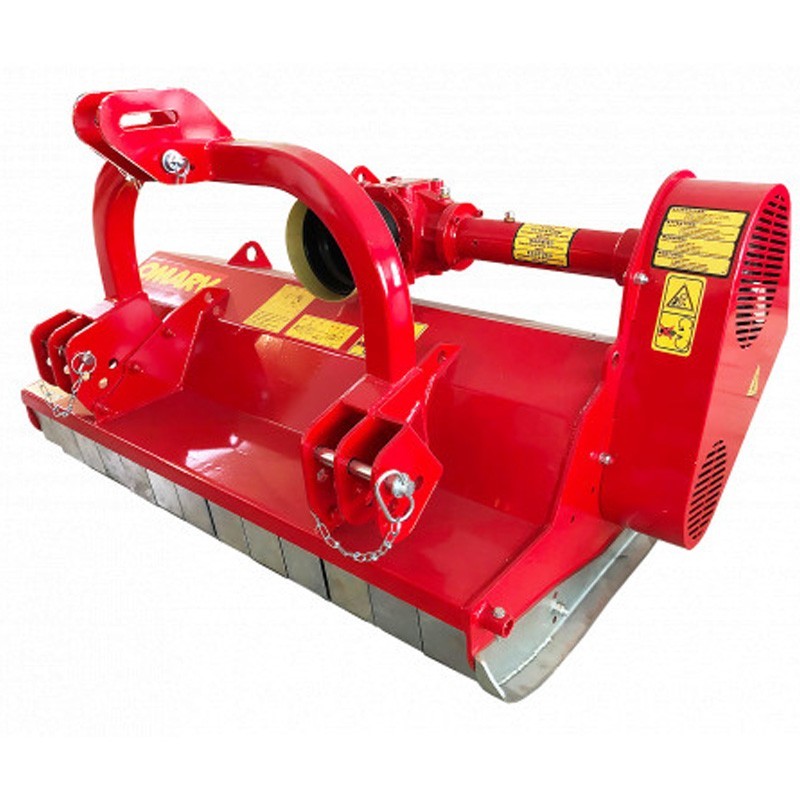

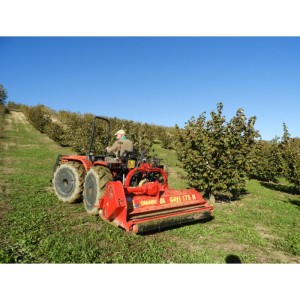

The Omarv Gavi heavy duty tractor shredder has two types of hitches. The first is a standard manual hitch (the F version) for the tractor and the second is a hydraulic hitch (the H version) for easy movement of its adjustable side guides.
The machine has a freewheel gearbox and an adjustable augmented roller. The machine's belt tensioner adjusts the belt automatically and all models and versions have 3 or 4 belts.
The cutting system of this tractor shredder is composed of hammers and blades that, depending on the model, can be from 10 to 18 hammers and from 20 to 34 blades. In addition, these blades are designed in a Y-shape (90º).
The rotor of this machine is reinforced and its diameter is 160 mm. The rotor speed is 2000 turns per minute and the PTO is 540.
As for the power that the tractor shredder needs to work optimally, it needs between 30 and 80 horse power, always depending on the model we choose.
MODEL | Working width | Total width | Weight | No. of hammers and blades | No. of belts | Tractor power required |
GAVI F 120 | 120 cm | 135 cm | 325 kg | 10 | 20 | 3 | 30 - 60 HP |
GAVI F 135 | 135 cm | 150 cm | 370 kg | 12 | 24 | 3 | 30 - 60 HP |
GAVI F 150 | 150 cm | 165 cm | 415 kg | 14 | 28 | 3 | 50 - 80 HP |
GAVI F 175 | 175 cm | 190 cm | 500 kg | 16 | 32 | 4 | 50 - 80 HP |
GAVI F 200 | 200 cm | 185 cm | 585 kg | 18 | 34 | 4 | 50 - 80 HP |
GAVI H 120 | 120 cm | 135 cm | 380 kg | 10 | 20 | 3 | 30 - 60 HP |
GAVI H 135 | 135 cm | 150 cm | 425 kg | 12 | 24 | 3 | 30 - 60 HP |
GAVI H 150 | 150 cm | 165 cm | 470 kg | 14 | 28 | 3 | 50 - 80 HP |
GAVI H 175 | 175 cm | 190 cm | 550 kg | 16 | 32 | 4 | 50 - 80 HP |
GAVI H 200 | 200 cm | 185 cm | 630 kg | 18 | 34 | 4 | 50 - 80 HP |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
This tractor shredder includes a hammer cutting system. You also have the option of ordering a blade system by calling our customer service department. |
Data sheet
Specific References
CARDAN SHAFT INCLUDED
Cardan shaft included
Displacement brushcutter disc not included as standard
