Hydraulic reversible shredder PTO Giemme AG 140 - 220 cm
Hydraulic reversible shredder PTO Giemme AG 140 - 220 cm
Hydraulic reversible shredder PTO Giemme AG 140 - 220 cm
Hydraulic reversible shredder PTO Giemme AG 140 - 220 cm
Hydraulic reversible shredder PTO Giemme AG 140 - 220 cm
Hydraulic reversible shredder PTO Giemme AG 140 - 220 cm
Hydraulic reversible shredder PTO Giemme AG 140 - 220 cm
Hydraulic reversible shredder PTO Giemme AG 140 - 220 cm

Hydraulic reversible shredder PTO Giemme AG 140 - 220 cm

Rating:
(0)
  • Type of shredder : Rear shredder
  • Cutting type : Hammer
  • Working width PTO : 180 - 240 cm
  • Tractor power : 70 - 100 HP
En stock
icon Shredder type
Shredder type
Reversible shredder
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
140 - 220 cm
icon Tractor power
Tractor power
40 - 85 HP
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Medium
icon Number of hammers
Number of hammers
20 - 32
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
340 - 520 kg
€2,899.60 excl. VAT
- 4%
€2,783.62 excl. VAT
€3,368.18 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Hydraulic reversible shredder PTO Giemme AG 140 - 220 cm
€3,368.18
Select
Qty

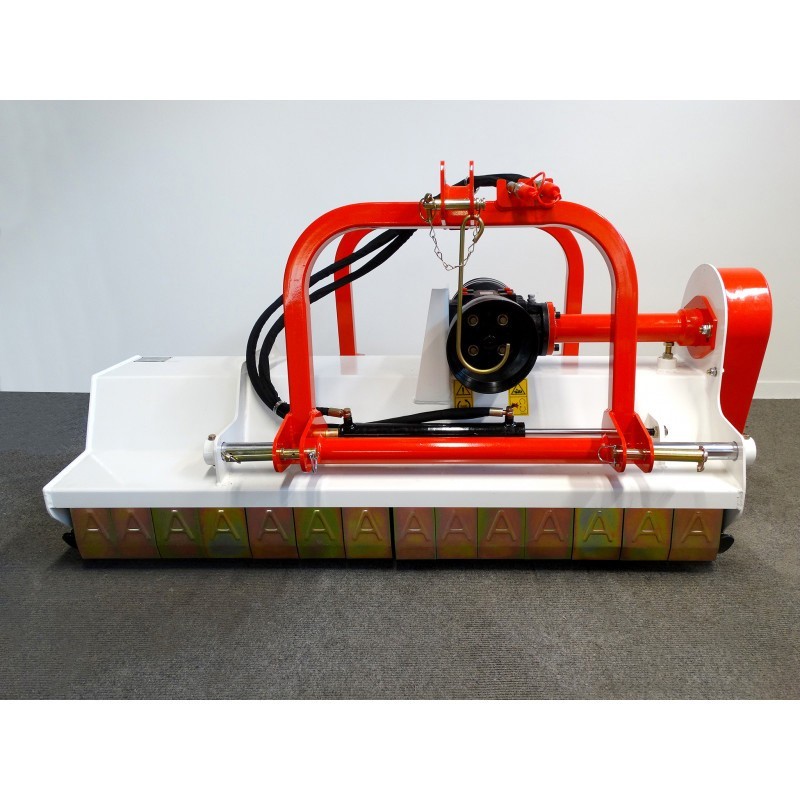

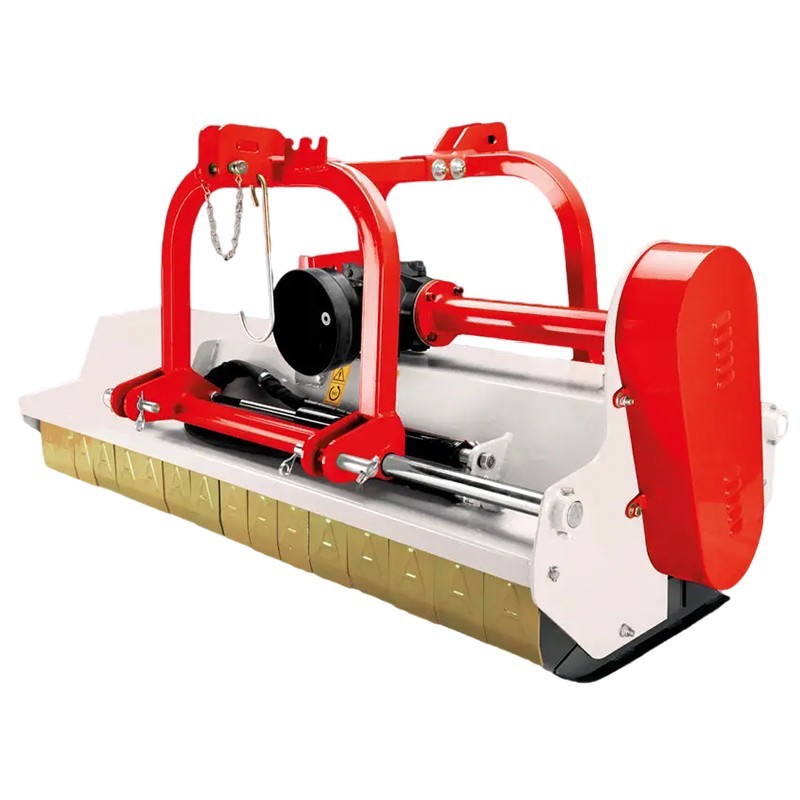

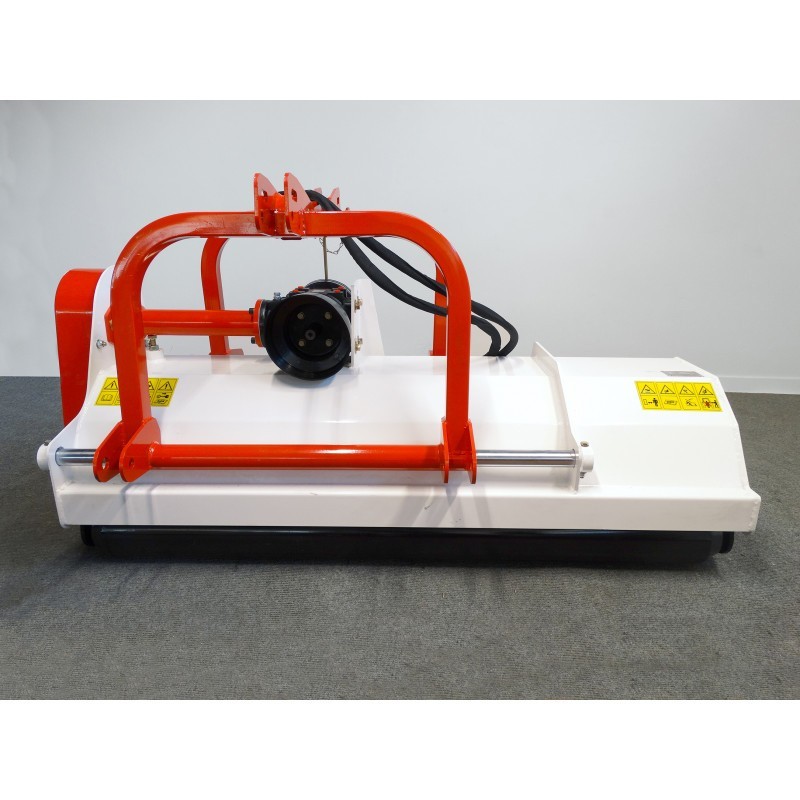

Reversible shredder for Giemme AG tractors

The giemme AG crusher is a highly versatile and efficient agricultural tool designed for ground maintenance. Equipped with a electronically balanced rotor, offers the option of using 0.600 kg hammers or Y-shaped blades, guaranteeing a precise and uniform cut.

The adjustable rear roller, with scraper included, allows to adapt to various soil conditions, ensuring a continuous and effective operation. One of the outstanding features of this crusher is its reversible capacity, this allows it to be used in both directions, significantly increasing its versatility and operational efficiency.

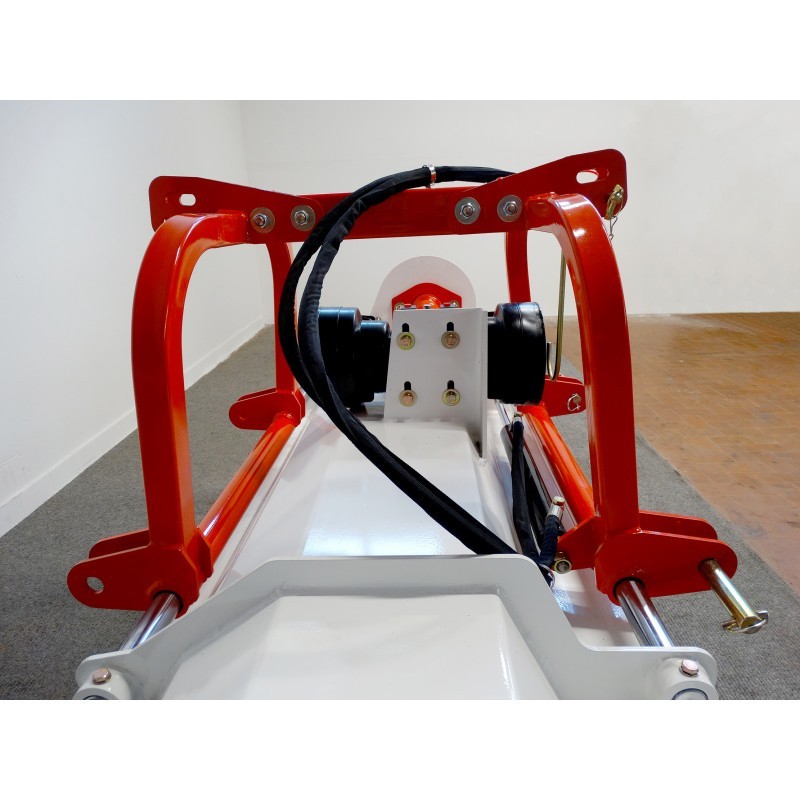

The hydraulic displacement the 3-point hitch and height-adjustable side slides make it easy to adapt to different working configurations.

Available in five models with different working widths, this tool integrates perfectly with tractors thanks to its universal 3-point linkage (categories I and II). The cast-iron gearbox with freewheel at 540 rpm and the 1,000 mm T5 gimbal guarantee optimum durability and performance in any agricultural task.

Features

Model AG 140 AG 160 AG 180
Working width 140 cm 160 cm 180 cm
Total width 154 cm 174 cm 194 cm
Tractor power 40/70 HP 40/70 HP 60/85 HP
Weight 340 kg 390 kg 430 kg
Hammers 20 22 26

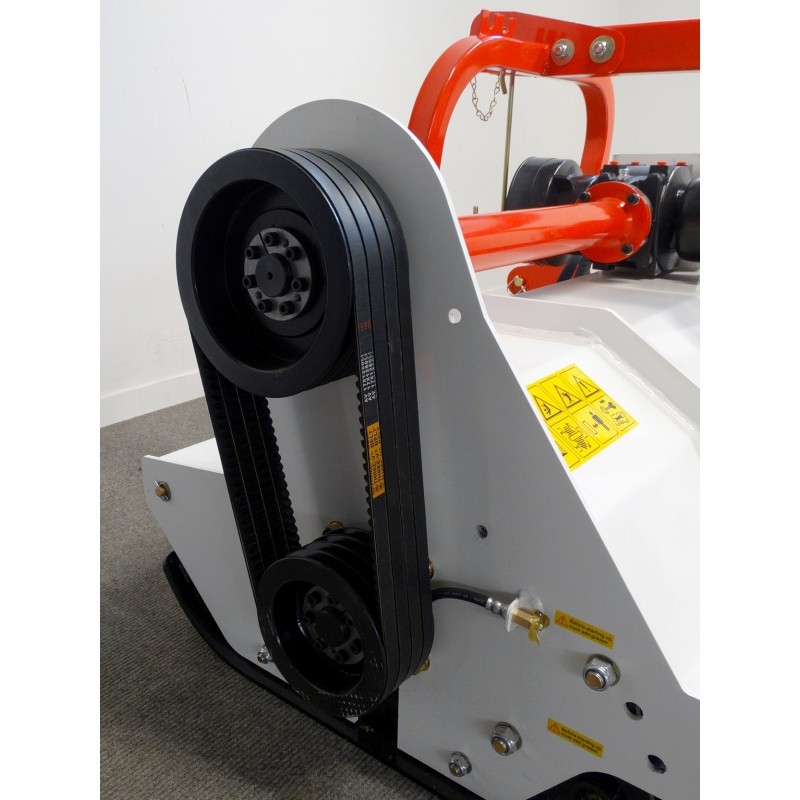

Belts 3 3 3
Model AG 200 AG 220
Working width 200 cm 220 cm
Total width 217 cm 237 cm
Tractor power 60/85 HP 60/85 HP
Weight 480 kg 520 kg
Hammers 28 32
Belts 4 4

Displacement dimensions

dimensiones
Model A B C D
AG 140 77 cm 63 cm 42 cm 98 cm
AG 160 77 cm 63 cm 42 cm 98 cm
AG 180 86 cm 94 cm 51 cm 129 cm
AG 200 108 cm 92 cm 73 cm 127 cm
AG 220 108 cm 112 cm 73 cm 147 cm

IMPORTANT NOTICE
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
This tractor shredder includes a hammer cutting system. It also has the option to order blade system by calling our customer service.
261055

Data sheet

Shredder type
Reversible shredder
Type of cut
Hammers
Working width PTO
140 - 220 cm
Tractor power
40 - 85 HP
Cardan shaft
Including
Type of coupling
Lateral displacement
Displacement
Hydraulic
Robustness
Medium
Number of hammers
20 - 32
Working width (cm)
140 - 149 cm
160 - 169 cm
180 - 189 cm
200 - 209 cm
220 - 229 cm
Country of manufacture
Italy
Weight
340 - 520 kg

Specific References

mpn
M1.V5.AG1
New
