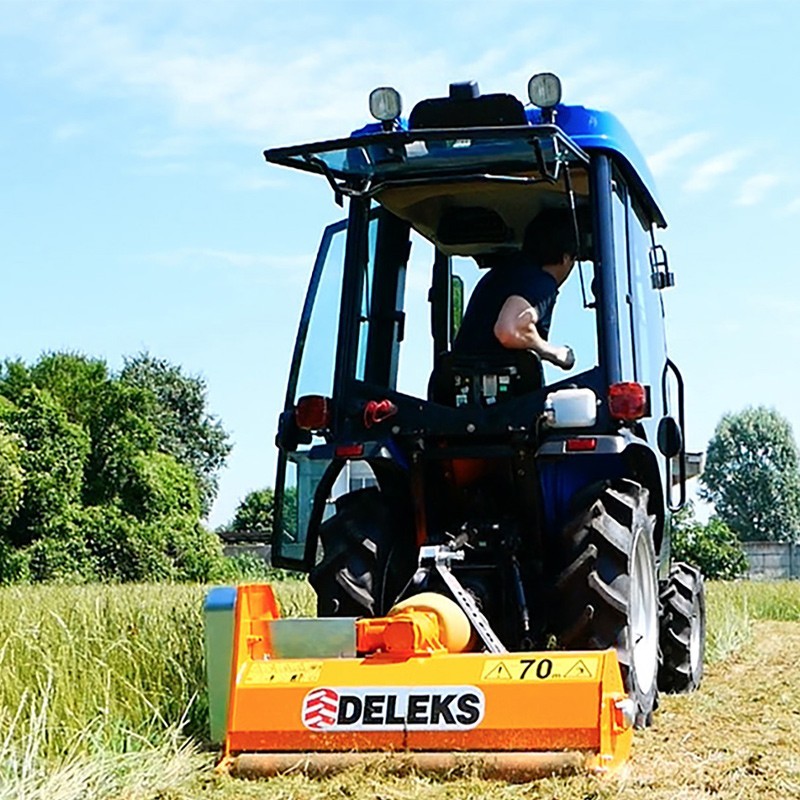

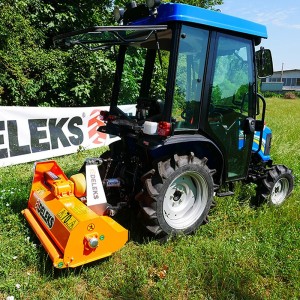

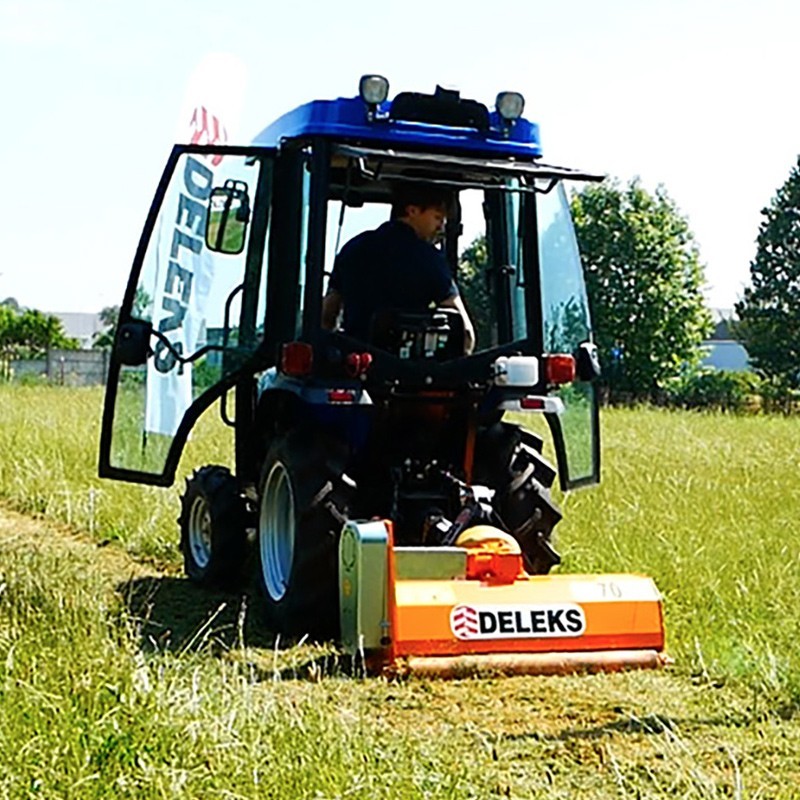

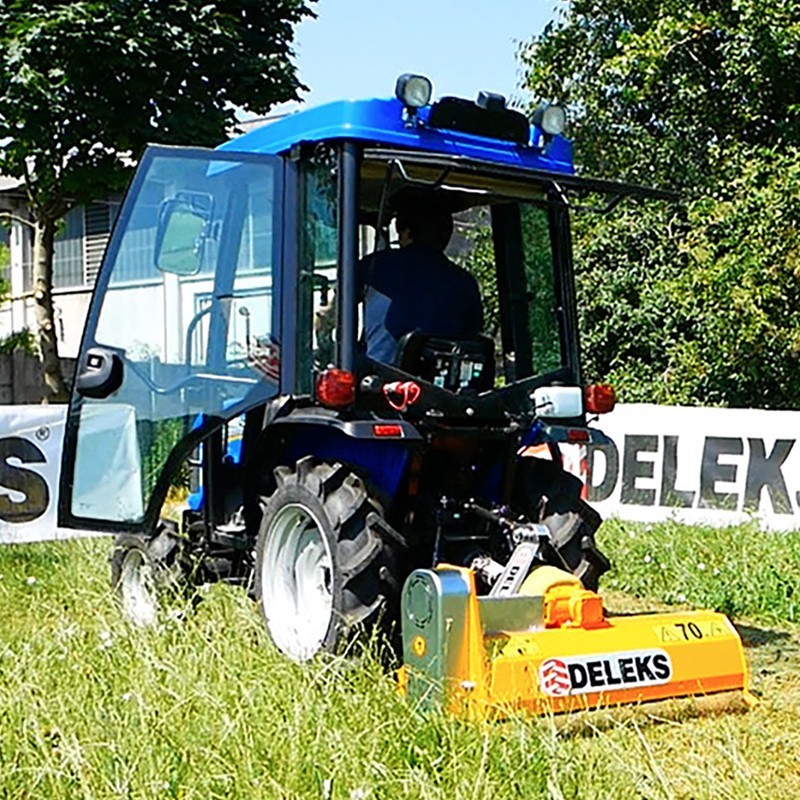

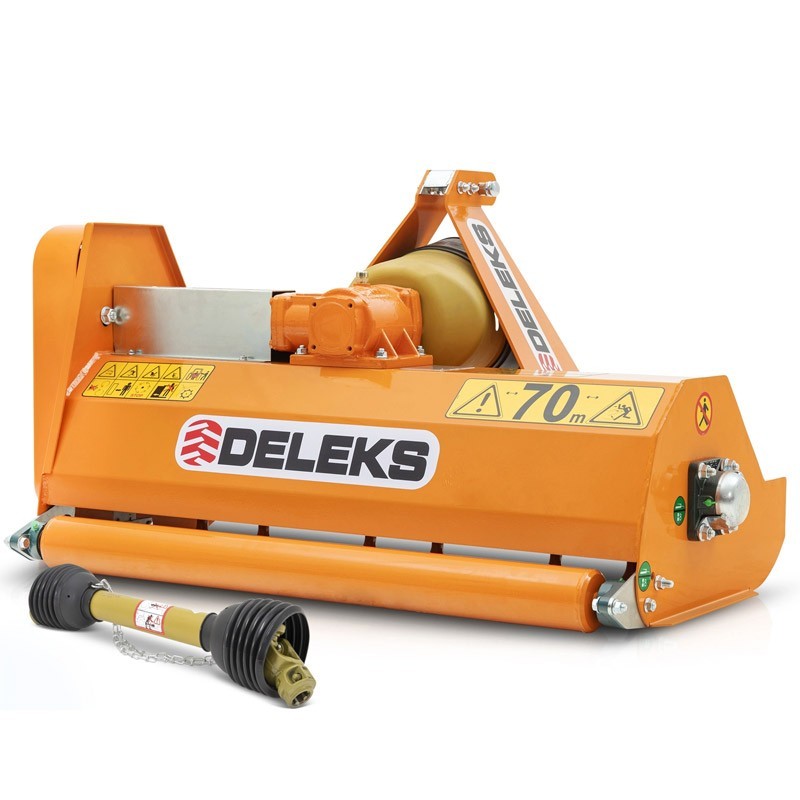

The Hammer crusher Deleks APE-120 is specially designed for tractors with low horsepower, and is 16 to 30 HP. This shredder model is used for gardens and agricultural fields.

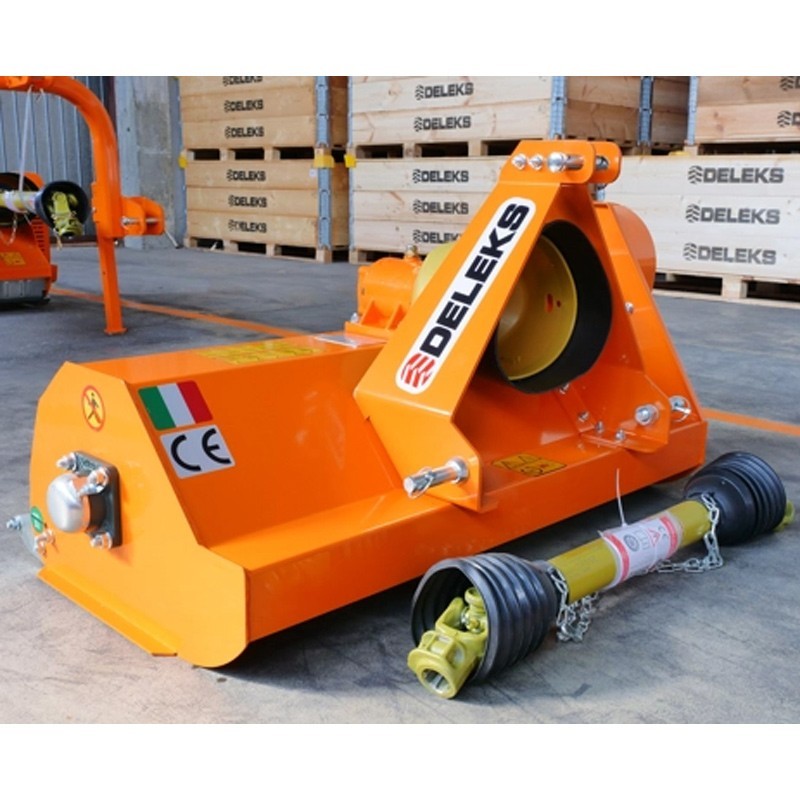

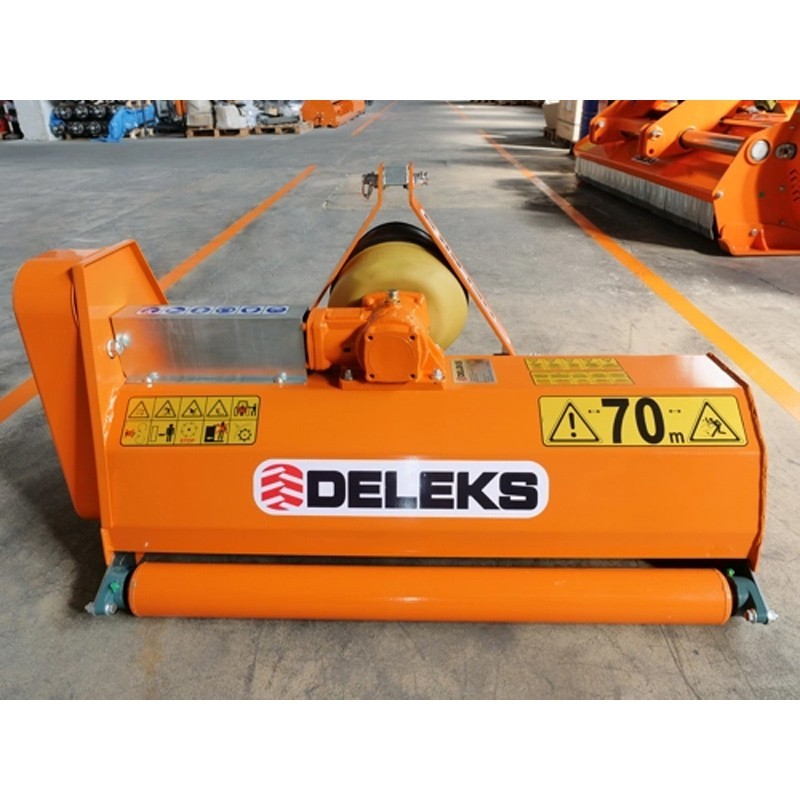

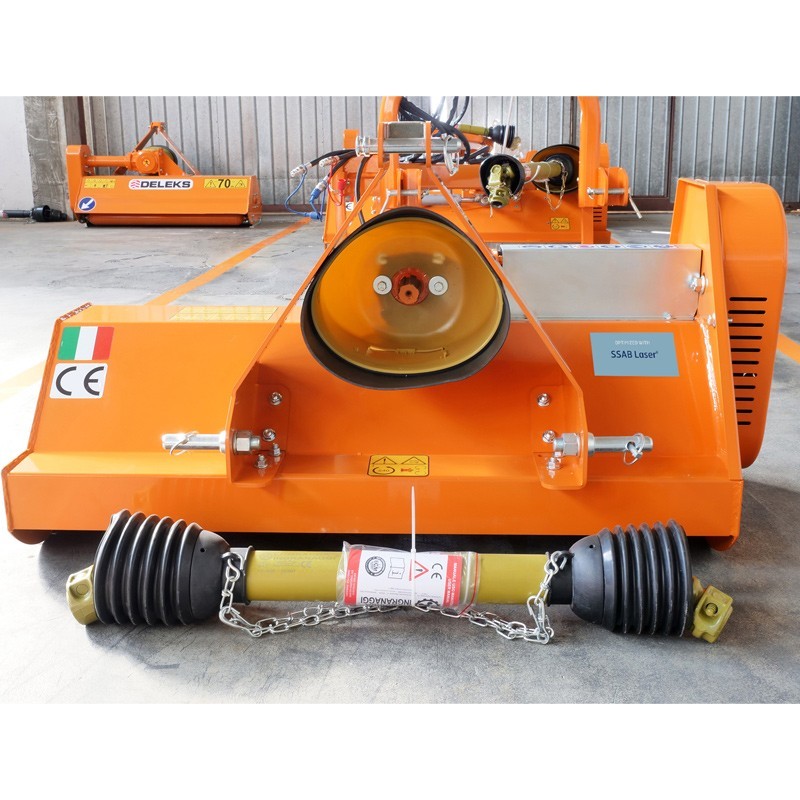

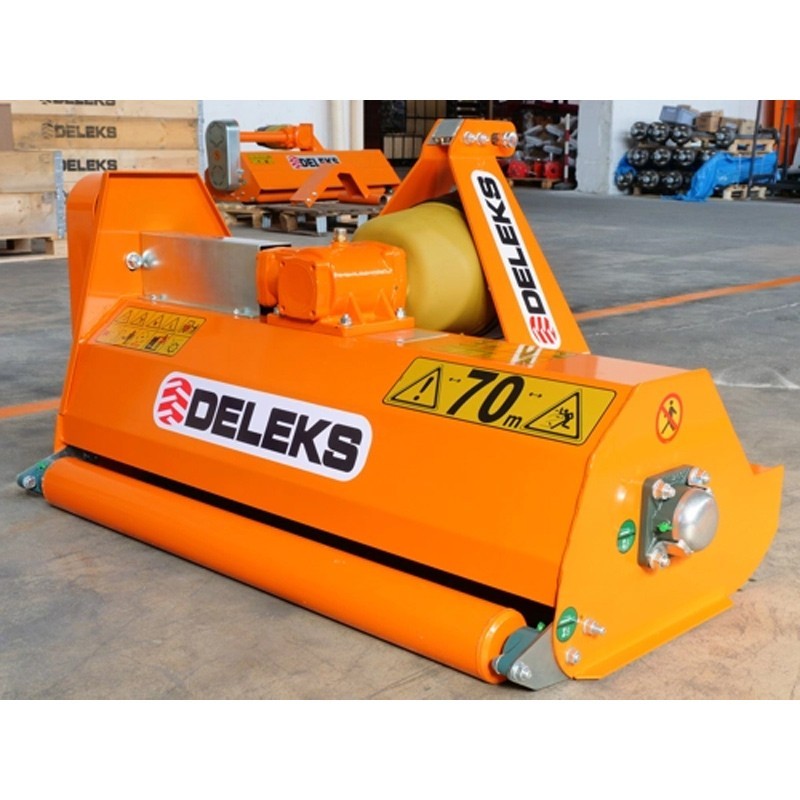

The model APE-120 It has forged hammers for grass and small brambles. It has an adjustable cutting height thanks to the adjustable rear roll. It also has a category 1 fixed 3-point hitch.
Among its features and advantages we can highlight its good structure completely in Swedish SSAB steel. It also offers us a rotor made of ARVEDI tube (Cremona), electronically balanced.
It can be used on tractors with low power in gardens and orchards thanks to its light weight of 120kg. It is equipped with a transmission Lombarda Ingranaggi Srl with a freewheel. It also comes with an adjustable rear positioned roll.
The APE-10 Hammer Crusher offers us an external adjustment of the tension of the straps. The model comes with cE gimbal included. In addition, it also includes hammer supports in HARDOX.
This shredder model of hammers of Deleks guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these we can highlight the total width 1350 mm and the working width of 1200 mm. We can also highlight the cutting height from 20.0 - 35.0 mm and the total height of 623 mm. It has an overall light weight of only 105 kg.
| Working width | 1200 mm |
| Overall width | 1350 mm |
| Min/max cutting height | 20 - 35 mm |
| Weight | 120 kg |
| Total height | 623 mm |
| Tractor power | 16 - 30 HP |
| 3-point hitch | Cat. 1 (ø 19-22mm) |
| Hood height | 317 mm |
| Distance between the lower points | 380 - 580 mm |
| Number of hammers | 28 |
| Max. cutting diameter | 10 - 20 mm |
| Total length | 640 mm |
| Ground to gearbox spacing | 385 mm |
| Plate thickness | 3 mm |
| Thickness of sheet metal on the sides | 3 mm |
| Transmission type | V-belts |
| Transmission: Gearbox | Lombarda Ingranaggi Srl |
| Transmission: PTO | 540 r/min |
| Transmission: direction of rotation | Schedule |
| Transmission: freewheel | √ |
| Transmission: rotor speed | 3000 rpm |
| Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
| Transmission: diameter of upper pulley | 185 mm |
| Transmission: lower pulley diameter | 96 mm |
| Transmission: number of Koreas | 2 |
| Transmission: dimensions of the Koreas | AX35 (889LI) |
| Rotor: diameter | 76 mm |
| Rotor: bearing type and dimension | UCF206 |
| Rotor: balancing | Electronic |
| Rotor: blade thickness | 8 mm |
| Hammers: weight | 330 g |
| Hammers: hole dia | 11 mm |
| Hammers: base width | 80 mm |
| Hammers: head width | 14 mm |
| Hammers: diagonal | 75 mm |
| Roll: diameter | 85 mm |
| Roll: sheet thickness | 6.3 mm |
| Roll: bearing type and dimension | UCFL204 |
| Cardan | CE 2x800 mm |
| Hood length | 525 mm |
| Packing dimensions | 1400*800*660 mm |
