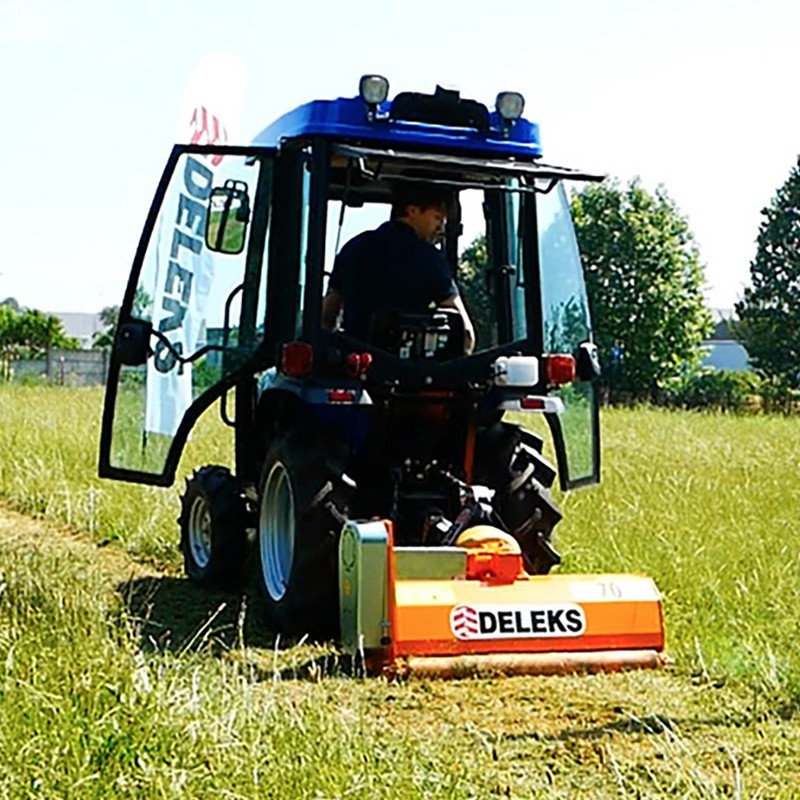

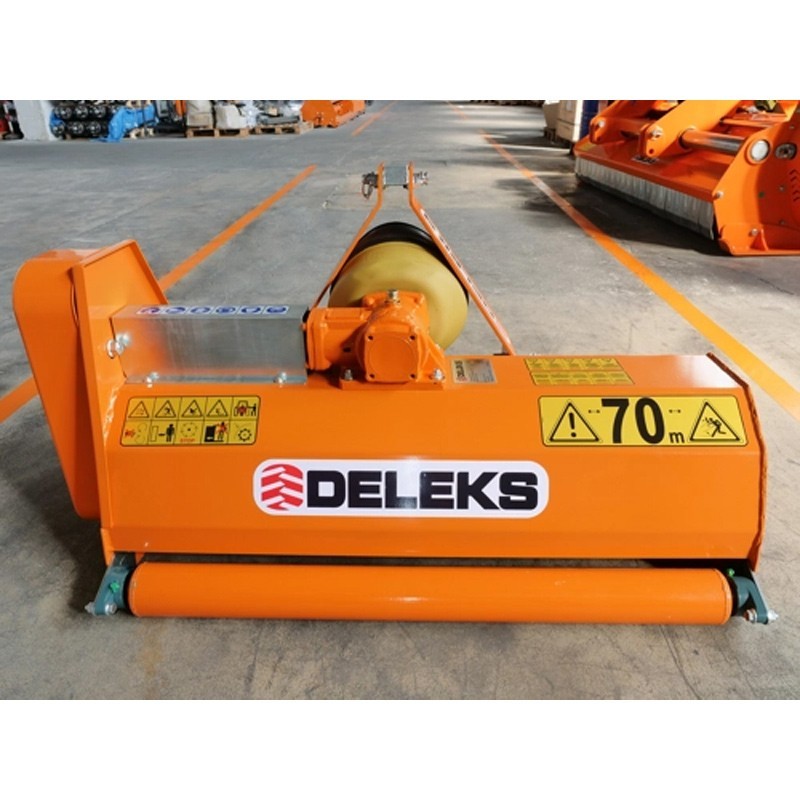

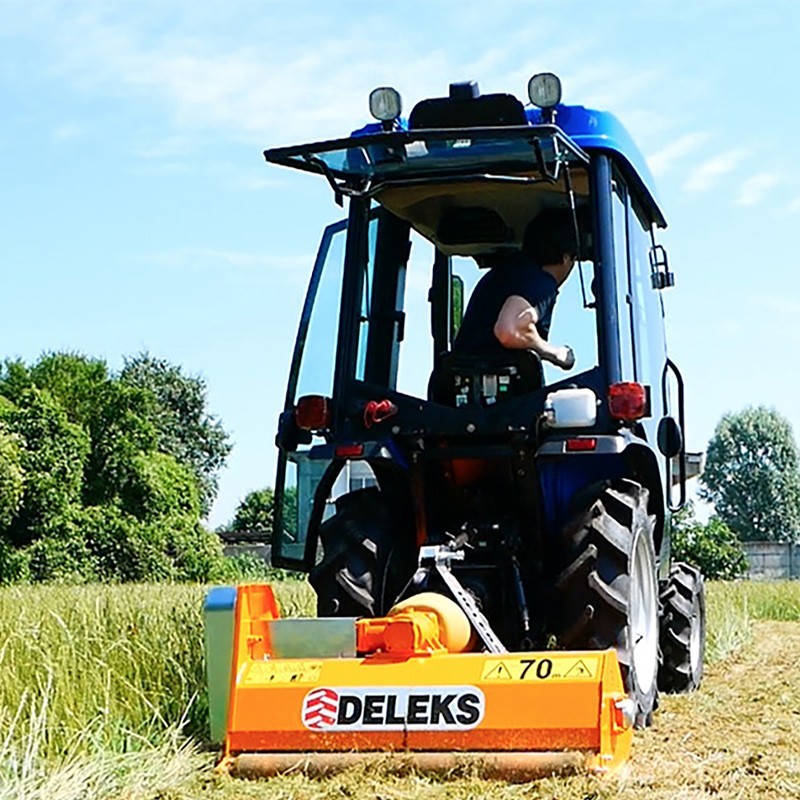

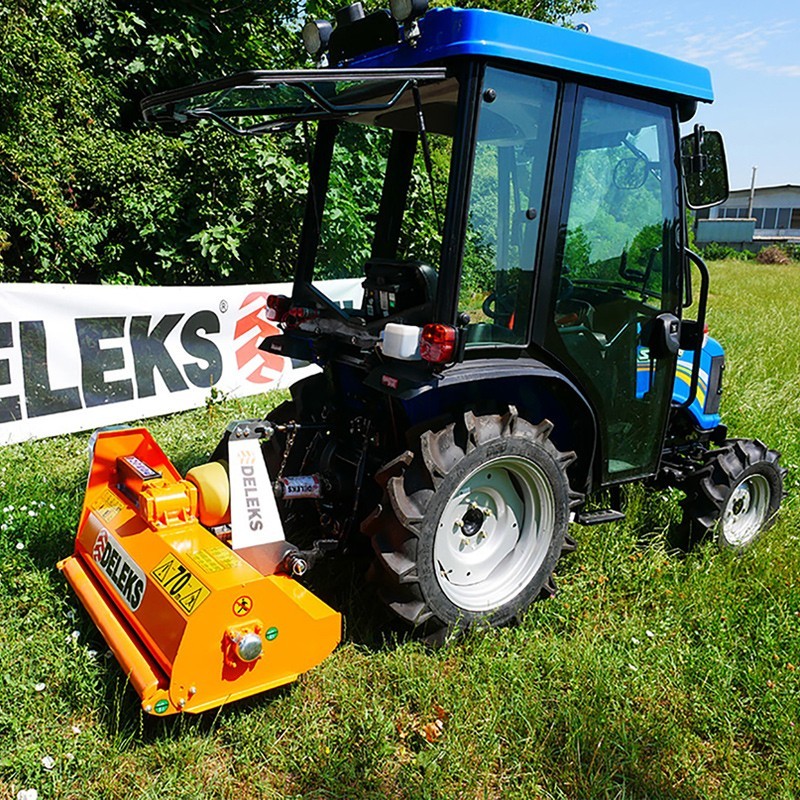

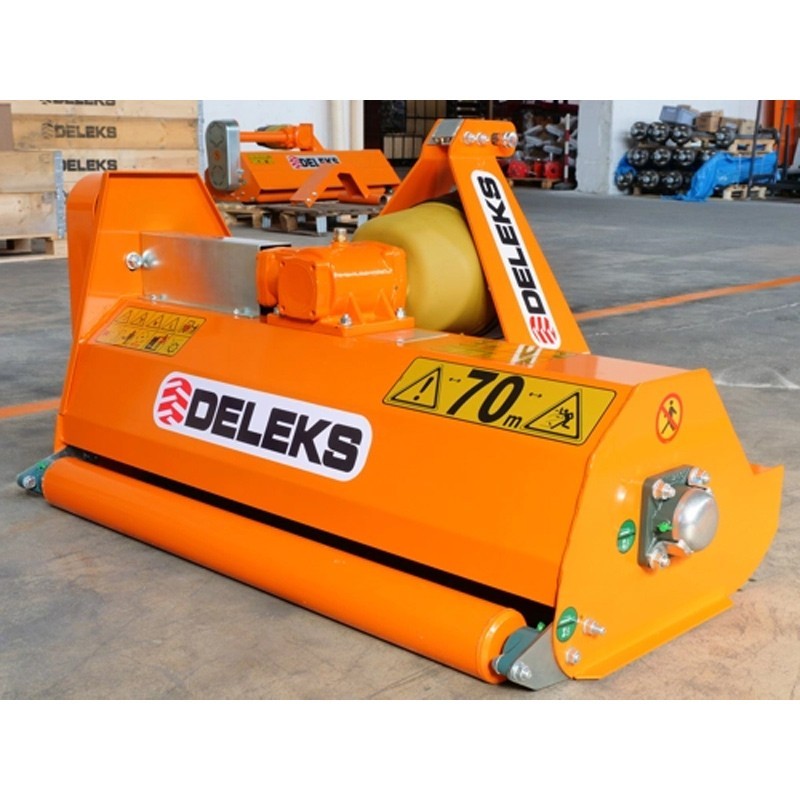

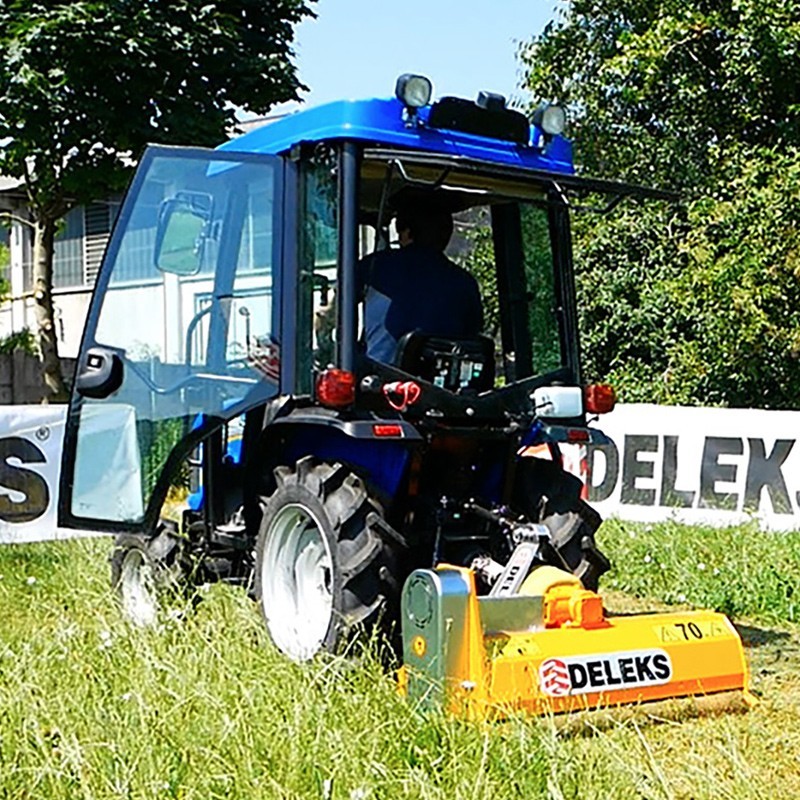

The Hammer crusher Deleks APE-100 It is specially designed for tractors with low power of 12 to 30 HP. This shredder model is used for gardens and agricultural fields.
The APE-100 model It features forged hammers for grass and small brambles. It has an adjustable cutting height thanks to the adjustable rear roller. It also includes a Category 1 fixed 3-point hitch.
Among its features and advantages, we can highlight its good structure made entirely of Swedish SSAB steel. It also offers us a Rotor manufactured with ARVEDI tube (Cremona), electronically balanced.
It can be used on low-power tractors in gardens and orchards thanks to its light weight of 105kg. It features a box of Lombarda Ingranaggi Srl transmission with a freewheel. Additionally, it comes with a roll positioned at the adjustable rear.
The APE-100 hammer crusher offers us an external adjustment of the belt tension. The model comes with CE gimbal included. Additionally, it also includes hammer supports in HARDOX.
This model of hammer flail mower Deleks It guarantees the operator good comfort and ease of work. This is thanks to its notable features.
Among these, we can highlight the total width of 1150mm and the working width of 1000mm. We can also highlight the cutting height of 20 - 35 mm and the total height of 623 mm. It has a total lightweight of only 105 kg.
Working width | 1000 mm |
Total width | 115 mm |
Minimum/maximum cutting height | 20 - 35 mm |
Weight | 105 kg |
Total height | 623 mm |
Tractor power | 12 - 30 HP |
Three-point hitch | Cat. 1 (ø 19-22mm) |
Height of the hood | 317 mm |
Distance between the lower points | 380 - 580 mm |
Number of hammers | 24 |
Maximum cutting diameter | 10 - 20 mm |
Total length | 640 mm |
Space between the ground and the transmission box | 385 mm |
Thickness of the sheet | 3 mm |
Thickness of the sheet on the sides | 3 mm |
Type of transmission | Correas V |
Transmission: Gearbox | Lombarda Ingranaggi Srl |
Transmission: PTO | 540 rpm (revolutions per minute) |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 3000 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: diameter of the upper pulley | 185 mm |
Transmission: diameter of the lower pulley | 96 mm |
Transmission: number of cores | 2 |
Transmission: dimensions of the Koreas | AX35 (889LI) |
Rotor: diameter | 76 mm |
Rotor: type of bearings and dimension | UCF206 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 8 mm |
Hammers: weight | 330.0 g |
Hammers: ø hole | 11 mm |
Hammers: base width | 80 mm |
Hammers: head width | 14 mm |
Hammers: diagonal | 75 mm |
Roll: diameter | 85 mm |
Roll: sheet thickness | 6.3 mm |
Roll: type of bearings and dimension | UCFL204 |
Cardan | CE 2x800 mm |
Length of the hood | 525 mm |
IMPORTANT NOTICE |
Mandatory on the part of the client, check oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.

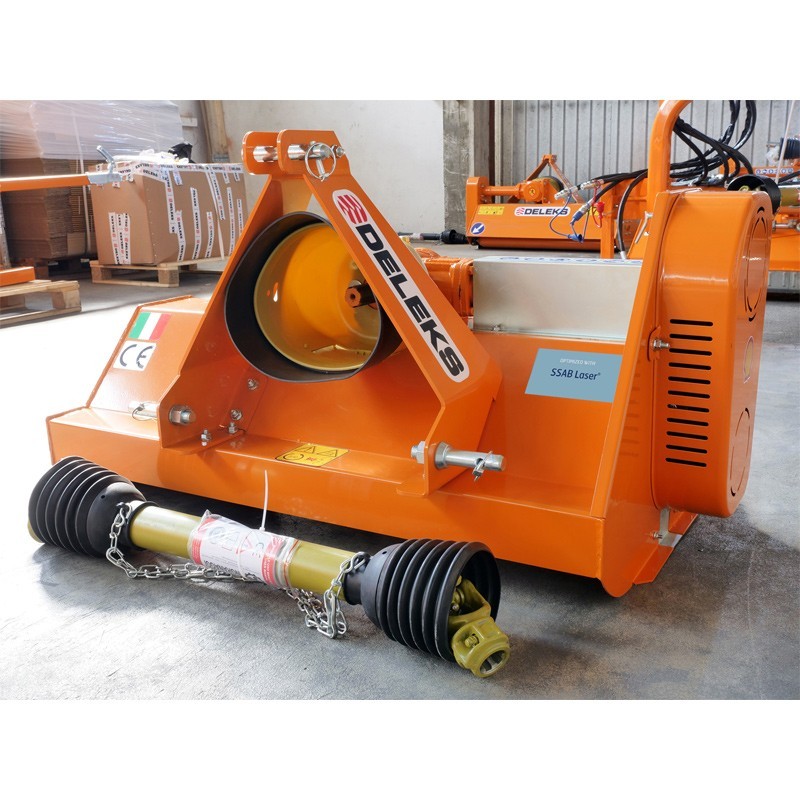

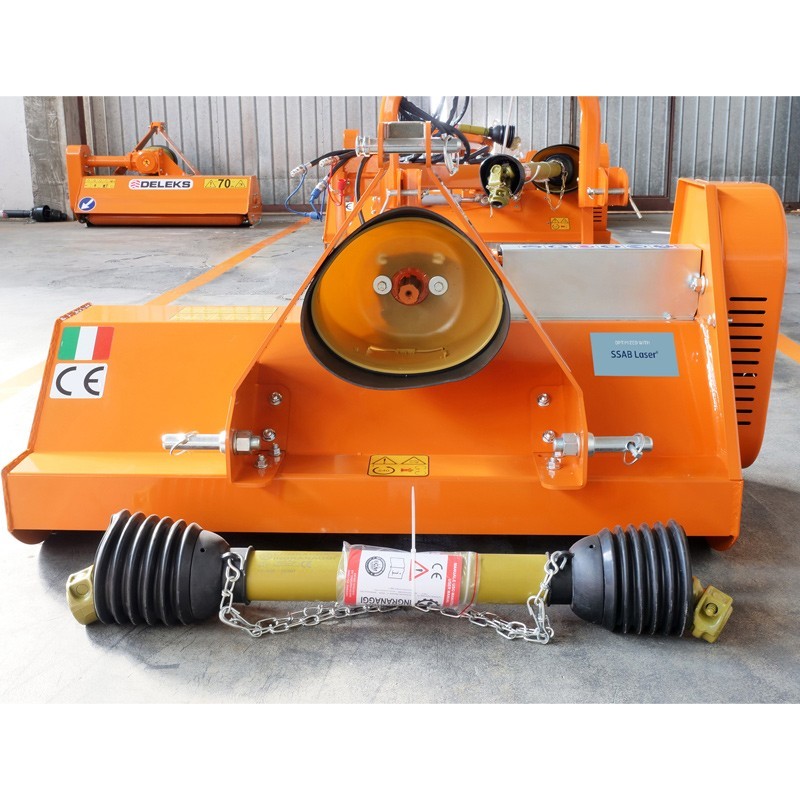

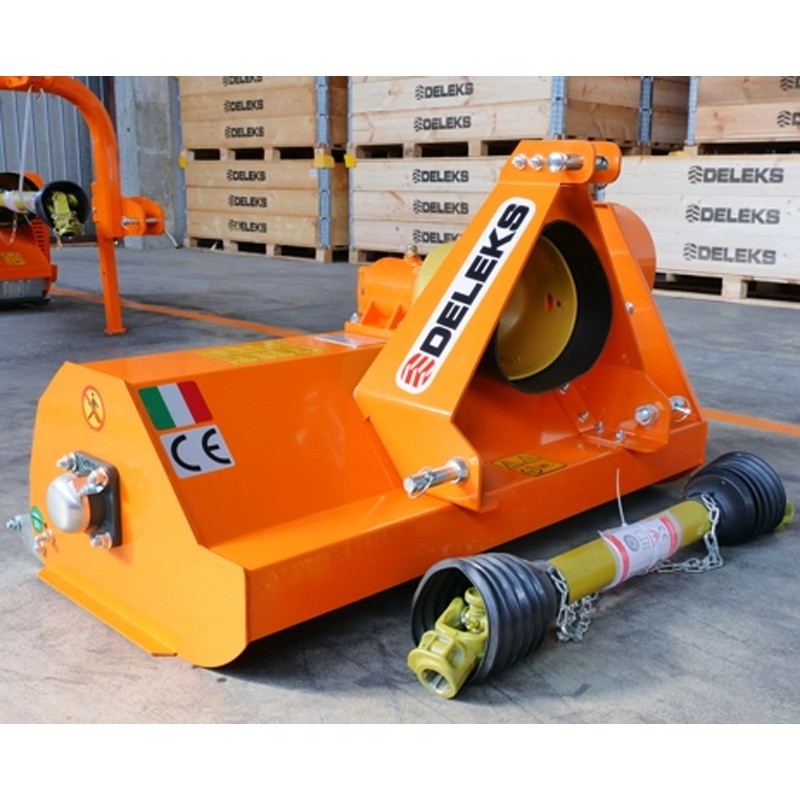

CARDAN SHAFT INCLUDED
