Side shredder PTO GEO ITALY AGL C 145 - 185 cm
Side shredder PTO GEO ITALY AGL C 145 - 185 cm
Side shredder PTO GEO ITALY AGL C 145 - 185 cm
Side shredder PTO GEO ITALY AGL C 145 - 185 cm
Side shredder PTO GEO ITALY AGL C 145 - 185 cm

Side shredder PTO GEO ITALY AGL C 145 - 185 cm

Rating:
(0)
  • Weight : 330 - 365 kg
  • Power Supply pTO tractor
  • Working width PTO : 145 - 185 cm
  • Cardan shaft : Yes
  • Robustness : Medium
  • Min. tractor power : 30 - 60 HP
  • Number of hammers : 24 - 30
  • Country of manufacture : Italy

CARDAN SHAFT INCLUDED

En stock
Extras
Extras
Precio total de la opción:
icon Shredder type
Shredder type
Shredder with side arm
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
145 - 185 cm
icon Tractor power
Tractor power
30 - 60 HP
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Pantograph displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Medium
icon Number of hammers
Number of hammers
24 - 30
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
330 - 365 kg
€2,525.11 excl. VAT
- 4%
€2,424.11 excl. VAT
€2,933.17 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Side shredder PTO GEO ITALY AGL C 145 - 185 cm
€2,933.17
Extras
Extras
Precio total de la opción:
Select
Qty

GEO ITALY AGL C PTO Side Shredder PTO GEO ITALY AGL C

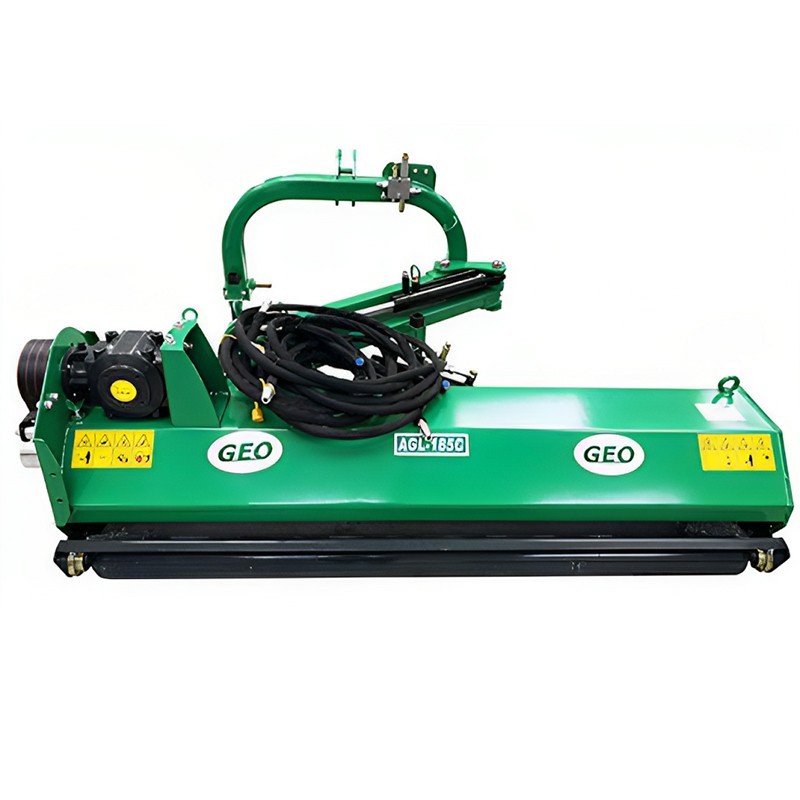

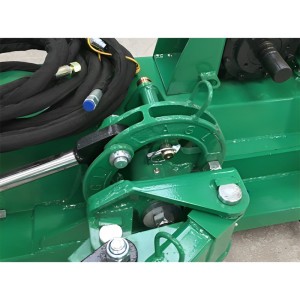

The GEO ITALY AGL C PTO side shredder is a versatile tool designed to fit tractors with category I three-point hitch. With its CE certified safety features, such as guards and double safety valves, it guarantees reliable use.

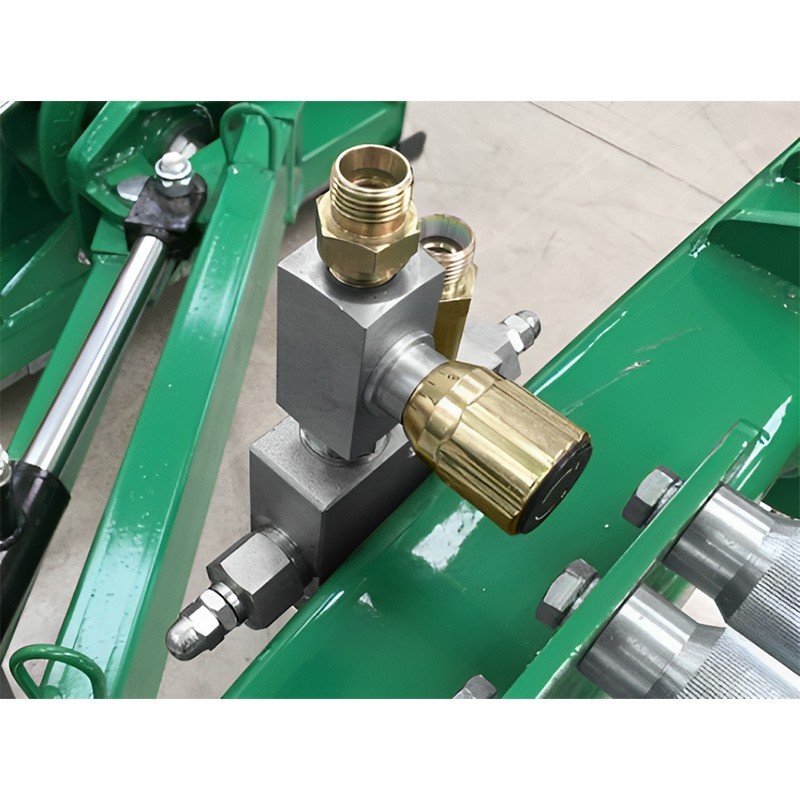

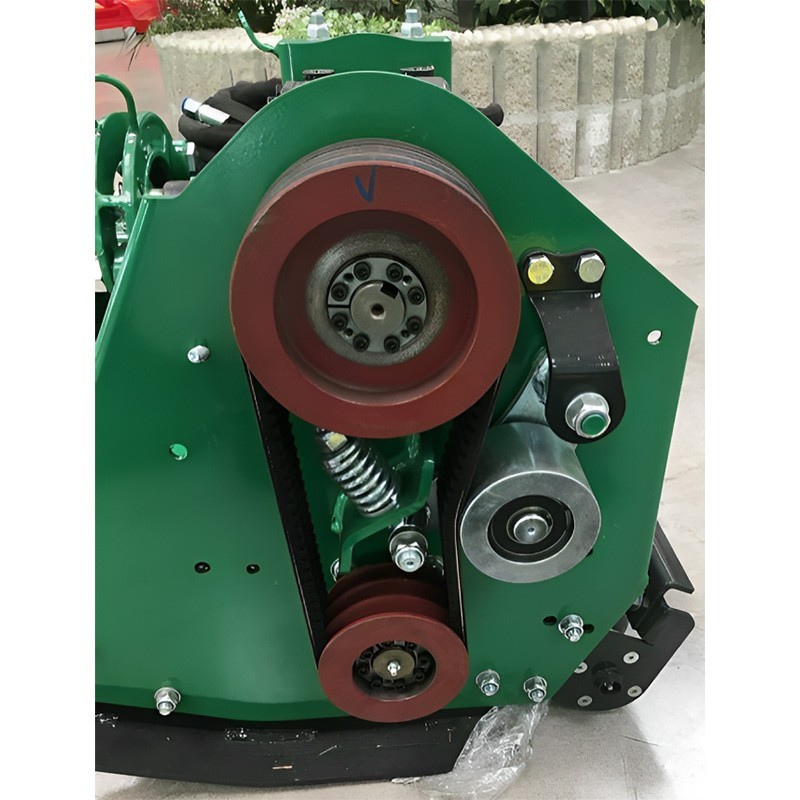

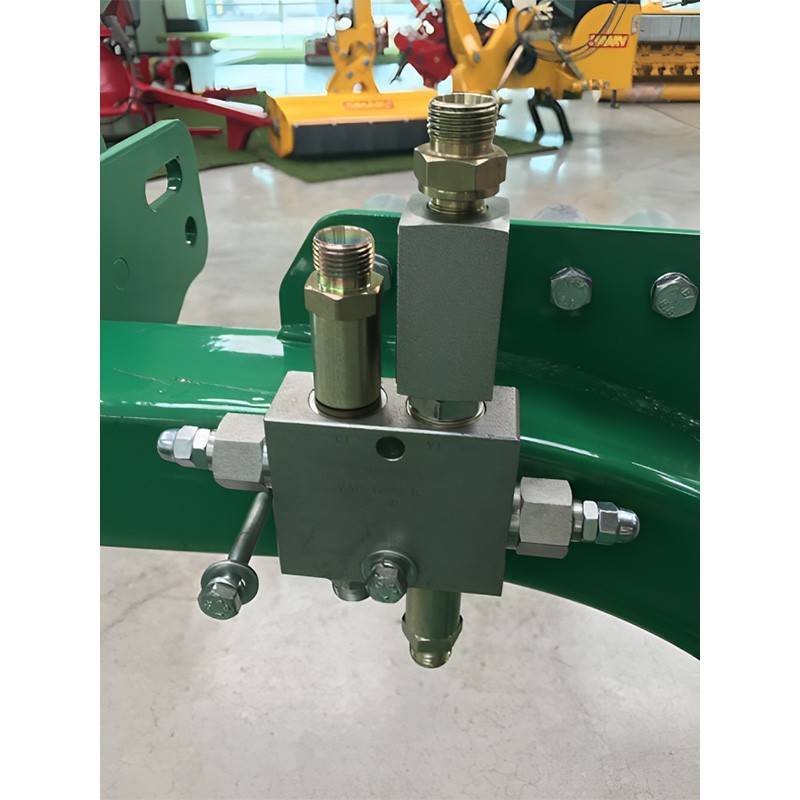

Its sturdy structure, with reinforced side panels and external roller bearing support, provides stability and durability in operation. Equipped with a hydraulic system that includes a flow regulator and automatic belt tension adjustment, this shredder offers efficient and controlled performance.

Its cast iron gearbox with freewheel, together with an adjustable rear roller, ensures precise work and facilitates handling in various conditions. In addition, the possibility of installing knives or hammers and the toothed counter-knife provide options to adapt to different types of shredding tasks.

Features

Model AGL 145C AGL 165C AGL 185C
Working width 145 cm 165 cm 185 cm
Tractor power (HP) 30-50 30-50 40-60
Tractor power (KW) 22-37 22-37 30-44
Weight 330 kg 342 kg 365 kg
Hammers 24 27 30
Belts 3 3 3

Dimensions


Model AGL 145C AGL 165C AGL 185C
H (cm) 76 76 76
B (cm) 82 102 122
C (cm) 158 178 198
D (cm) 130 130 130
E (cm) 200 220 240
Dimensiones AGL C
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
This tractor shredder includes a hammer cutting system. You also have the option of ordering a blade system by calling our customer service department.
259461

Data sheet

Shredder type
Shredder with side arm
Type of cut
Hammers
Working width PTO
145 - 185 cm
Tractor power
30 - 60 HP
Cardan shaft
Including
Type of coupling
Pantograph displacement
Displacement
Hydraulic
Robustness
Medium
Number of hammers
24 - 30
Working width (cm)
140 - 149 cm
160 - 169 cm
180 - 189 cm
Country of manufacture
Italy
Weight
330 - 365 kg

Specific References

mpn
3.60.145C
New
