PTO Crusher Zeppelin Sahara mechanical displacement
PTO Crusher Zeppelin Sahara mechanical displacement

PTO Crusher Zeppelin Sahara mechanical displacement


  • Belts : 3
  • PTO r/min : 540
  • Power requirement : 25-55 HP
En stock
icon Shredder type
Shredder type
Rear shredder
icon Type of cut
Type of cut
Y-blades
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
115 - 135 cm
icon Tractor power
Tractor power
25 - 55 HP
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Pantograph displacement
icon Displacement
Displacement
Manual
icon Robustness
Robustness
Medium-Light
icon Number of hammers
Number of hammers
18 - 20
icon Number of blades Y
Number of blades Y
36 - 40
icon Weight
Weight
224 - 246 kg
€1,389.15 excl. VAT
- 11%
€1,236.34 excl. VAT
€1,495.98 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


PTO Crusher Zeppelin Sahara mechanical displacement
€1,495.98
Select
Qty

PTO Shredder Zeppelin Sahara

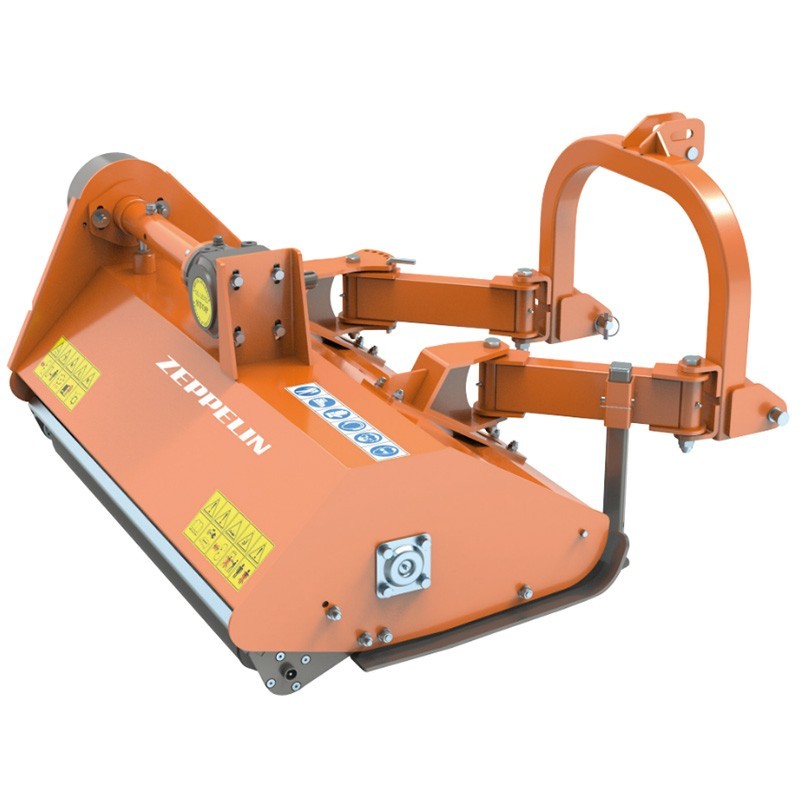

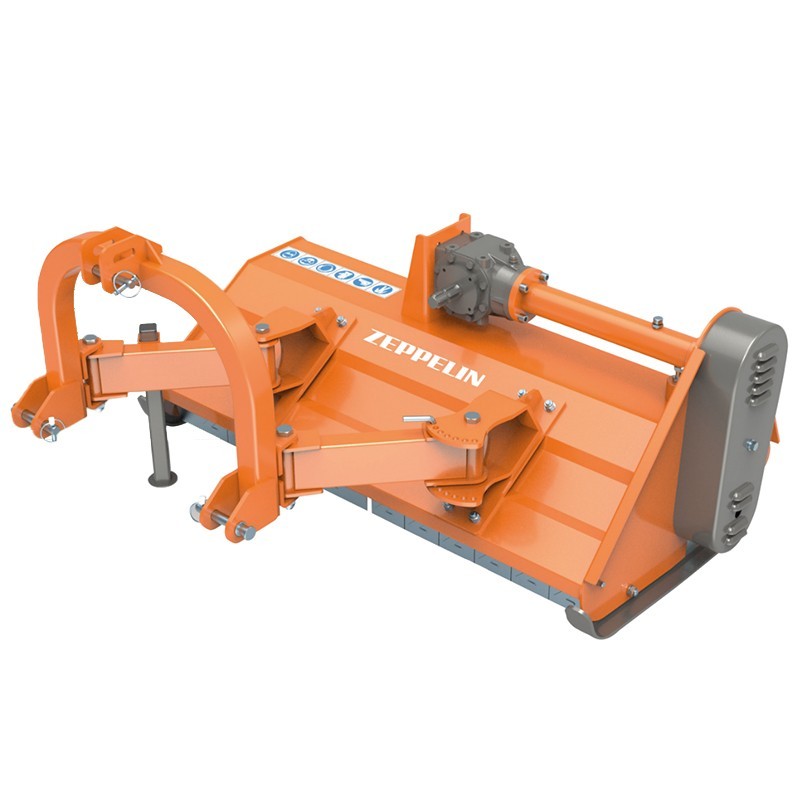

The PTO Shredder Zeppelin Sahara is a versatile and robust tool, designed to adapt to various agricultural needs. This equipment stands out for its mechanical displacement and the possibility of working with hammers or blades, offering flexibility according to the type of work to be done.

Available in four versions, its size and configuration vary to suit different shredding tasks.

The ESTRDESM110MZA model, for example, has a working width of 1150 mm and an offset of 251 mm. It is equipped with 3 belts and can operate with 18 hammers or 36 knives, depending on the option chosen. With a weight of 224 kg and a power requirement of 25-55 HP, this model is ideal for tractors operating at 540 r/min.

On the other hand, the ESTRDESM130MZA model offers a larger working width of 1350 mm and an offset of 258 mm. Similar to the previous model, it has 3 belts and can use 20 hammers or 40 knives. It weighs 246 kg and requires a power of 30-55 HP, maintaining the efficiency and performance needed for demanding tasks in the field.

Features

Model ESTRDESM 110MZA ESTRDESM 130MZA
Working width 1150 mm 1350 mm
Displacement 251 mm 258 mm
Belts 3 3
Hammers (optional) 18 20
Blades (optional) 36 40
Weight 224 Kg 246 Kg
PTO r/min 540 540
Power requirement 25-55 HP 30-55 HP

Dimensions


ESTRDESM 110MZA ESTRDESM 130MZA
A 1310 mm 1510 mm
B 1200 mm 1200 mm
C 820 mm 820 mm
Dimensiones Trituradora s
IMPORTANT NOTICES
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
260881

Data sheet

Shredder type
Rear shredder
Type of cut
Hammers
Y-blades
Working width PTO
115 - 135 cm
Tractor power
25 - 55 HP
Cardan shaft
Including
Type of coupling
Pantograph displacement
Displacement
Manual
Robustness
Medium-Light
Number of hammers
18 - 20
Working width (cm)
110 - 119 cm
130 - 139 cm
Number of blades Y
36 - 40
Weight
224 - 246 kg
