Reinforced crusher with hydraulic arm VG Agro KDL
Reinforced crusher with hydraulic arm VG Agro KDL
Reinforced crusher with hydraulic arm VG Agro KDL

Reinforced crusher with hydraulic arm VG Agro KDL

Rating:
(0)
  • Rotor diameter: 127 mm
  • Belts: 4
  • Maximum shredding diameter: 3 cm
  • Adjustable height by lateral skids

Cardan shaft included

En stock
icon Shredder type
Shredder type
Shredder with side arm
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
160 - 220 cm
icon Tractor power
Tractor power
minimum 70 HP
icon Cardan shaft
Cardan shaft
Included
icon Type of coupling
Type of coupling
Pantograph displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Medium-Heavy
icon Number of hammers
Number of hammers
22 - 32
icon Weight
Weight
500 - 590 kg
€3,506.31 excl. VAT
- 4%
€3,366.06 excl. VAT
€4,072.93 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Reinforced crusher with hydraulic arm VG Agro KDL
€4,072.93
Select
Qty

Reinforced mulcher VG Agro KDL

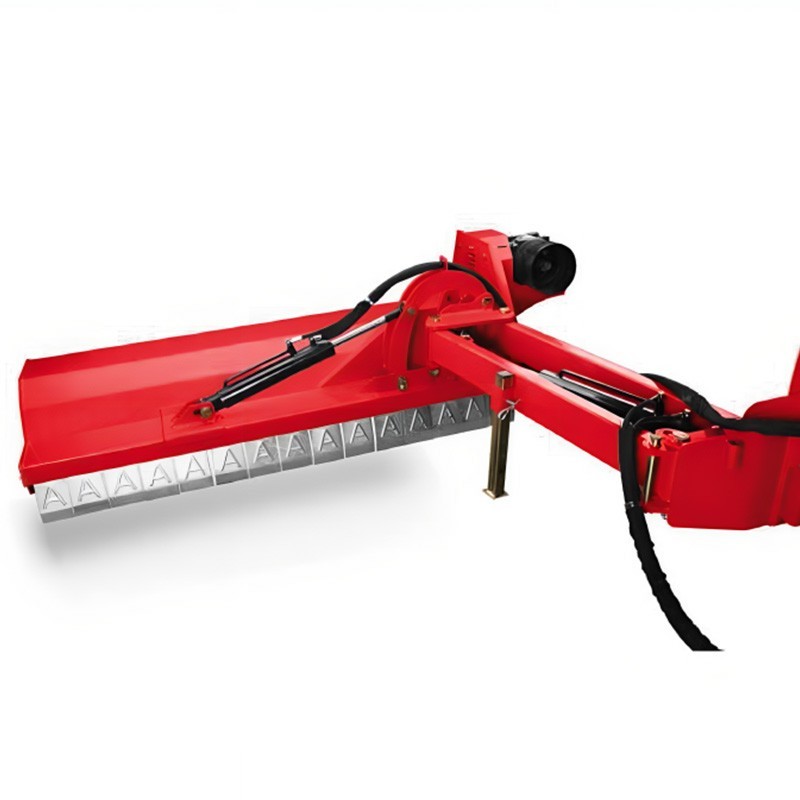

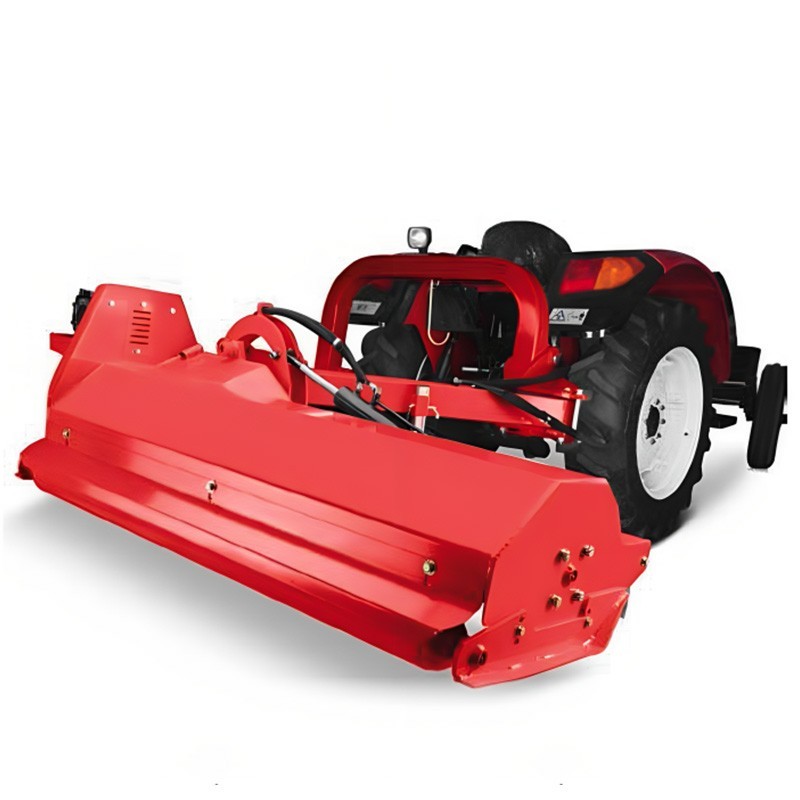

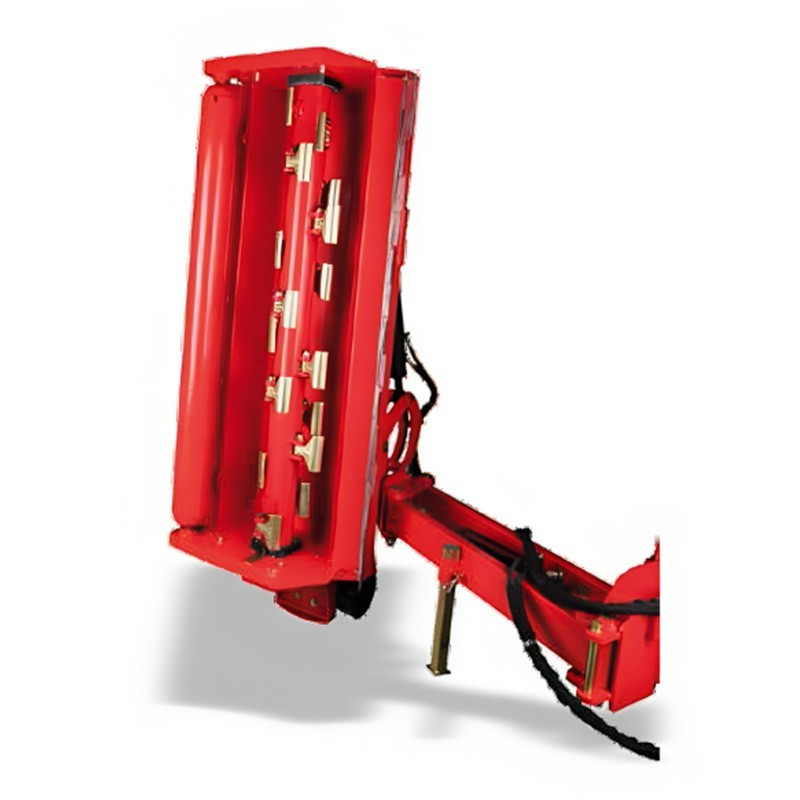

The reinforced shredder VG Agro KDL has a hydraulic arm to reach the edges of fields and verges more easily. As for its working width, depending on the model we choose, we can have widths from 160 to 220 cm.

The maximum diameter that this machine is capable of shredding is 3 cm and it has a rotor diameter of 127 mm. The number of hammers depends on the model chosen and can be up to 32 hammers. The reinforced shredder with hydraulic arm VG Agro KDL has 4 belts and adjustable height by lateral skids.

It is worth mentioning that the machine has a cardan shaft included as standard. Finally, the shredder is equipped with cast iron gearbox and freewheel.

Technical characteristics

MODEL KDL160 KDL180 KDL200 KDL220
Min. power (HP) 70 80 90 100
Rotor diameter (mm) 127 127 127 127
No. of hammers 22 24 28 32
Weight (Kg) 500 530 560 590
Belts 4 4 4 4
Dimensions M (mm) 1650 1650 1650 1650
Dimensions S (mm) 1722 1922 2122 2322
Dimensions T (mm) 3140 3340 3540 3740
U dimensions (mm) 2300 2300 2300 2300
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
259229

Data sheet

Shredder type
Shredder with side arm
Type of cut
Hammers
Working width PTO
160 - 220 cm
Tractor power
minimum 70 HP
Cardan shaft
Included
Type of coupling
Pantograph displacement
Displacement
Hydraulic
Robustness
Medium-Heavy
Number of hammers
22 - 32
Working width (cm)
160 - 169 cm
180 - 189 cm
200 - 209 cm
220 - 229 cm
Weight
500 - 590 kg

Specific References

mpn
KDL160
New
