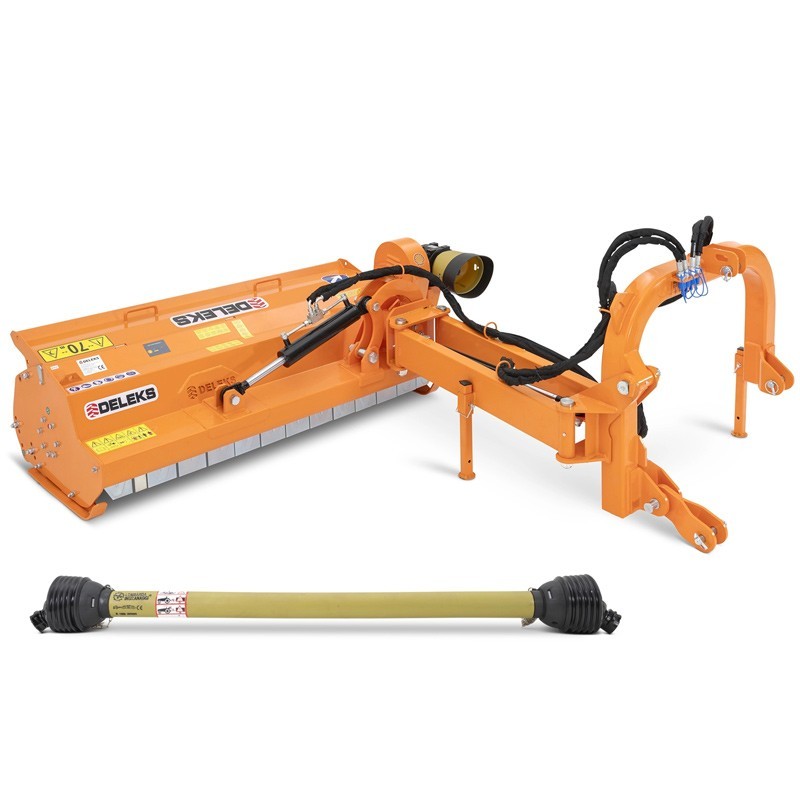

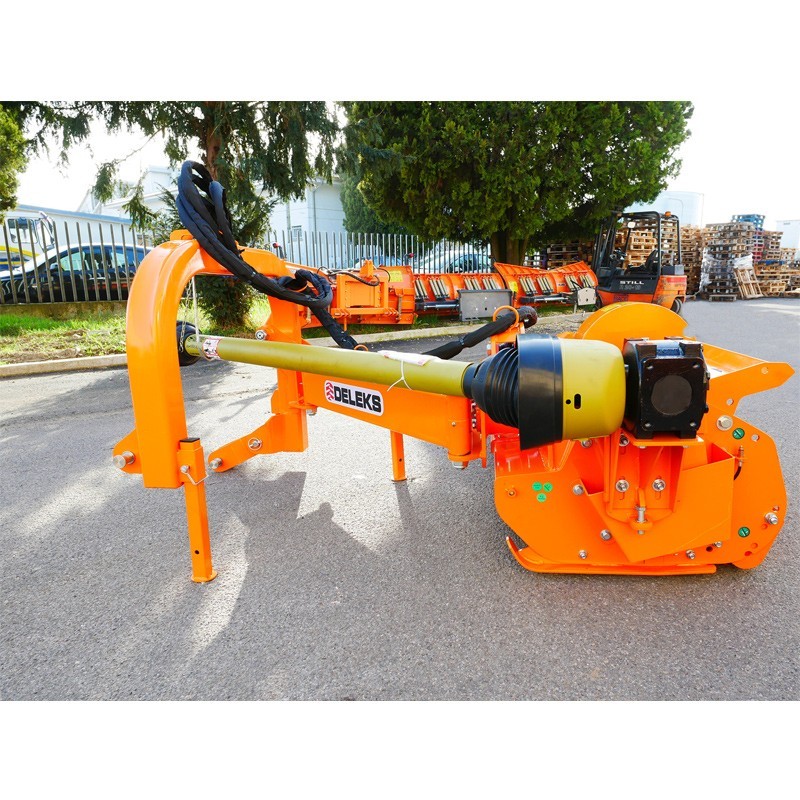

Side hammer crusher for tractor Deleks ALCE-140 50-90HP
- Tractor power: 50 - 90 HP
- Cutting height: 35 - 95 mm
- Cutting width: 1395 mm
- Number of hammers: 12
Deleks products take about 15 to 25 days. |

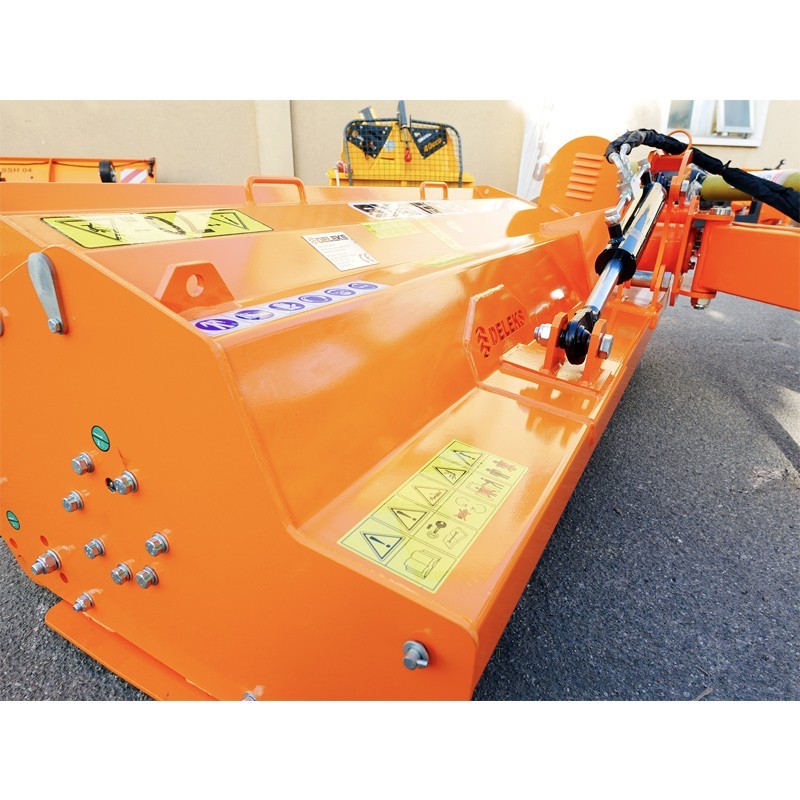

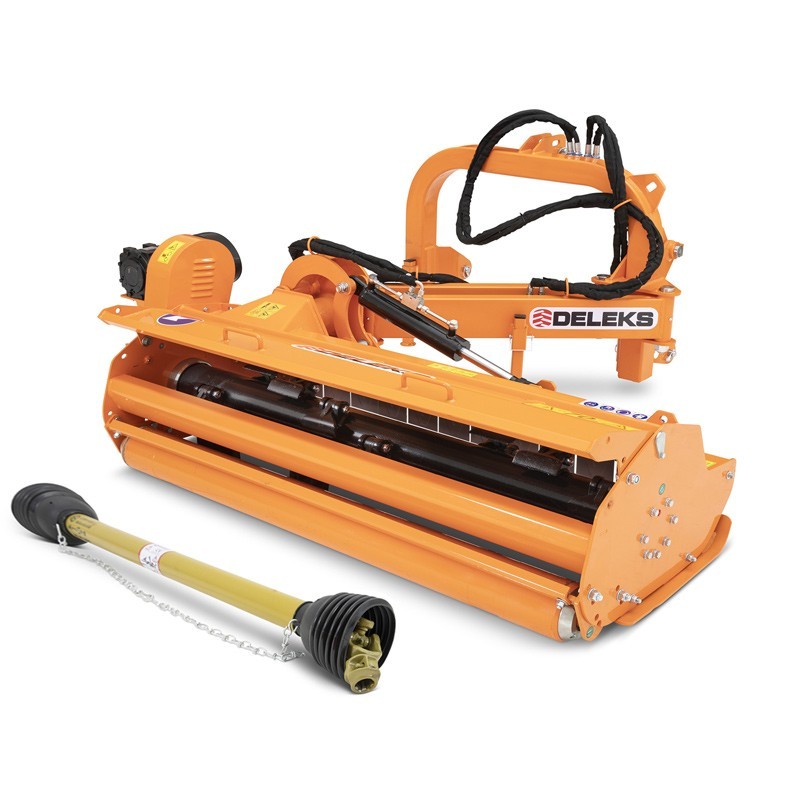

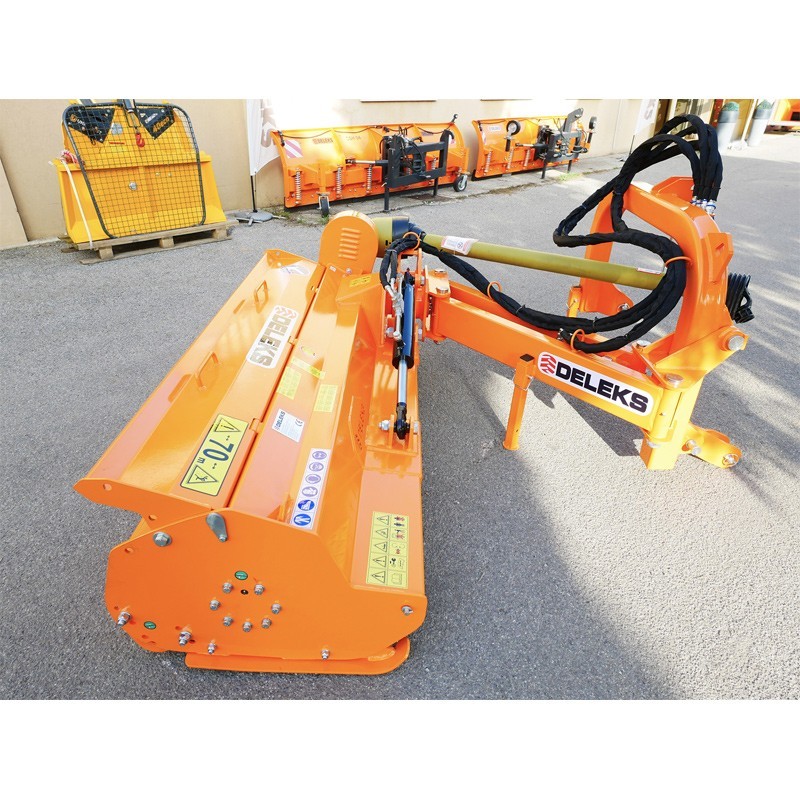

Side hammer shredder for tractor Deleks ALCE-140
The Arm brushcutter Deleks ALCE-140 is specially designed for tractors with low horsepower, and is 50-90HP. This brushcutter model is used for lawns, gardens and vineyards.

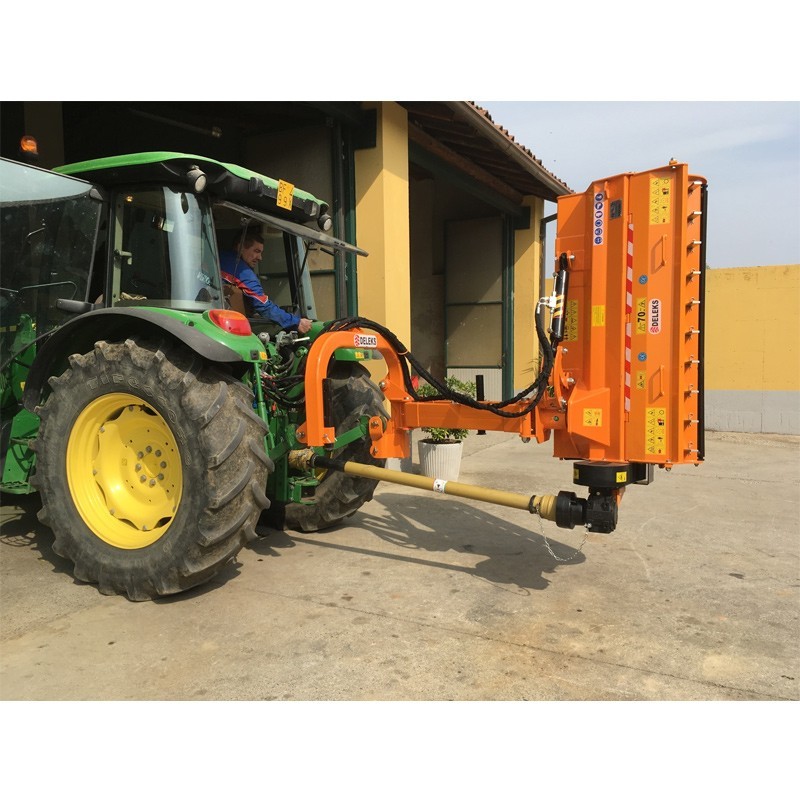

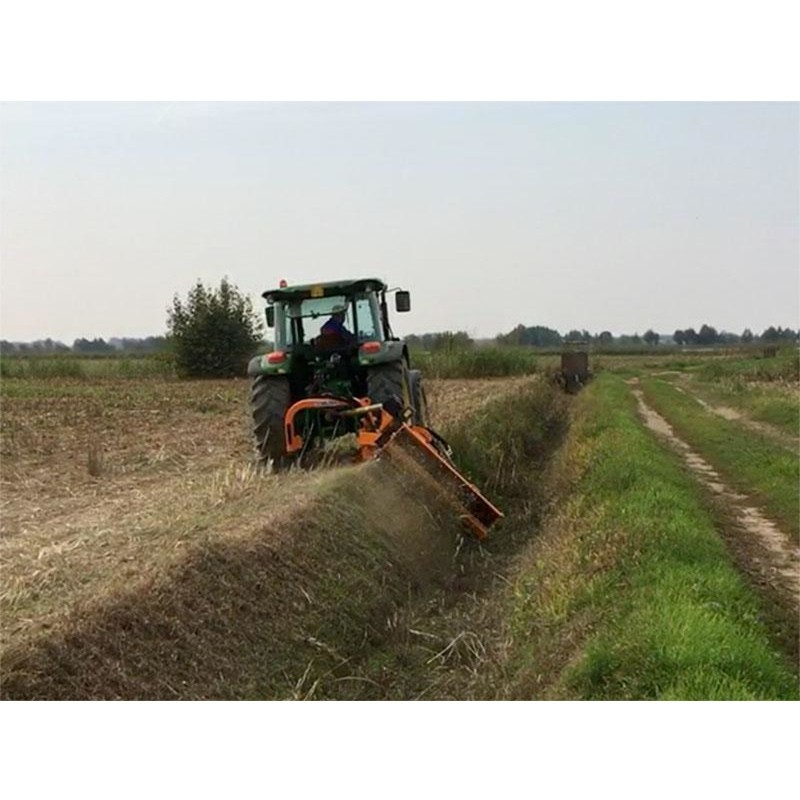

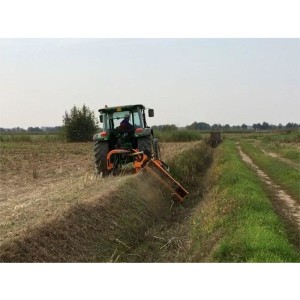

The model Deleks ALCE-140 is designed for cutting grass and brambles up to 4 cm in diameter. It is ideal for roadside verges. It can also be used for cutting bushes as it tilts about 90 degrees upwards and 60 degrees downwards
This Crusher Deleks also has a cAT 2 universal 3-point linkage. As for its features we can highlight its good transmission box GB Bologna made in Italy with freewheel.
The Brushcutter ALCE-140 comes with cE gimbal included, it also includes an electronically balanced rotor. The implement can be used on tractors with low power in gardens and orchards. It has a weight of 540 kg.
This model of Arm brushcutter Deleks guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these features we can highlight the working width of 1395mm and the total width 1790 mm. We can also highlight the adjustable cutting height from 35 up to 95mm and the total height 115mm.
Features
Working width | 1395.0 mm |
Overall width | 1790.0 mm |
Cutting height min/max | 35.0 - 95.0 mm |
Weight | 540.0 kg |
Total height | 1150.0 mm |
Tractor power | 50 - 90 hp |
3-point hitch | Cat. 2 (ø 25.0-28.0 mm) |
Position of the gearbox | External |
Hood height | 470.0 mm |
Distance between the lower points | 840.0 - 970.0 mm |
Number of hammers | 12 |
Max. cutting diameter | 40.0-50.0 mm |
Total length | 1750.0 mm (closed) |
Ground to gearbox spacing | 650.0 mm |
Plate thickness | 5.0 mm + reinforcements |
Thickness of sheet metal on the sides | 8.0 mm |
Skid thickness | 8.0 mm |
Transmission type | V-belts |

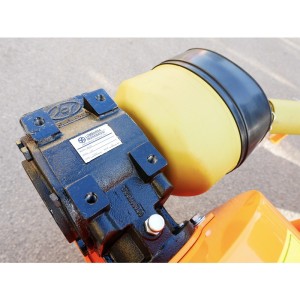

Transmission: Gearbox | Lombarda Ingranaggi Srl (Warranty 3 years) |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 2134 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: diameter of upper pulley | 220.0 mm |
Transmission: lower pulley diameter | 165.0 mm |
Transmission: number of Koreas | 4 |
Transmission: dimensions of the Koreas | 17x1300 |

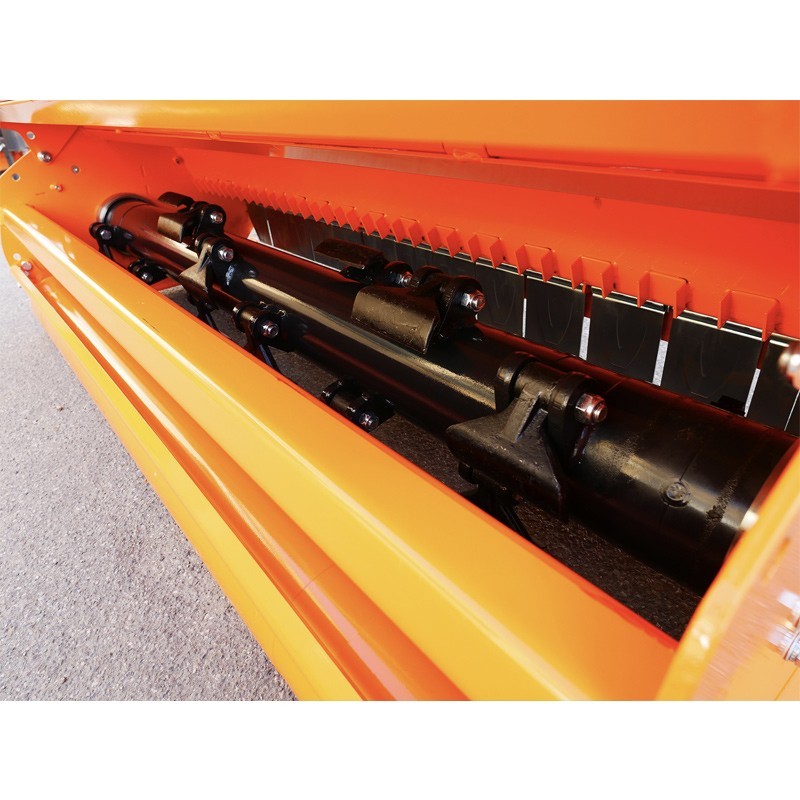

Rotor: diameter | 152.0 mm |
Rotor: bearing type and dimension | 40x90 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 8.0 mm |
Hammers: weight | 1100.0 g |
Hammers: hole dia | 16.0 mm |
Hammers: base width | 140.0 mm |
Hammers: head width | 40.0 mm |
Hammers: diagonal | 97.0 mm |
Roll: diameter | 152.0 mm |
Roll: sheet thickness | 6.0 mm |
Roll: bearing type and dimension | 90x40 mm - GB276-6308 |
Displacement and dimensions | View photos |

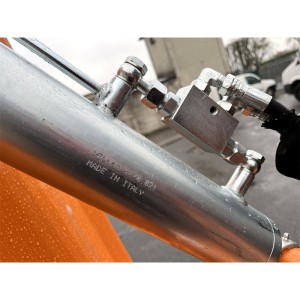

ø Hydraulic Cylinder A | 80.0-35.0 mm |
ø Hydraulic Cylinder B | 60.0-30.0 mm |
Oil pressure min/max | 120 - 150 bar |
Optiomal oil flow | 18 - 22 l/min |
Hydraulic hoses | WP 400 Bar, 1/2" Agri Standard |

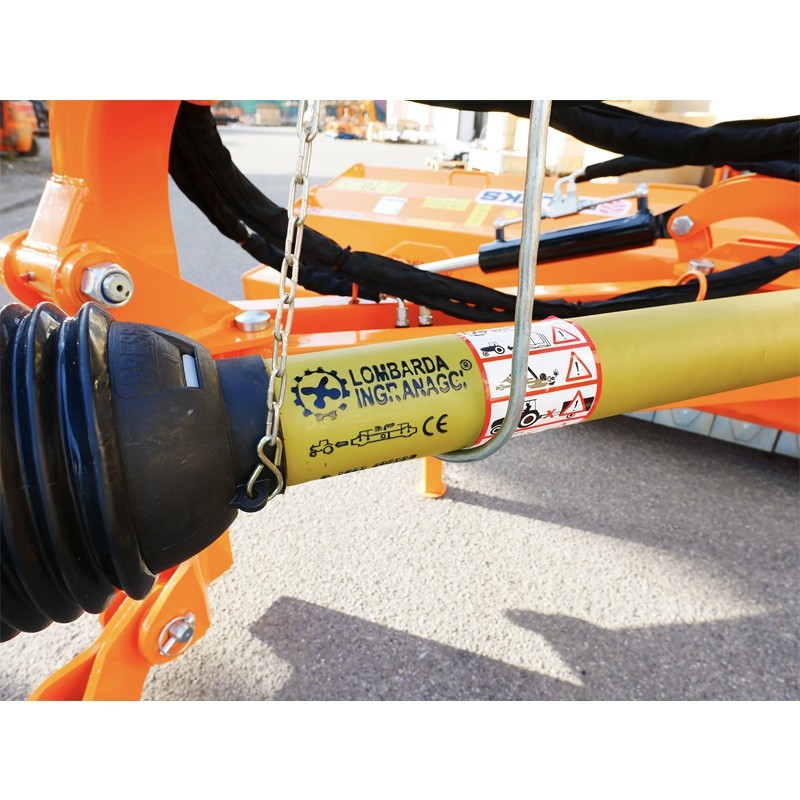

Cardan | CE 5x1800 mm |
Hood length | 770.0 mm |
Packaging dimensions | 1800.0*1000.0*1000.0 mm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
- Shredder type
- Shredder with side arm
- Type of cut
- Hammers
- Working width PTO
- 140 cm
- Tractor power
- 50 - 90 HP
- Cardan shaft
- Including
- Type of coupling
- Pantograph displacement
- Displacement
- Hydraulic
- Robustness
- Medium-Heavy
- Number of hammers
- 12
- Working width (cm)
- 140 - 149 cm
- Country of manufacture
- Italy
- Weight
- 540 kg
