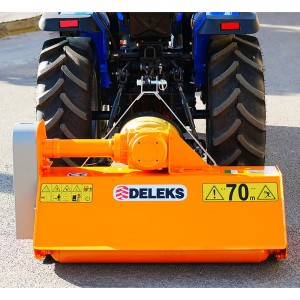

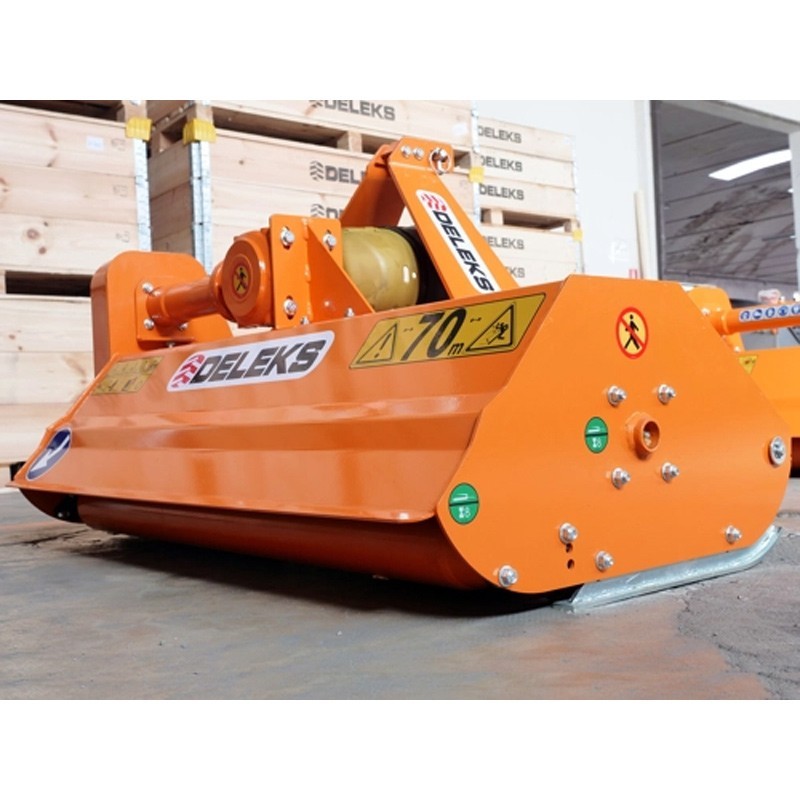

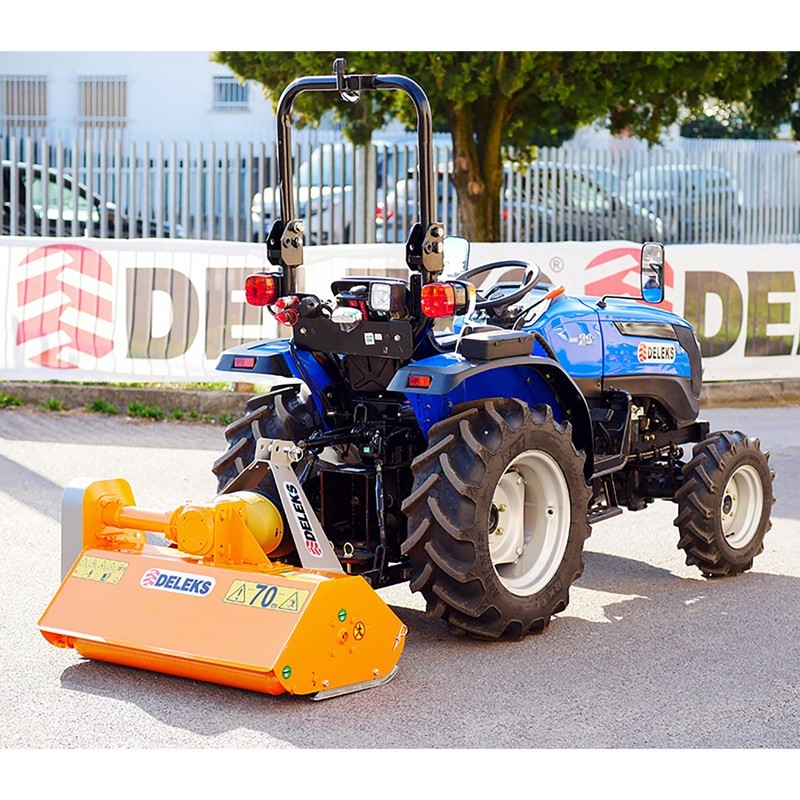

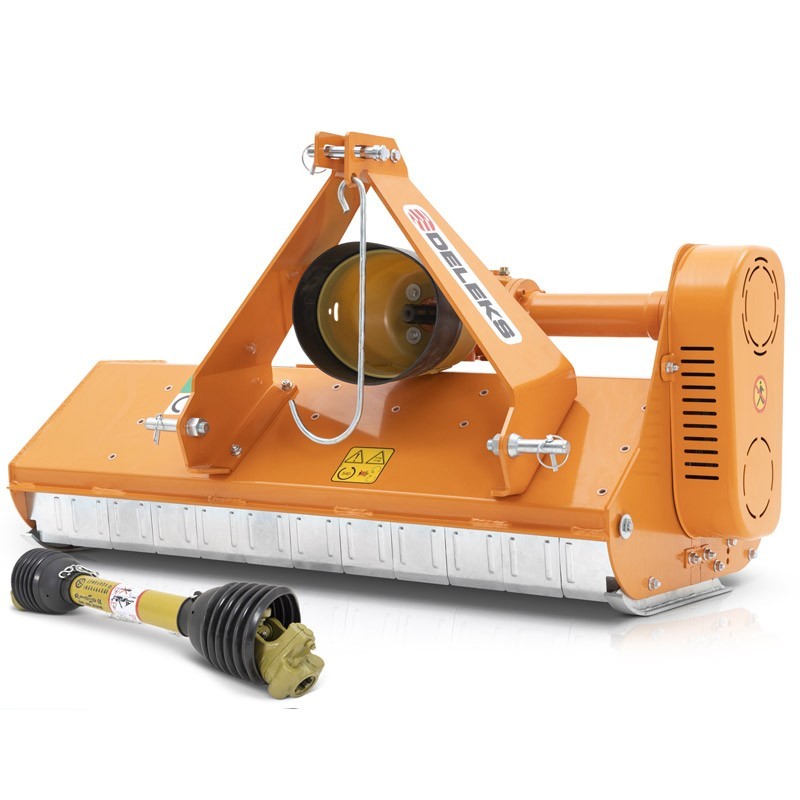

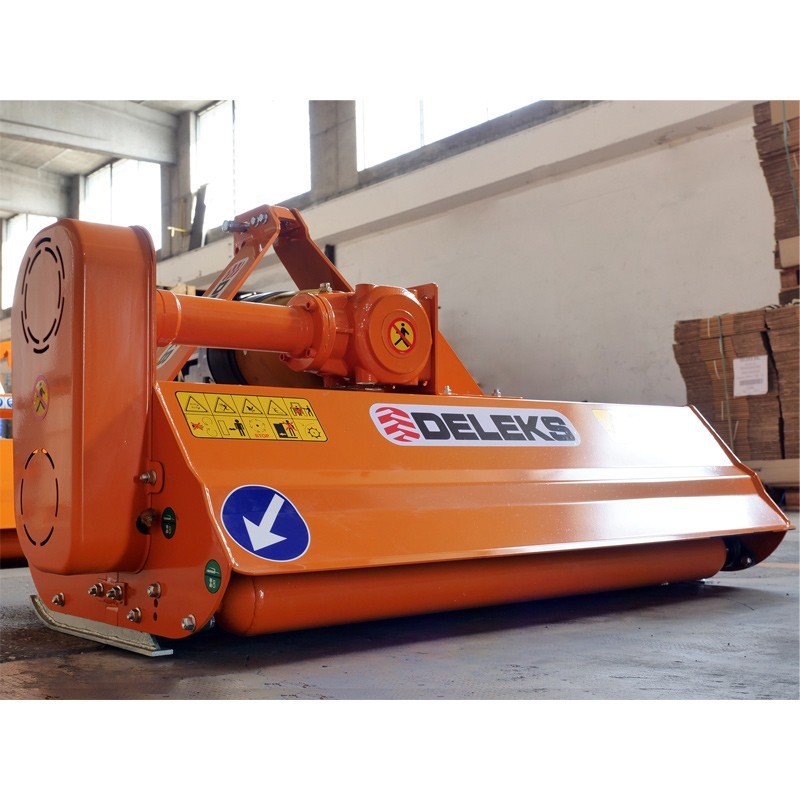

The Hammer crusher Deleks LINCE-120 is specially designed for tractors with low horsepower, and is 18 to 40 hp. This shredder model is used for gardens and agricultural fields.
The model Deleks LINCE-120 has forged hammers for grass and small brambles. It has an adjustable cutting height thanks to the rear roller and adjustable skids. It also has a cAT 1 universal 3-point linkage.
In terms of its characteristics, we can highlight its good structure completely in swedish steel SSAB. It also offers a rotor made of ARVEDI tube (Cremona) electronically balanced. It is made of S355 steel with 8mm thickness and hammers mounted on 6 rows.
The Hammer crusher Deleks LINCE-120 comes with cE gimbal included, it also includes hammer supports in HARDOX. The implement can be used on tractors with low power in gardens and orchards thanks to its light weight of 160kg.
This model of hammer crusher Deleks guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.

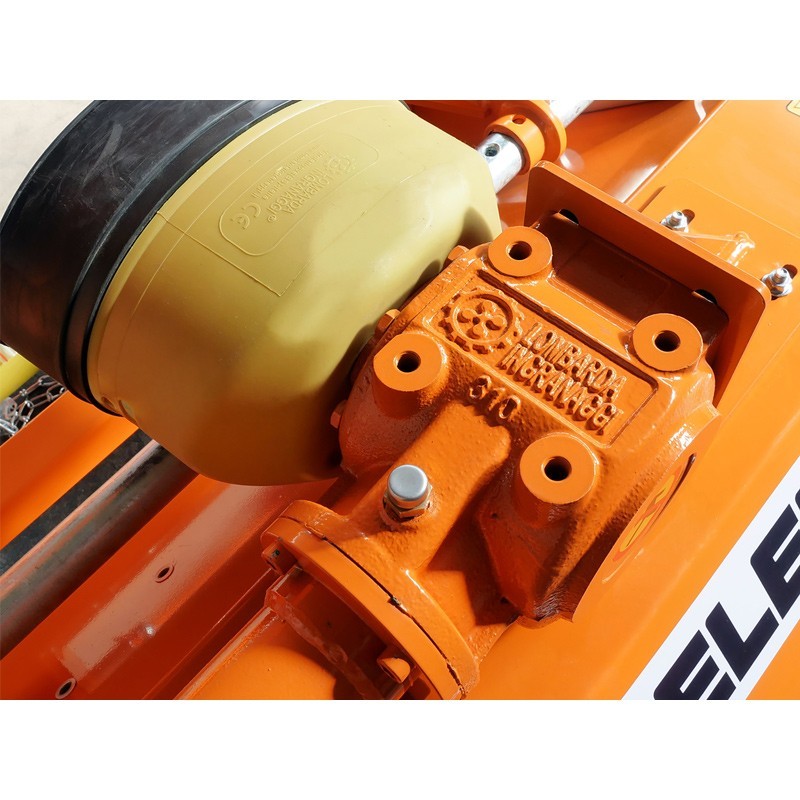

Among these features we can highlight the 1200mm working width and the total width of 1320mm. We can also highlight the cutting height adjustable from 10 to 45 mm and the total height 750mm. It has a transmission box Lombarda IngranaggiWith a freewheel.
Working width | 1200 mm |
Overall width | 1320 mm |
Cutting height min/max | 10 - 45 mm |
Weight | 160 kg |
Total height | 750 mm |
Tractor power | 16 - 40 hp |
3-point hitch | Cat. 1 (ø 19.0-22.0mm |
Position of the gearbox | 555.0 mm from left side / 765.0 mm from right side. |
Hood height | 370.0 mm |
Distance between the lower points | 470.0 - 710.0 mm |

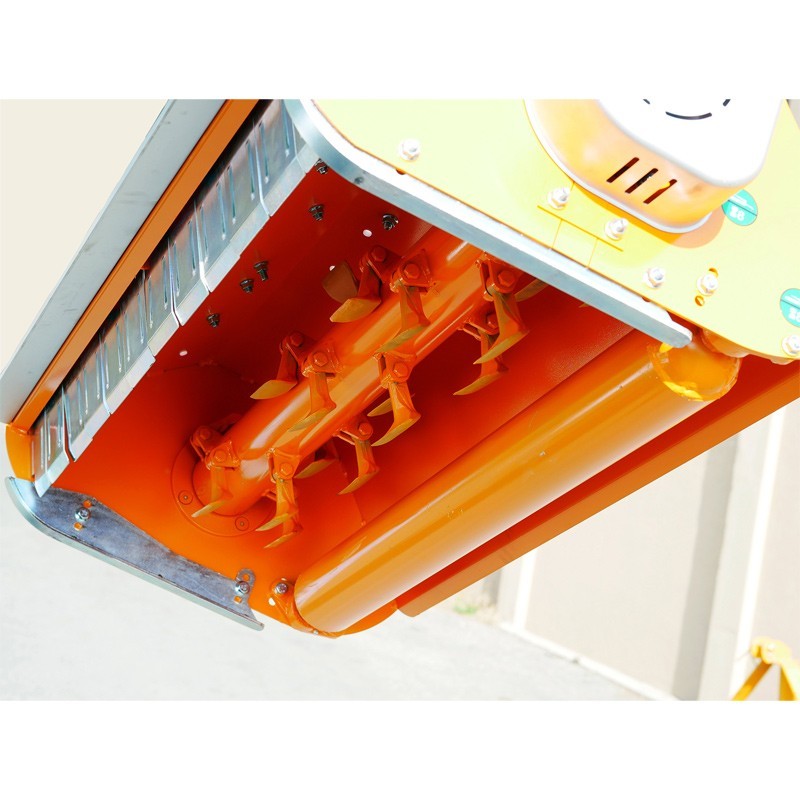

Number of hammers | 20 |
Max. cutting diameter | 20.0 - 30.0 mm |
Total length | 730.0 mm |
Ground to gearbox spacing | 472.0 mm |
Plate thickness | 3.0 mm |
Thickness of sheet metal on the sides | 5.0 mm |
Skid thickness | 6.0 mm |

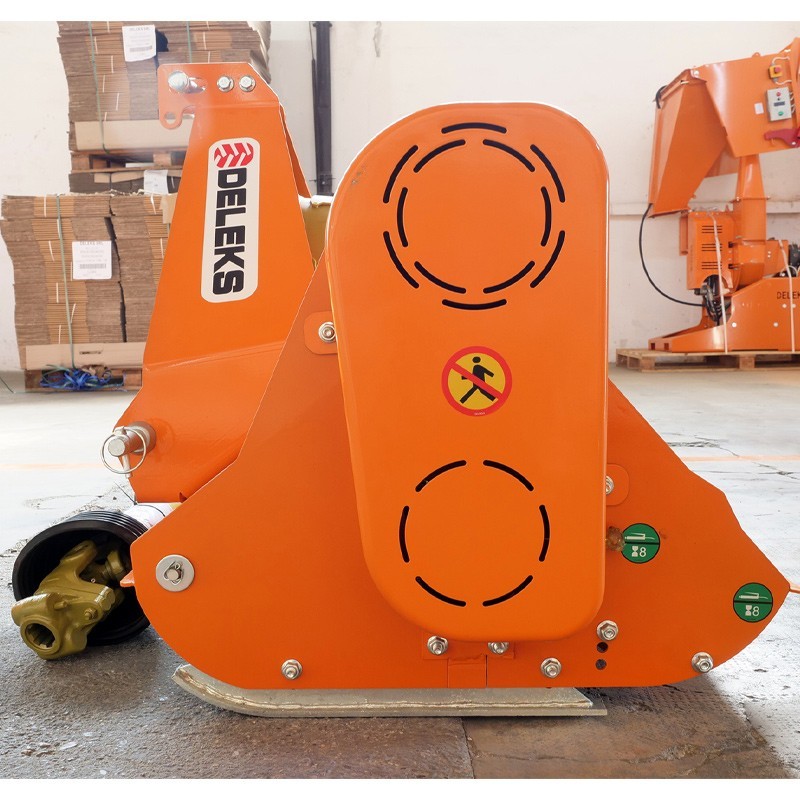

Transmission type | V-belts |
Transmission: Gearbox | Lombarda Ingranaggi Srl (Italy) (3 years warranty) |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 3150.0 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: diameter of upper pulley | 206.0 mm |
Drive: diameter of lower pulley | 106.0 mm |
Transmission: number of Koreas | 3 |
Transmission: dimensions of the Koreas | AX39 |
Rotor: diameter | 102.0 mm |

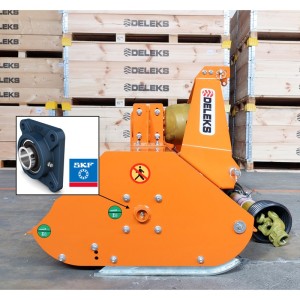

Rotor: bearing type and dimension | SKF UCF-207 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 8.0 mm |
Hammers: weight | 330.0 g |
Hammers: hole dia | 11.0 mm |
Hammers: base width | 80.0 mm |
Hammers: head width | 14.0 mm |
Hammers: diagonal | 75.0 mm |
Roll: diameter | 102.0 mm |
Roll: sheet thickness | 5.0 mm |
Roll: bearing type and dimension | FL205 |

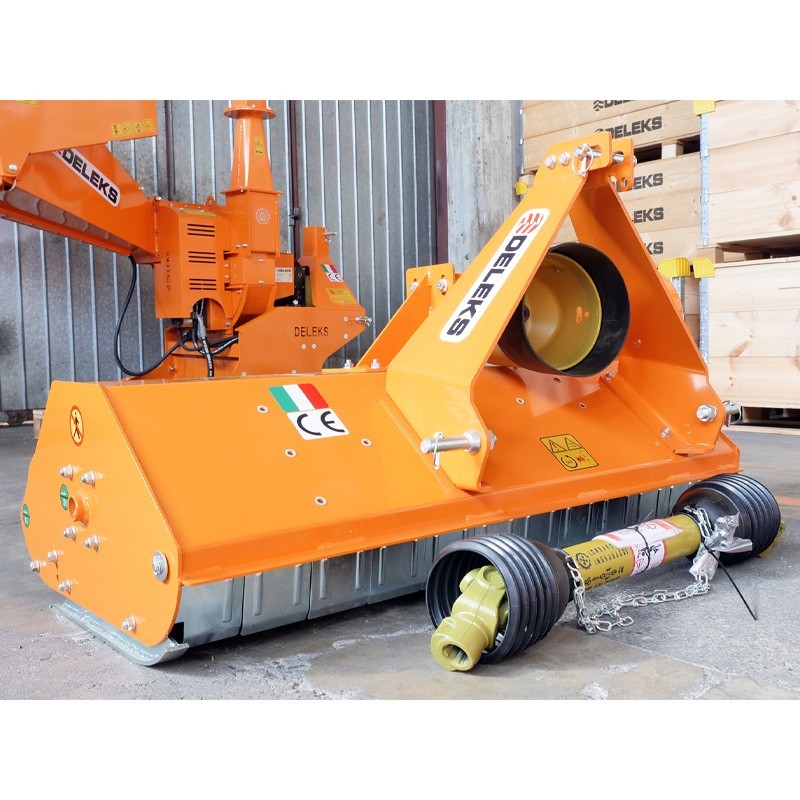

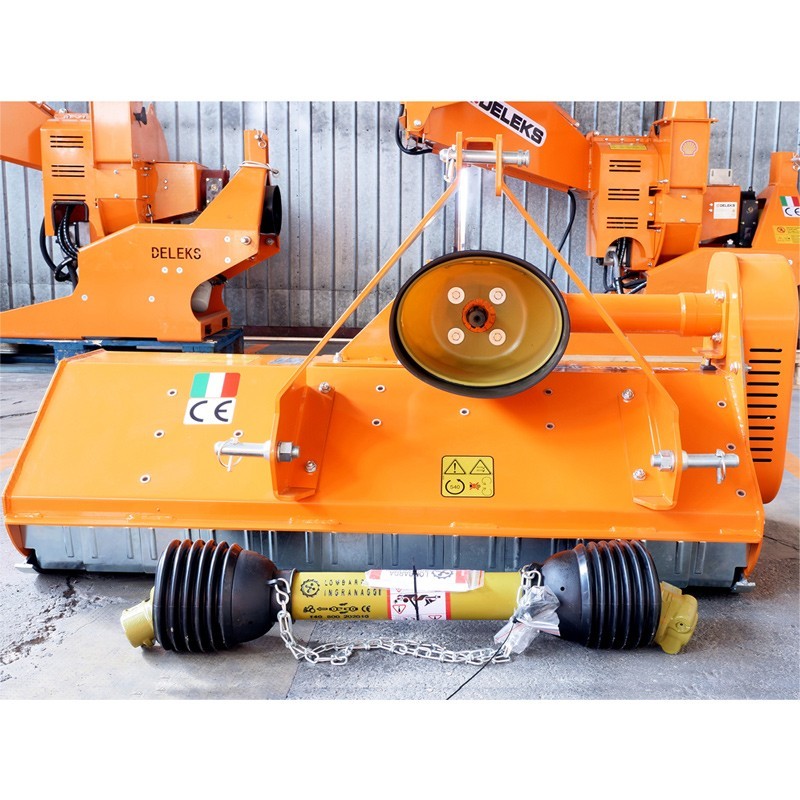

Cardan | CE 4x800 mm |
Hood length | 665.0 mm |
Horizontal displacement | - |
Packing dimensions | 1350.0*850.0*700.0 mm |
Data sheet
Specific References
CARDAN SHAFT INCLUDED
Cardan shaft included
CARDAN SHAFT INCLUDED
