CARDAN SHAFT INCLUDED
| Assembly and set-up INCLUDED |

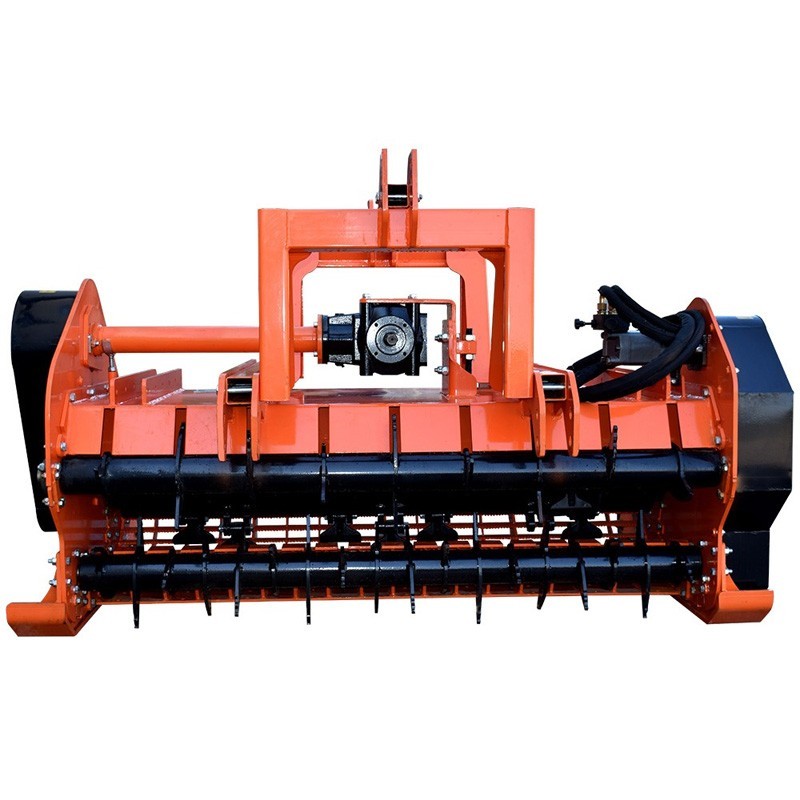

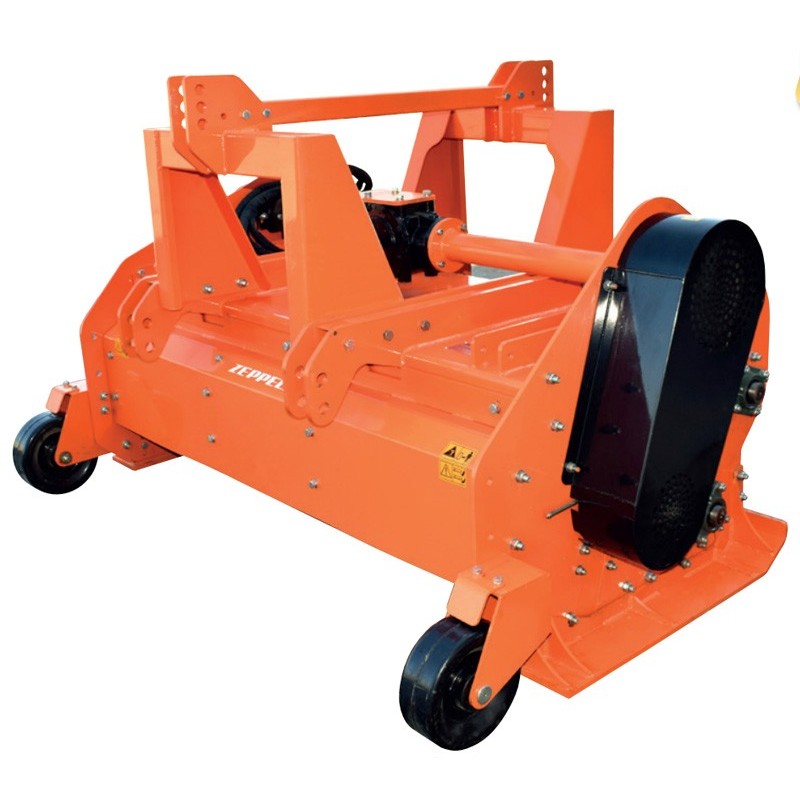

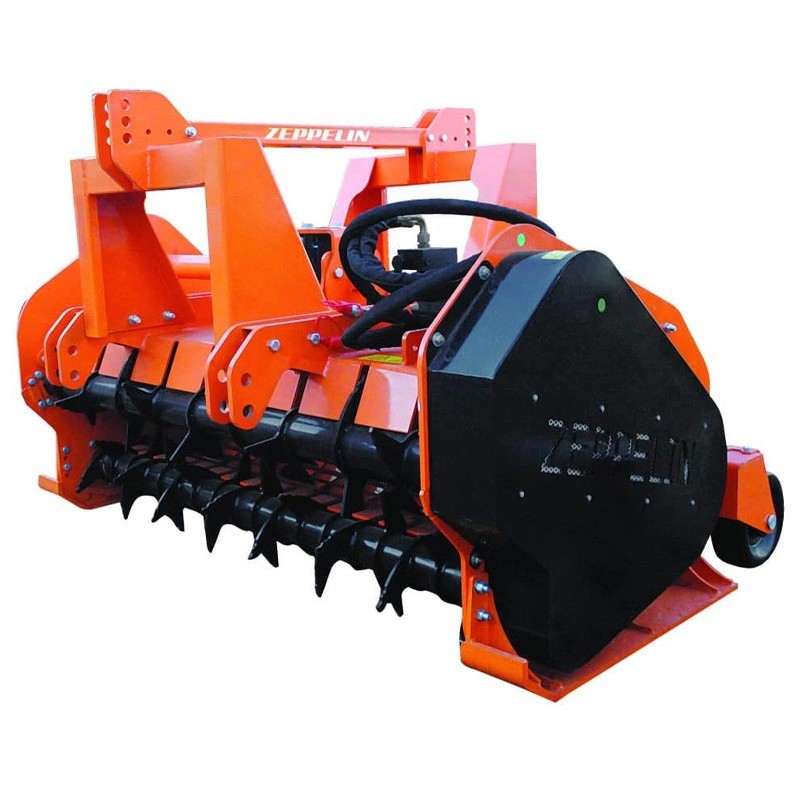

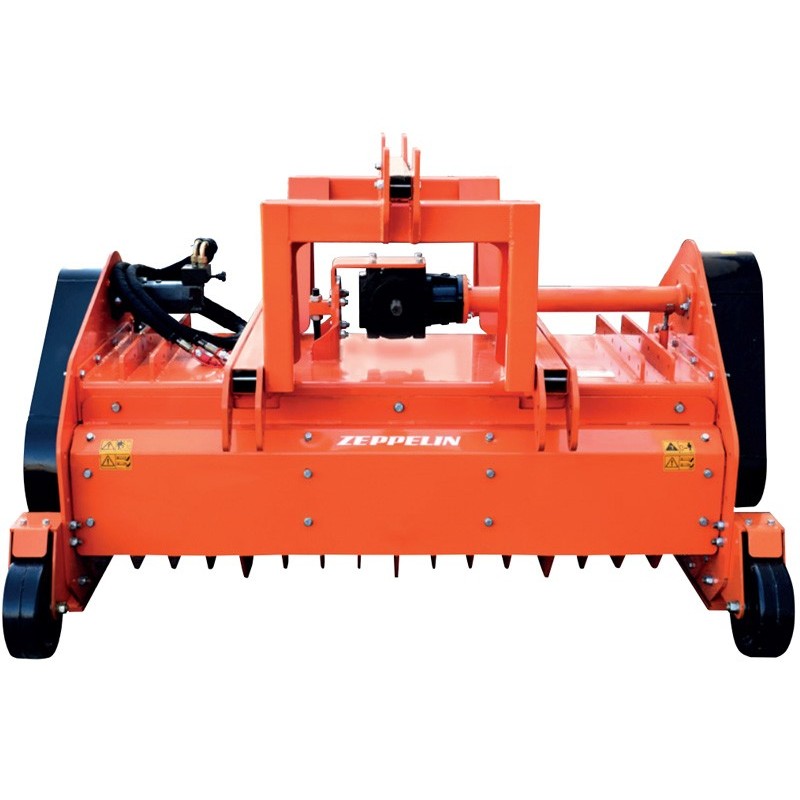

The reversible pruning shredder zeppelin top Ram offers several models that vary mainly in working width (1300-1800 mm) and tractor power required (75-100 Hp)

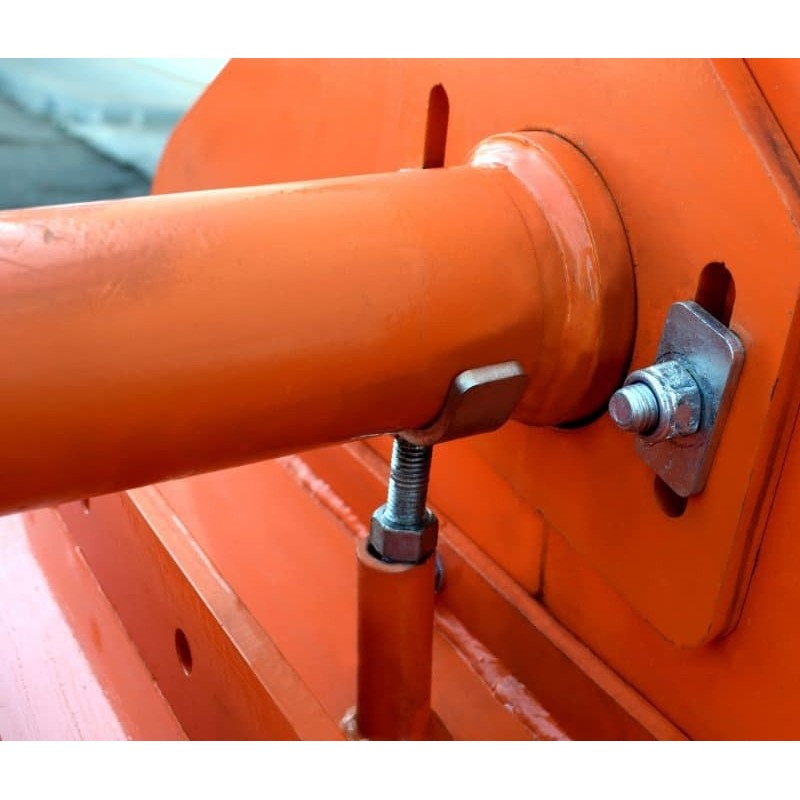

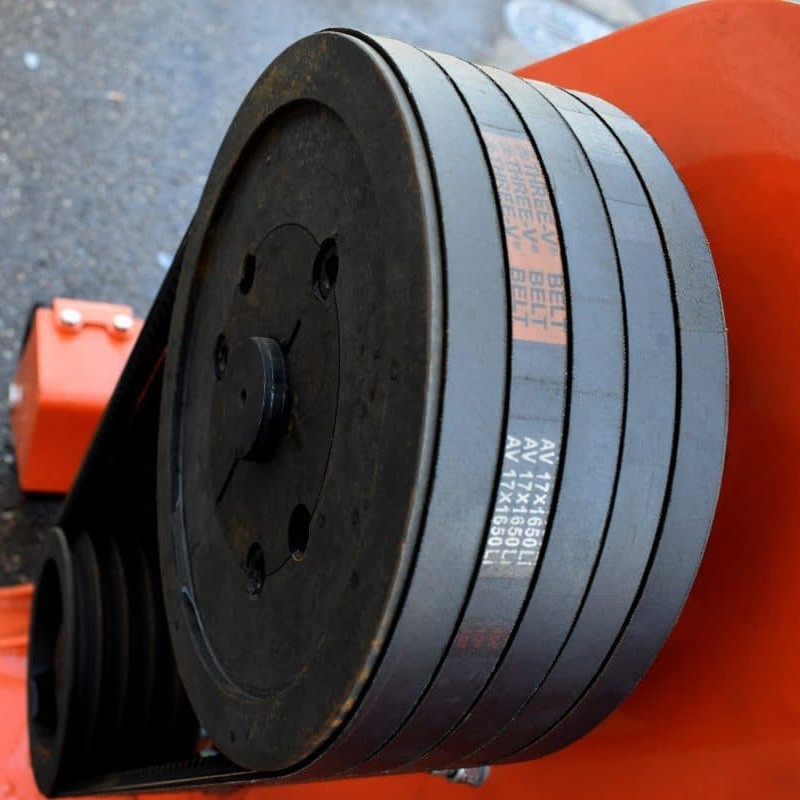

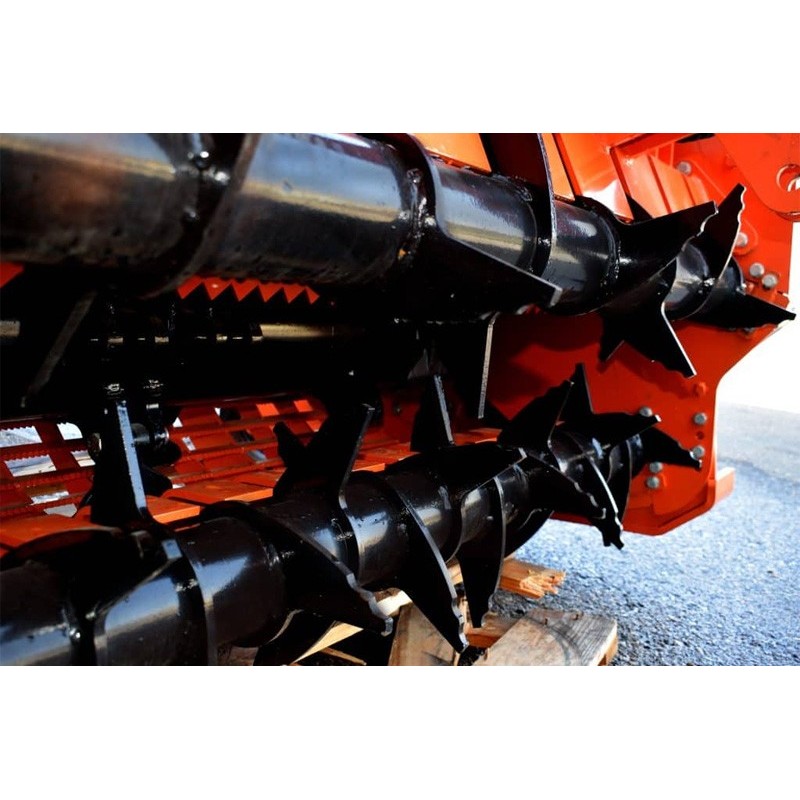

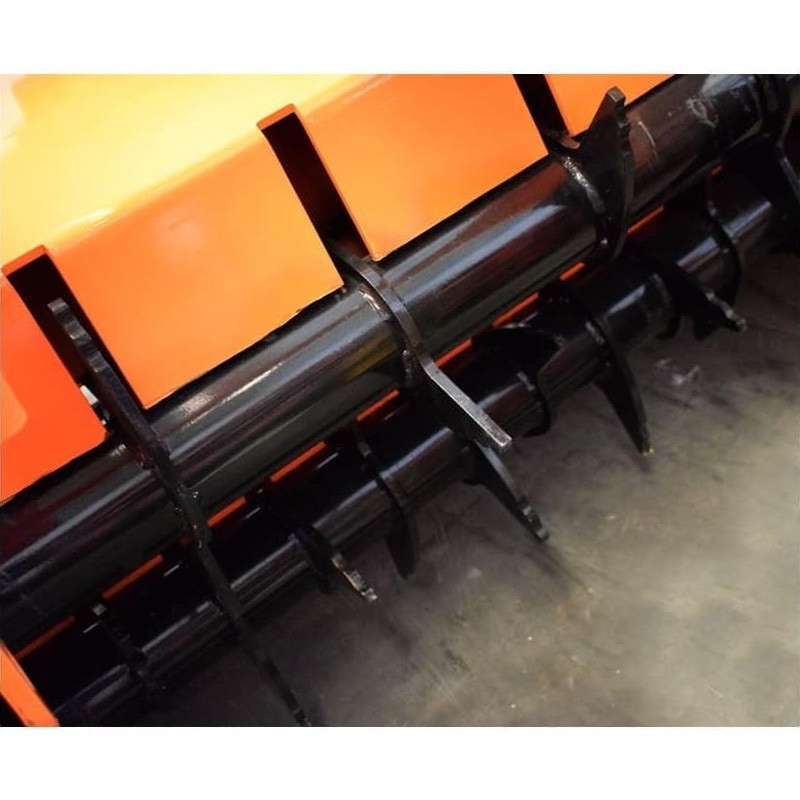

In addition, it has a long service life thanks to details such as: feeder speed regulation, reinforced hammers, reinforced chassis, CE safety protection, chain tensioner and belt tensioner.

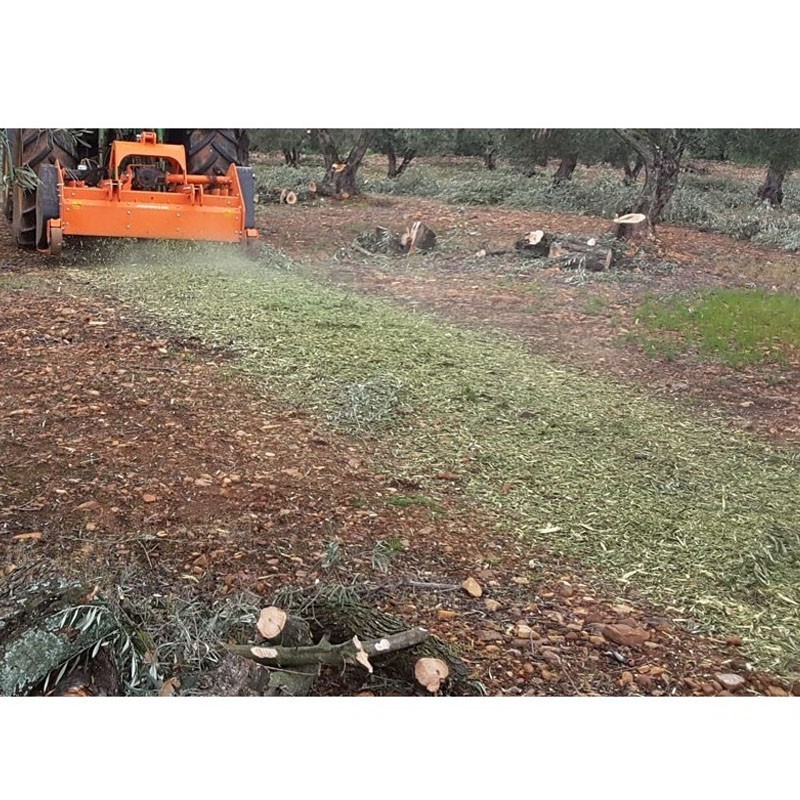

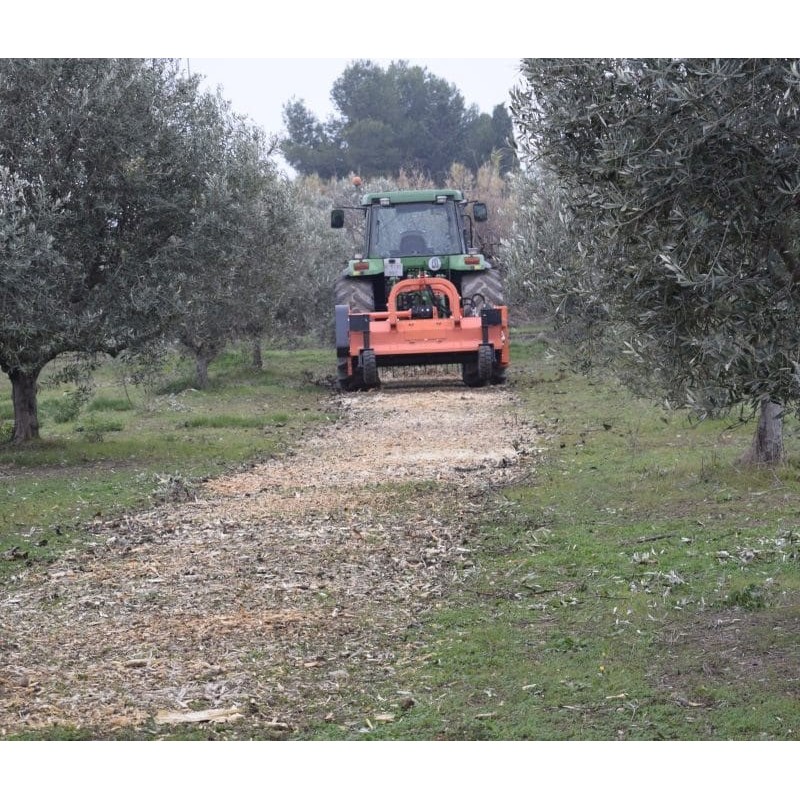

All this in a specialized design for olive groves and vineyards
| Model | ESTOPRAM13MZ | ESTOPRAM15MZ | ESTOPRAM16MZ | ESTOPRAM18MZ |
| Weight (kg) | 910 | 1300 | 1350 | 1458 |
| Working width (mm) | 1300 | 1500 | 1600 | 1800 |
| Blades | 16 | 18 | 18 | 22 |
| PTO (rpm) | 540 | 540 | 540 | 540 |
| Power requirement (Hp) | 80 - 100 | 90 - 120 | 100 - 120 | 120 - 150 |
| A (mm) | 1213 | 1308 | 1308 | 1308 |
| B (mm) | 1654 | 1866 | 1966 | 2150 |
| C (mm) | 1472 | 1470 | 1470 | 1550 |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
