Side hammer crusher for tractor Deleks ALCE-180 70-110HP
- Tractor power: 70 - 110 HP
- Cutting height: 35 - 95 mm
- Cutting width: 1795 mm
- Number of hammers: 16
Deleks products take about 15 to 25 days. |

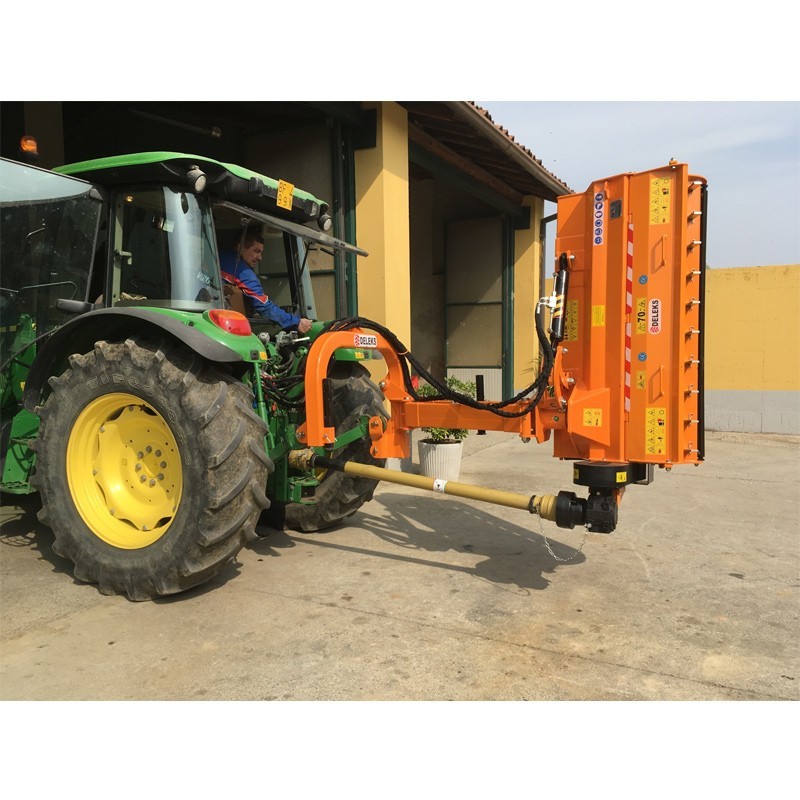

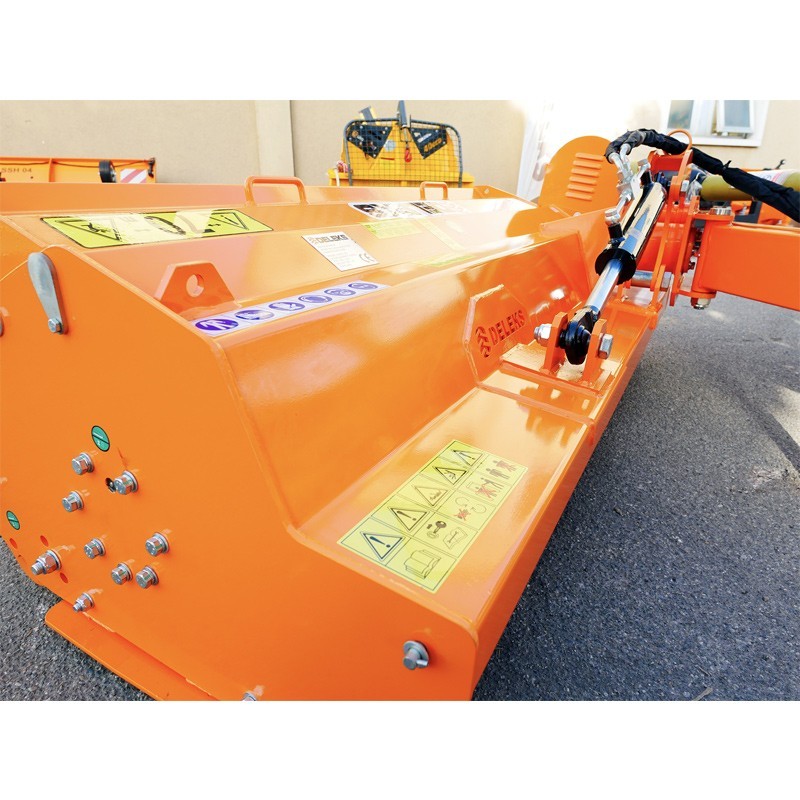

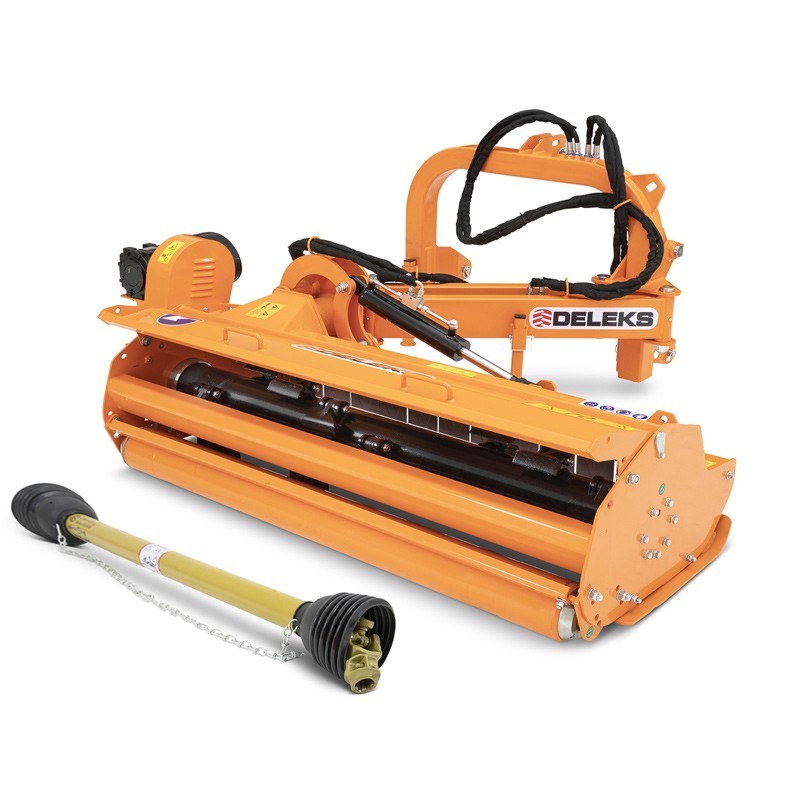

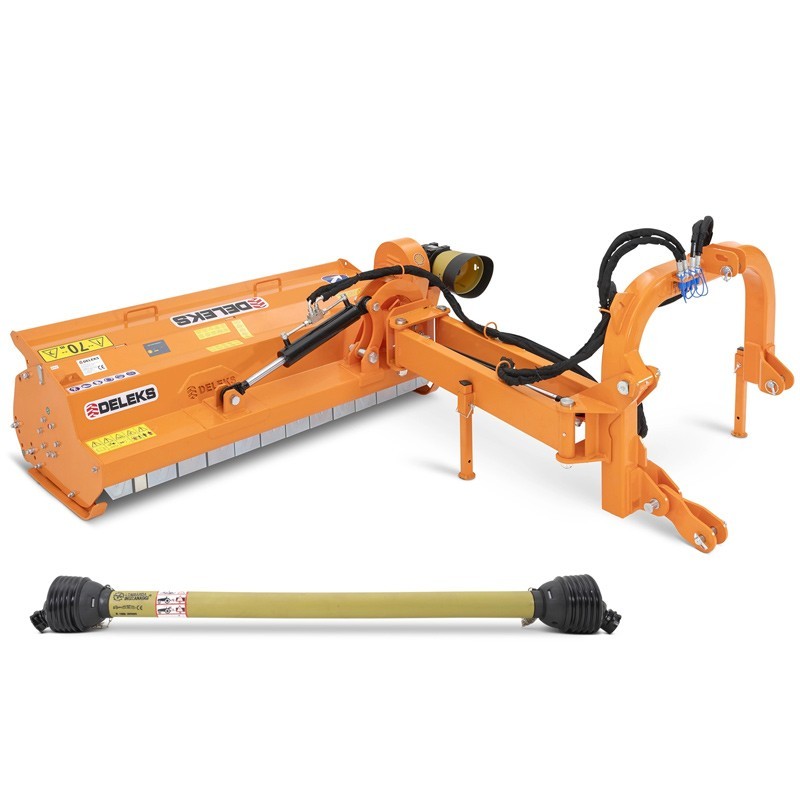

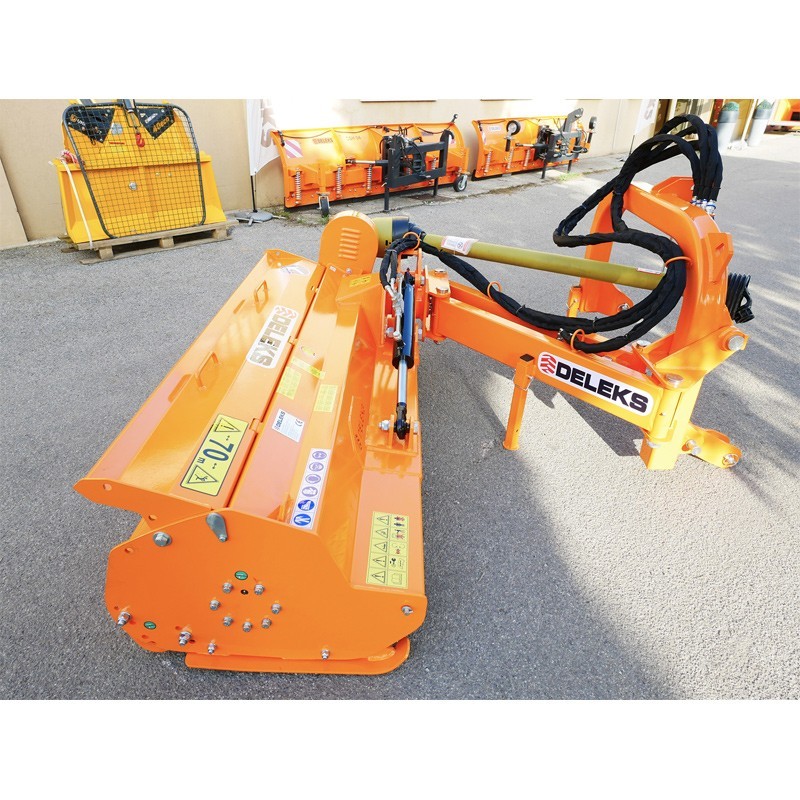

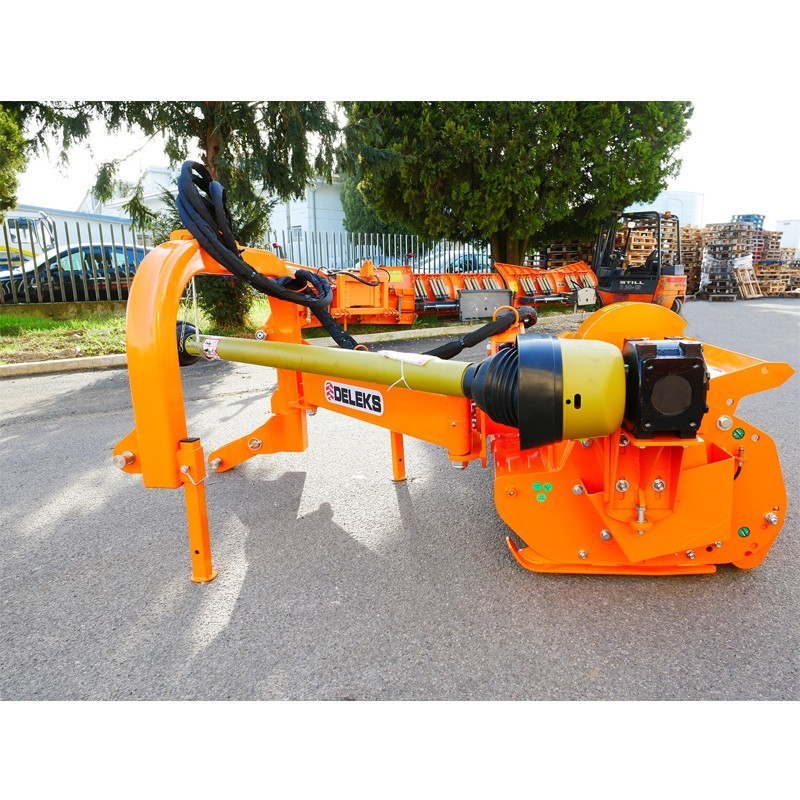

Side hammer shredder for tractor Deleks ALCE-180
The Arm brushcutter Deleks ALCE-180 is specially designed for tractors with low horsepower, and is 70-110HP. This brushcutter model is used for lawns, gardens and vineyards.

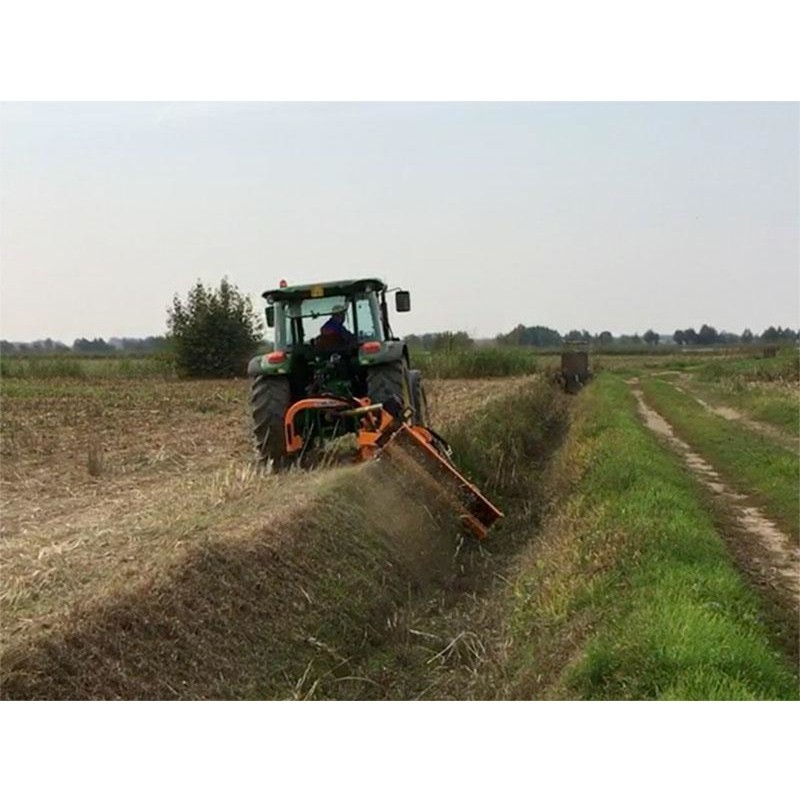

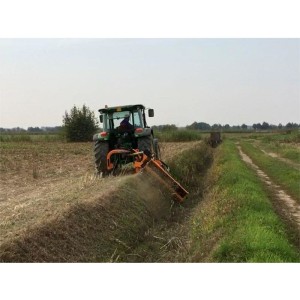

The model Deleks ALCE-180 is designed for cutting grass and brambles up to 4 cm in diameter. It is ideal for roadside verges. It can also be used for cutting bushes as it tilts about 90 degrees upwards and 60 degrees downwards

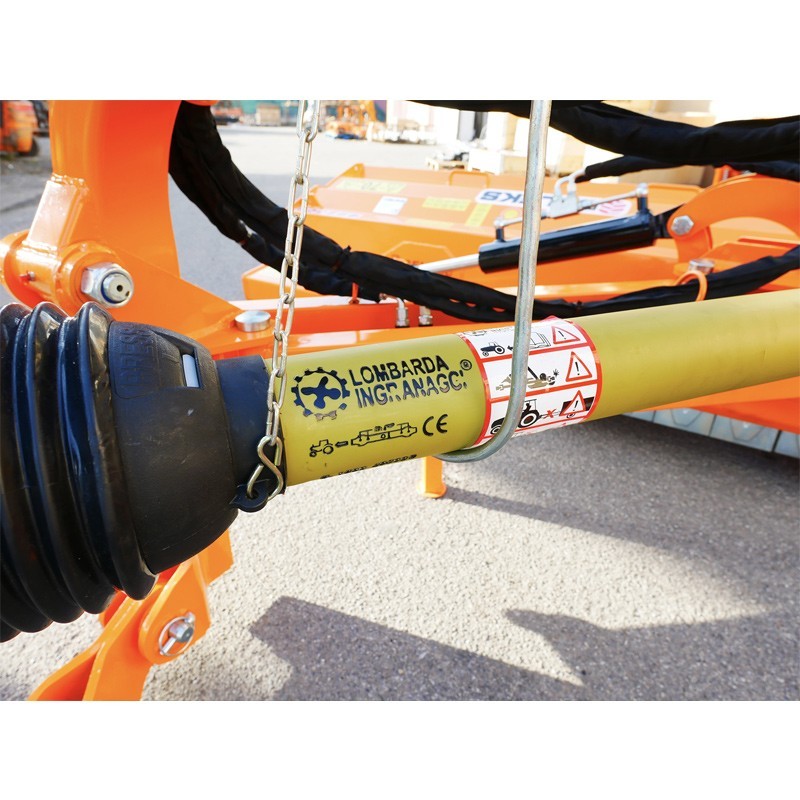

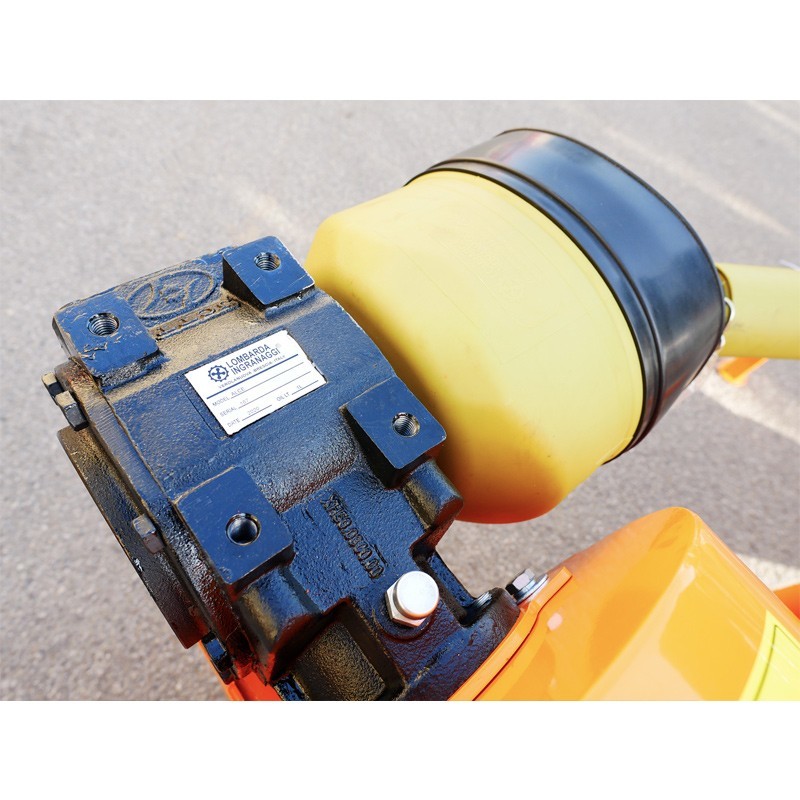

This Crusher Deleks also has a cAT 2 universal 3-point linkage. As for its features we can highlight its good transmission box Lombarda Ingranaggi made in Italy with free wheel.
The Brushcutter ALCE-180 comes with cE gimbal included, it also includes an electronically balanced rotor. The implement can be used on tractors with low power in gardens and orchards. It has a weight of 640 kg.
This model of Arm brushcutter Deleks guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these features we can highlight the working width of 1795mm and the total width 2190 mm. We can also highlight the adjustable cutting height from 35 up to 95mm and the total height 115mm.
Features
Working width | 1795 mm |
Overall width | 2190 mm |
Cutting height min/max | 35 - 95 mm |
Weight | 640 kg |
Total height | 1150 mm |
Tractor power | 70 - 110 HP |
3-point hitch | Cat. 2 (ø 25.0-28.0 mm) |
Position of the gearbox | External |
Hood height | 470 mm |
Distance between the lower points | 840 - 970 mm |
Number of hammers | 16 |
Max. cutting diameter | 40-50 mm |
Total length | 1750 mm (closed) |
Ground to gearbox spacing | 650 mm |
Plate thickness | 5 mm + reinforcements |
Thickness of sheet metal on the sides | 8 mm |
Skid thickness | 8 mm |
Transmission type | V-belts |
Transmission: Gearbox | Lombarda Ingranaggi Srl |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 2134 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: diameter of upper pulley | 220 mm |
Transmission: lower pulley diameter | 165.0 mm |
Transmission: number of Koreas | 4 |
Transmission: dimensions of the Koreas | 17x1300 |

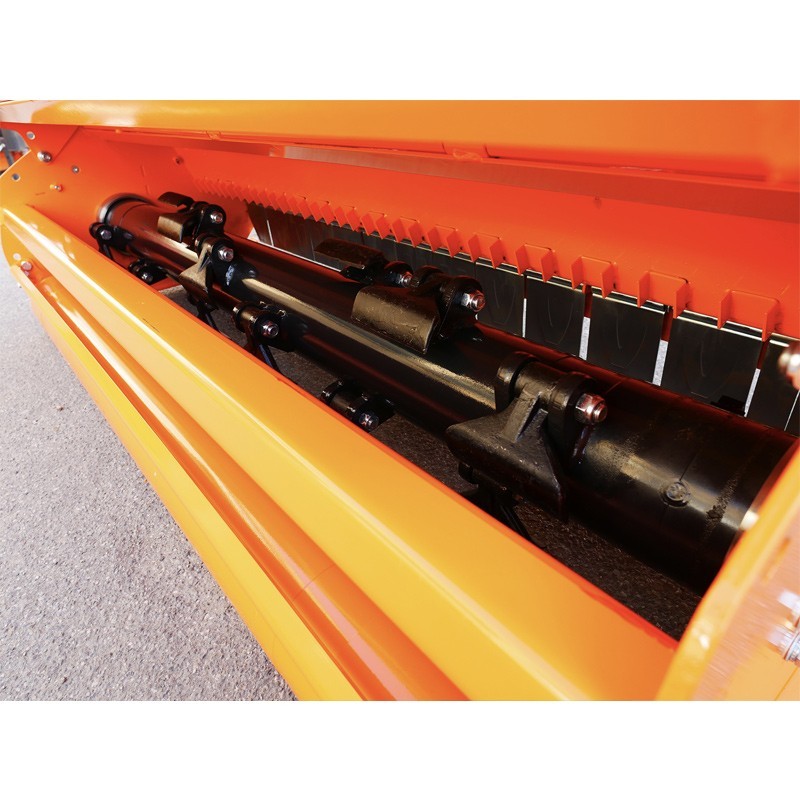

Rotor: diameter | 152 mm |
Rotor: bearing type and dimension | 40x90 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 8.0 mm |
Hammers: weight | 1100 g |
Hammers: hole dia | 16.0 mm |
Hammers: base width | 140 mm |
Hammers: head width | 40 mm |
Hammers: diagonal | 97 mm |
Roll: diameter | 152 mm |
Roll: sheet thickness | 6 mm |
Roll: bearing type and dimension | 90x40 mm - GB276-6308 |
Displacement and dimensions | View photos |

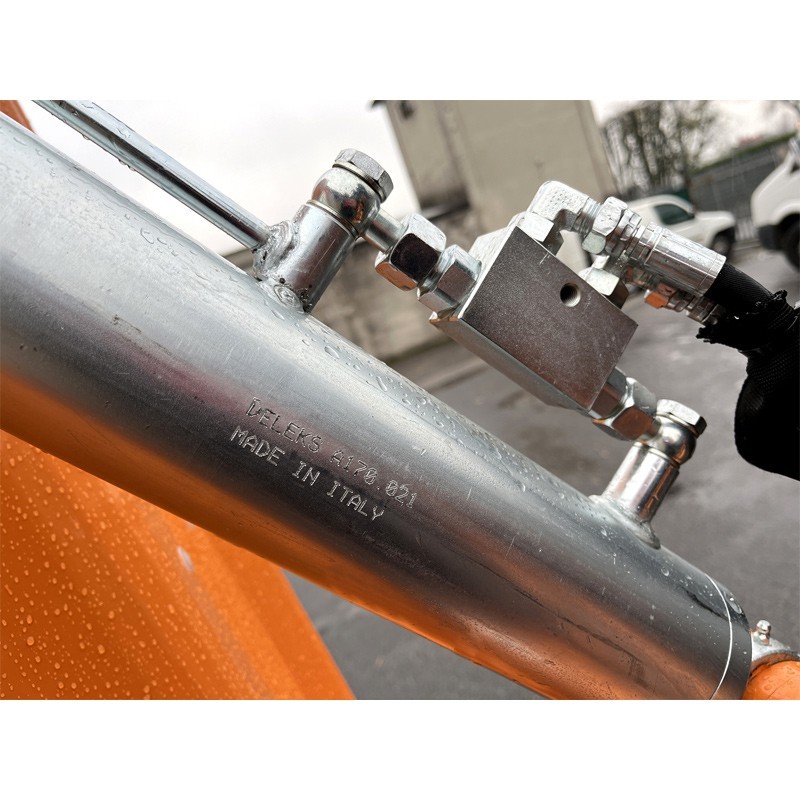

ø Hydraulic Cylinder A | 80-35 mm |
ø Hydraulic Cylinder B | 60-30 mm |
Oil pressure min/max | 120 - 150 bar |
Optiomal oil flow | 18 - 22 l/min |
Hydraulic hoses | WP 400 Bar, 1/2" Agri Standard |
Cardan | CE 5x1800 mm |
Hood length | 770 mm |
Packaging dimensions | 2200*1000*1000 mm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
- Shredder type
- Shredder with side arm
- Type of cut
- Hammers
- Working width PTO
- 180 cm
- Tractor power
- 70 - 110 HP
- Cardan shaft
- Including
- Type of coupling
- Pantograph displacement
- Displacement
- Hydraulic
- Robustness
- Medium-Heavy
- Number of hammers
- 16
- Working width (cm)
- 180 - 189 cm
- Country of manufacture
- Italy
- Weight
- 640 kg
