Zeppelin Sahara movable hammer crusher with side disc
Zeppelin Sahara movable hammer crusher with side disc
Zeppelin Sahara movable hammer crusher with side disc
Zeppelin Sahara movable hammer crusher with side disc
Zeppelin Sahara movable hammer crusher with side disc
Zeppelin Sahara movable hammer crusher with side disc

Zeppelin Sahara movable hammer crusher with side disc

Rating:
(0)
  • Working width: 1250 mm
  • Power required: 20-40 Hp
  • Weight: 324 kg

CARDAN SHAFT INCLUDED

Assembly and set-up INCLUDED
En stock
icon Shredder type
Shredder type
Rear shredder
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
125 - 175 cm
icon Tractor power
Tractor power
20 - 80 HP
icon Cardan shaft
Cardan shaft
Included
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Medium-Light
icon Number of hammers
Number of hammers
20 - 28
icon Includes
Includes
Interfila Disc
icon Weight
Weight
324 - 374 kg
€4,067.36 excl. VAT
- 7%
€3,782.64 excl. VAT
€4,577.00 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Zeppelin Sahara movable hammer crusher with side disc
€4,577.00
Select
Qty

Hammermill Shredder Zeppelin

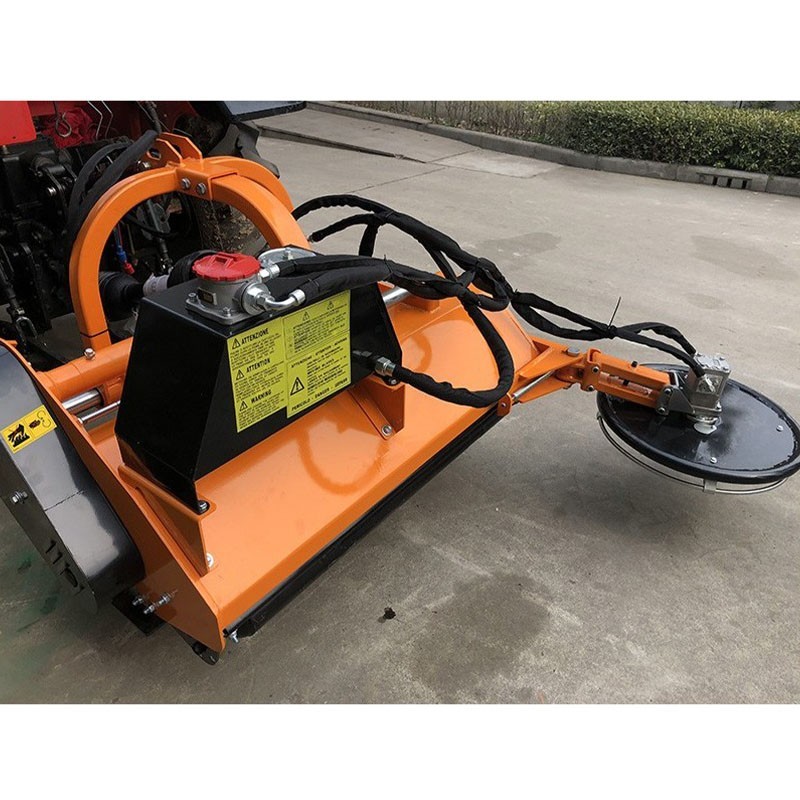

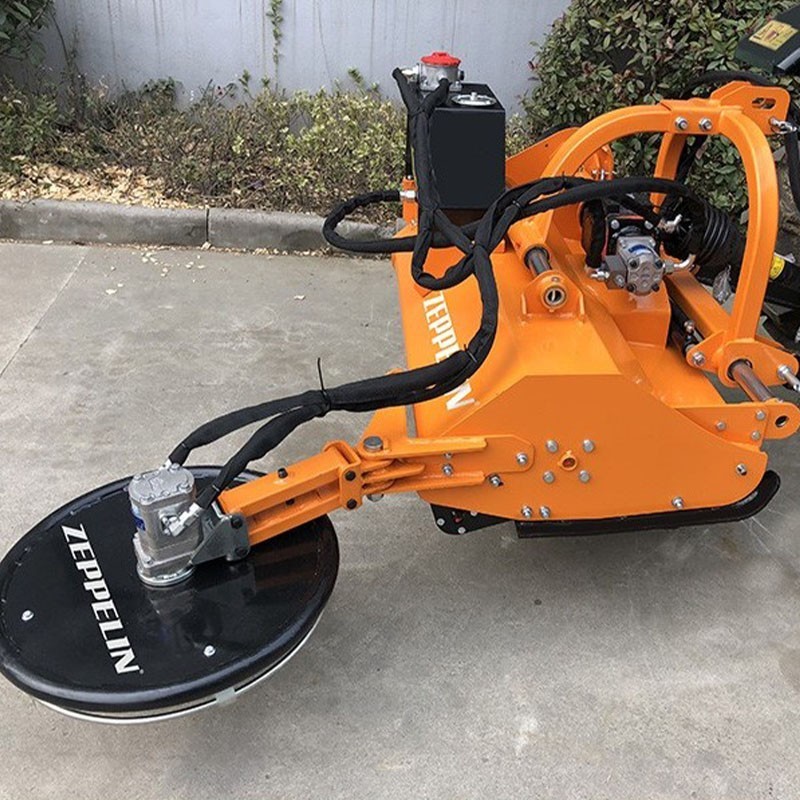

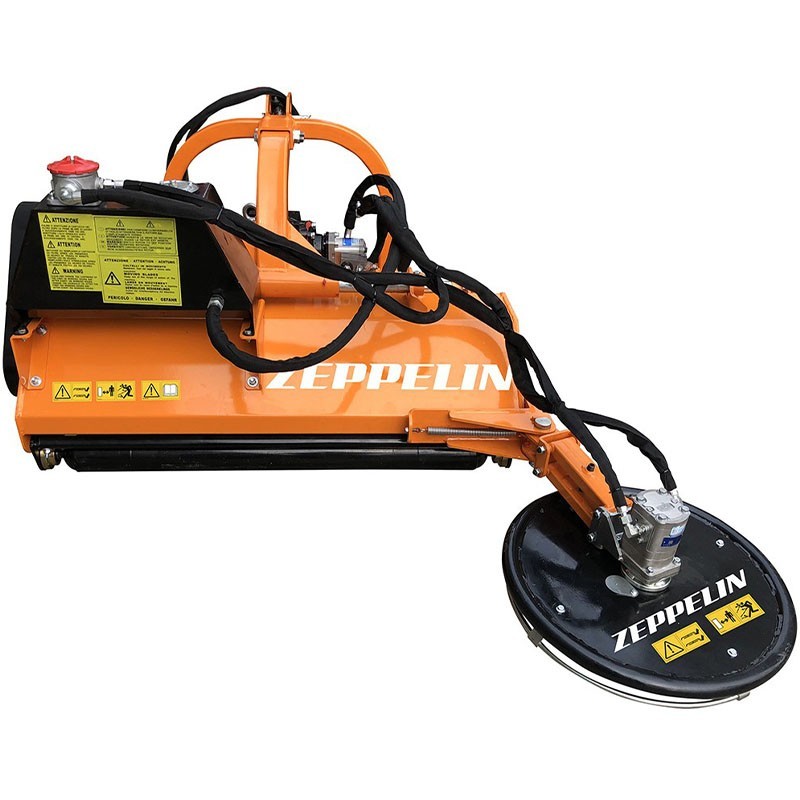

The Zeppelin Zahara Hammermill Crusher has a 108 mm side disc, which complements the crusher and helps to leave a flawless job.

The shredder itself has a wide working width of 1250 mm, which allows us to cover small and medium size farms at high speed.

All this can be used on tractors of between 20 and 40 horsepower.

Characteristics

Model ESTRDESP125ZCDH ESTRDESP155ZCDH ESTRDESP175ZCDH
Working width (mm) 1250 1550 1750
Weight (kg) 322 352 372
Belts 3 3 3
Hammers 20 24 28
Rotor diameter 108 108 108
Power requirement (Hp) 25-55 30-55 30-55
PTO (rpm) 540 540 540
Dimensions (cm) 50 x 137 x 165 50 x 167 x 165 50 x 187 x 165
Displacement (mm) 175 200 200

Specifications

  • Hydraulic with 630 mm diameter blades.
  • Hydraulic displacement shredder with hydraulic displacement.

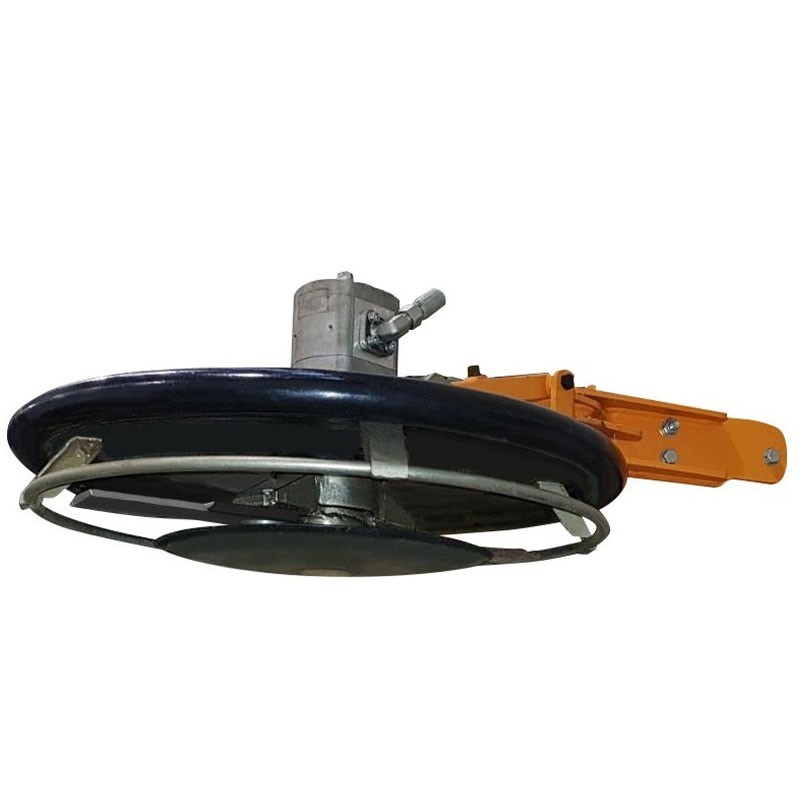

  • Side disc with hydraulic motor
  • Shredder for grass, fine pruning (up to 5 cm)

IMPORTANT NOTICES
It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement , unless there is a pending examination.


Document

Related products

156979

Data sheet

Shredder type
Rear shredder
Type of cut
Hammers
Working width PTO
125 - 175 cm
Tractor power
20 - 80 HP
Cardan shaft
Included
Type of coupling
Lateral displacement
Displacement
Hydraulic
Robustness
Medium-Light
Number of hammers
20 - 28
Working width (cm)
120 - 129 cm
150 - 159 cm
170 - 179 cm
Includes
Interfila Disc
Weight
324 - 374 kg
