Universal inter-row disc with feeler 63 cm Zeppelin 4 hoses
- Adaptable to any machine
- Double blade disc
- Perimeter protection
€1,606.69 VAT incl.
CARDAN SHAFT INCLUDED
Assembly and set-up INCLUDED |

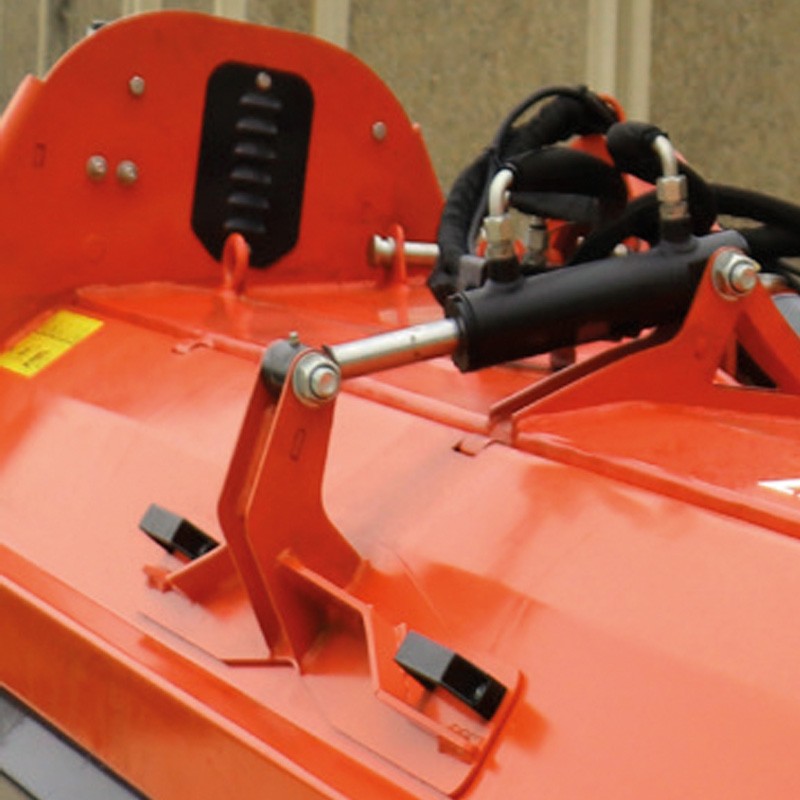

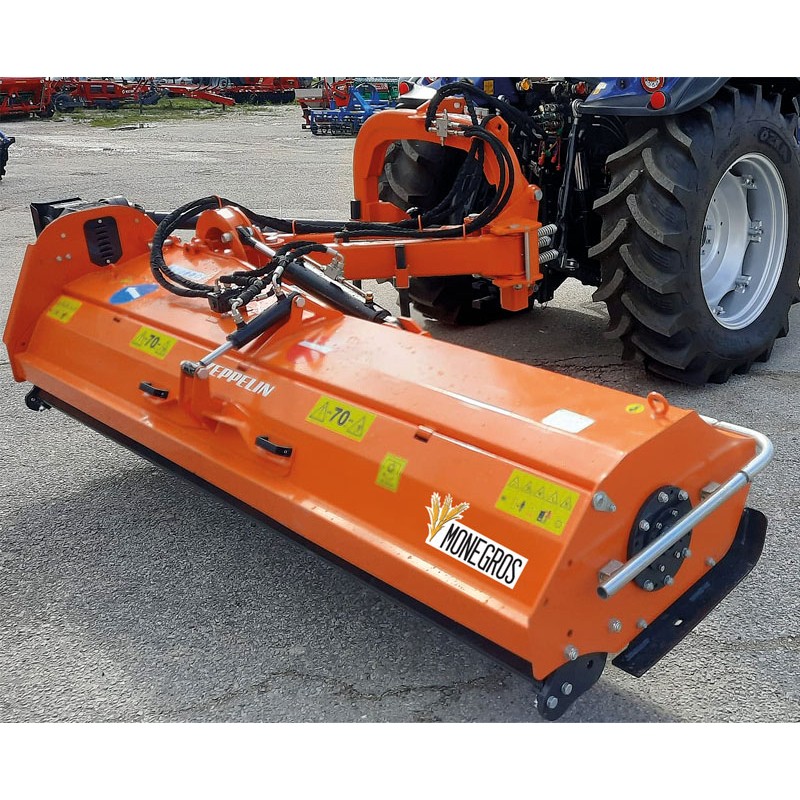

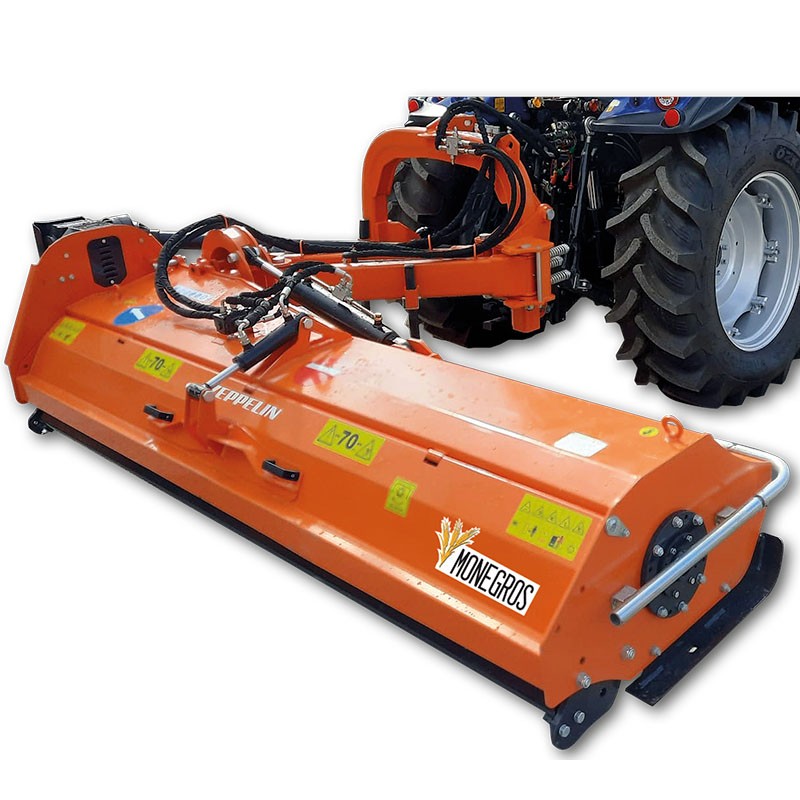

Shredder Zeppelin Monegros super reinforced with nitrogen accumulator which smoothes the lowering of the group and acts as antishock. The result is finer work, less shock and longer arm, cylinder and chassis life.
Rear door with hydraulic opening from the cab for fast unclogging or increased unloading. Rotor for hammers, arc and oversized anchors and cardan shaft included with long CV joint option.

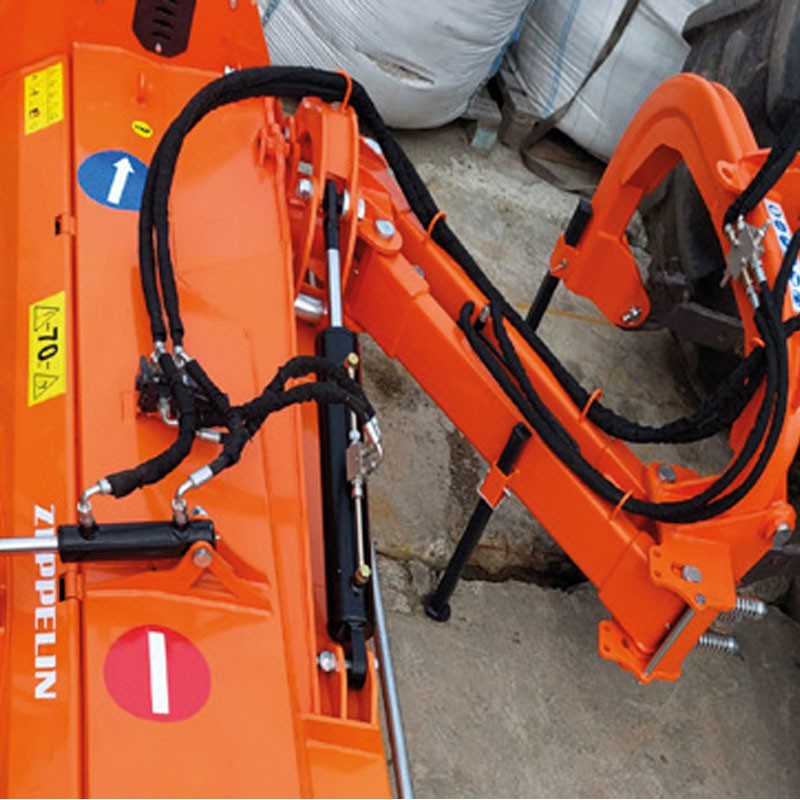

Your full Hydro system makes the difference. The accumulator works as a hydraulic spring and allows float mode to copy the ground without bouncing. The circuit incorporates a non-return valve that maintains the position in case of hose failure and a relief valve that prevents overpressure. A mechanical transport stop and protections on hoses and joints are added, achieving double hydraulic and mechanical safety.
Available in widths from 1.8 to 2.8 meters to adapt to the tractor and the crop to obtain a uniform shredding in vineyards, orchards, stubble and ditches.
Model | ESDESB1800APPMV | ESDESB2000APPMV | ESDESB2200APPMV |
Working width | 1780 mm | 1980 mm | 2180 mm |
Upper corner | 90º | 90º | 90º |
Lower angle | 53º | 65º | 65º |
Belts | 4 | 4 | 4 |
Hammers | 16 | 18 | 20 |
Tailgate opening | Manual | Manual | Manual |
Weight | 590 Kg | 856 Kg | 917 Kg |
PTO r/min | 540 | 540 | 540 |
Power required | 70-110 HP | 90-110 HP | 90-120 HP |
Model | ESDESB2450APPMV | ESDESB2800APP | |
Working width | 2450 mm | 2850 mm | |
Upper corner | 90º | 90º | |
Lower angle | 55º | 55º | |
Belts | 5 | 5 | |
Hammers | 26 | 28 | |
Tailgate opening | Manual | Hydraulics | |
Weight | 961 Kg | 999 Kg | |
PTO r/min | 540 | 540 | |
Power required | 110-140 HP | 130-180 HP |
Dimensions
|
![]() |
IMPORTANT NOTICES |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
