Hydraulic offset PTO shredder Becchio Mandrile TB
- Minimum tractor power : 35 HP
- Tractor transmission : 540 rpm
- Cutting revolutions : 2550 rpm
CARDAN SHAFT INCLUDED
€5,929.00 VAT incl.
CARDAN SHAFT INCLUDED
Assembly and set-up INCLUDED |

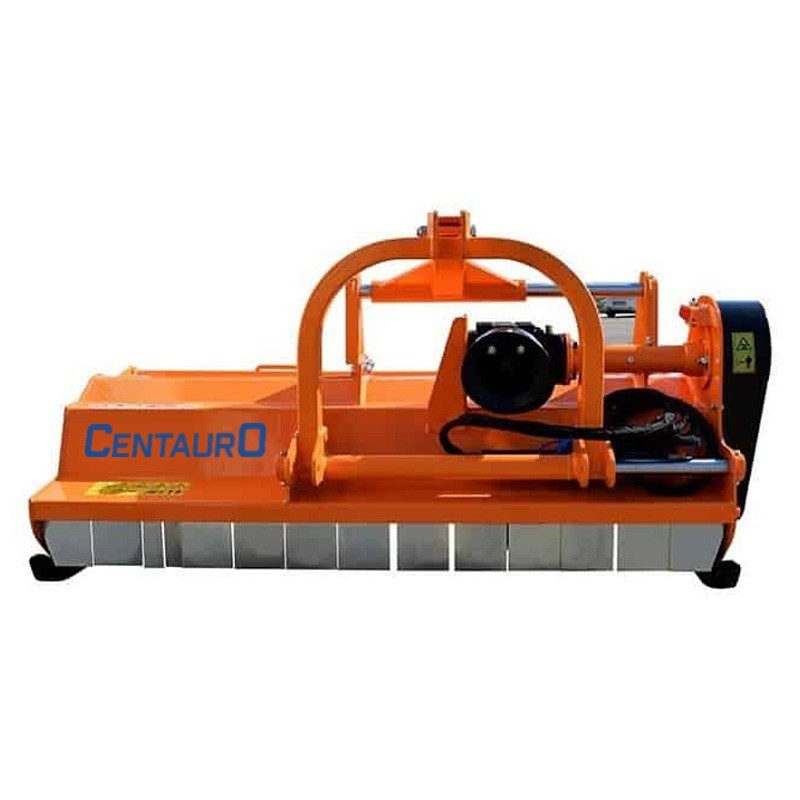

The Centauro Jaén ride-on hammermill shredder is the perfect tool for olive grove maintenance and pruning waste management, offering exceptional performance in shredding grass and prunings up to 7 cm. With models available as Jaén 170, Jaén 200 and Jaén 220, this shredder features a hydraulic sliding hitch and a reinforced cast iron group with freewheel, guaranteeing durability and stability in its operation.

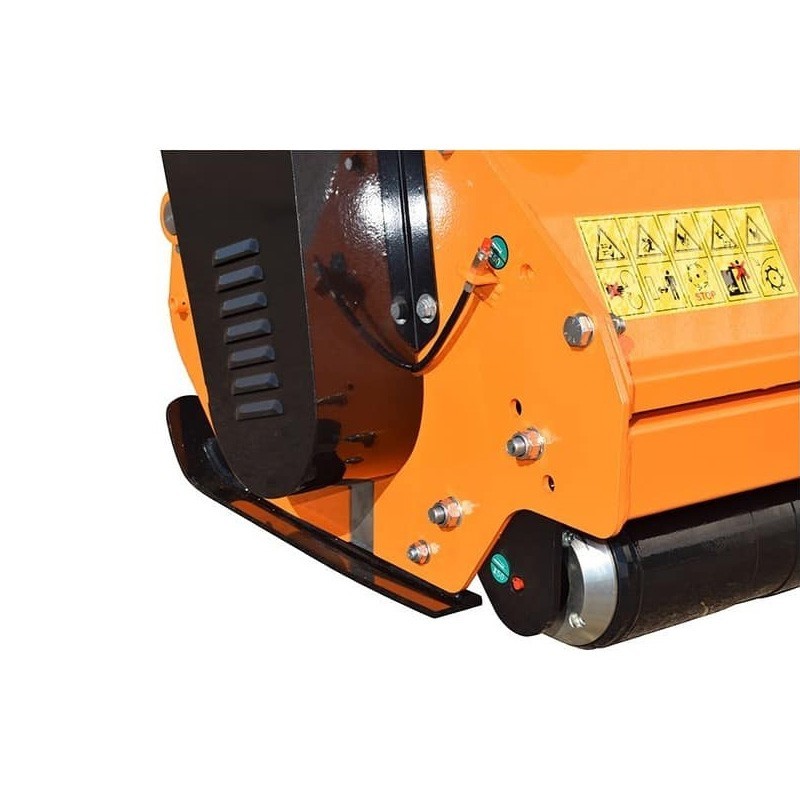

Among the advantages it offers, its rear roller with scraper/cleaner facilitates cleaning of the work area. In addition, its adjustable rear opening allows adjusting the cut according to the needs of the terrain, while the blade mounting option expands its versatility. With premium hammers and adjustable skids and roller, this mulcher adapts to a variety of working conditions. It also includes cardan shafts and pins, as well as the option to add a brushcutter disc for additional tasks.
With a working width ranging from 1690 mm to 2190 mm, and a weight ranging from 458 kg to 650 kg, the Centauro Jaén is designed to provide robust and efficient performance. Its power requirement of between 50 and 180 HP and 540 rpm PTO make it compatible with a variety of tractors. These features, together with its 348 mm offset, make it an ideal choice for those looking for a versatile and efficient machine for olive grove and farmland maintenance.
Model | Jaen 170 | Jaén 200 | Jaén 220 |
Working width (mm) | 1690 | 1990 | 2190 |
Weight (kg) | 458 | 590 | 650 |
Belt | 4 | 4 | 4 |
Hammers | 16 | 18 | 20 |
Rotor diameter (mm) | 127 | 127 | 127 |
Power requirement (HP) | 50-90 | 70-180 | 70-140 |
PTO (rpm) | 540 | 540 | 540 |
Dimensions (cm) | 97.2 x 185 x 105.5 | 97,2 x 212 x 105,5 | 97,2 x 233 x 105,5 |
Displacement (mm) | 348 | 348 | 348 |
IMPORTANT NOTICE |
It is compulsory for the customer to check oil and grease levels before starting the machine. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
