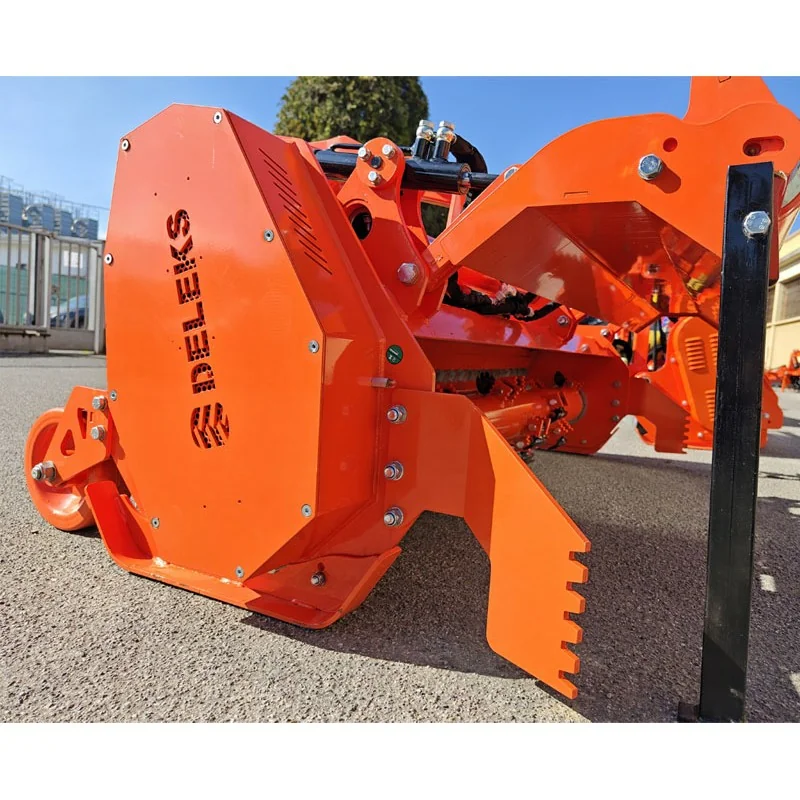

The DELEKS GORILLA forestry mulcher for tractor is a robust and efficient tool designed for intensive forestry clearing, land maintenance and dense vegetation mulching. It is available in three models according to the working width: 1500, 1800 and 2000 mm, which allows it to adapt to different operational needs.
Its hydraulic system allows both the lateral displacement of the hitch and the lifting of the rear box, facilitating handling on uneven terrain and optimizing accessibility in difficult areas. In addition, its oversized rotor with toothed hammers and double-helix support improves performance even with thick branches or hard woody material.
The large-capacity cutting chamber, combined with the serrated design of the hammer supports, ensures fine and homogeneous shredding, accelerating the work rate without compromising the quality of the result. It also incorporates bolted and interchangeable counter-blades to extend the machine's service life.
Equipped with reinforced transmission, oversized rear roller, front wheels and external belt adjustment with adjustable tensioner, this forestry shredder complies with the CE directive and is delivered with cardan shaft included. All backed by a 3-year warranty, ideal for demanding professional jobs.
Model | GORILLA 150 | GORILLA 180 | GORILLA 200 |
Working width | 1500 mm | 1800 mm | 2000 mm |
Total width | 1710 mm | 2010 mm | 2210 mm |
Cutting height min/max | 50 - 70 mm | ||
Weight | 716 kg | 766 kg | 804 kg |
Total height | 1020 mm | ||
Tractor power | 80 - 100 hp | 90 - 120 hp | |
3-point hitch | Cat. 2 (ø 25-28 mm) | ||
Hood height | 500 mm | ||
Distance between lower points | 740 - 890 mm | ||
Number of hammers | 14 | 16 | 20 |
Max. cutting diameter | 150 mm | ||
Space between ground and transmission box | 600 mm | ||
Plate thickness | 5 mm | ||
Sheet thickness at sides | 10 mm | ||
Skids thickness | 8 mm | ||
Transmission type | V-belts | ||
Transmission: Gearbox | Warranty 3 years | ||
Transmission: PTO | 540 r/min | ||
Transmission: rotation direction | Schedule | ||
Transmission: freewheel | √ | ||
Drive: rotor speed | 2166 rpm | ||
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 | ||
Transmission: number of belts | 5 | ||
Transmission: belt dimensions | 17x1321 | ||
Rotor: diameter | 168 mm | ||
Rotor: bearing type and dimension | 1309 | ||
Rotor: balancing | Electronic | ||
Rotor: blade thickness | 8 mm | ||
Hammers: weight | 1600 g | ||
Roll: diameter | 152 mm | ||
Roll: sheet thickness | 6 mm | ||
Roll: bearing type and dimension | 6308 | ||
Cardan shaft | CE 6x1000 mm + Pin | ||
Horizontal displacement | 300 mm hydr. | ||
Packing dimensions | 175 x 110 x 100 cm | 205 x 110 x 100 cm | 225 x 110 x 100 cm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
