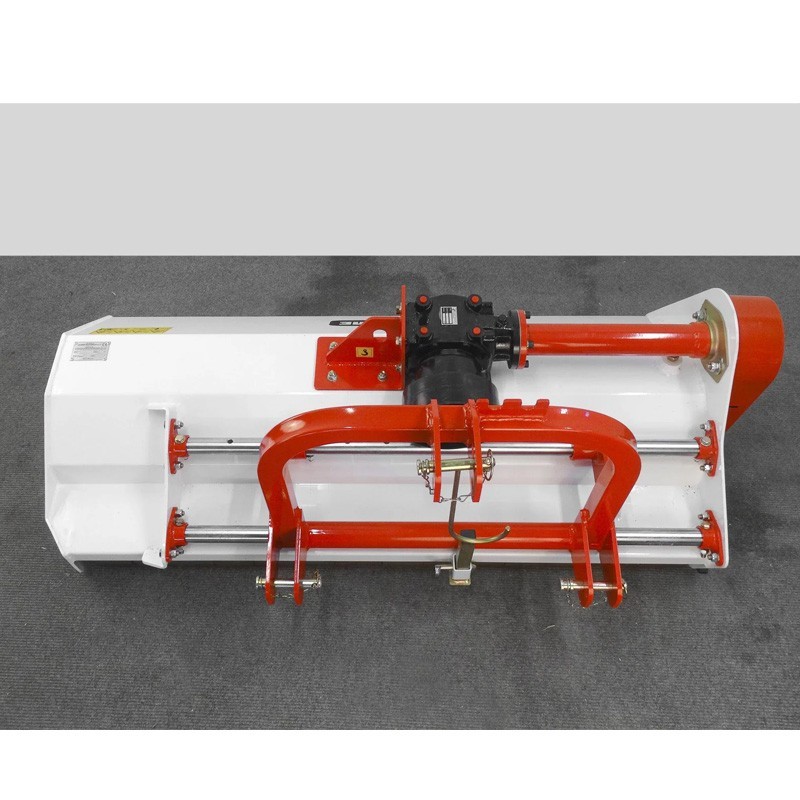

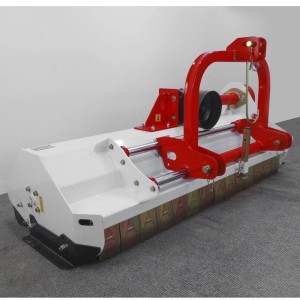

The Giemme EHM tractor shredder is a versatile and robust machine, ideal for the maintenance of green and agricultural areas. Available in five models with different working widths, adapts to various cutting and shredding needs.

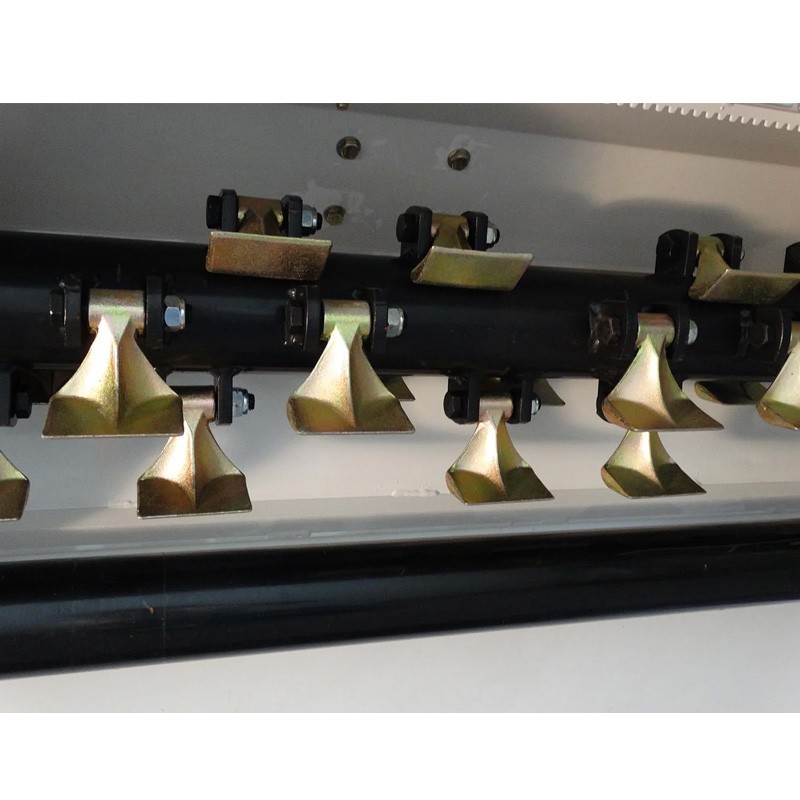

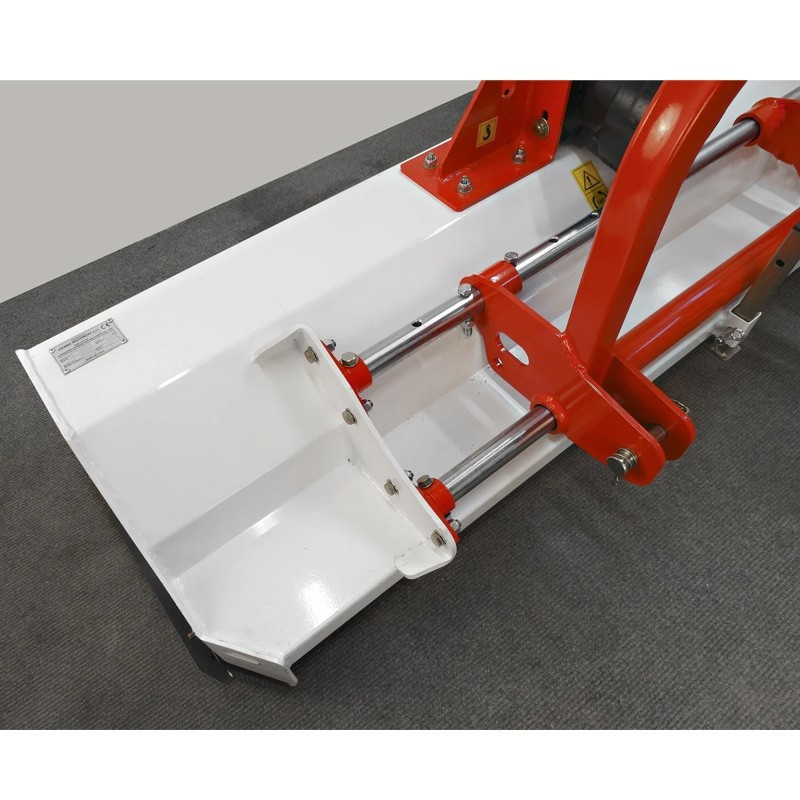

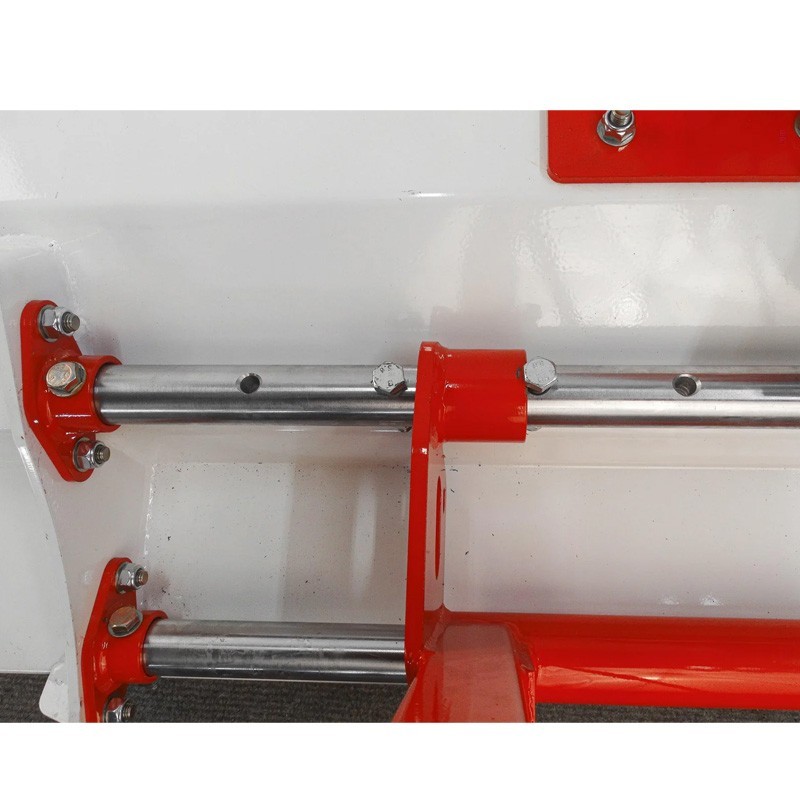

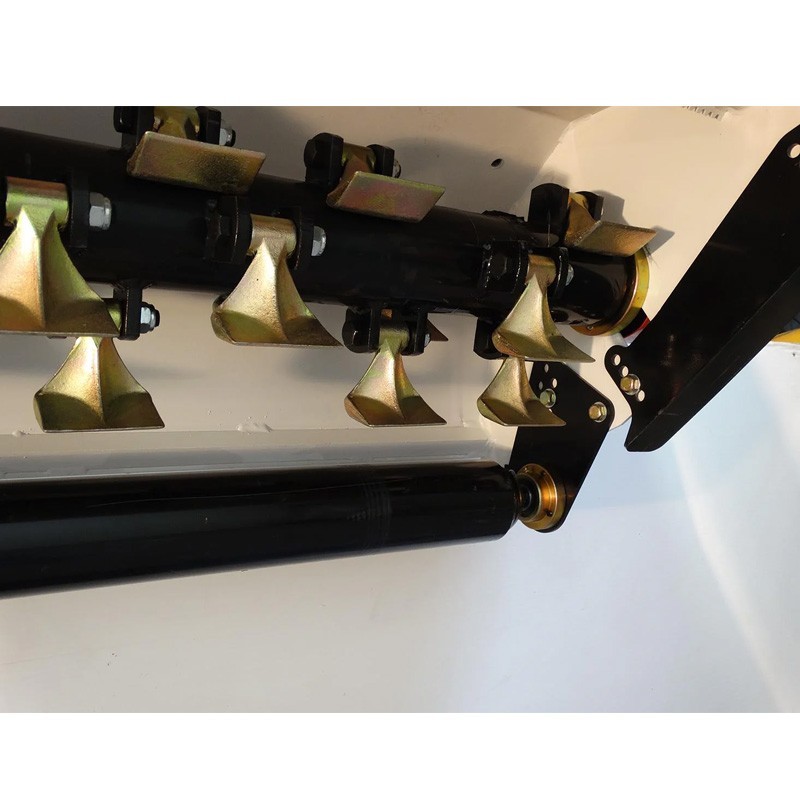

Its manual displacement can be improved by acquiring the hydraulic displacement fitting, this makes it even easier to handle in the field. Among its outstanding features, the shredder is equipped with a electronically balanced rotor, which can be equipped with 0.700 kg hammers or Y-shaped blades, ensuring an efficient and uniform cut.

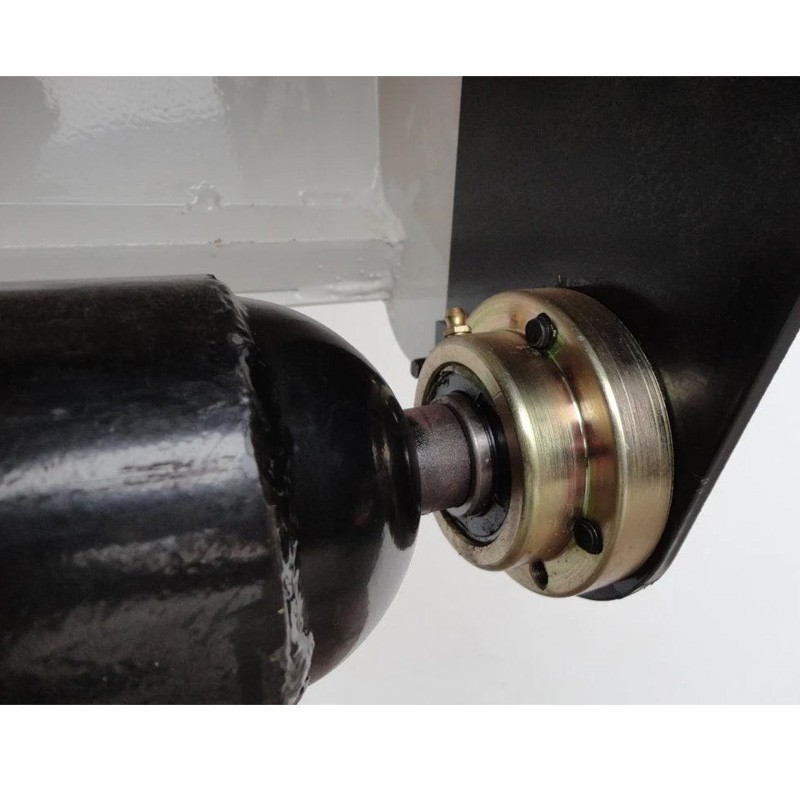

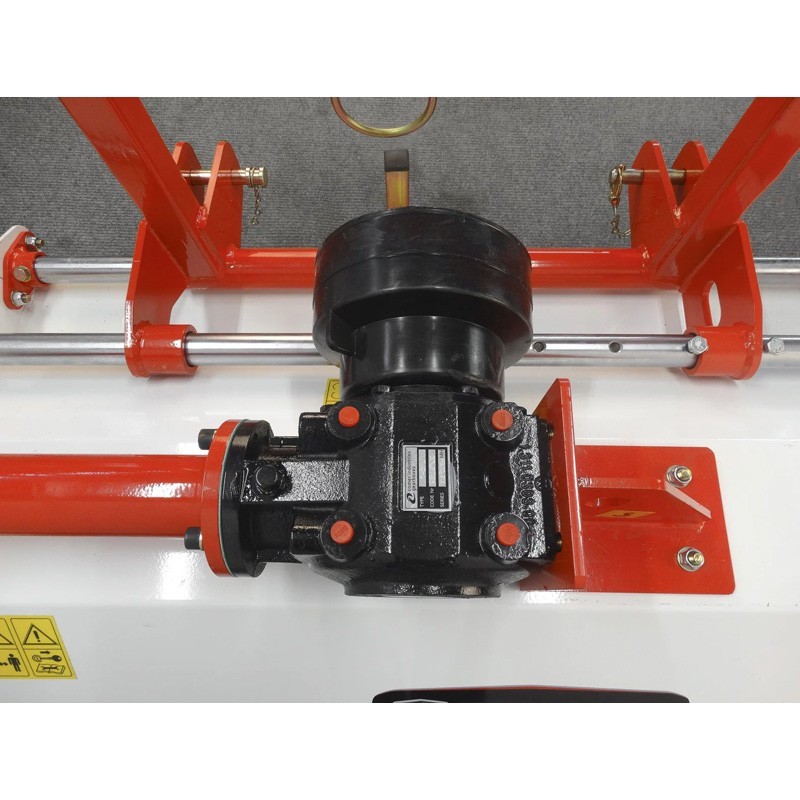

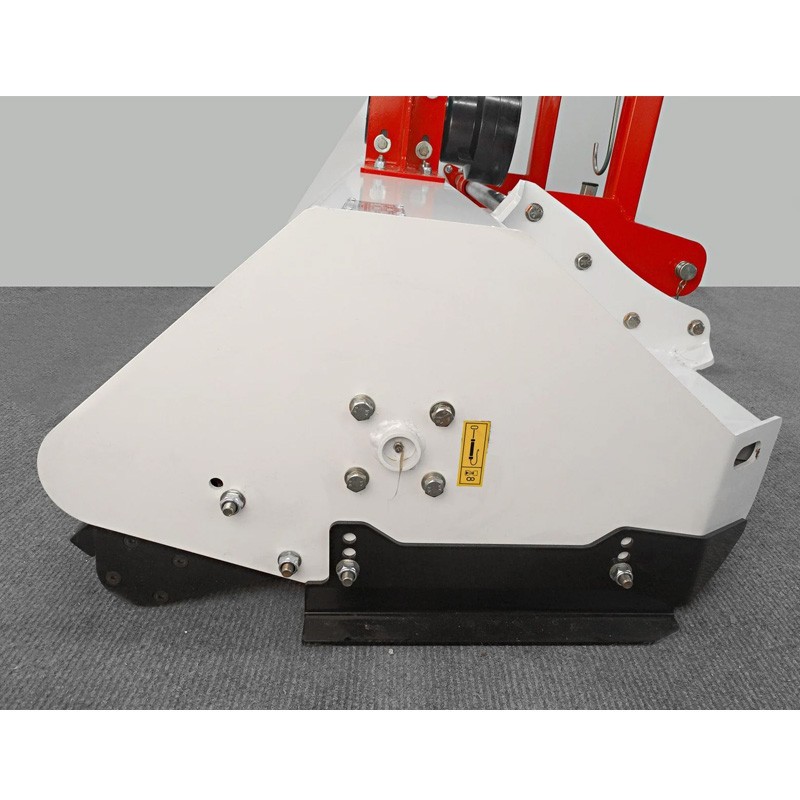

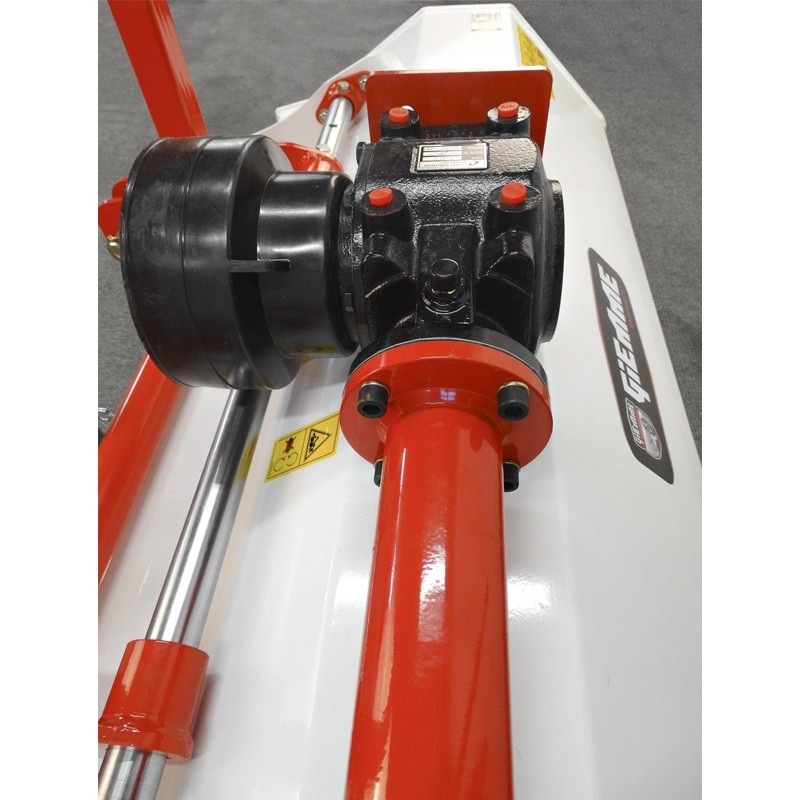

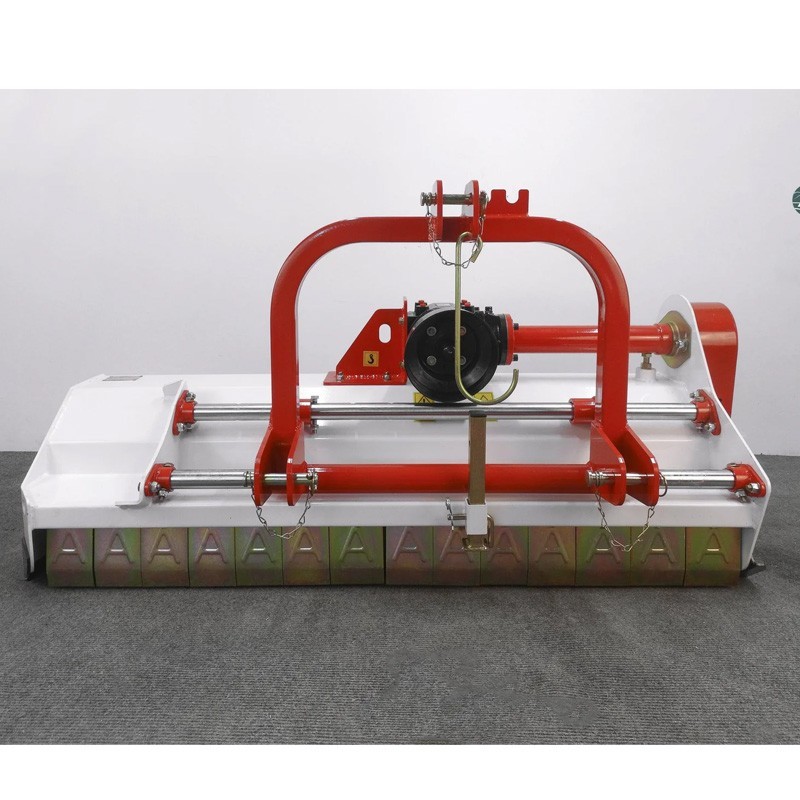

In addition, it includes a adjustable rear roller with scraper, front protection strips and a "COMER" gear system in cast iron with freewheel at 540 RPM. Its universal 3-point hitch is compatible with categories I and II, and includes 1,000 mm T4 gimbal, the tractor is equipped with a safe and reliable connection to the tractor.
| Model | EHM 125 | EHM 145 | EHM 155 |
| Working width | 125 cm | 145 cm | 155 cm |
| Total width | 141 cm | 161 cm | 171 cm |
| Tractor power | 25/35 HP | 25/35 HP | 30/45 HP |
| Weight | 270 kg | 290 kg | 300 kg |
| Hammers | 20 | 24 | 26 |

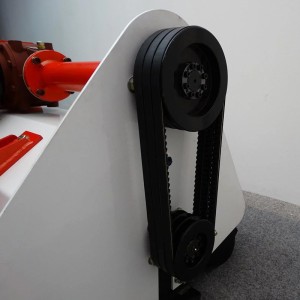

| Belts | 3 | 3 | 3 |
| Model | EHM 165 | EHM 175 | |
| Working width | 125 cm | 145 cm | |
| Total width | 141 cm | 161 cm | |
| Tractor power | 40/50 HP | 40/50 HP | |
| Weight | 310 kg | 320 kg | |
| Hammers | 28 | 28 | |
| Belts | 3 | 3 |
 |
||||
| Model | A | B | C | D |
| EHM 125 | 62 cm | 63 cm | 43 cm | 82 cm |
| EHM 145 | 79 cm | 66 cm | 45 cm | 100 cm |
| EHM 155 | 79 cm | 76 cm | 45 cm | 110 cm |
| EHM 165 | 70 cm | 85 cm | 45 cm | 120 cm |
| EHM 175 | 80 cm | 95 cm | 45 cm | 130 cm |
| IMPORTANT NOTICE |
| Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| This tractor shredder includes a hammer cutting system. It also has the option to order blade system by calling our customer service. |
Data sheet
Specific References
CARDAN SHAFT INCLUDED
Cardan shaft included
CARDAN SHAFT INCLUDED
